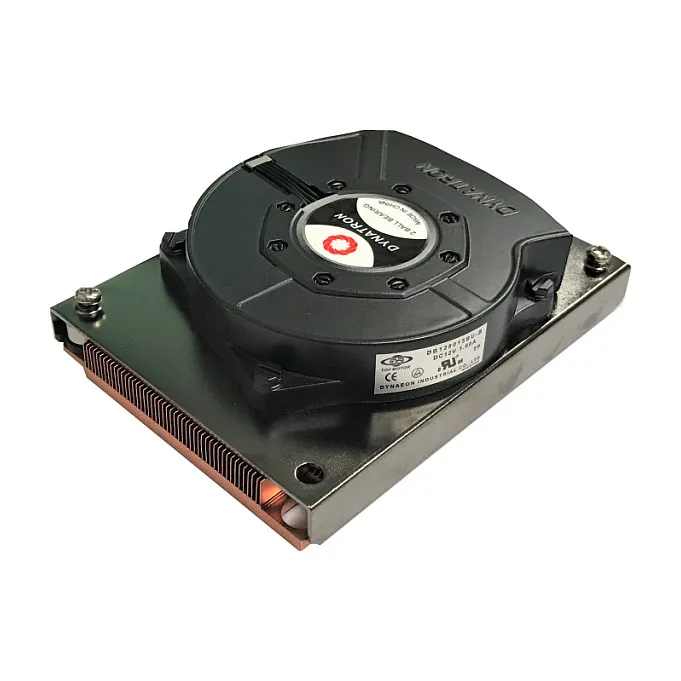

Dynatron B3. Type: Air cooler, Fan diameter: 8 cm, Rotational speed (min): 1000 RPM, Rotational speed (max): 7000 RPM, Minimum air pressure: 1.5 mmH2O, Maximum air pressure: 70.9 mmH2O, Bearing type: Ball bearing. Width: 107 mm, Depth: 80.5 mm, Height: 20 mm. Product colour: Khaki
Intel Socket FCLGA3647 Narrow ILM 80x15mm Aluminum PWM Blower Fan, Copper skiving heatsink for 1U Server up to CPU power 165 Watts.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: LGA 3647 (Socket P)
Compatible processor series: Intel® Xeon Phi™, Intel Xeon W
Rotational speed (min): 1000 RPM
Rotational speed (max): 7000 RPM
Noise level (low speed): 16 dB
Noise level (high speed): 57.1 dB
Minimum airflow (imperial): 3 cfm
Maximum airflow: 21 cfm
Minimum air pressure: 1.5 mmH2O
Maximum air pressure: 70.9 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Quantity per pack: 1 pc(s)
Design
Product colour: Khaki
Material: Aluminium, Copper, Plastic
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Fan connector: 4-pin
Rack capacity: 1U
Certification: RoHS, REACH
Power
Power consumption (typical): 19.2 W
Rated voltage: 12 V
Weight & dimensions
Width: 107 mm
Depth: 80.5 mm
Height: 20 mm
Weight: 460 g
Fan dimensions (W x D x H): 80 x 80 x 15 mm
Technical details
Compliance certificates: RoHS
Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: LGA 3647 (Socket P)
Compatible processor series: Intel® Xeon Phi™, Intel Xeon W
Rotational speed (min): 1000 RPM
Rotational speed (max): 7000 RPM
Noise level (low speed): 16 dB
Noise level (high speed): 57.1 dB
Minimum airflow (imperial): 3 cfm
Maximum airflow: 21 cfm
Minimum air pressure: 1.5 mmH2O
Maximum air pressure: 70.9 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Quantity per pack: 1 pc(s)
Design
Product colour: Khaki
Material: Aluminium, Copper, Plastic
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Fan connector: 4-pin
Rack capacity: 1U
Certification: RoHS, REACH
Power
Power consumption (typical): 19.2 W
Rated voltage: 12 V
Weight & dimensions
Width: 107 mm
Depth: 80.5 mm
Height: 20 mm
Weight: 460 g
Fan dimensions (W x D x H): 80 x 80 x 15 mm
Technical details
Compliance certificates: RoHS
