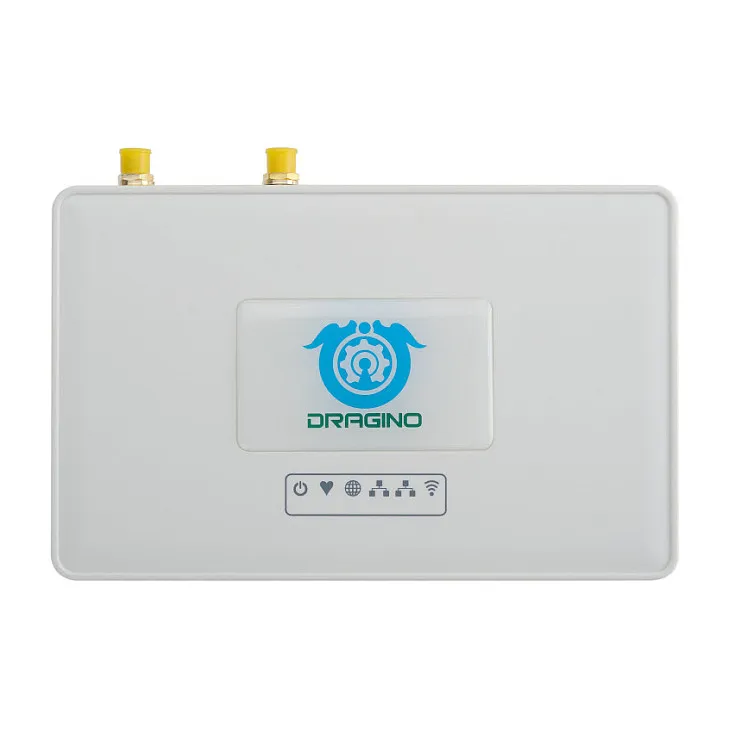

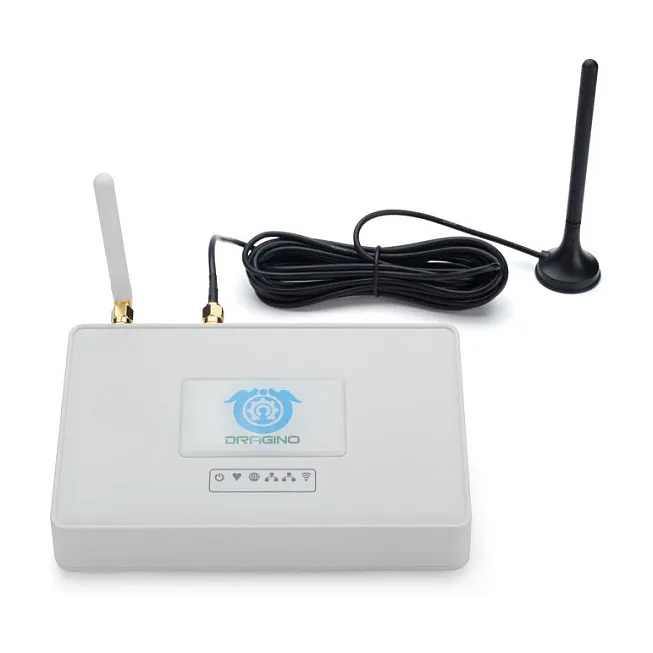

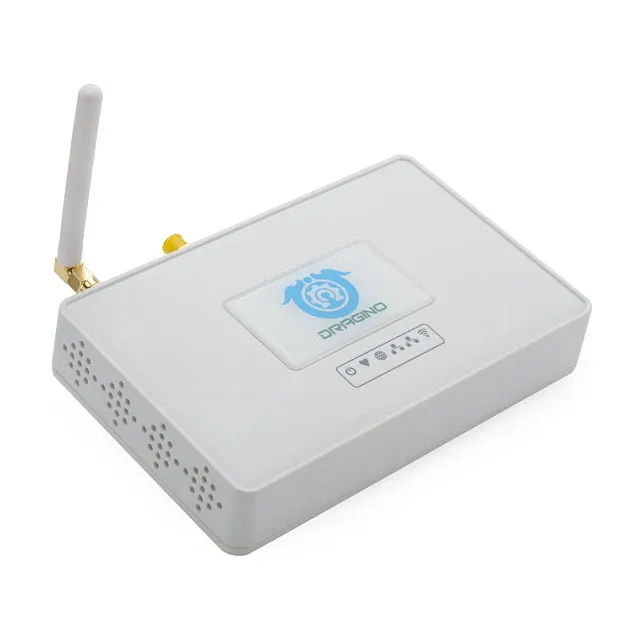

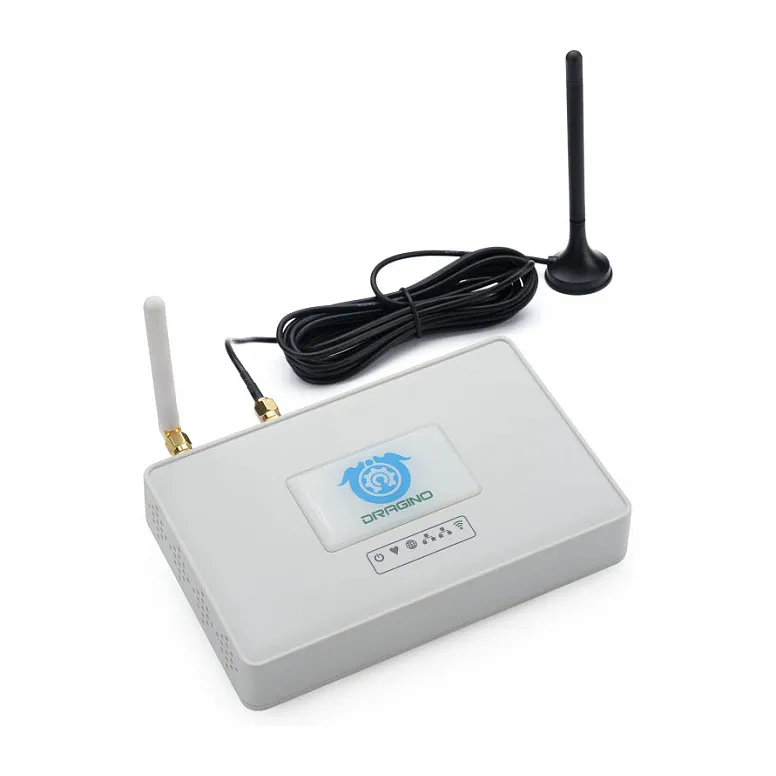

Dragino Technology LG308N-868. Product colour: White. Processor frequency: 400 MHz, Internal memory: 64 MB, Flash memory: 16 MB. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Frequency band: 2.4 – 2.462 GHz. Width: 15 mm, Depth: 5 mm, Height: 10 mm. Package width: 26 mm, Package depth: 7 mm, Package height: 11 mm
The LG308N uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1302 LoRa concentrator, which provides 10 programmable parallel demodulation paths.
LG308N has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network.
LG308N can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.
Product colour: White
Performance
Feature: Built-in processor
Processor frequency: 400 MHz
Internal memory: 64 MB
Flash memory: 16 MB
Network
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Frequency band: 2.4 – 2.462 GHz

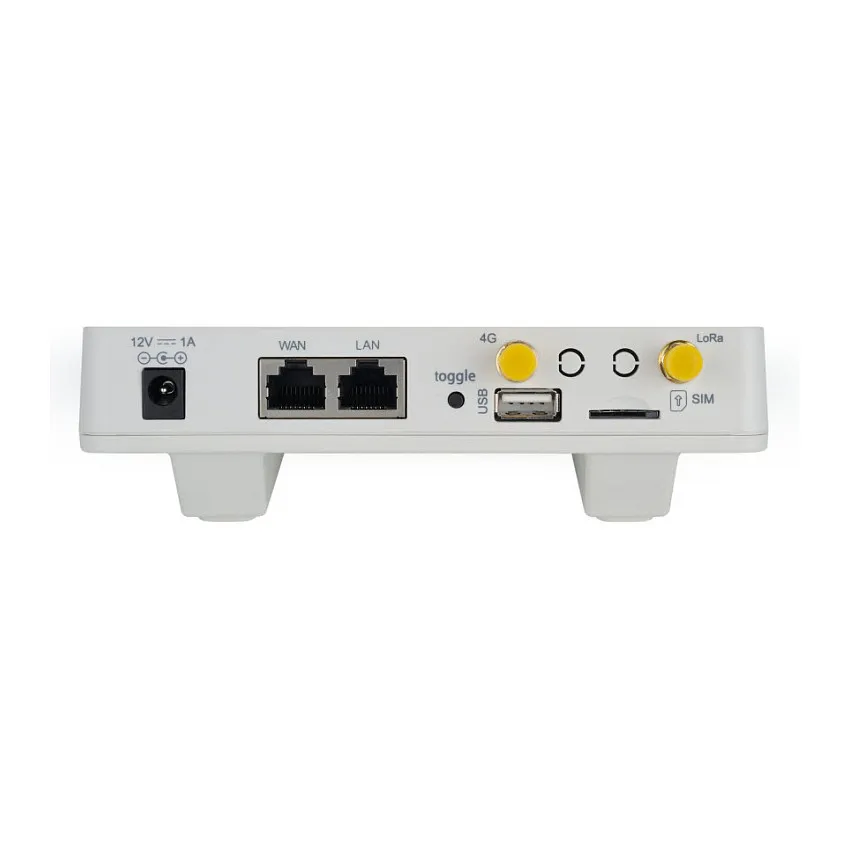

Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Weight & dimensions
Width: 15 mm
Depth: 5 mm
Height: 10 mm
Weight: 192 g
Packaging data
Package width: 26 mm
Package depth: 7 mm
Package height: 11 mm
Package weight: 500 g
