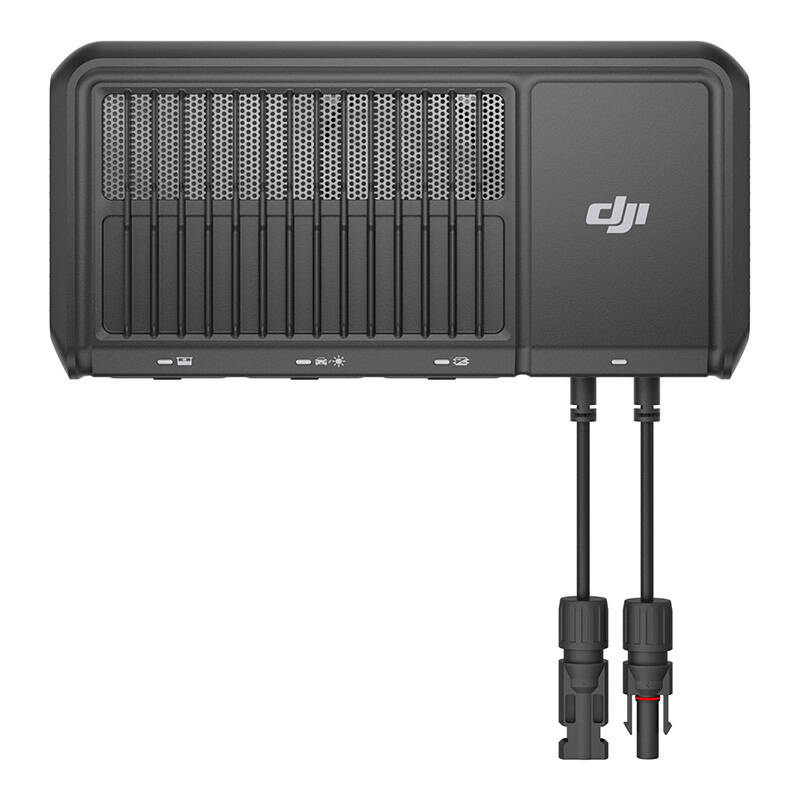

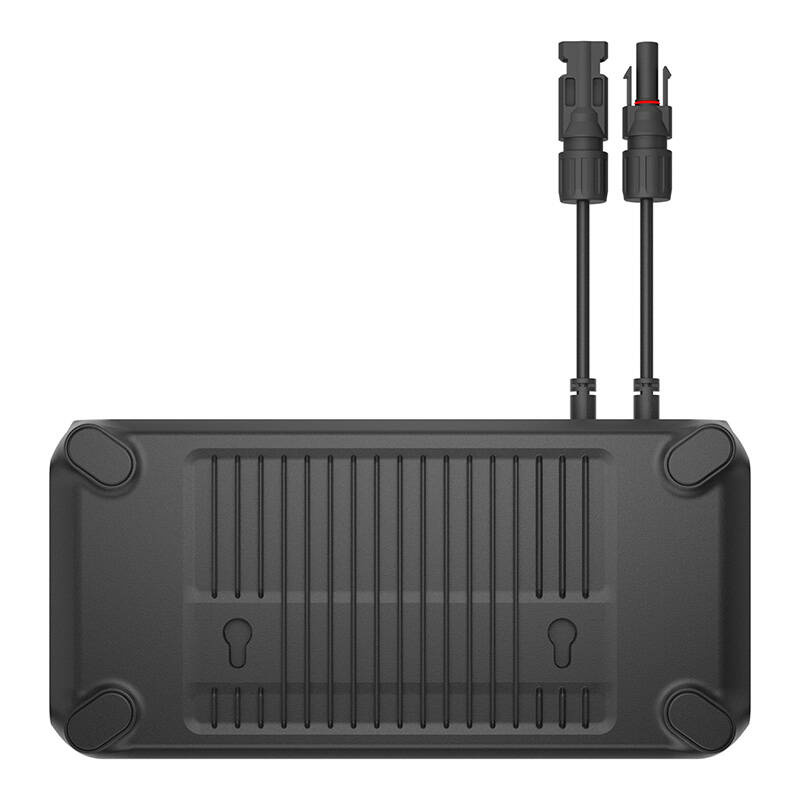

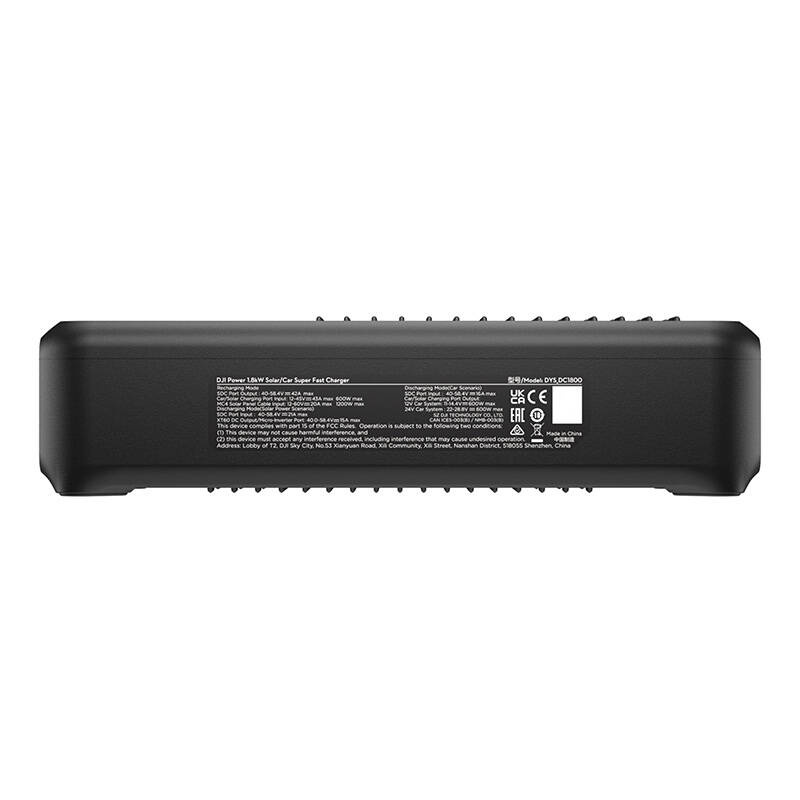

DJI Power 1.8kW solar/fast car charger
The DJI Power 1.8kW is an advanced car and solar charger that provides fast charging for the DJI Power 1000 battery and other devices. With the ability to charge using solar panels and a car alternator, this charger becomes an indispensable tool on the go, offering a wide range of features such as bi-directional charging and power system expandability. It is the ideal solution for those looking for a reliable and environmentally friendly power source.
An innovative solution for charging on the go
The charger provides exceptional performance when charging devices on the road. With the ability to simultaneously connect to solar panels and a car alternator, the device enables as much as 1,200 watts of solar power, and 600 watts of power from a car power system. This allows the DJI Power 1000 and an additional capacity expansion battery to charge quickly. In about 40 minutes of driving, the device delivers up to 1,024 Wh of power, providing a significant expansion of electrical power in the vehicle.
Integration with the car’s system and solar panels
The DJI Power 1.8kW is ideal for travelers who want to take full advantage of the potential of renewable energy. By combining with the solar panel (up to 1,800 watts) and the car’s alternator, the charger provides power to the DJI Power 1000 and the expansion battery. As a result, the device becomes a greener and more economical way to store energy at home. In addition, the charger supports bidirectional charging, which allows the Power 1000 to be discharged to power the car battery, preventing it from being discharged.
Compatibility with various systems
The charger is compatible with 12V and 24V car systems, providing a maximum charging power of 1800 watts by connecting to solar panels. It is important that the input voltage at the car’s charging terminals does not exceed 45V. Additional batteries, including the DJI Power Expansion Battery 2000, can also be connected to the system, allowing it to increase capacity to 3072 Wh and generate ultra-high power (2400-2600 W).
Safety and caution
After installing the charger in the car, properly secure the wiring and make sure all terminal screws are properly tightened before driving. The charger is not waterproof or dustproof, so be careful when installing and using it. It is also worth remembering that the maximum input voltage of the MC4 solar panel cable is 60 volts, and the maximum power is 1200 watts.

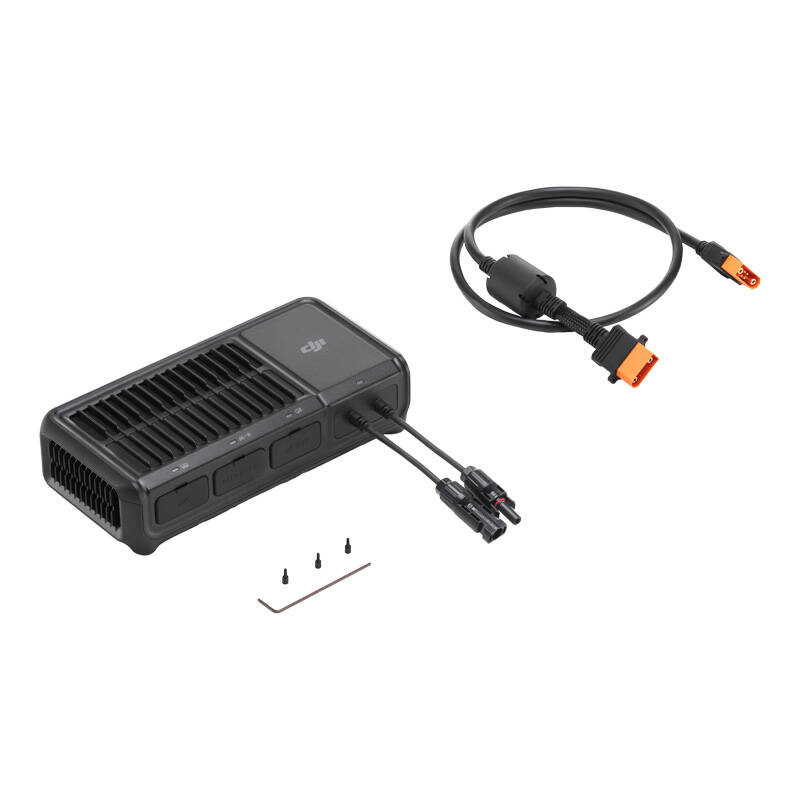

Included
- DJI Power 1.8 kW solar/car charger
- DJI Power SDC to SDC transition cable (30A)
- M2.5 x3 allen screw
- M2.5 hex key
| Manufacturer | DJI |
|---|---|
| Weight | 1.2 kg |
| Dimensions | 260 × 126 × 63 mm |
| Ports | SDC port, car/solar charging port |
| Input | MC4 solar panel cable (input): 12-60 V nominal voltage, 20 A maximum current, 1200 W maximum power; XT90 car/solar charging port (input): nominal voltage 12-45 V, maximum current 43 A, maximum power 600 W; SDC port (Output): voltage 40-58.4 V |
| Output (solar power supply) | SDC port (input) 40-58.4 V |
| Output (power supply via automotive energy) | SDC port (input) 40-58.4 V; XT90 car/solar charging port (Output): 12V 11-14.4 V system, maximum power: 600 W, 24V 22-28.8 V system, maximum power 600 W. |
| Charging temperature | 0° to 45° C (32° to 113° F) |
| Power temperature | -10° to 45° C (14° to 113° F) |
| Compatibility | DJI Power 1000 |
