Digitus USB-A 5V PoE Splitter. Networking standards: IEEE 802.3at, Cabling technology: 10/100Base-T(X), Product colour: White. Width: 82.3 mm, Depth: 34.7 mm, Height: 19 mm. Quantity per pack: 1 pc(s). Package width: 165 mm, Package depth: 97 mm, Package height: 40 mm. Input voltage: 40 – 57 V, Output voltage: 5 V, Output current: 2.5 A
– Provide USB 5V power by PoE splitter
– PoE Input :40-57Vdc PoE 802.3af/at
– USB Power Output: 5Vdc 2.5A(max)
– Data Output Speed: 10/100Mbps (RJ45)
– Wall-moutable
– IP40 rated Protection
– Power output Indicator : Green

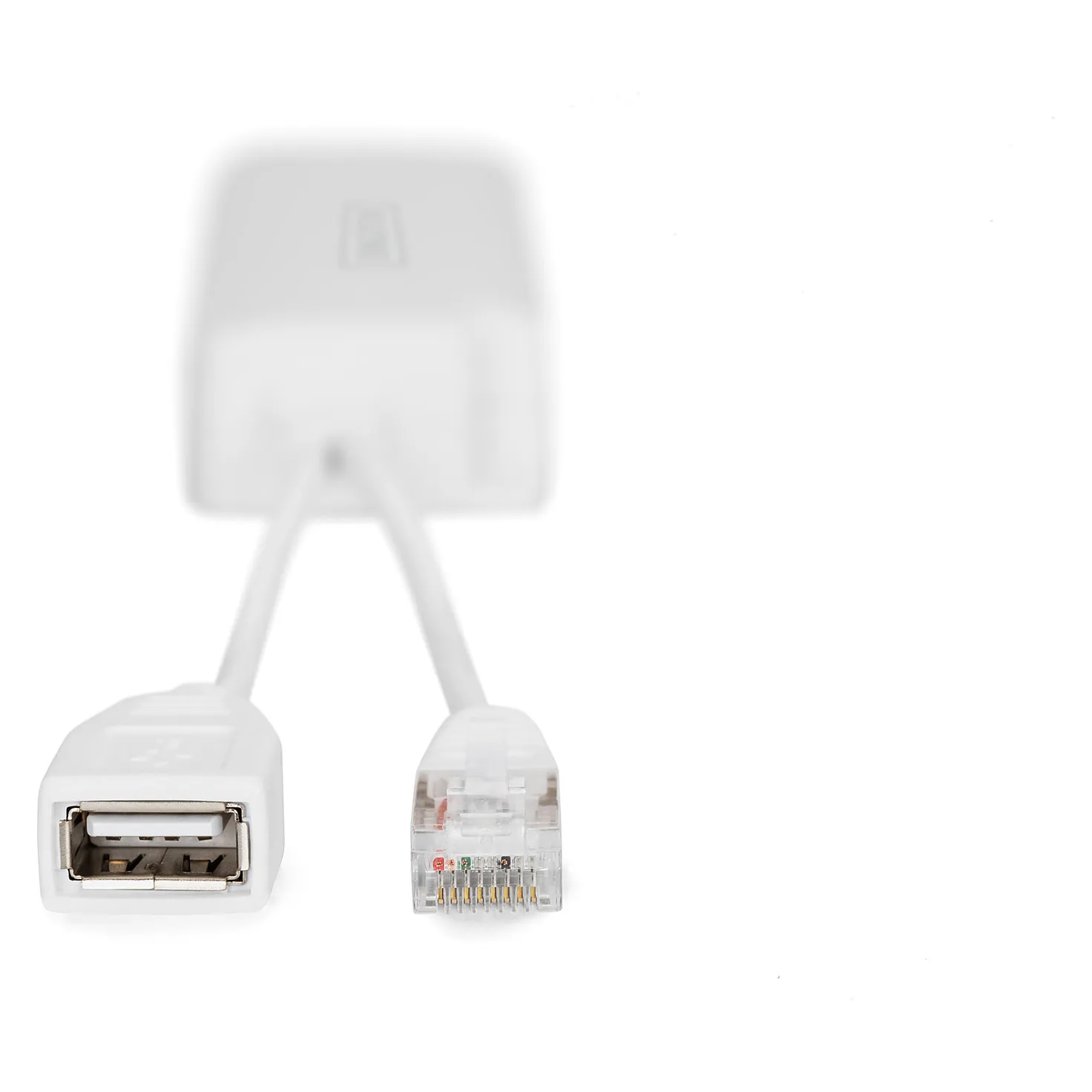

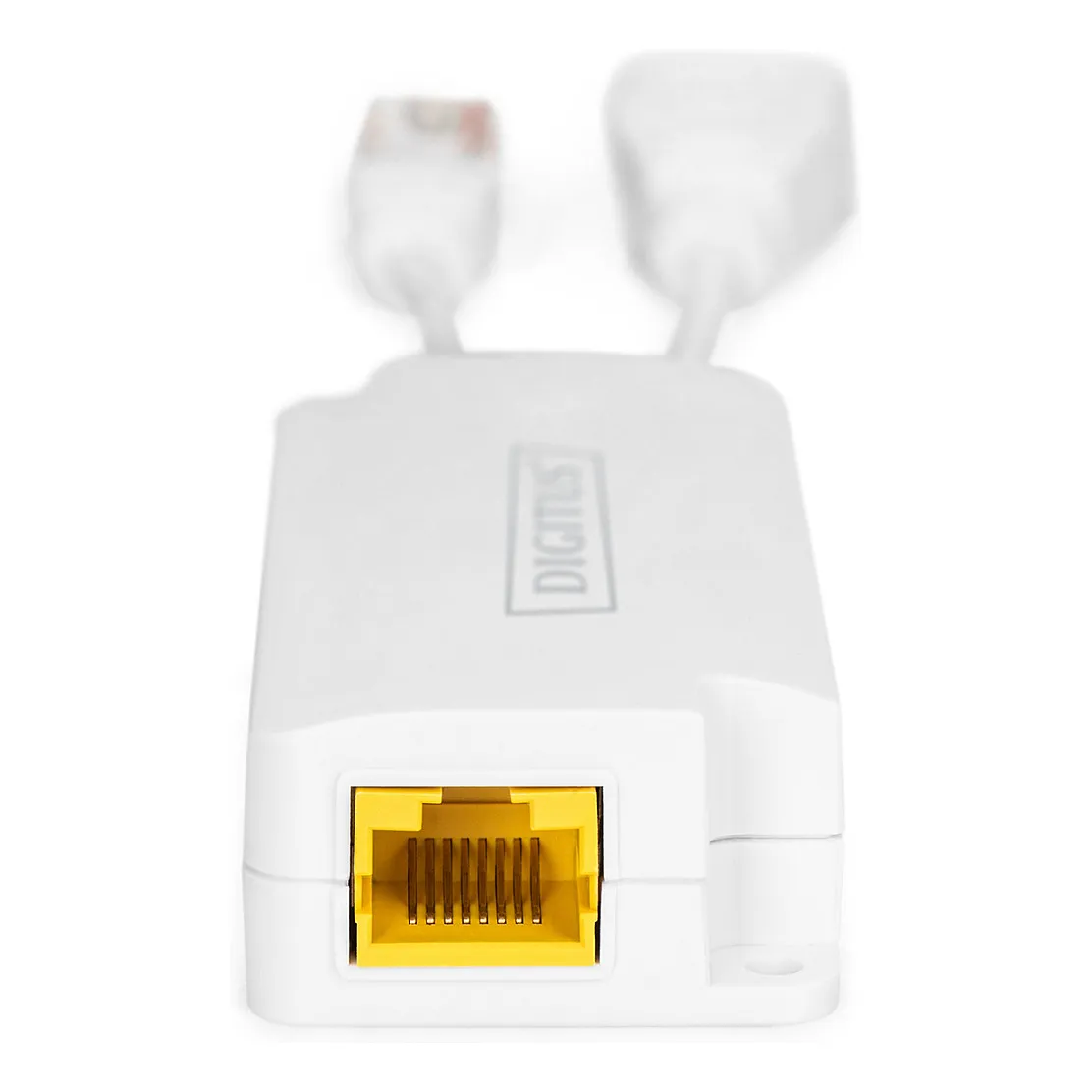

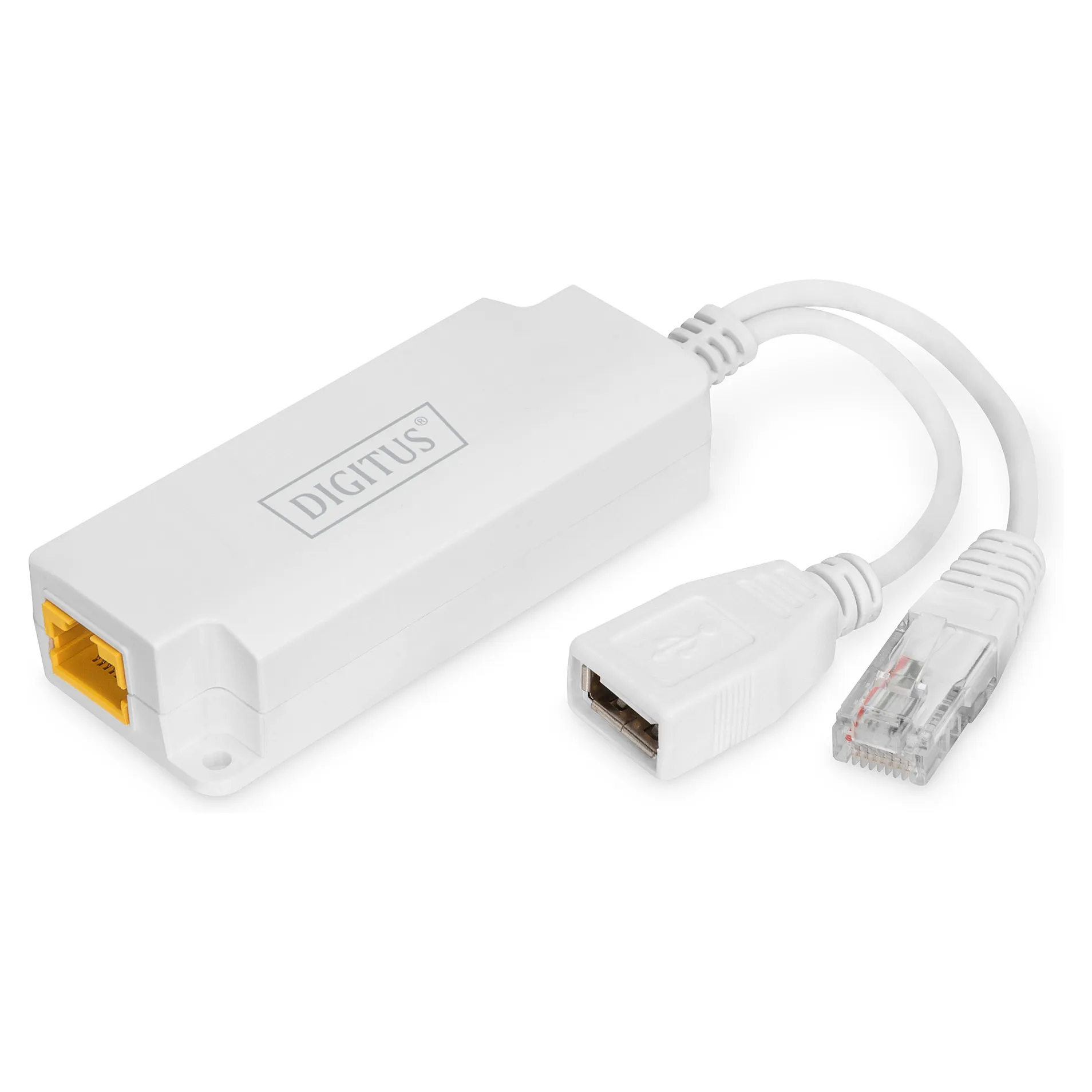

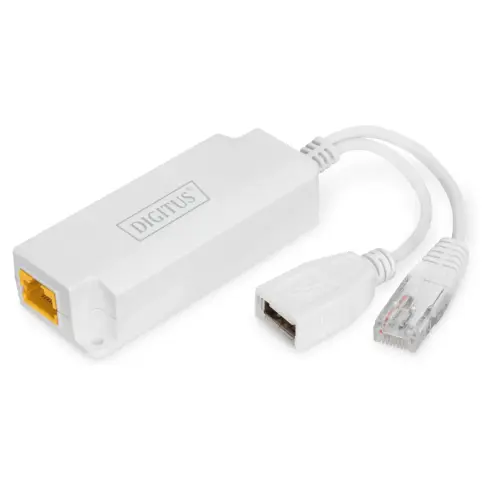

DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs. The output power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as power communication station, wireless APs, network cameras, Tablet PC, and other USB-A devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.
Networking standards: IEEE 802.3at
Cabling technology: 10/100Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: White
Feature: Wall mountable
International Protection (IP) code: IP40
Cable length: 0.124 m
Feature: Plug and Play
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Width: 82.3 mm
Depth: 34.7 mm
Height: 19 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 165 mm
Package depth: 97 mm
Package height: 40 mm
Package weight: 148.5 g
Package volume: 640.2 cm³
Power
Input voltage: 40 – 57 V
Output voltage: 5 V
Output current: 2.5 A
Logistics data
UK Trade Tariff code: 85176200
Country of origin: China
