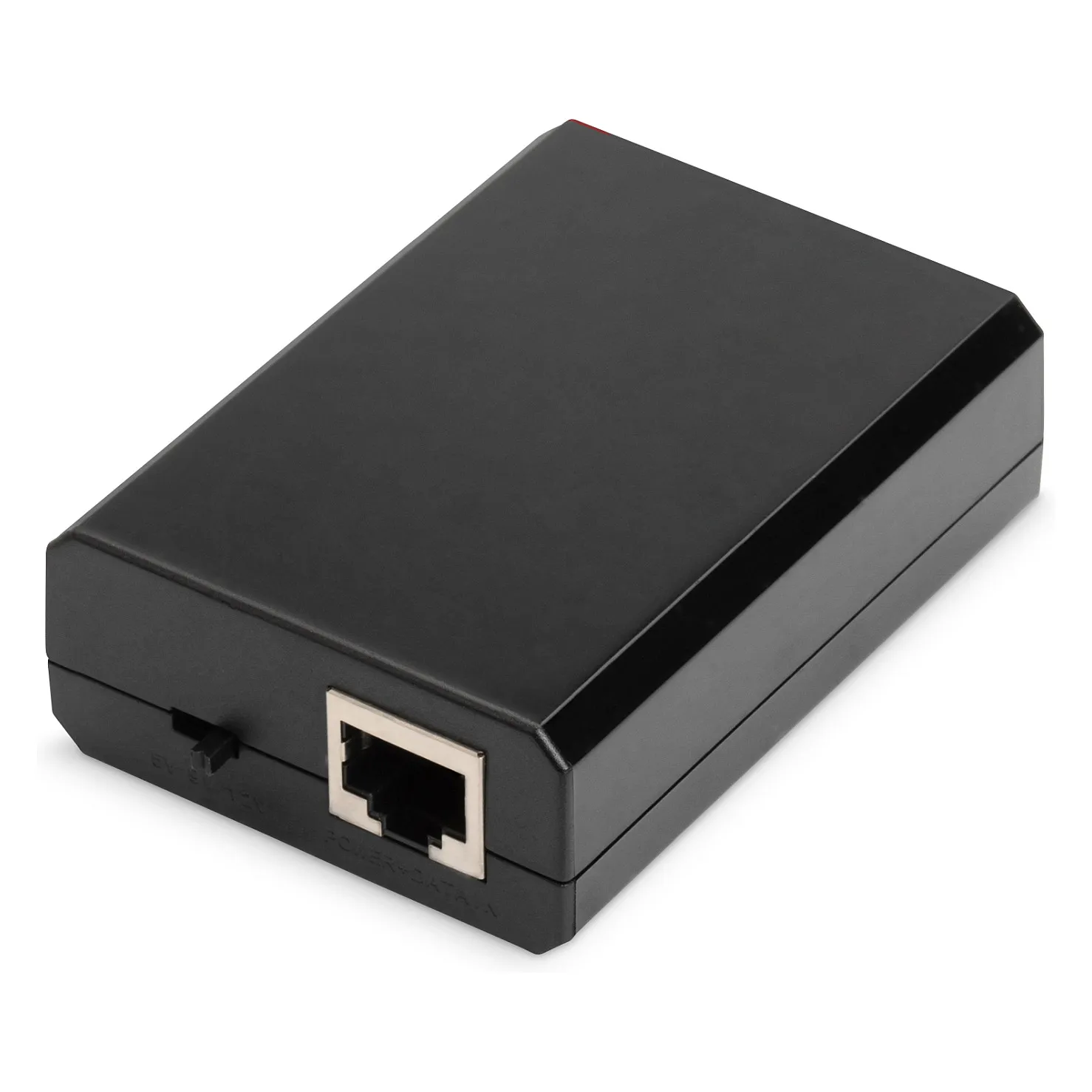

Digitus Gigabit Ethernet PoE+ Splitter, 802.3at, 24 W. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Product colour: Black, LED indicators: PoE, Power protection features: Short circuit. Power over Ethernet (PoE) voltage: 12 V, Output power: 24 W, Input voltage: 34 – 57 V. Weight: 80 g, Dimensions (WxDxH): 55 x 80 x 23 mm. Number of products included: 1 pc(s)
– Gigabit Ethernet Speed
– Fanless design ensures a quiet operation
– Requires no external power supply unit
– Adjustable output 5V/2A , 9V/2A, 12V/2A
– Support 5.5mm and 3.5mm power jack

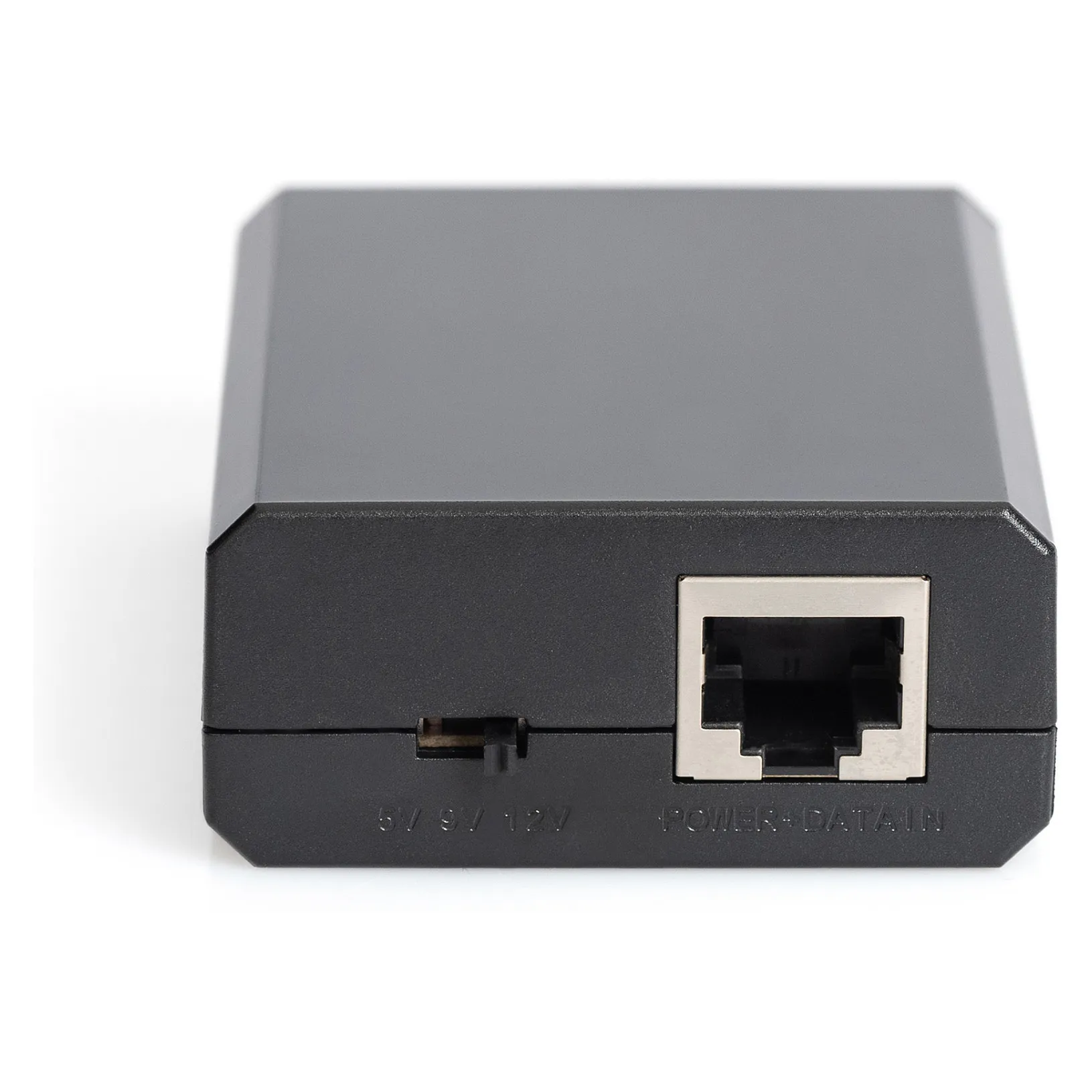

The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to devices, which are not supporting Power over Ethernet. Just connect the input of the Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network device such as an access point, IP Phone or a Camera to provide Power and Data. The Extender is self powered by PoE, so there is no additional power supply needed. The output voltage can be regulated via a dip switch to 5V , 9V or 12V. So this Splitter expand your network where you wish to place network device where are no power outlets available.
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3at
Features
Product colour: Black
LED indicators: PoE
Power protection features: Short circuit
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Power over Ethernet (PoE) voltage: 12 V
Output power: 24 W
Input voltage: 34 – 57 V
Output current: 2 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Weight & dimensions
Weight: 80 g
Dimensions (WxDxH): 55 x 80 x 23 mm
Packaging content
Number of products included: 1 pc(s)
Feature: AC adapter included
Feature: Power cord included
Feature: Manual
Packaging data
Package width: 80 mm
Package depth: 153 mm
Package height: 25 mm
Package weight: 130 g
Package volume: 306 cm³
Logistics data
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85044095
Country of origin: China
