Digitus 24 Port 10G Ethernet PoE+ Injector, 802.3at, 370 W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex, Networking standards: IEEE 802.3af. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
– 24 10G ports with PoE+ support
– 370 watt performance with up to 30 watts per port
– Compatible with the IEEE802.3at standards
– Automatic surge protection
– Supports bandwidth up to 10Gbps

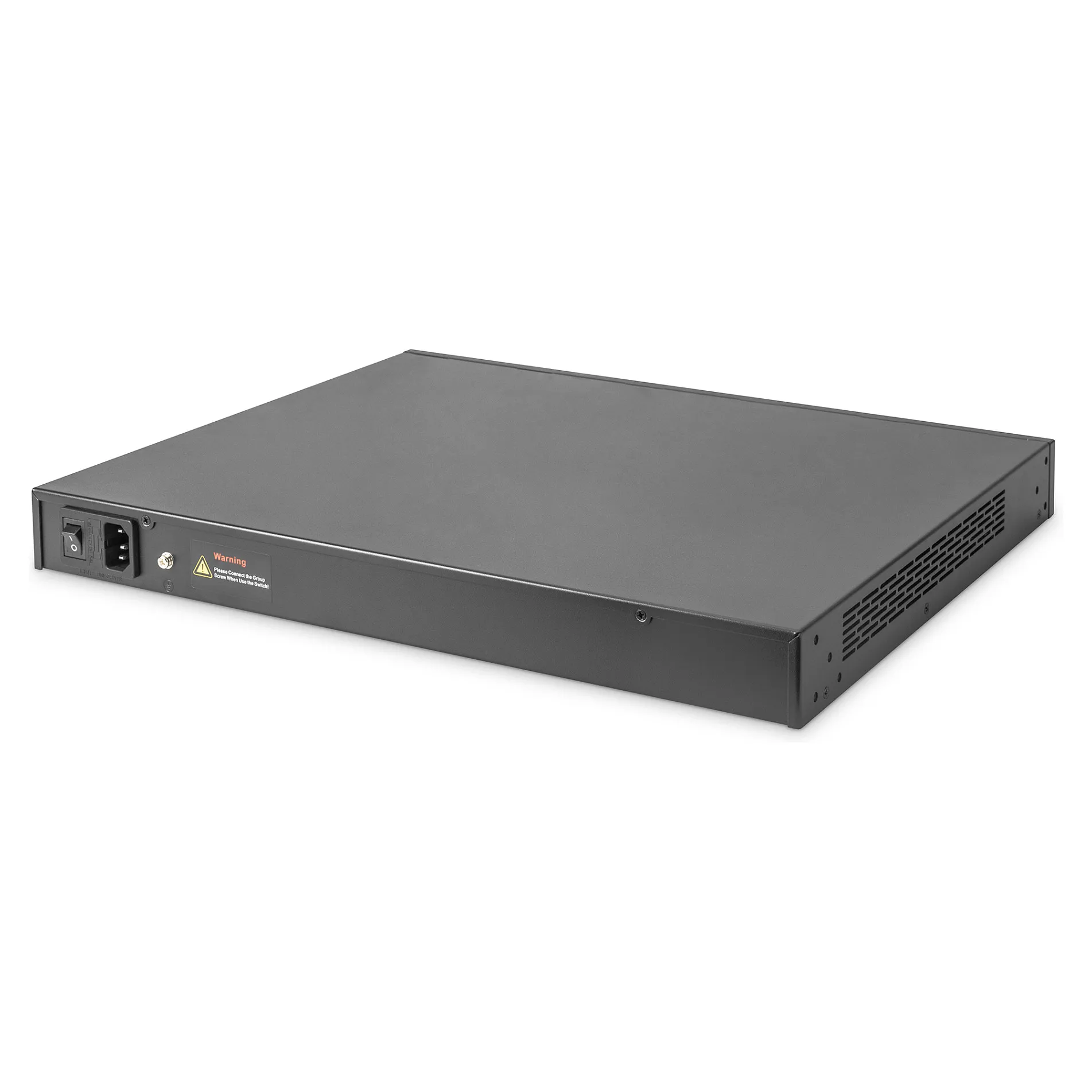

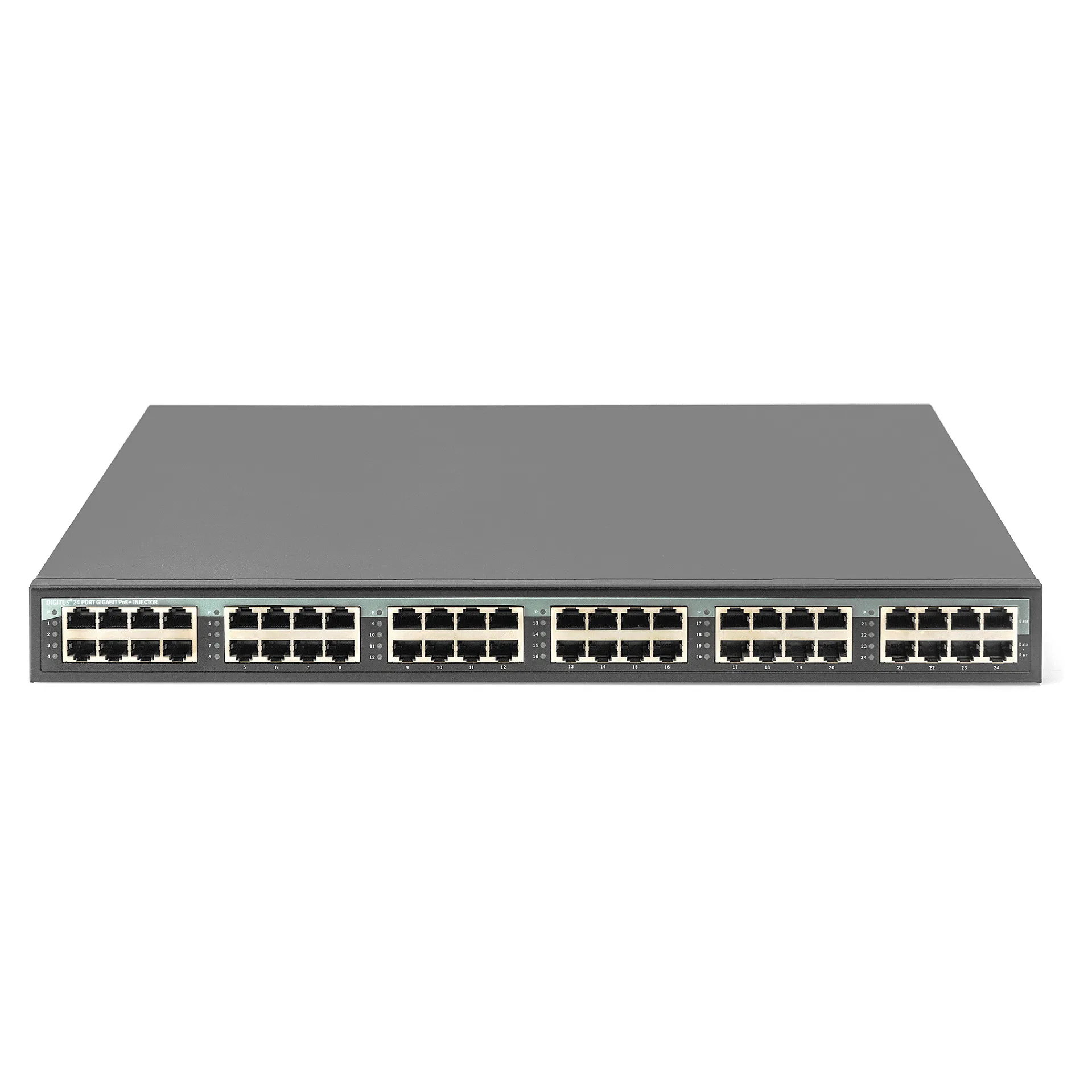

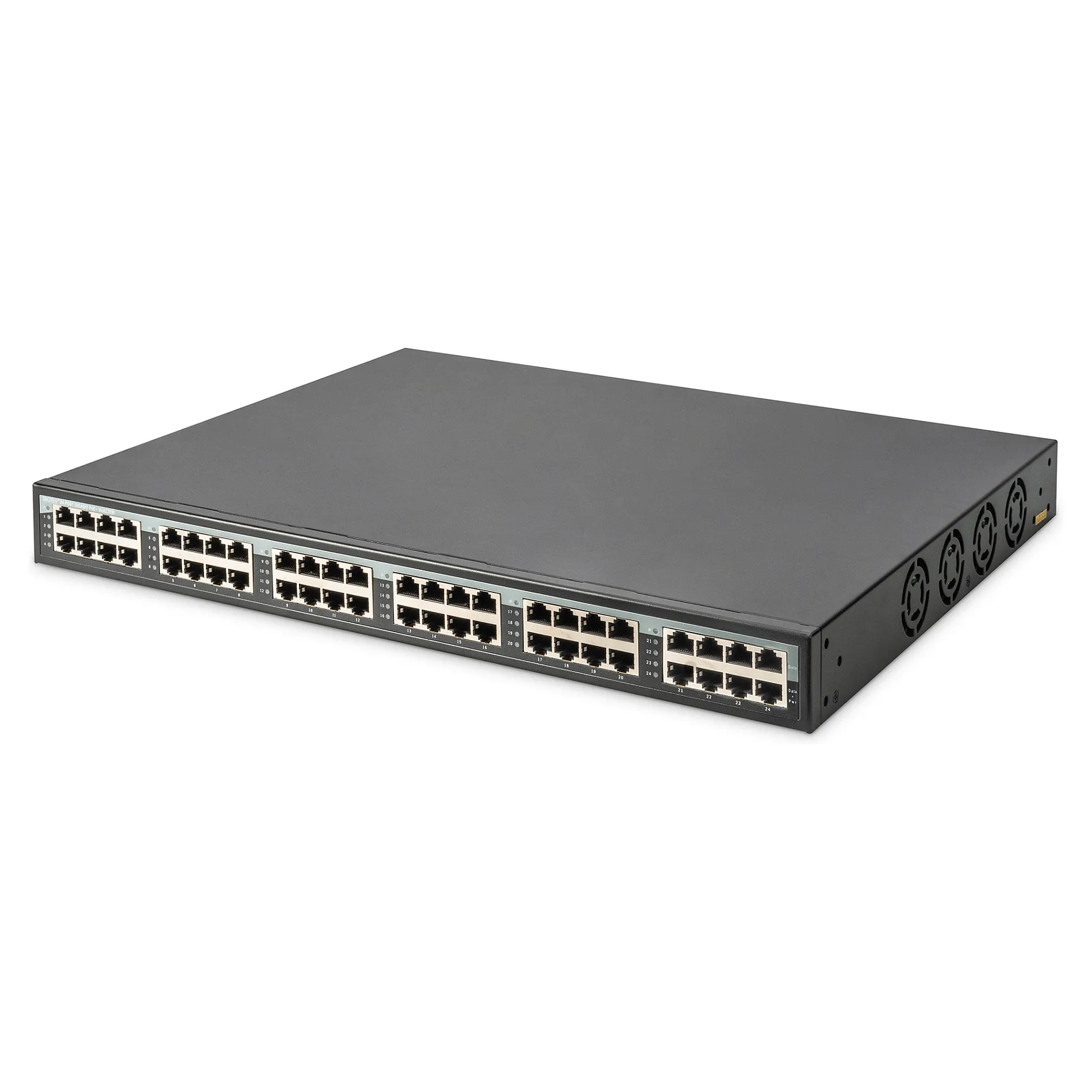

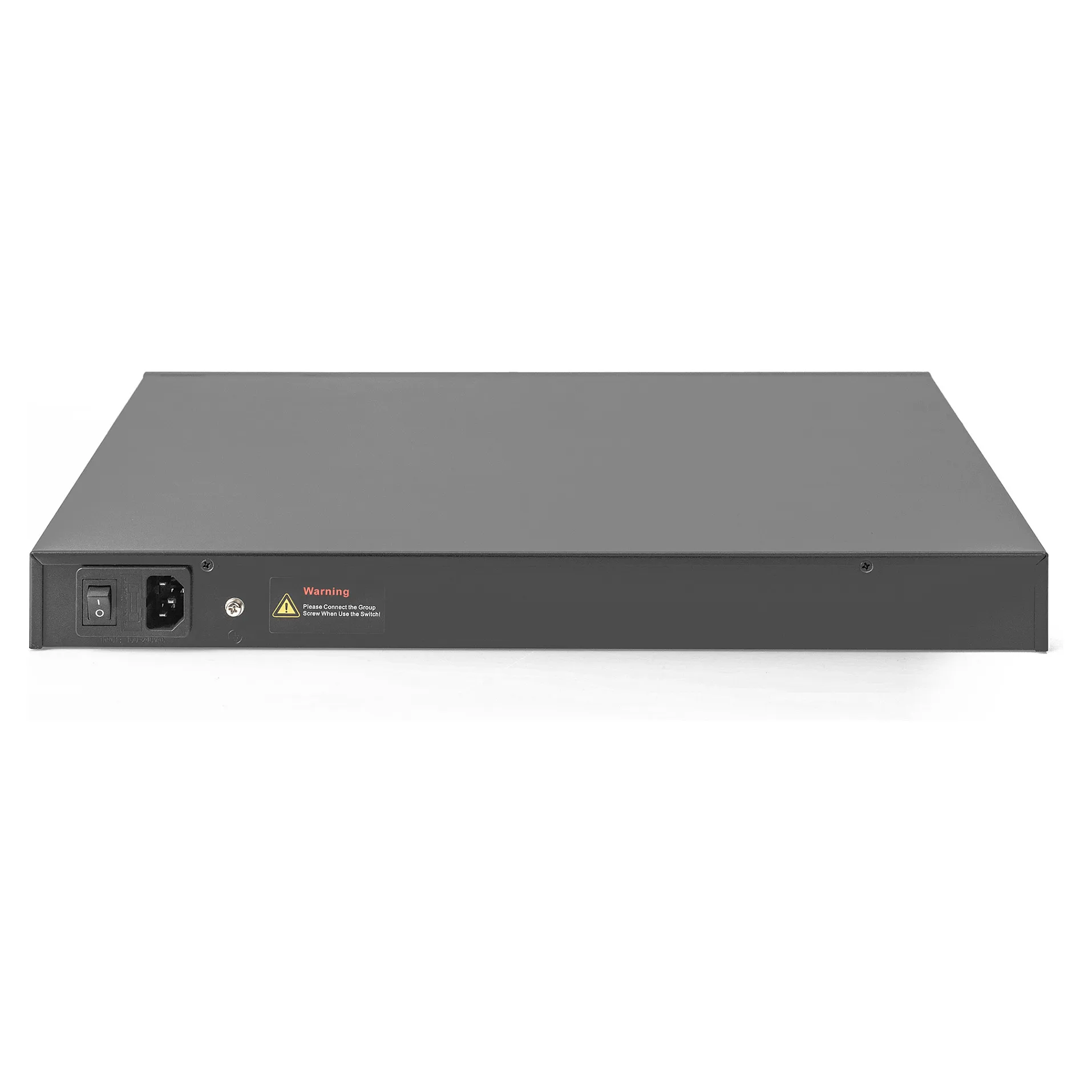

The DIGITUS® DN-95117 is an 24 port 10G PoE+ mid-span hub (PoE injector). It offers 24 input ports for data and 24 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 370 watts for all ports and maximum budget of 30 watts per port.
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3af
Feature: Full duplex
Feature: Auto MDI/MDI-X
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Grey
LED indicators: Power
Feature: On/off switch
Performance
Feature: Plug and Play
Mean time between failures (MTBF): 100000 h
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 4.5 A
Power consumption (max): 270 W
Feature: Surge protection
Power protection features: Overload, Short circuit
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) voltage range: 1.2 – 3.6 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W
Other features
Ethernet interface type: 10 Gigabit Ethernet
Operational conditions
Operating temperature (T-T): -10 – 45 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 345 mm
Depth: 440 mm
Height: 45 mm
Weight: 4.39 kg
Packaging content
Cables included: AC
Feature: Quick start guide
Packaging data
Package type: Box
Package width: 405 mm
Package depth: 505 mm
Package height: 95 mm
Package volume: 19429.9 cm³
Package weight: 5.33 kg
Logistics data
UK Trade Tariff code: 85044095
Country of origin: China
Harmonized System (HS) code: 85176990
