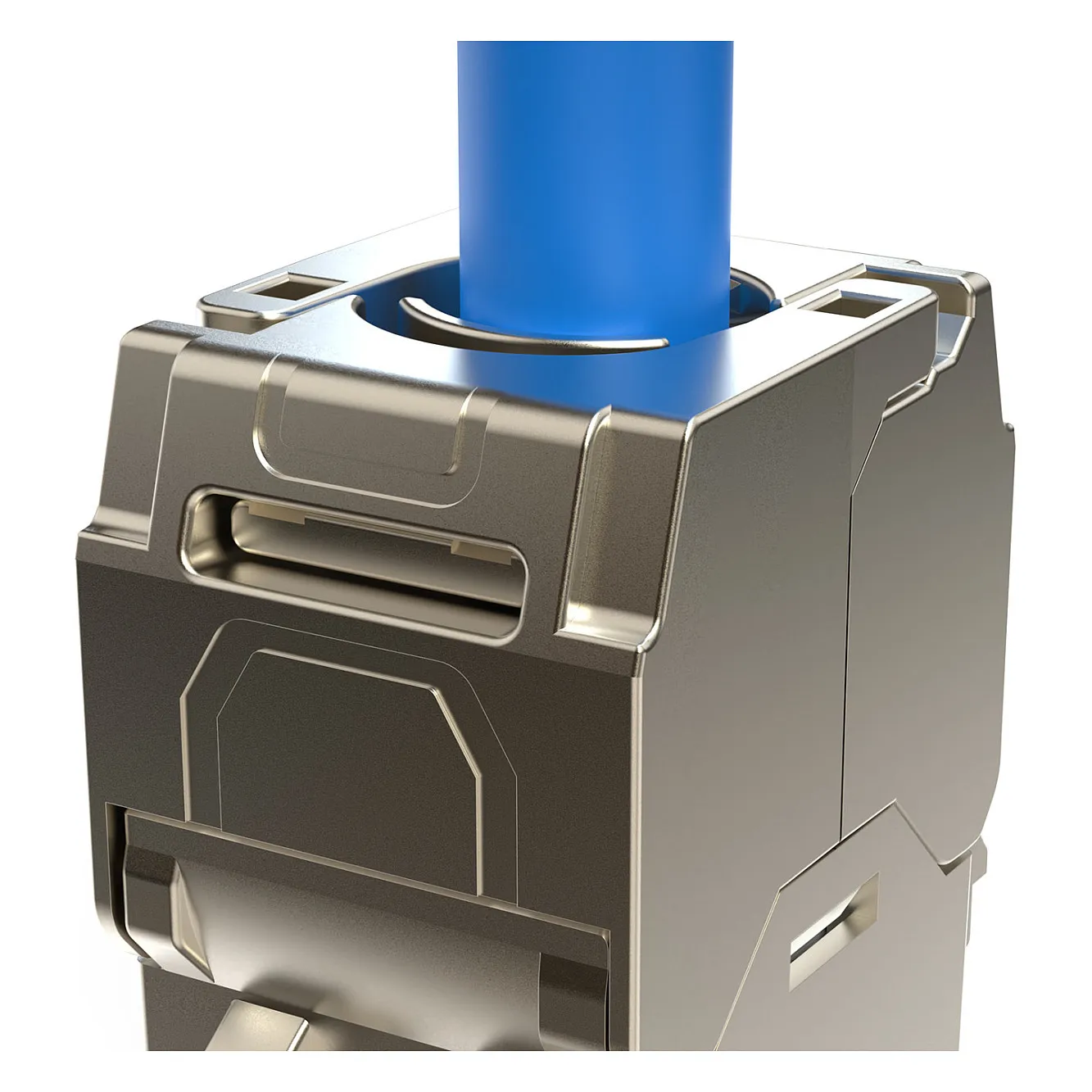

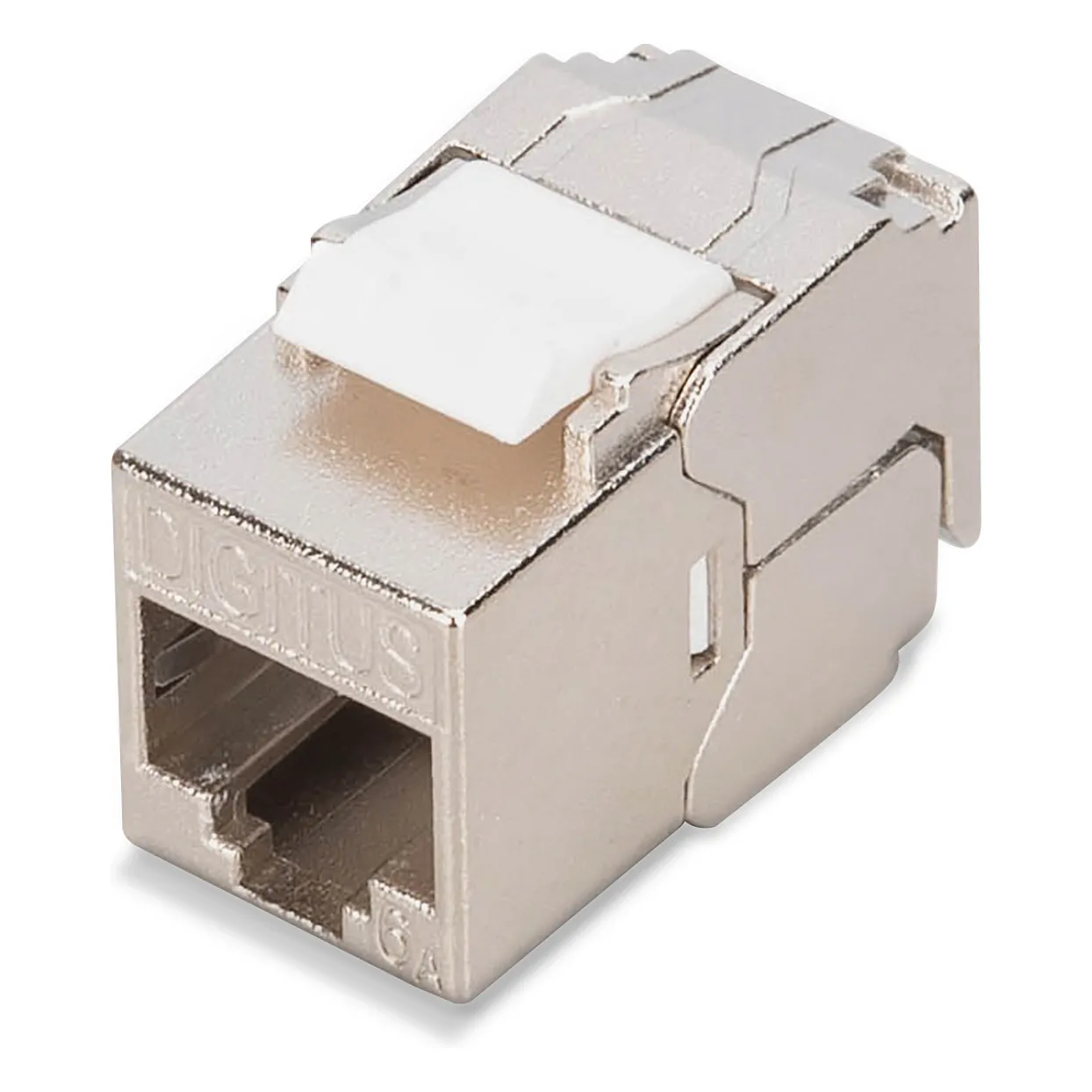

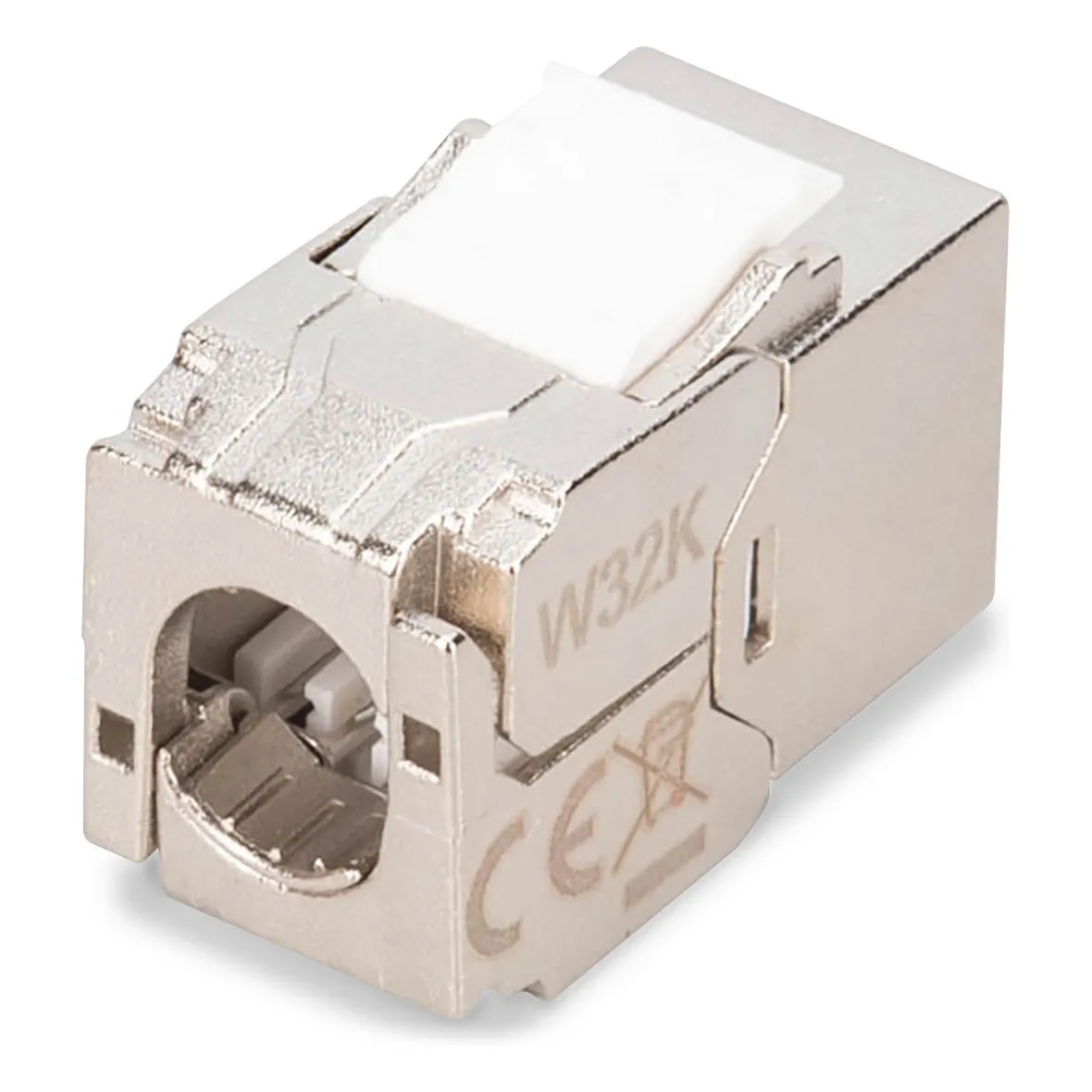

Digitus CAT 6A compact keystone module, shielded, tool-free mounting connection. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Weight: 22 g. Package width: 20 mm, Package depth: 30 mm, Package height: 20 mm. Quantity per pack: 1 pc(s). Country of origin: China
– 360° shield contacting

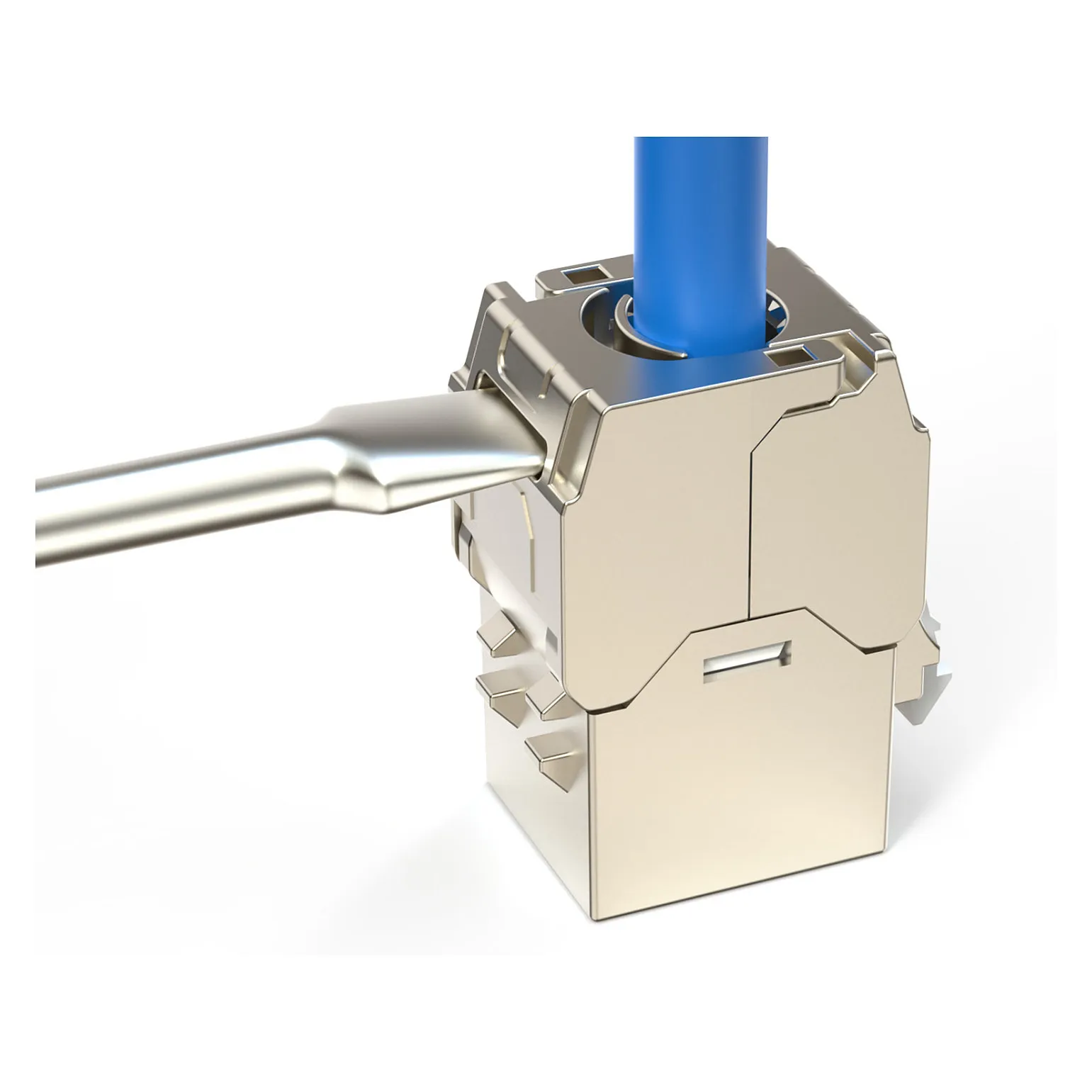

– Suitable for field assembly (tool-free installation)
– Design-compatible – suitable for mounting in distribution panels and junction boxes
– CAT 6A with LSA insulation displacement connectors
– Dust protection cap for RJ45 socket
– Supported PoE standards: IEEE 802.3 af/at/bt – PoE, PoE+ (4PPoE in permanent link)

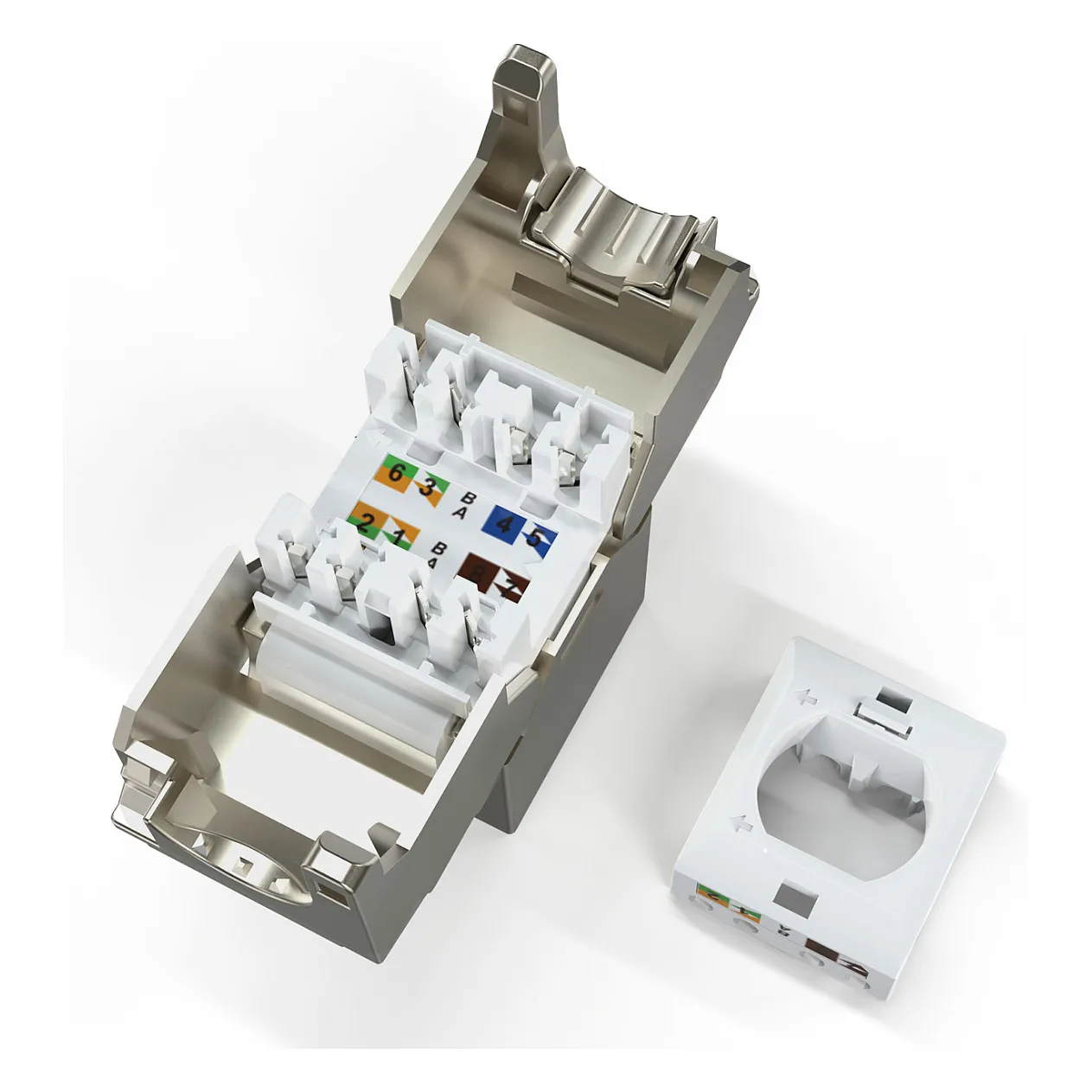

The shielded CAT 6A short keystone module DN-93615-S from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19″) 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.
Construction type: Flat
Product colour: Silver
Connector 1: RJ-45
Connector 1 gender: Female
Cabling technology: 10GBase-T
Connector contacts plating: Nickel/Gold
AWG wire size: 22/1
Cable types supported: Cat6a
Housing material: Zinc
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: Magnetically shielded
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Weight & dimensions
Weight: 22 g
Packaging data
Package width: 20 mm
Package depth: 30 mm
Package height: 20 mm
Package weight: 23.2 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
UK Trade Tariff code: 85366990
Country of origin: China
