Digitus CAT 6A, class EA patch panel, shielded. Connector(s): RJ-45, Cable types supported: Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Width: 482.6 mm, Height: 44 mm, Depth: 109 mm. Package width: 483 mm, Package depth: 110 mm, Package height: 45 mm. Country of origin: China
– Robust patch panel with sturdy metal housing
– Complete shielding of housing and shield contacting

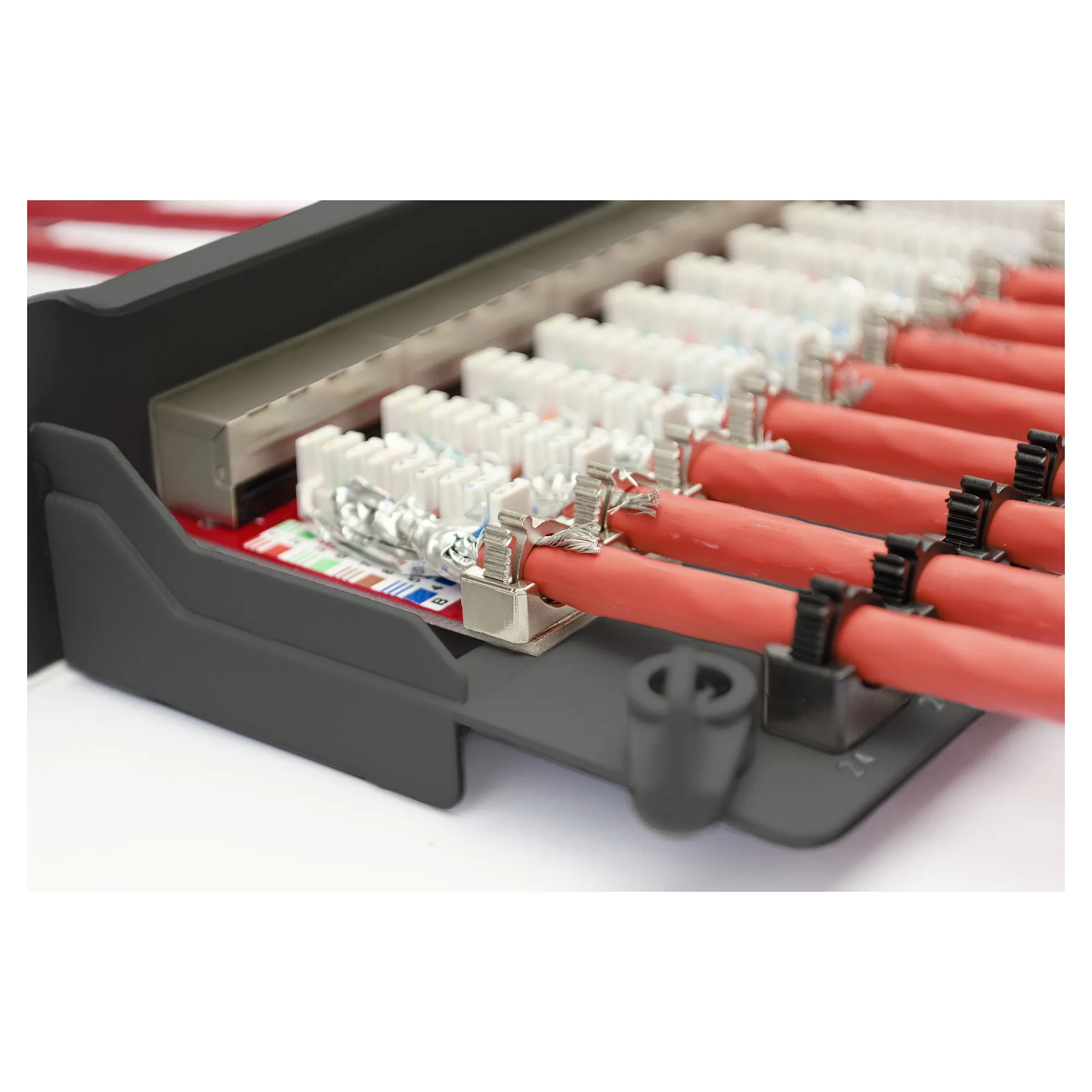

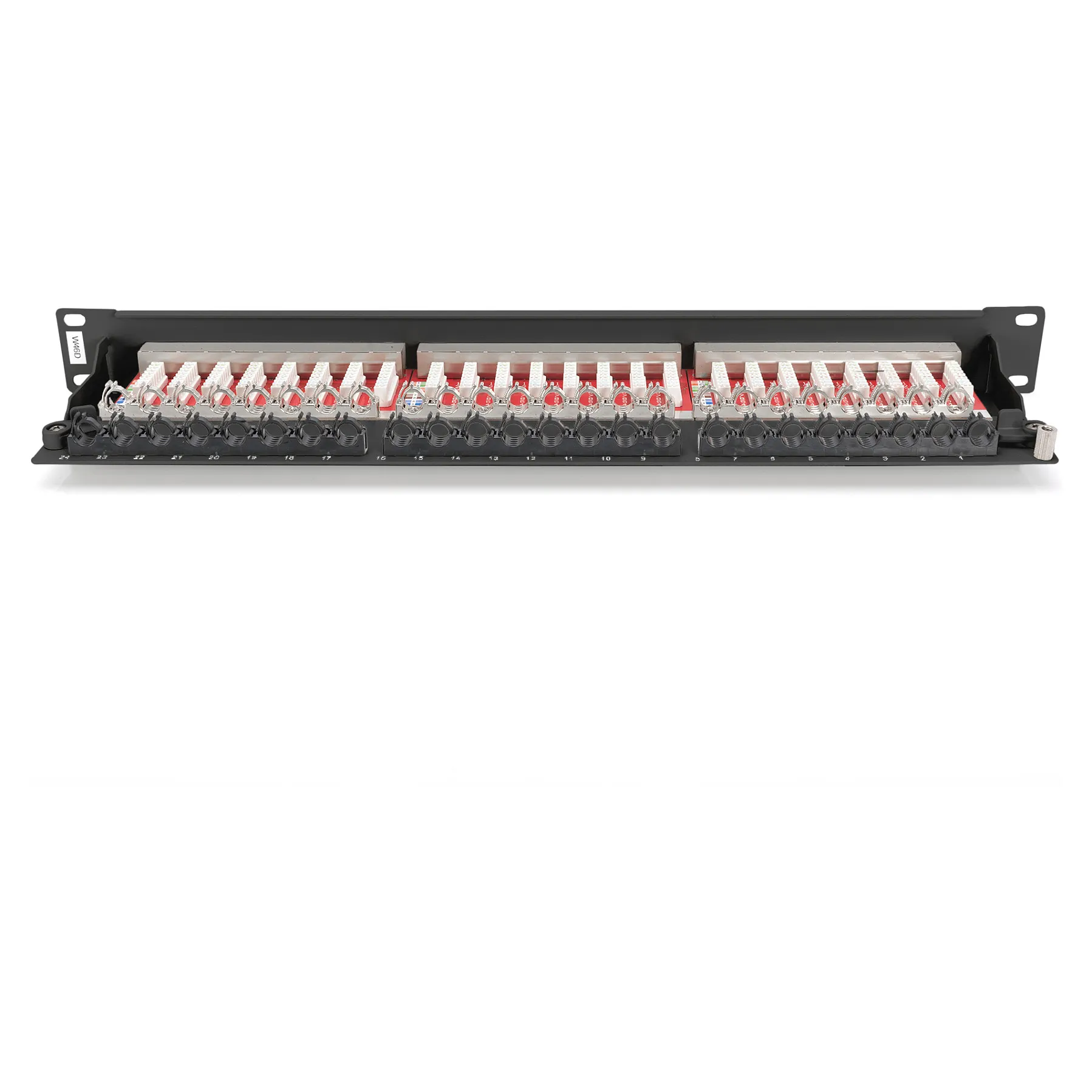

– Cable installation via LSA strips
– Central earthing connection
– Dielectric strength up to 1500 VDC (contact / ground)
– Metal-coated (electrically conductive) cable fixation for earthing the cable shielding

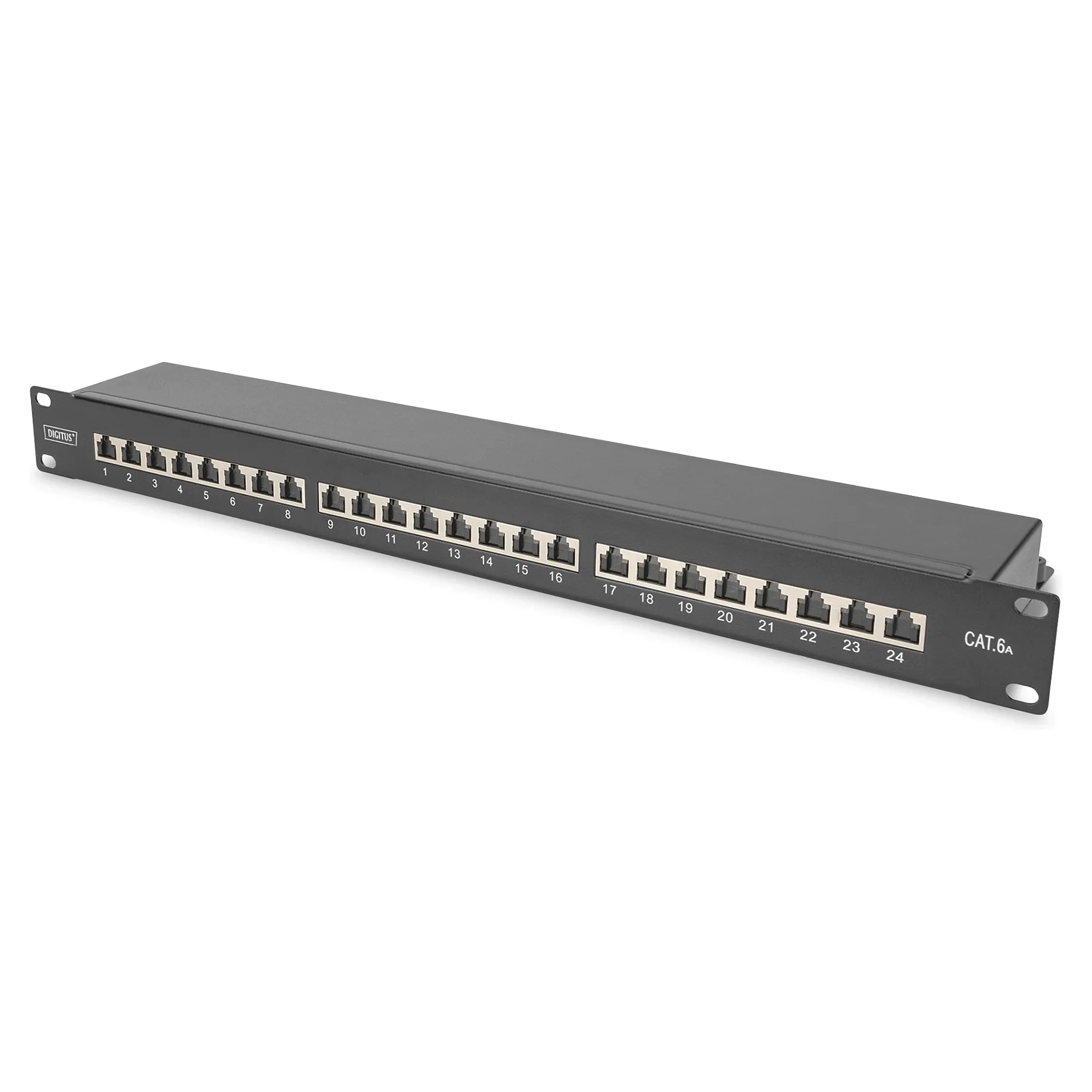

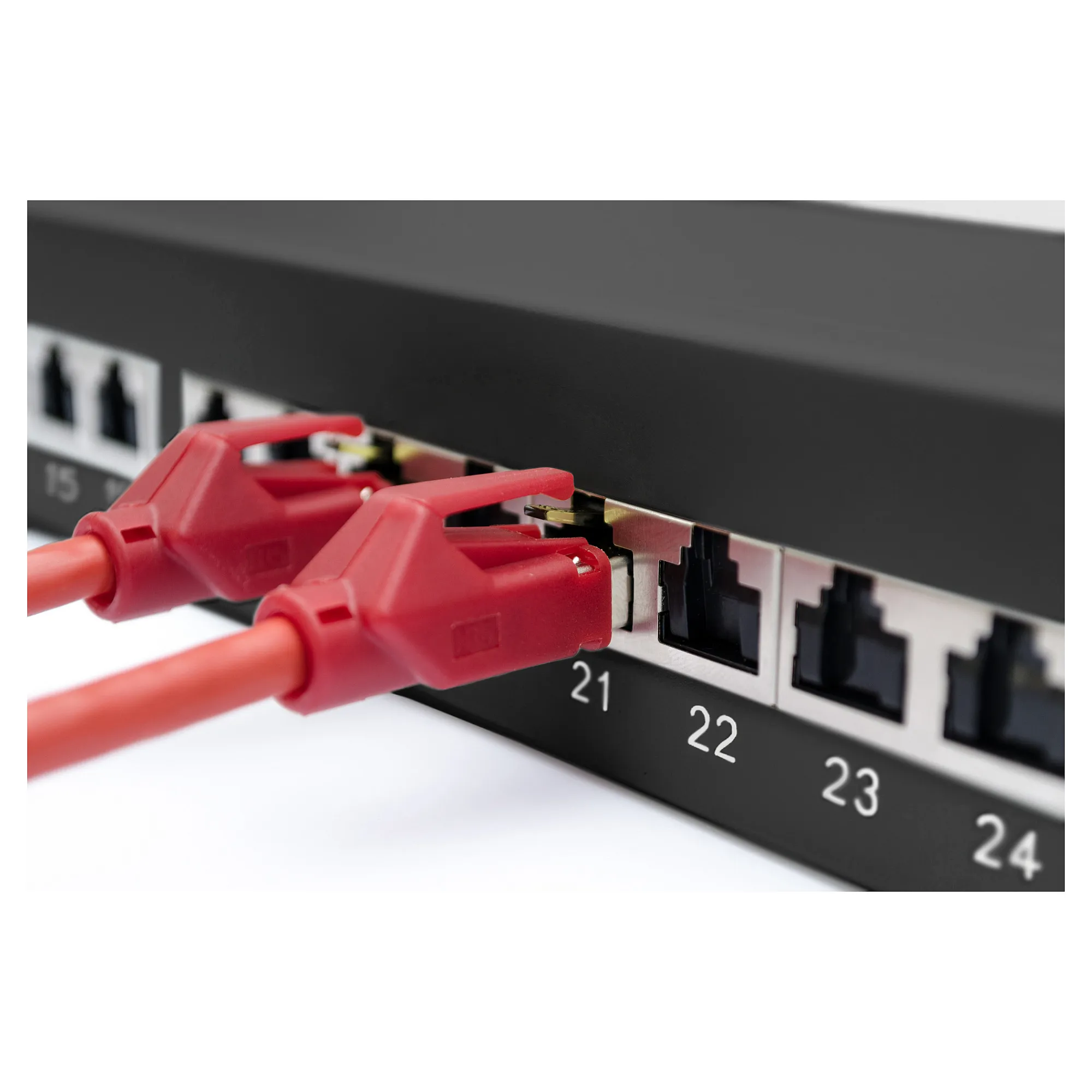

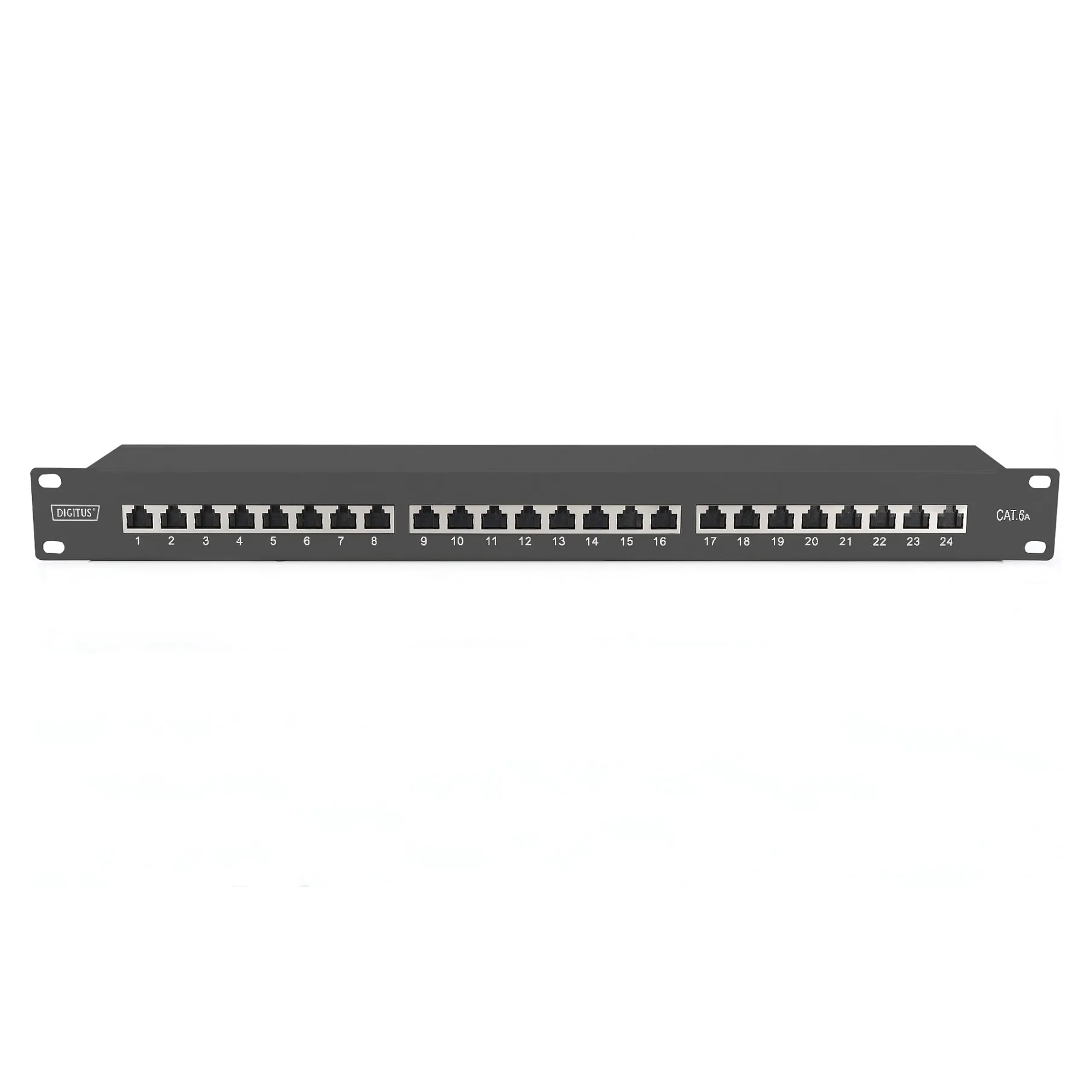

The DIGITUS® „DN-91624S-EA” CAT 6A patch panel is available in a 24-port version and, with its 1.5 mm galvanized cold-rolled steel, is a robust patch panel for 19″ rack mounting. It complies with the 802.3at PoE+ and 802.3af PoE standard and is equipped with dust protection flaps.
Ports quantity: 24
Connector(s): RJ-45
Cable types supported: Cat6a
Design
Product colour: Black
Material: Steel
Mounting: Rack mounting
Rack capacity: 1U
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Weight & dimensions
Width: 482.6 mm
Height: 44 mm
Depth: 109 mm
Packaging content
Feature: Anti-dust plug
Packaging data
Package width: 483 mm
Package depth: 110 mm
Package height: 45 mm
Package weight: 1.69 kg
Package volume: 2390.85 cm³
Logistics data
UK Trade Tariff code: 85369010
Country of origin: China
Harmonized System (HS) code: 85371098
