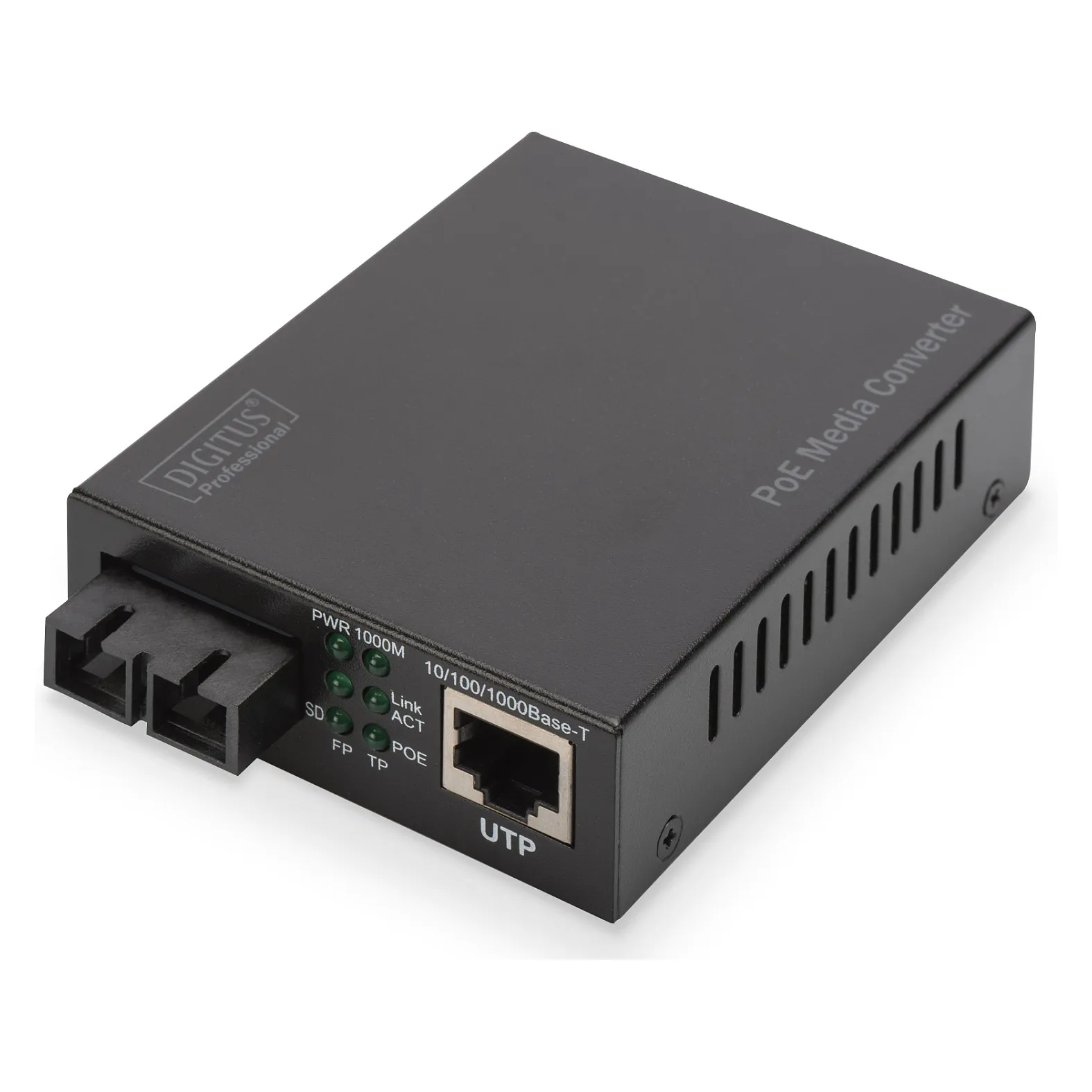

Digitus Gigabit PoE media converter, RJ45 / SC, SM, PSE. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 100Base-TX, 1000Base-TX, Converter output interface: 1000Base-LX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Status, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 48 – 52 V, Total Power over Ethernet (PoE) budget: 30 W
– PoE power supplier, PSE
– Sends data with high quality and additionally offers the highest level of failure safety
– A fast transfer in the gigabit range is guaranteed
– Range of up to 20km
The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 100Base-TX, 1000Base-TX
Converter output interface: 1000Base-LX
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX
Fiber ethernet cabling technology: 1000BASE‑LX
Data transfer rate: 1000 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Mean time between failures (MTBF): 500000 h
Features

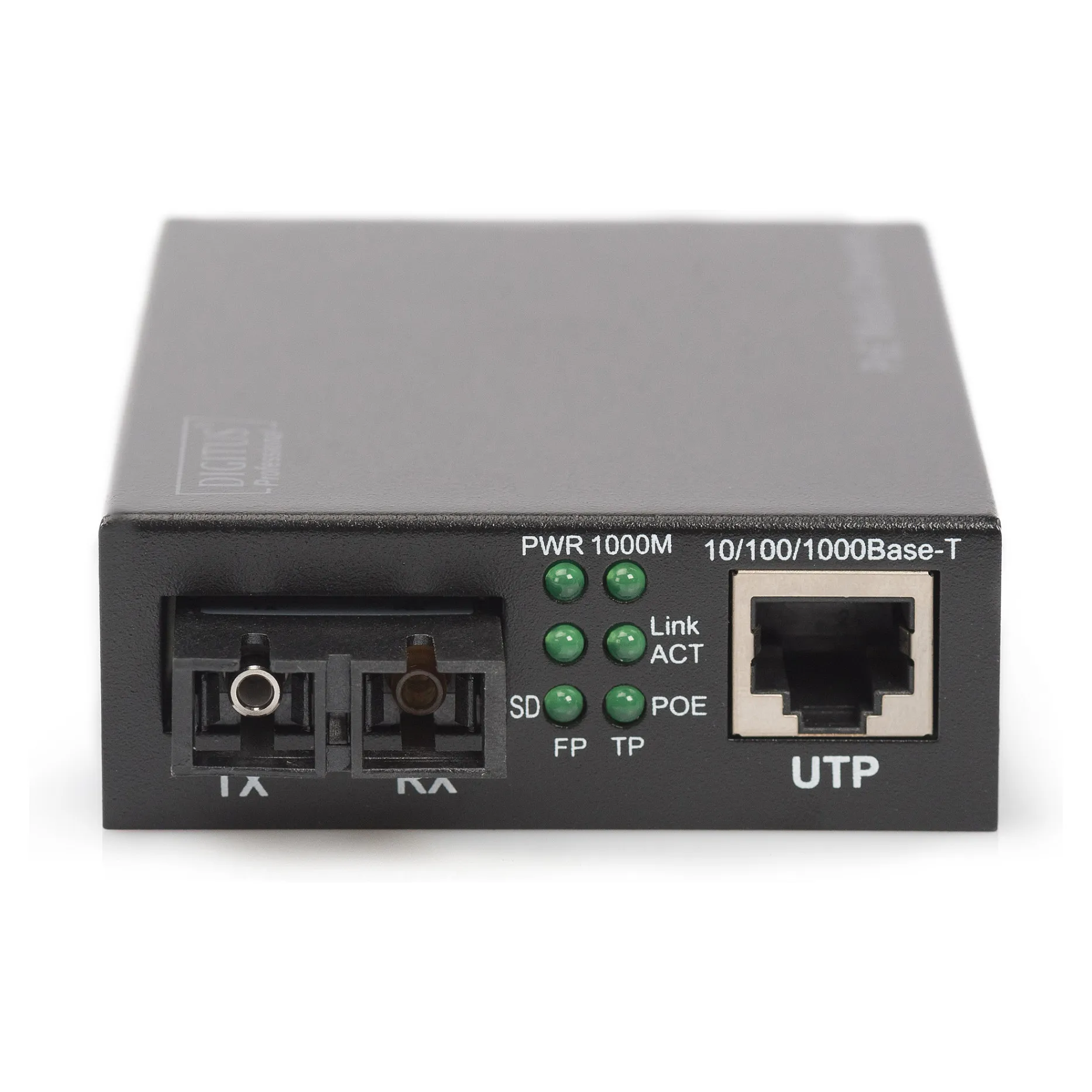

LED indicators: Activity, Link, Power, Status
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Power over Ethernet (PoE) ports quantity: 1

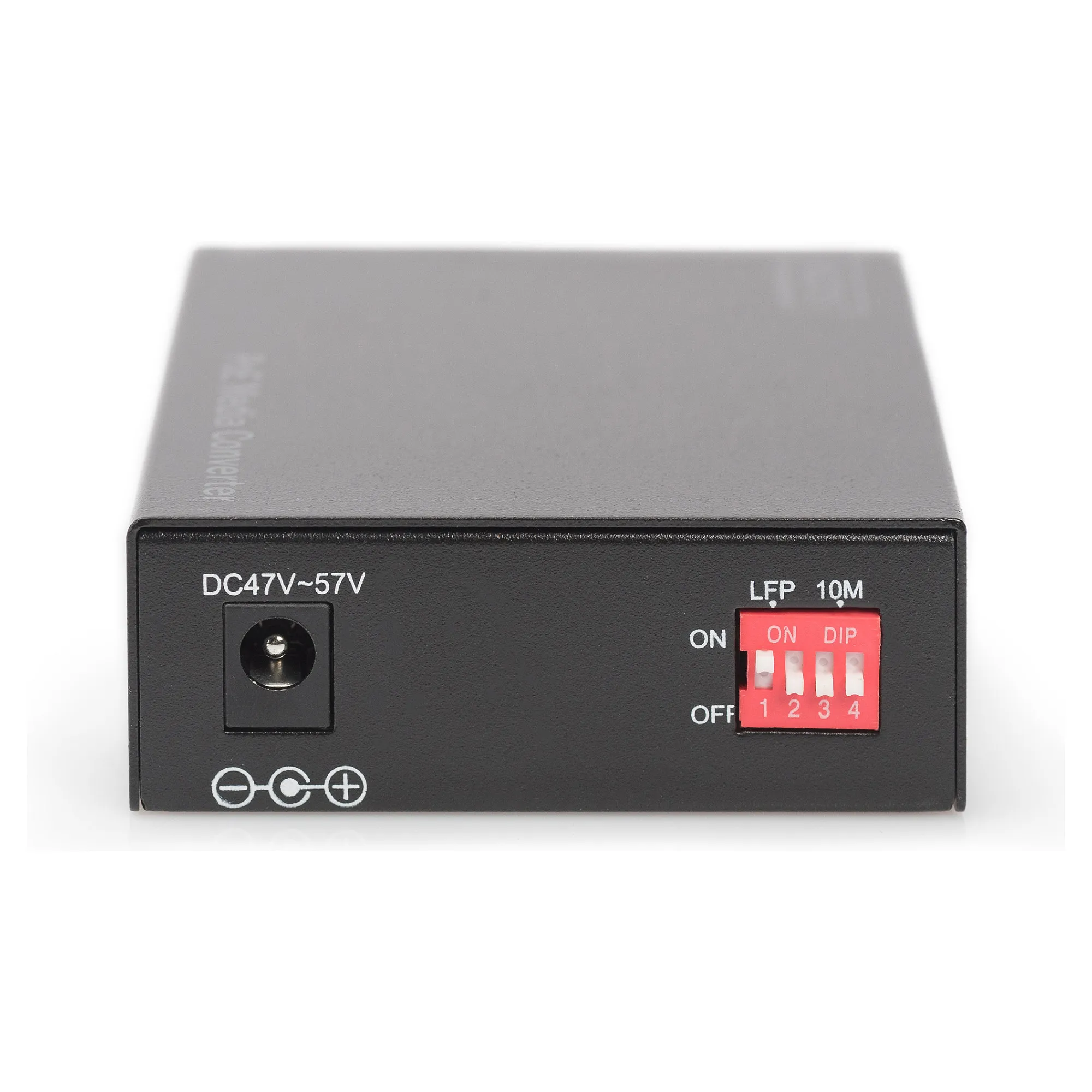

Feature: DC-in jack
Power
Output voltage: 48 – 52 V
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W
Weight & dimensions
Width: 71 mm
Depth: 95 mm
Height: 26 mm
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Storage temperature (T-T): -40 – 85 °C
Packaging content
Feature: AC adapter included
Feature: Quick installation guide
Packaging data
Package width: 130 mm
Package depth: 240 mm
Package height: 60 mm
Package volume: 1872 cm³
Package weight: 800 g
Logistics data
Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990
Master (outer) case width: 410 mm
Master (outer) case length: 570 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 8 kg
Master (outer) case volume: 65436 cm³
Products per master (outer) case: 10 pc(s)
Other features
Connector(s): RJ45 – SC
