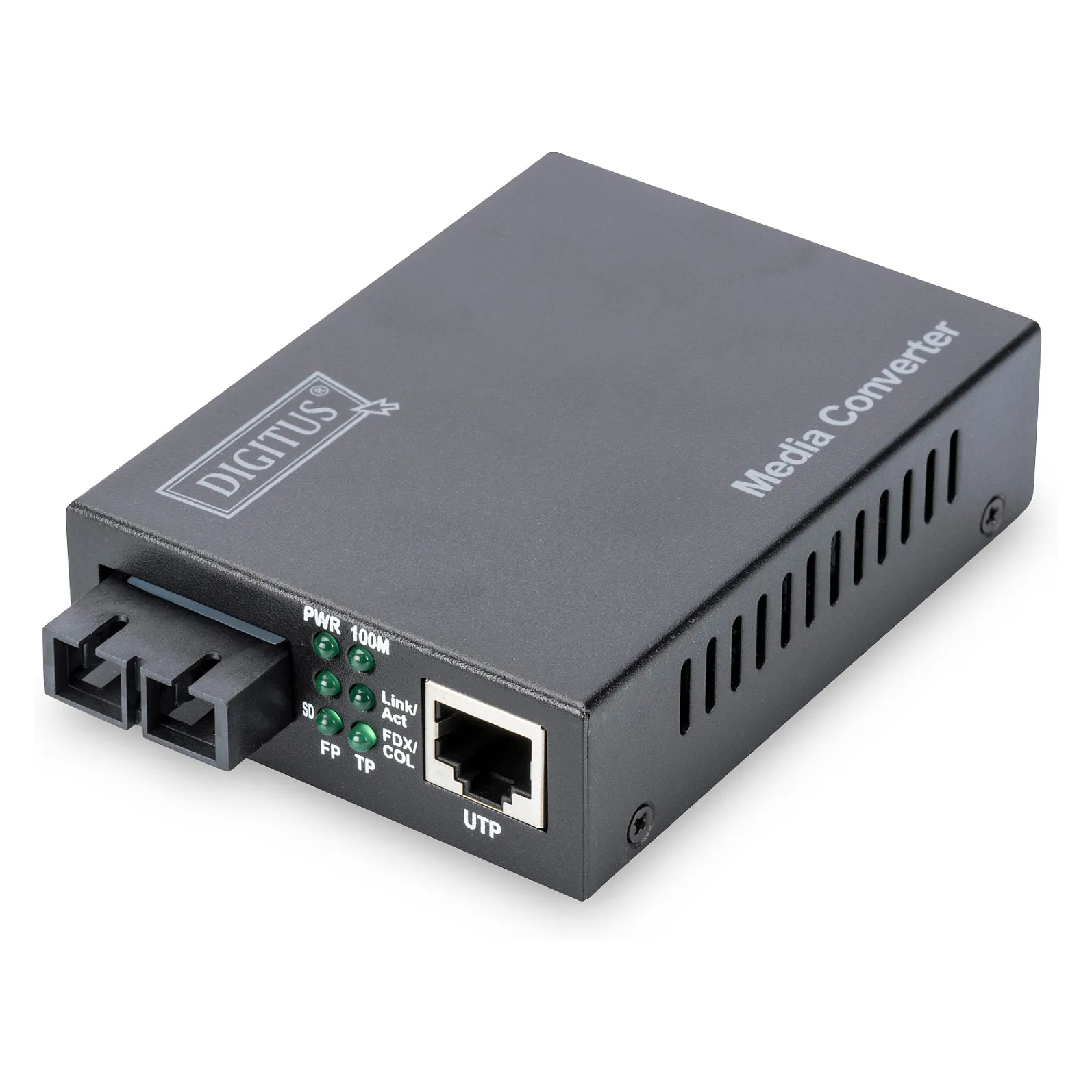

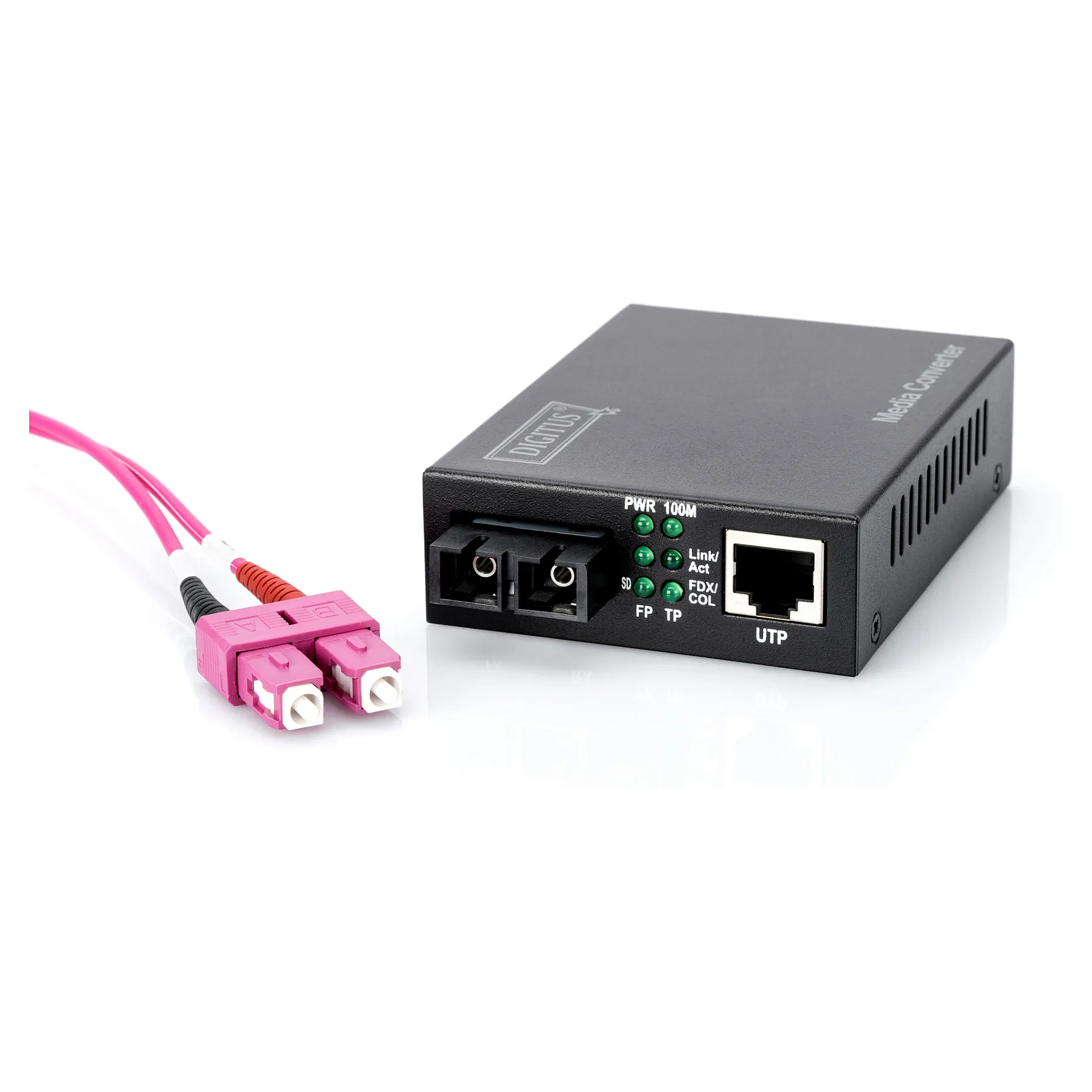

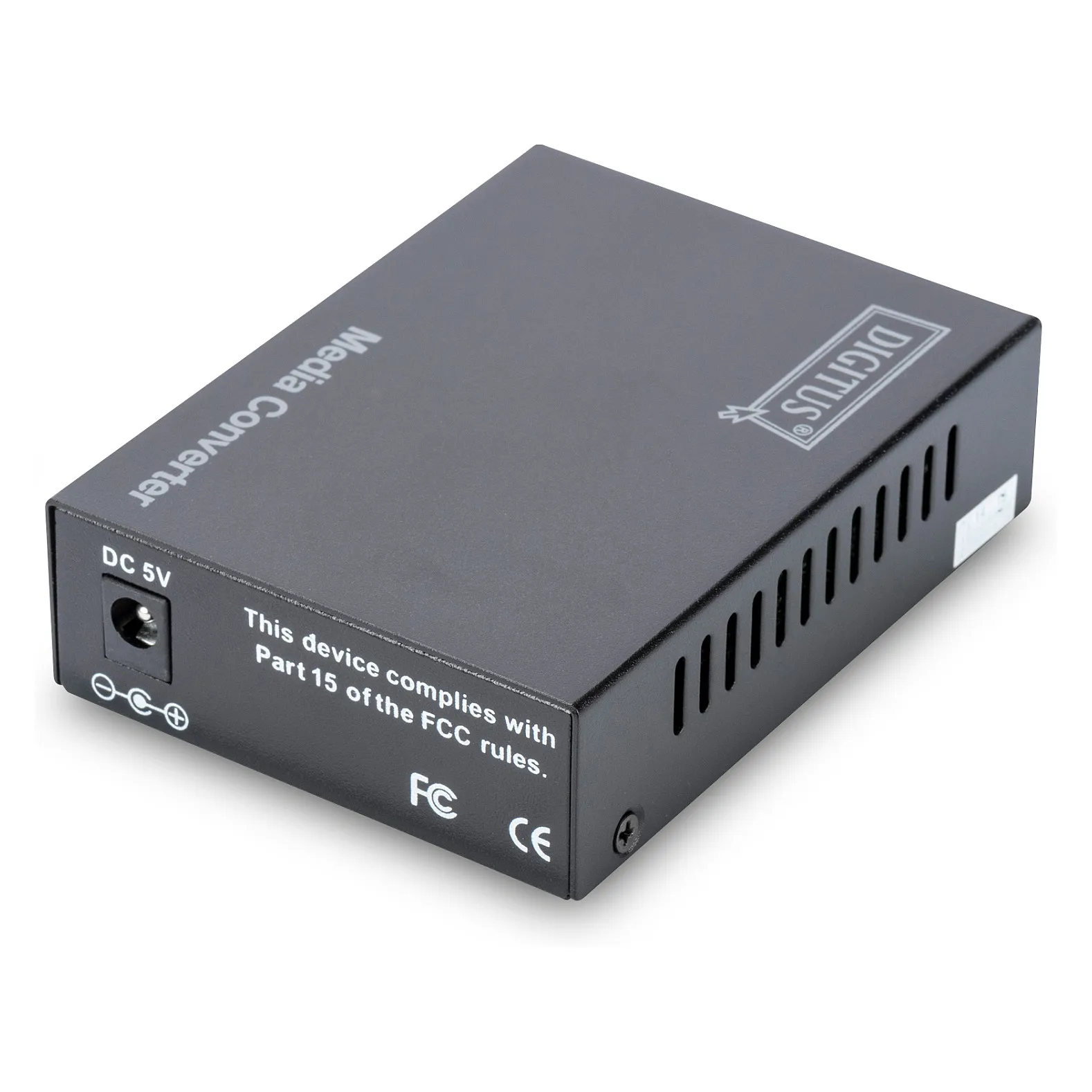

Digitus Fast Ethernet Media Converter, RJ45 / SC. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Status, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 0.8 A, Power consumption (typical): 2.5 W
– Distance up to 2km
– Sends data in high quality and additionally provides excellent reliability
– Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards
The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
Maximum data transfer rate: 100 Mbit/s
Converter input interface: 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto MDI/MDI-X
Duplex system: Full, Half
Performance
Maximum transfer distance: 2000 m
Wavelength: 1310 nm
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Tx power (min): -22 dBmW
Tx power (max): -12 dBmW
Rx power (min): -30 dBmW
Buffer size: 128 KB
Features

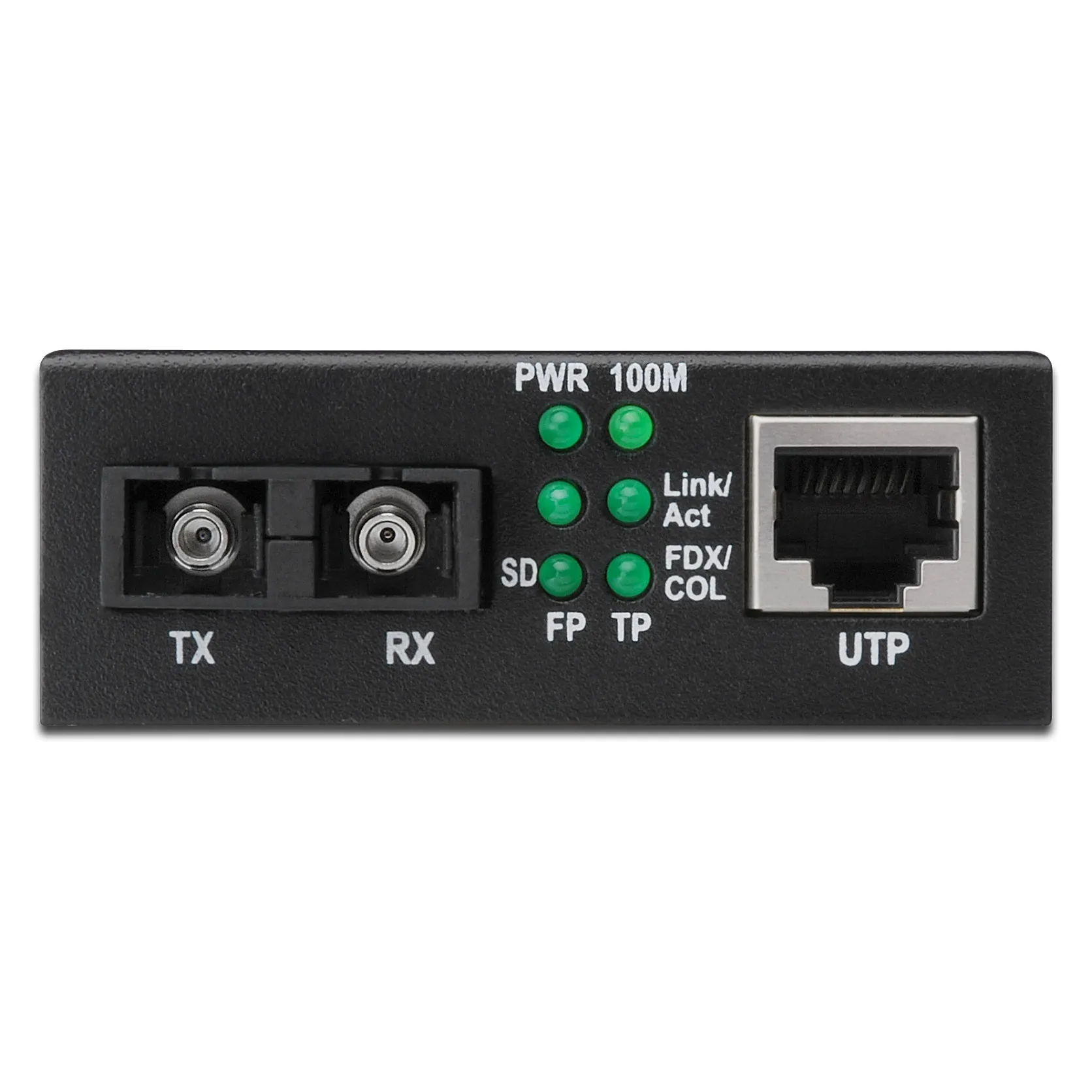

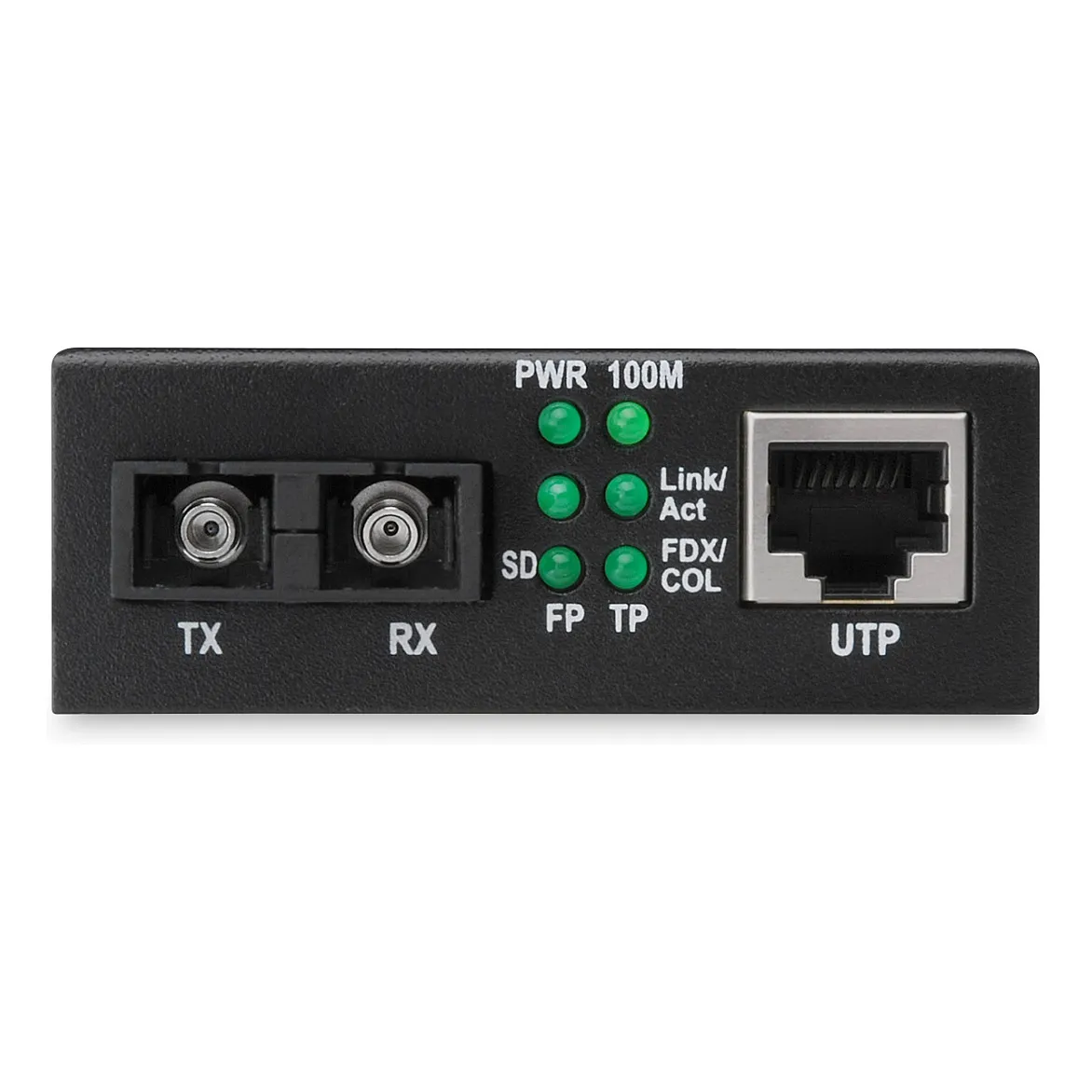

LED indicators: Activity, Link, Status
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

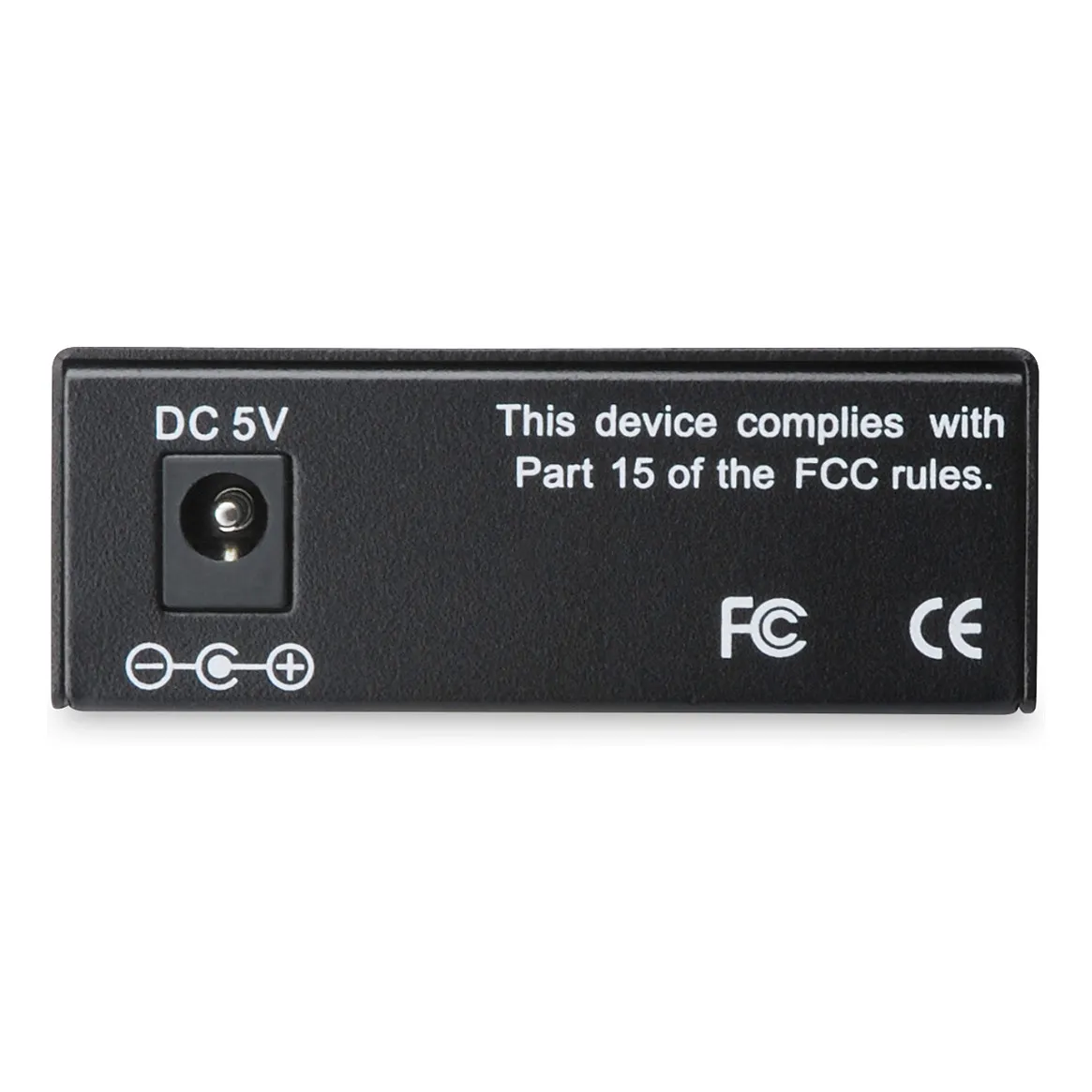

Feature: DC-in jack
Power
Input voltage: 5 V
Input current: 0.8 A
Power consumption (typical): 2.5 W
Feature: External power adapter
Weight & dimensions
Width: 95 mm
Depth: 70 mm
Height: 26 mm
Weight: 200 g
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Packaging data
Package width: 216 mm
Package depth: 60 mm
Package height: 161 mm
Package volume: 2086.56 cm³
Package weight: 485 g
Certificates
Certification: FCC, CE.
Logistics data
Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85176990
Other features
Connector(s): RJ45 – SC
Transmission distance (max): 2 km
