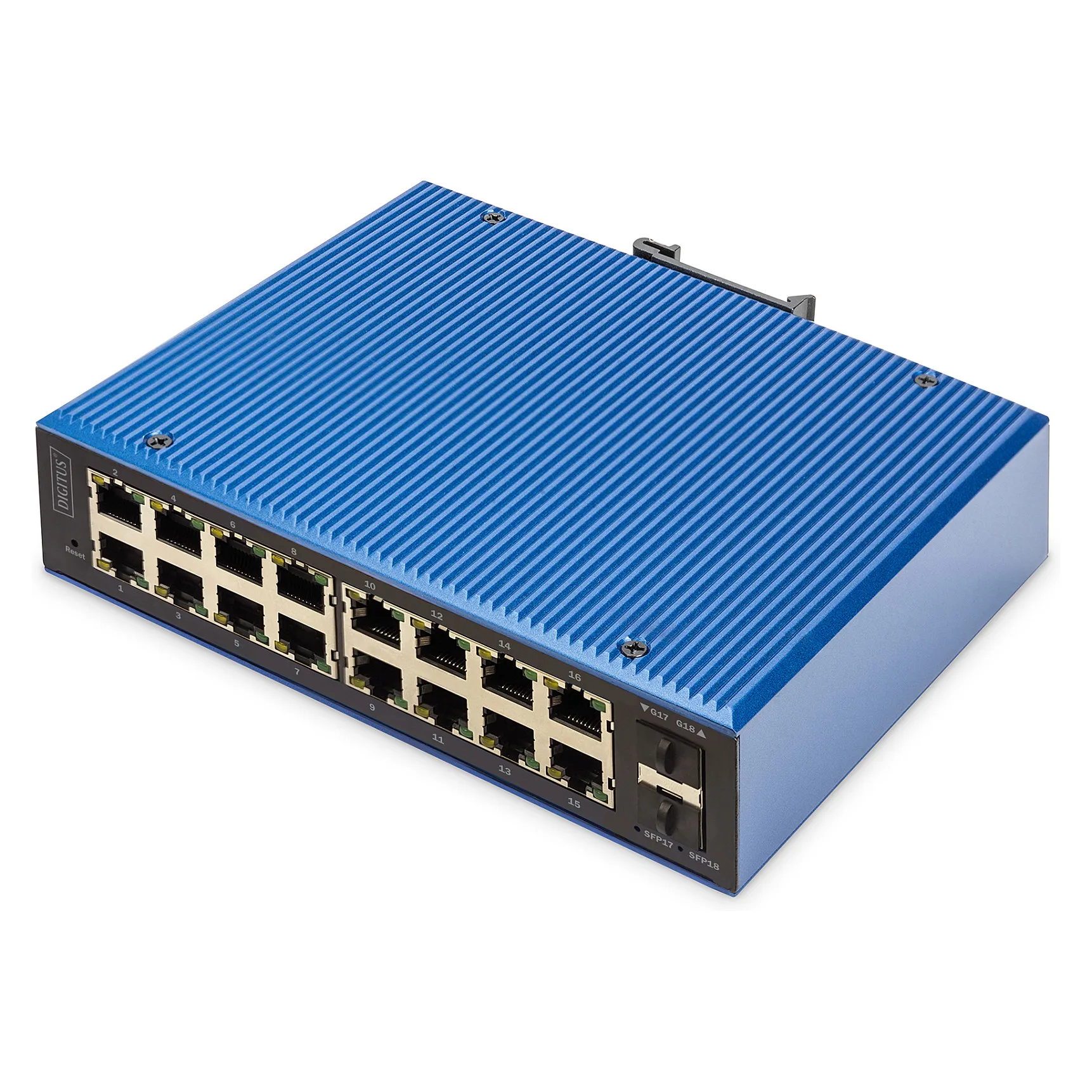

Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3x. DC input voltage: 12 – 48 V

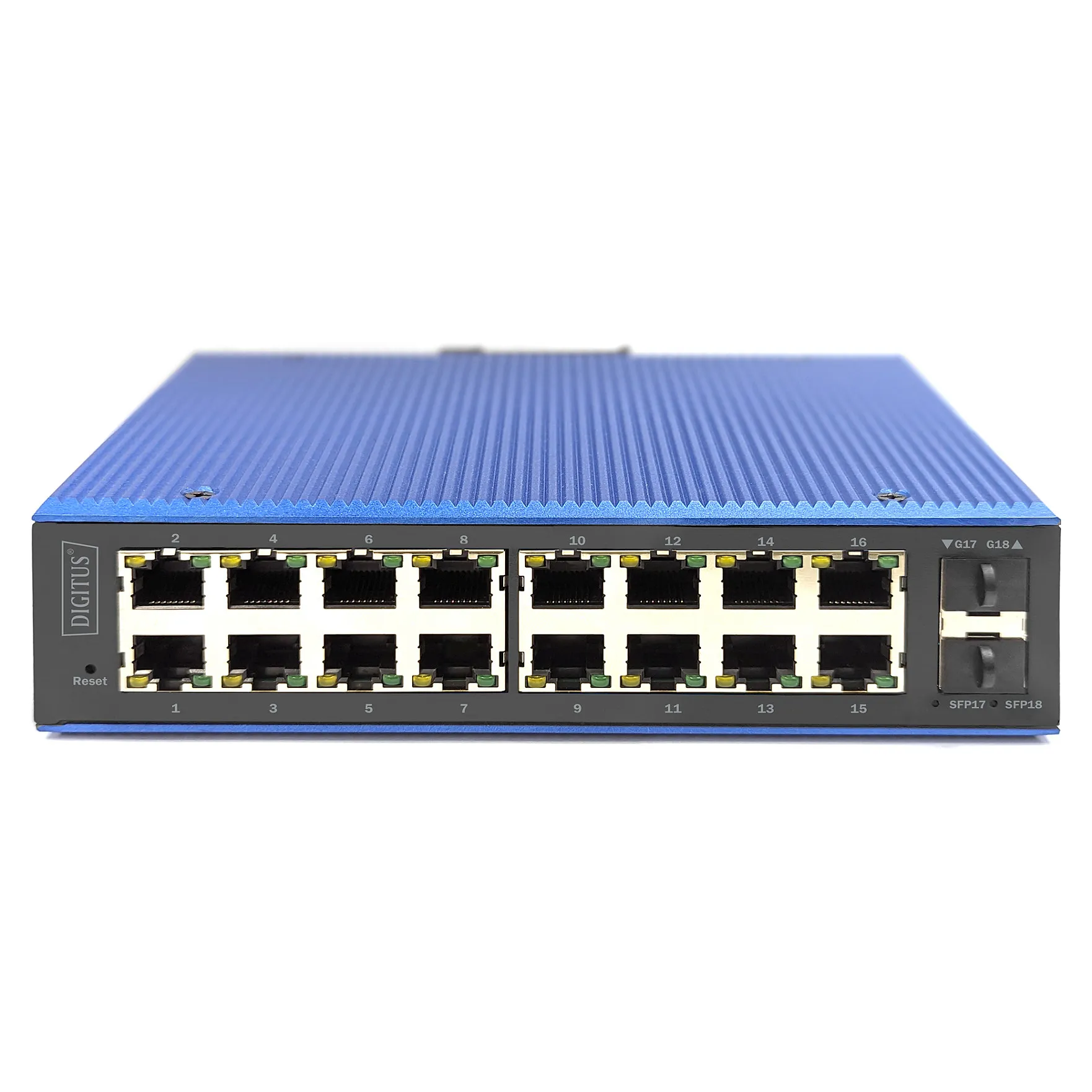

– 16 port GE RJ45, 2 SFP GE ports
– 16 x 10/100/1000 Mbit (RJ45)
– 2 x 10/100/1000 Mbit (SFP)

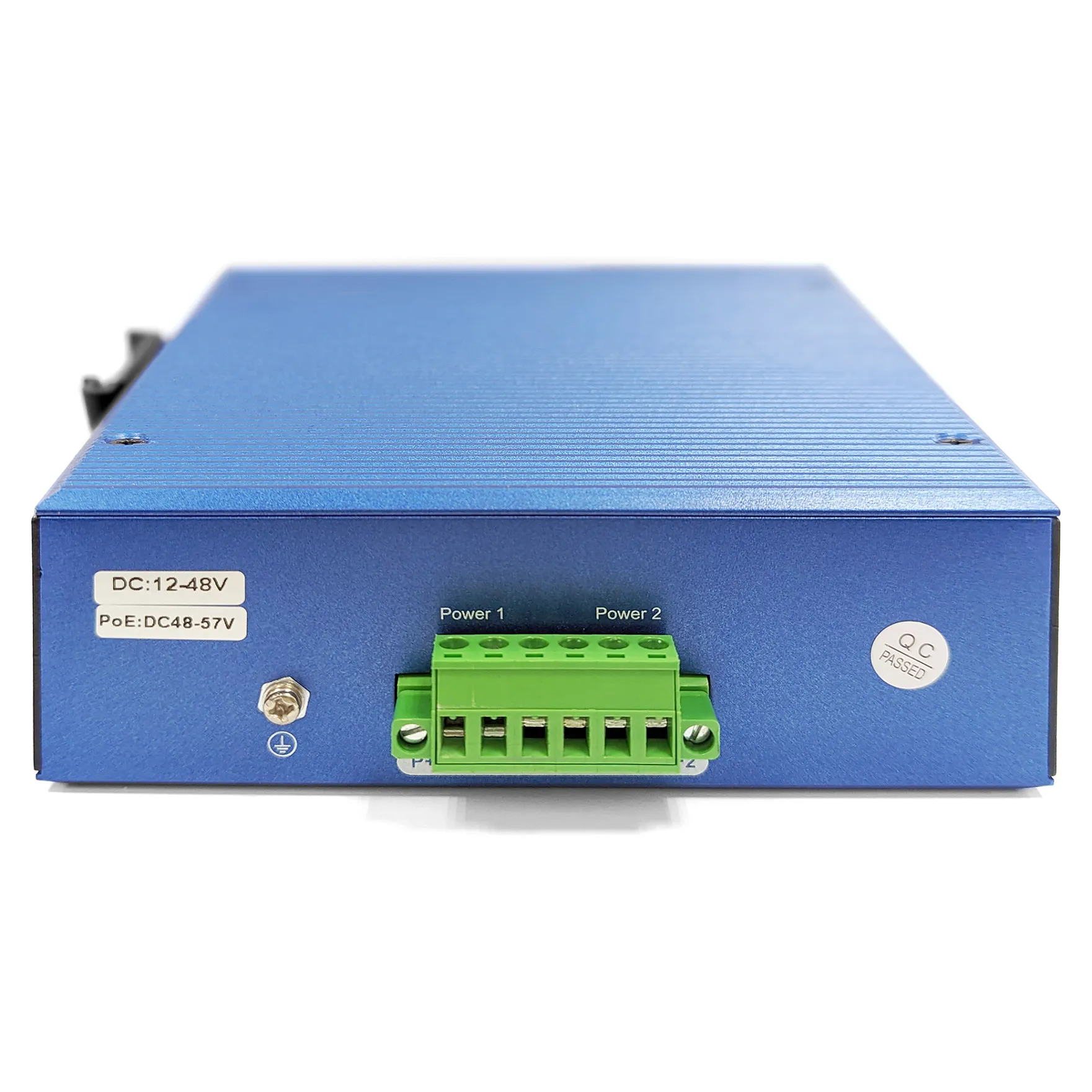

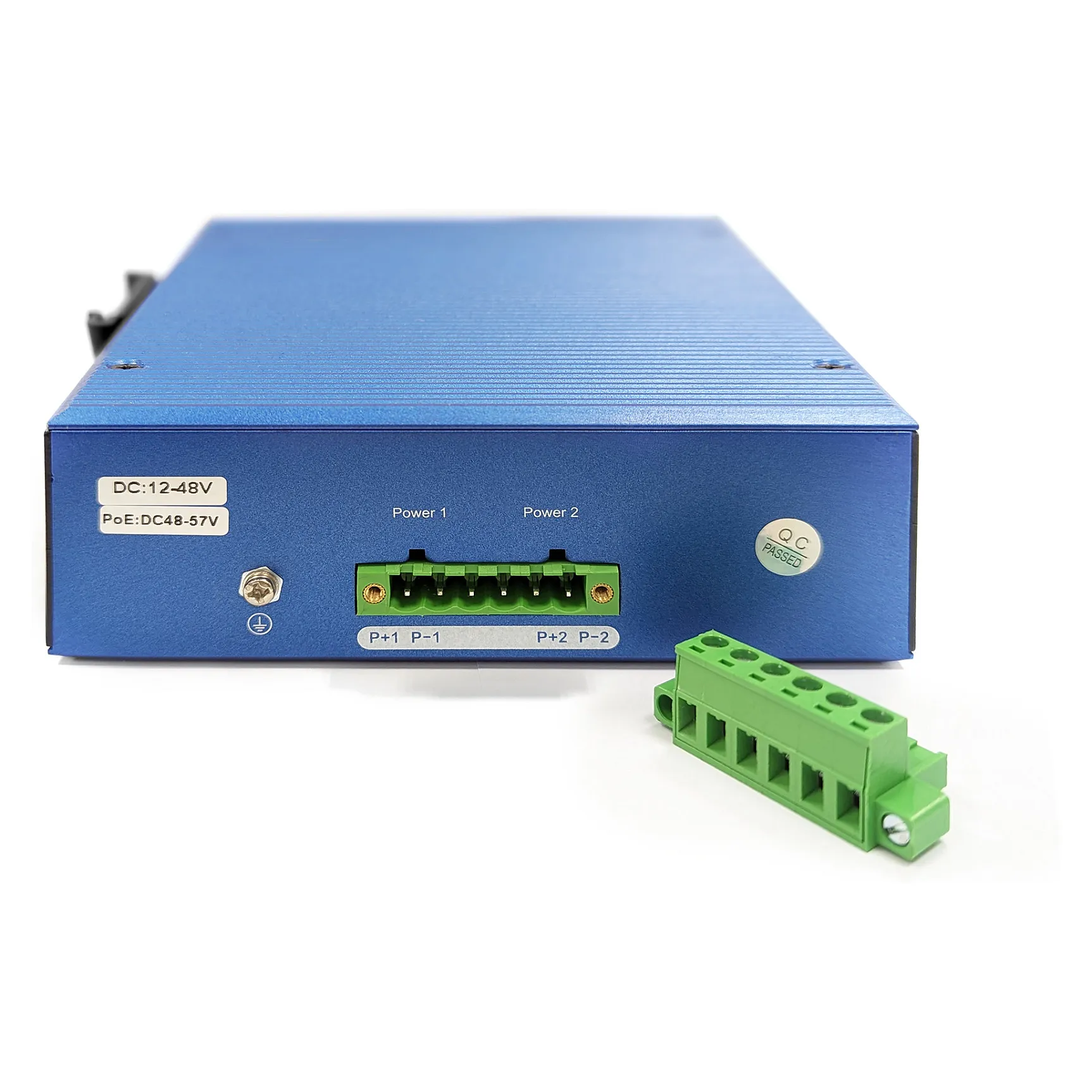

– Redundant power supply 12-48 V (DC)
– Metal housing according to IP40 standard

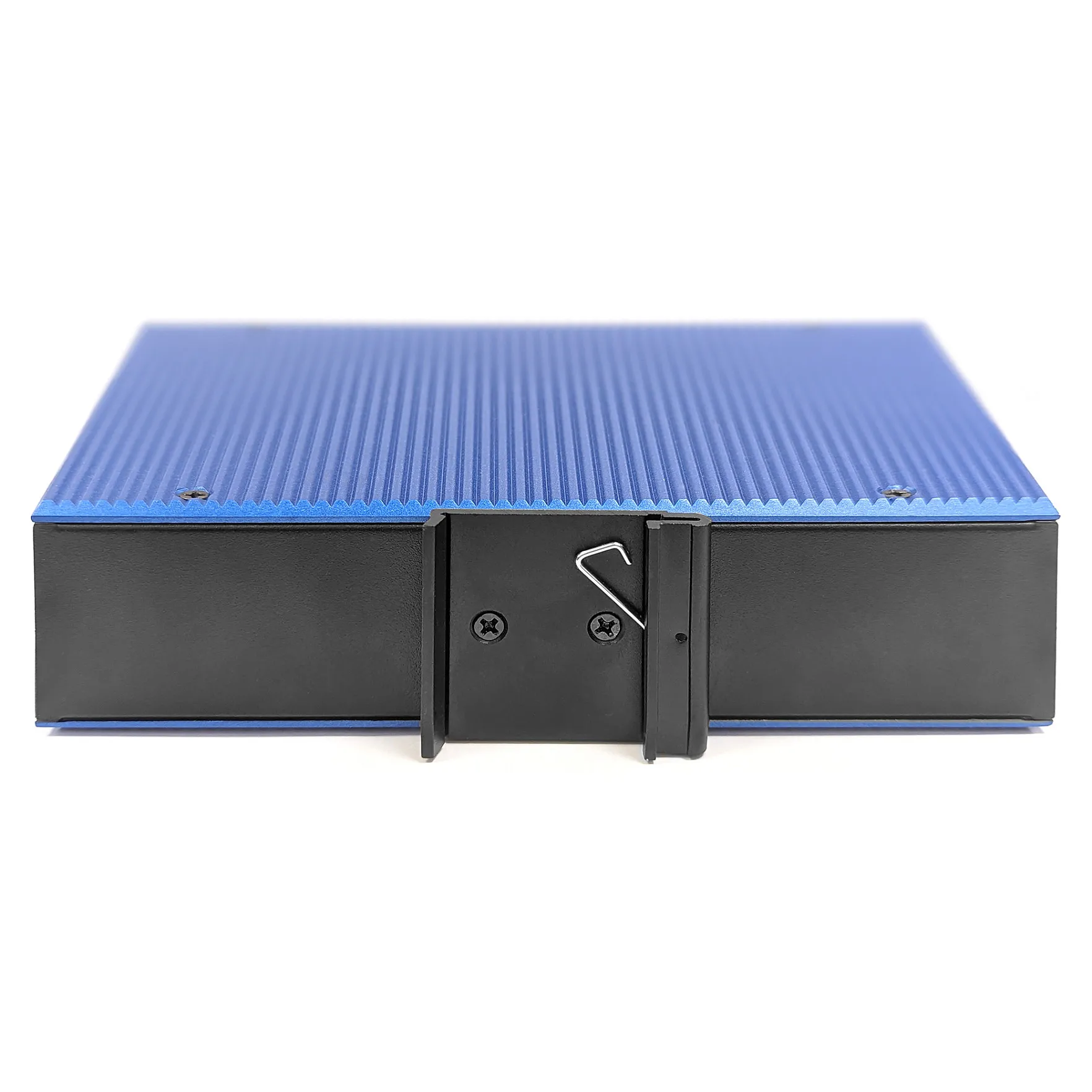

– Easy mounting on a top hat rail
– Operating temperature from – 40° up to 80° C
– Numerous L2 management features
– ESD & EFT protection up to 6 kV (DC)
– Optimal for the connection of camera systems
The Digitus DN-651158 Ethernet switch with 16 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Stay in control with comprehensive management options such as SNMP and CLI. Our switch is a reliable network solution with advanced features for your needs.
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Installed SFP modules quantity: 2
Fiber optic connector: SFP
Network
Networking standards: IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Ethernet LAN data rates: 10,100,1000 Mbit/s
Virtual LAN features: IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 1 Gbit/s
Forwarding rate: 42 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10240
Packet buffer memory: 4.1 MB
Security
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering
Design
Product colour: Black, Blue
Housing material: Metal
International Protection (IP) code: IP40
Feature: DIN rail mounting
Market segment: Industrial
Performance
Mean time between failures (MTBF): 300000 h
Power
Power source: DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 12 – 48 V
Power consumption (typical): 15 W
Feature: Surge protection
Surge protection voltage: 4 kV
Other features
Bandwidth: 56 Gbit/s
Ethernet interface type: Gigabit Ethernet
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 175.6 mm
Depth: 135 mm
Height: 45.5 mm
Weight: 1.1 kg
Packaging content
Feature: Quick start guide
Packaging data
Package width: 186 mm
Package depth: 72.5 mm
Package height: 298 mm
Package volume: 4018.53 cm³
Package weight: 1.14 kg
Logistics data
UK Trade Tariff code: 85176200
Country of origin: China
