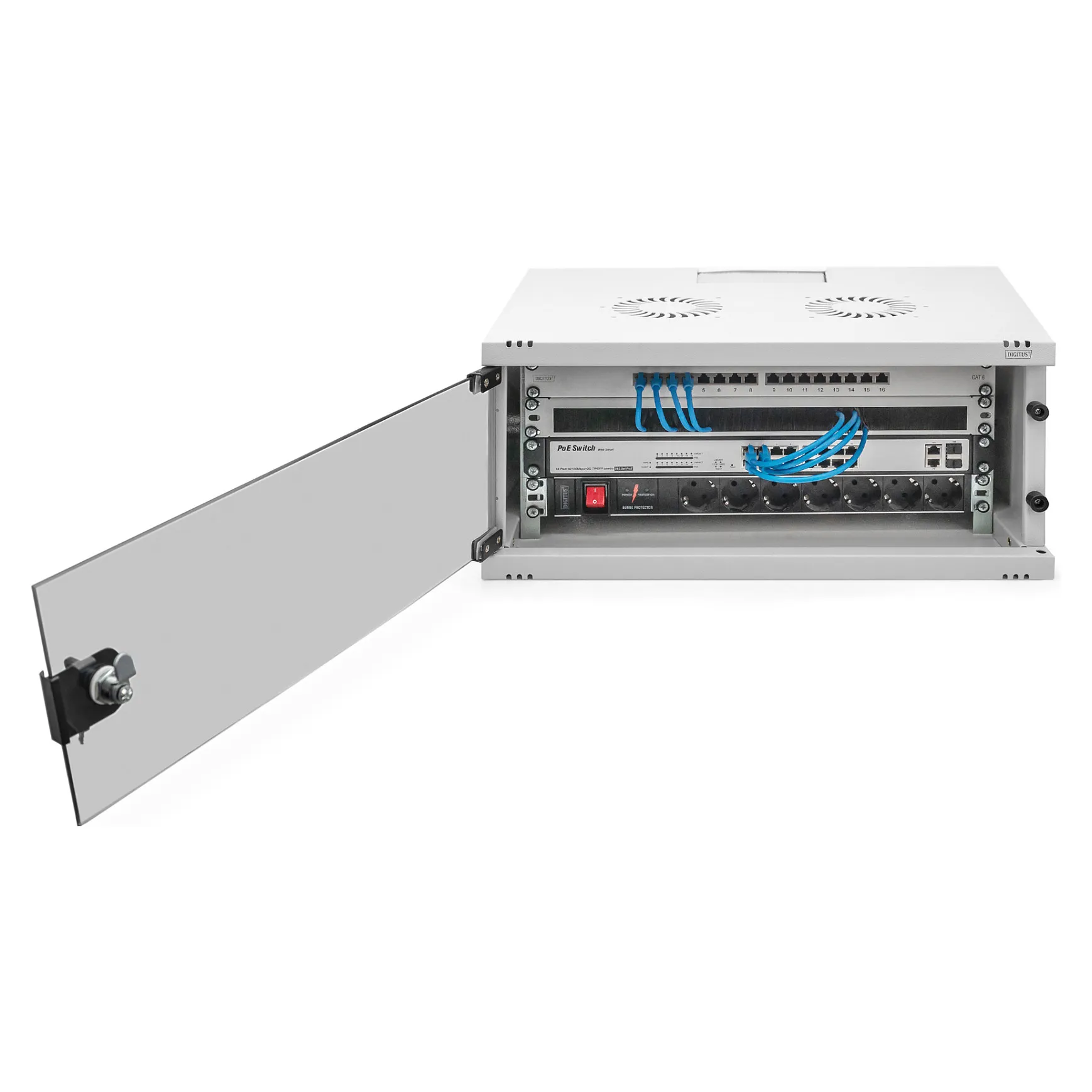

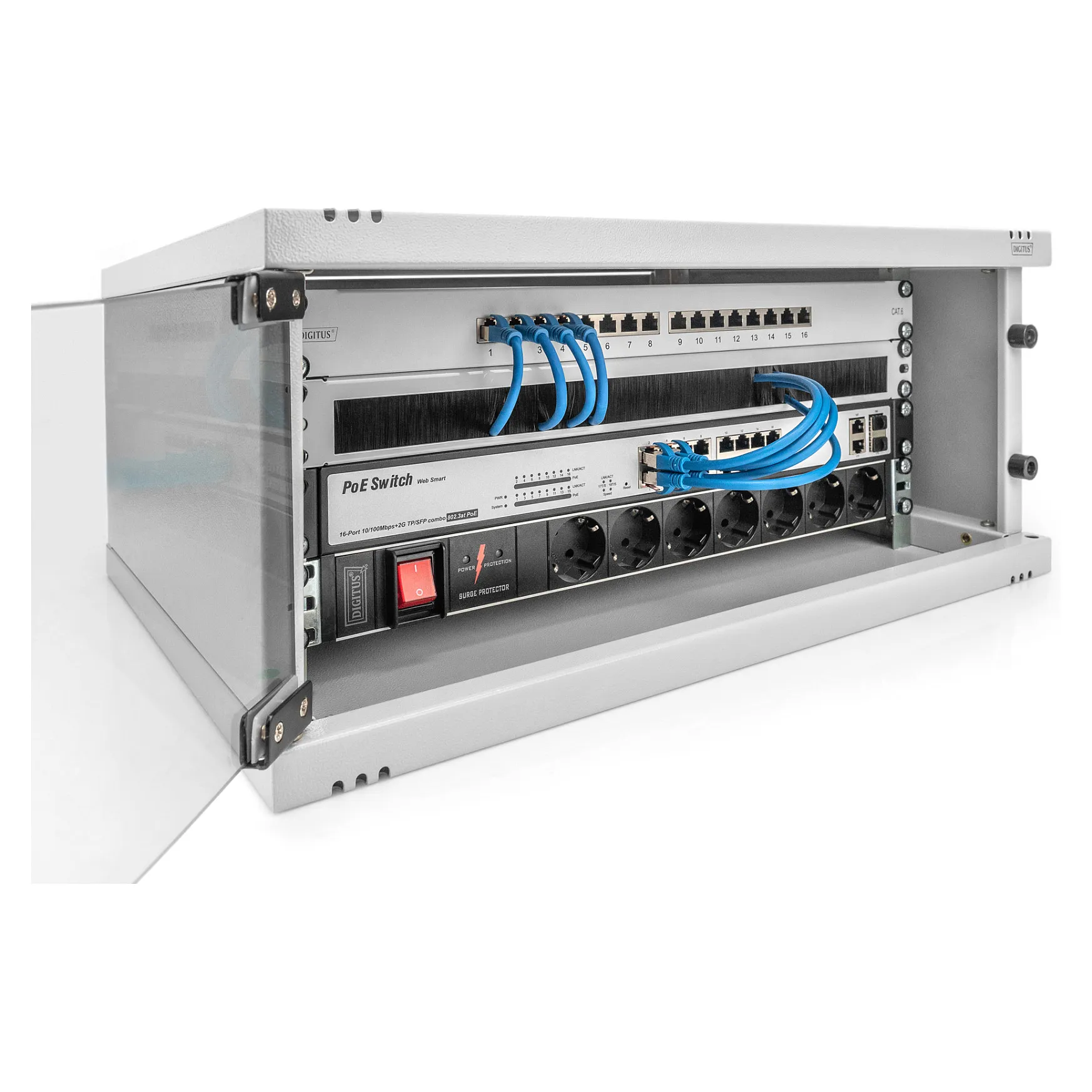

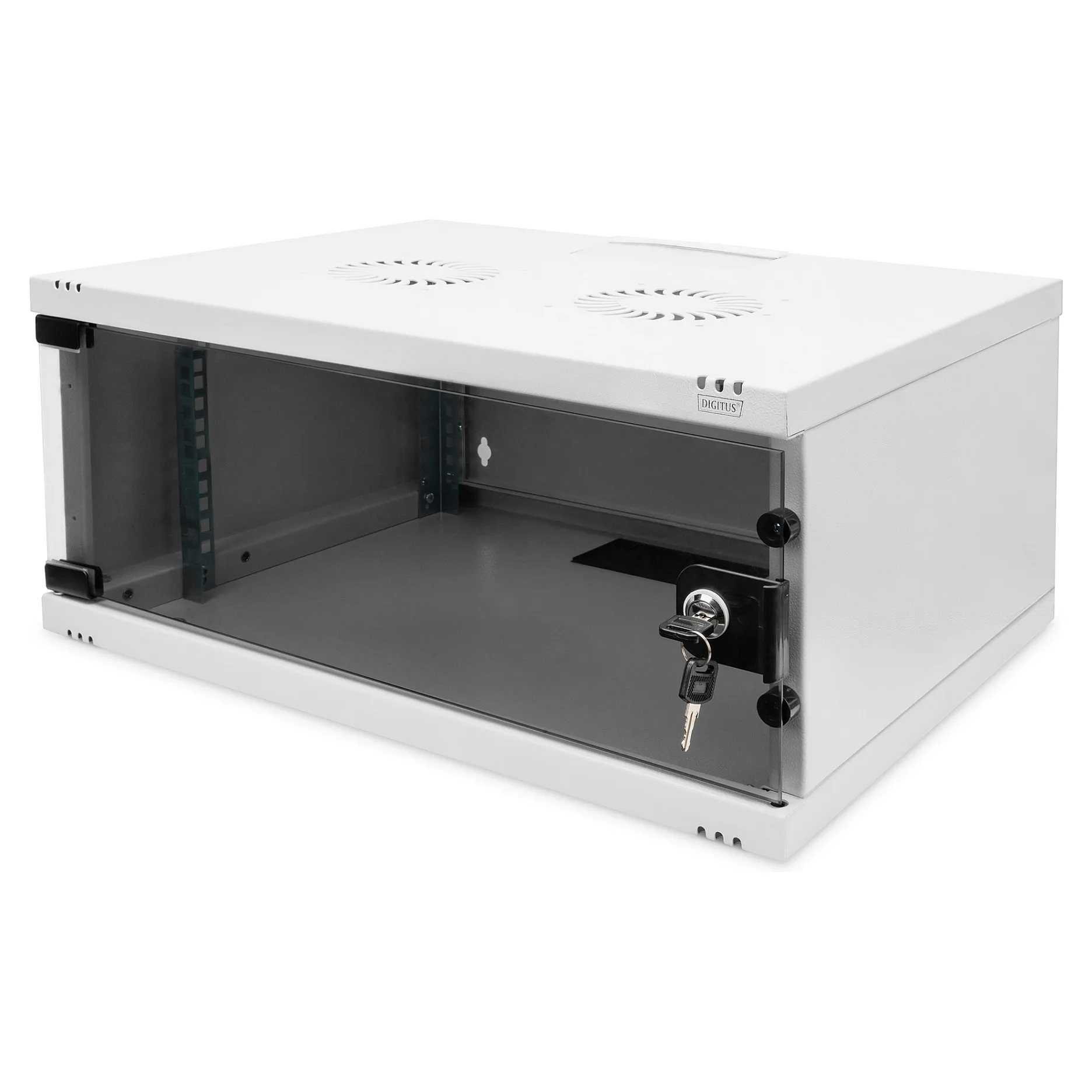

Digitus Wall Mounting Cabinet, SOHO, unmounted – 540×400 mm (WxD). Type: Wall mounted rack, Rack capacity: 4U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20. Weight: 10 kg. Product colour: Light grey
– Unmounted flat package delivery for cost- and space effciency

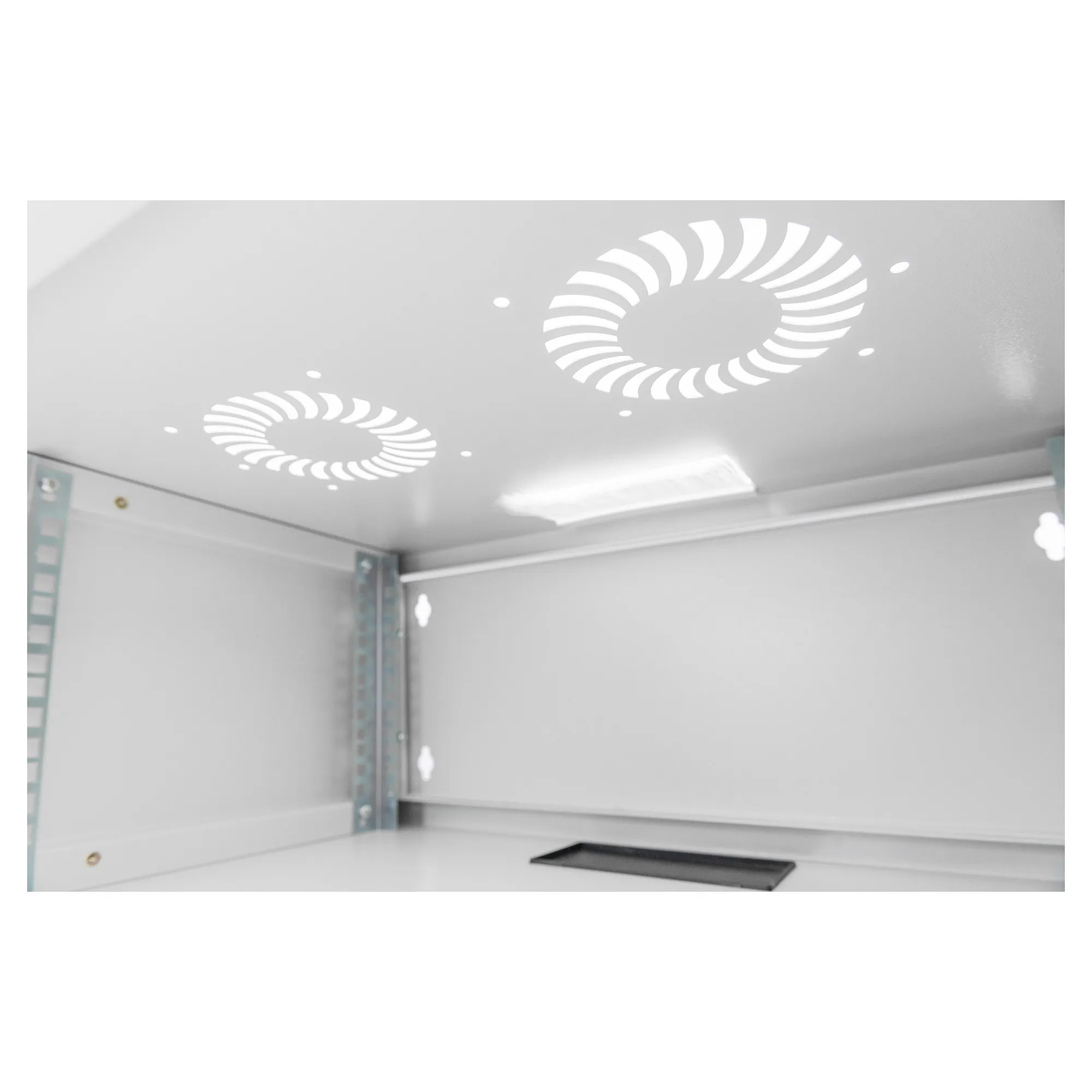

– Optimized air ventilation and exhaustion

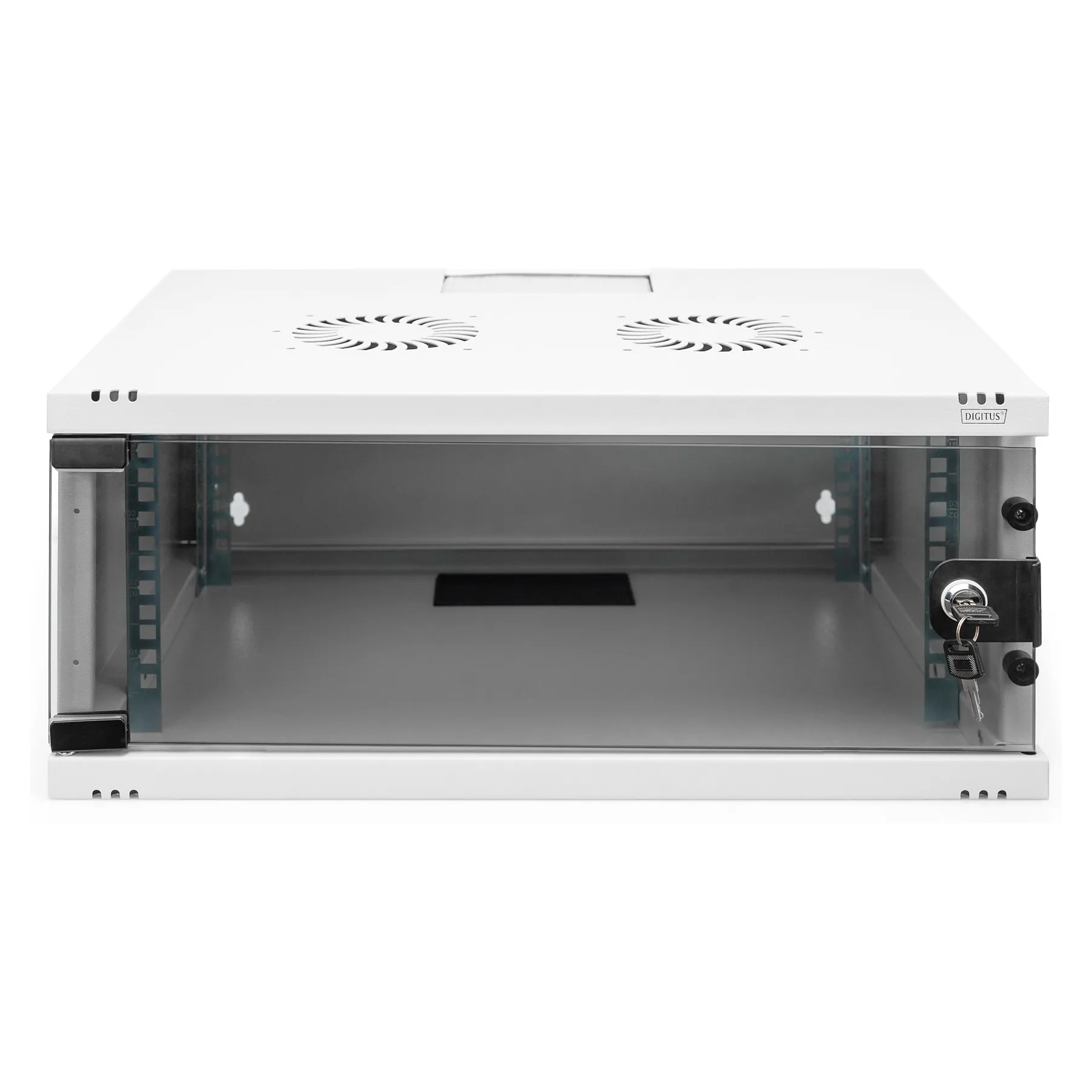

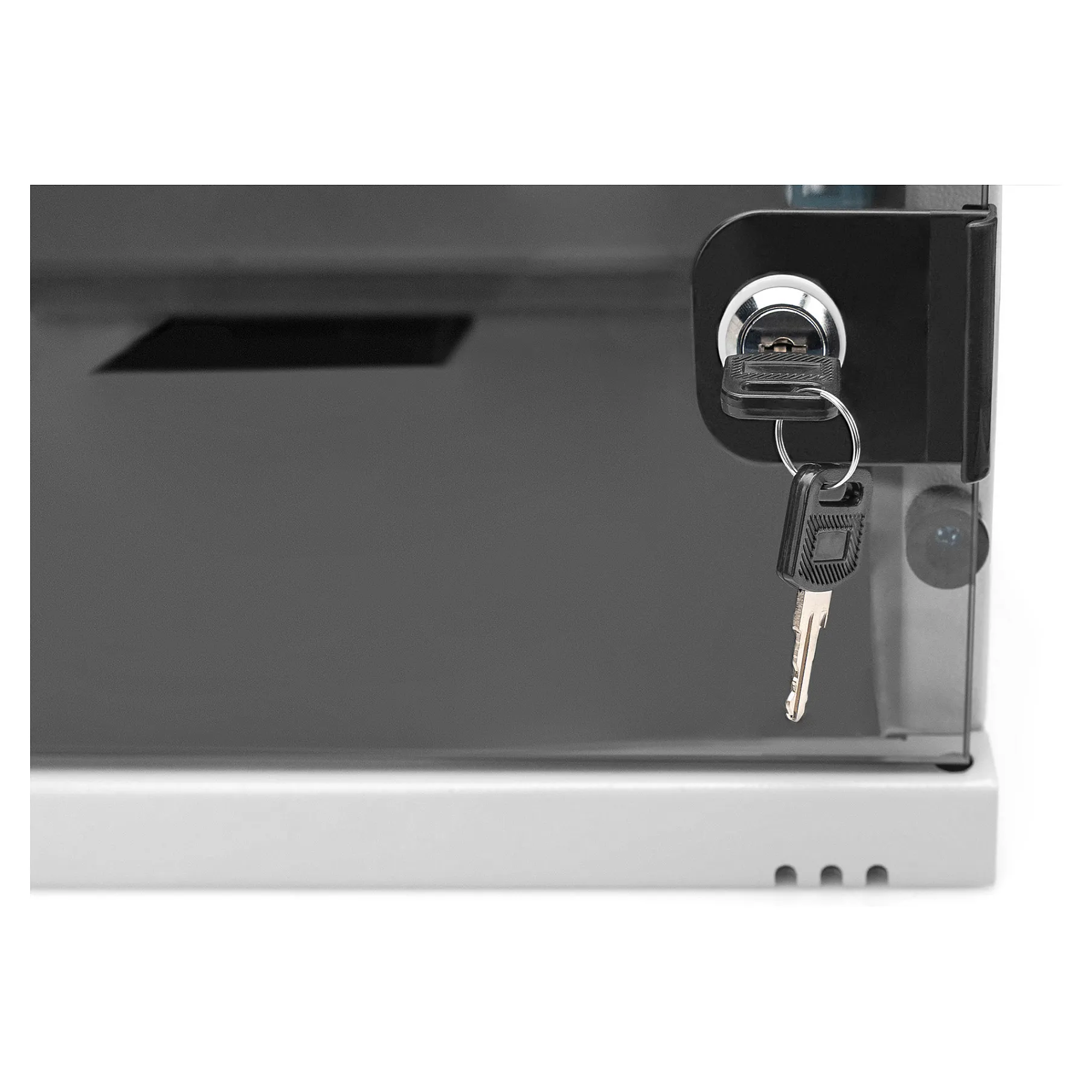

– Lockable glass door ensures safety

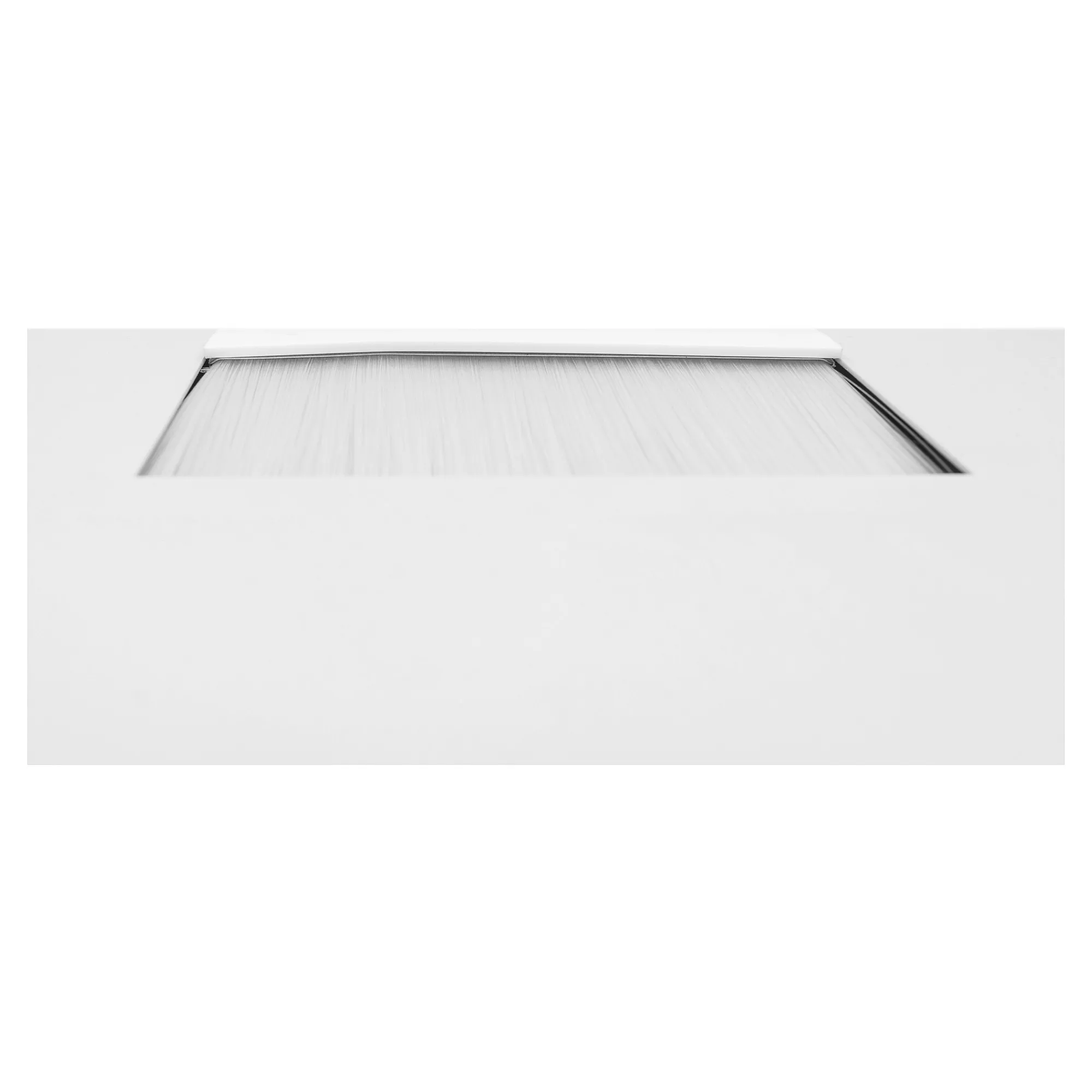

The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
Rack capacity: 4U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Light grey
Material: Steel
Back door construction: Steel
Front door construction: Glass
Side panel construction: Steel
Feature: Side panels included
Side panel style: Blind

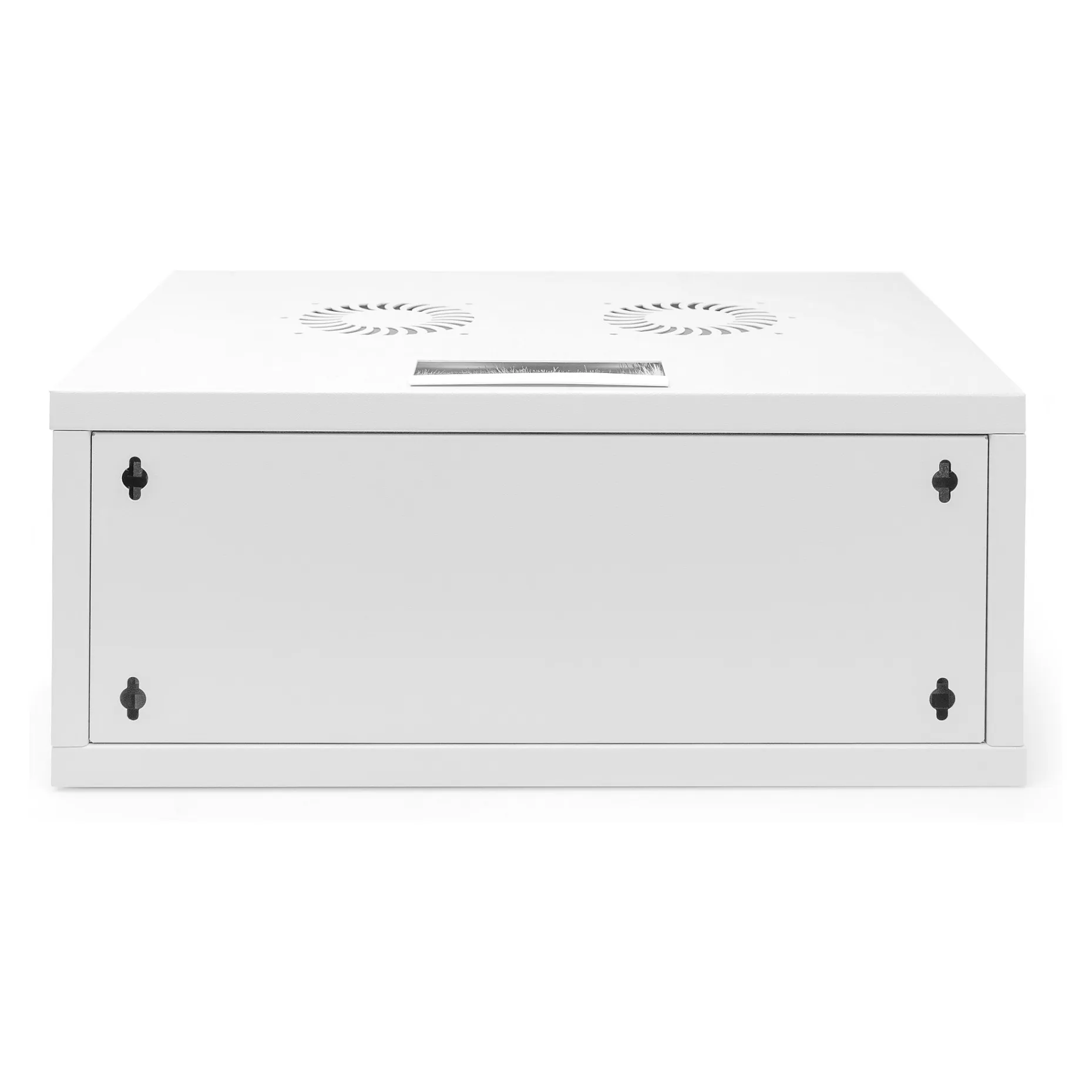

Back door style: Blind
Front door style: Glass door
Feature: Key lock
Feature: Front door key lock

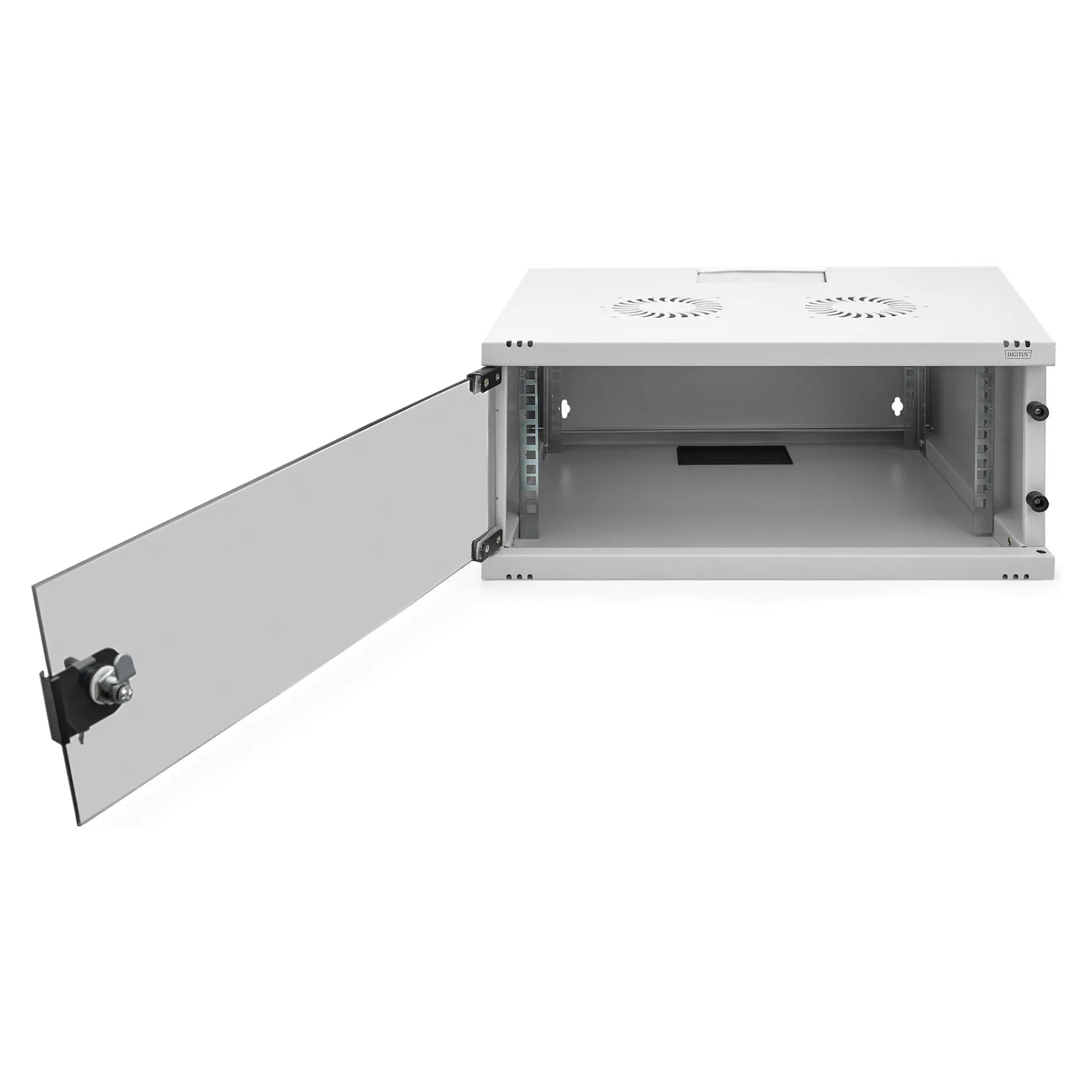

Door opening angle: 200°
Locking points: 1
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 48.3 cm (19″)
Width: 540 mm
Depth: 400 mm
Height: 241 mm
Weight: 10 kg
Mounting depth (min): 17 cm
Mounting depth (max): 27 cm
Packaging data
Feature: Mounting kit
Feature: Quick installation guide
Package width: 575 mm
Package depth: 440 mm
Package height: 155 mm
Package weight: 11 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: China
