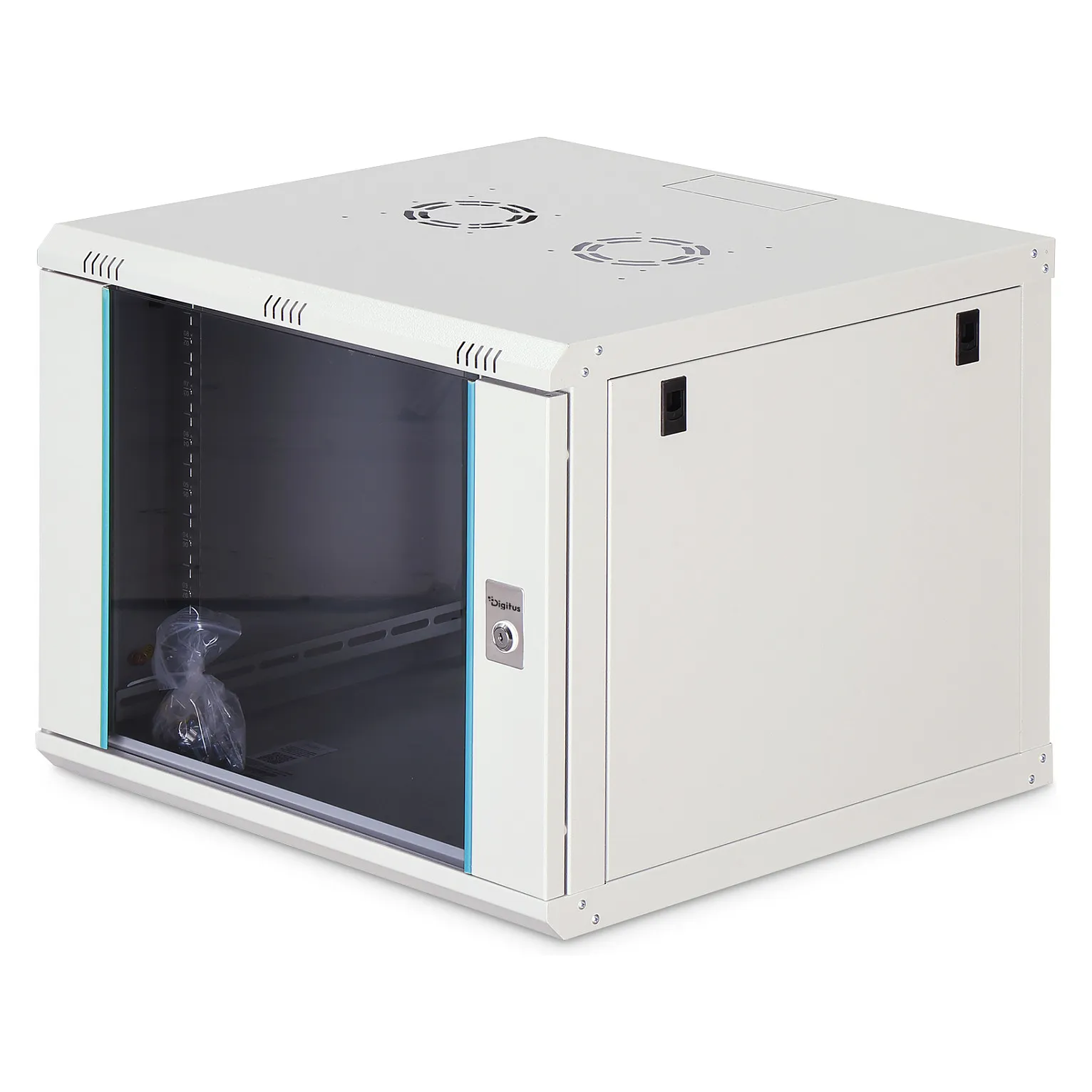

Digitus Dynamic-N series wall-mounted enclosure – 600×600 mm (WxD), unmounted. Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 60 kg, Key lock, Cable management, Rack rails, International Protection (IP) code: IP20, Assembly required. Weight: 47.4 kg. Product colour: Light grey
– Optimum ventilation and air extraction

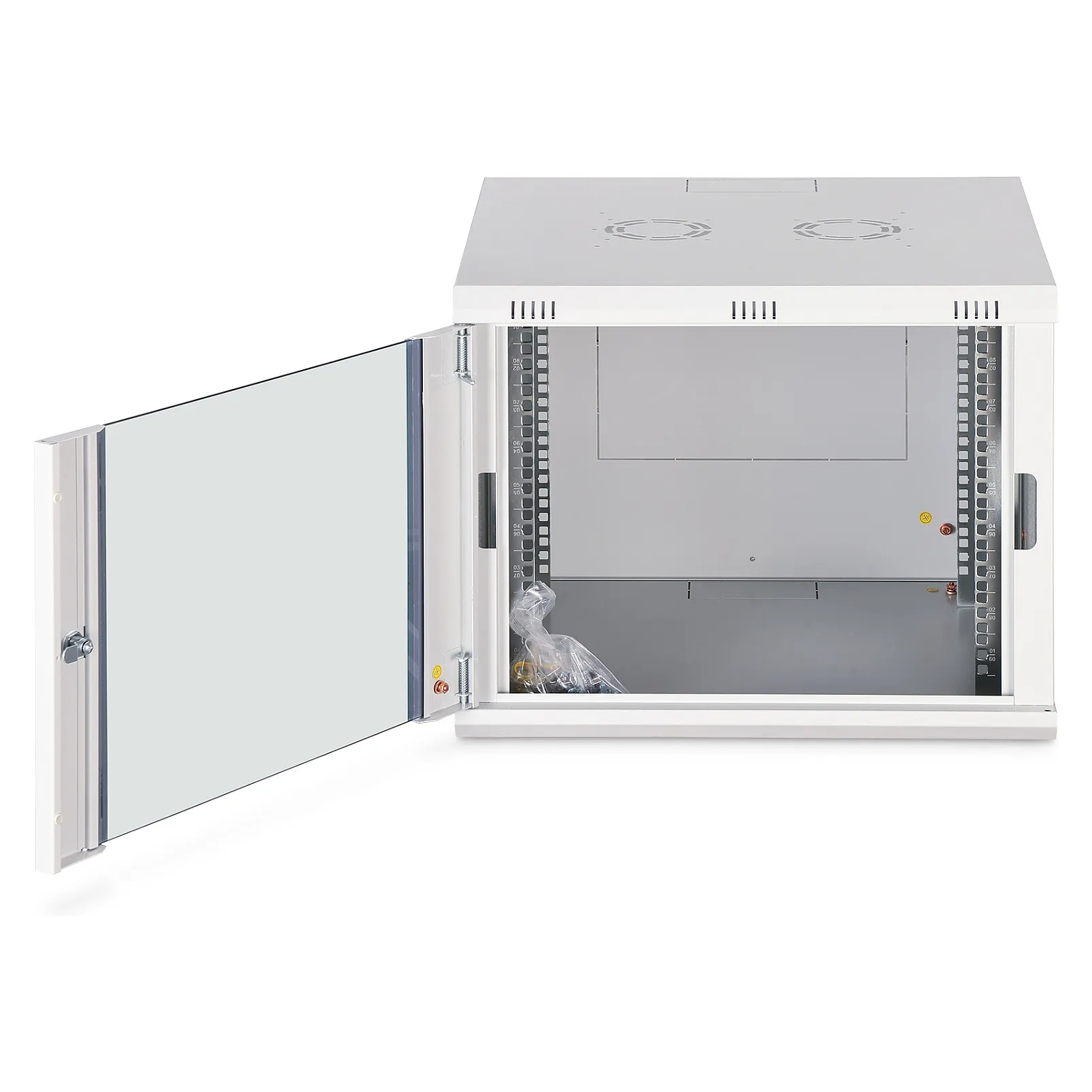

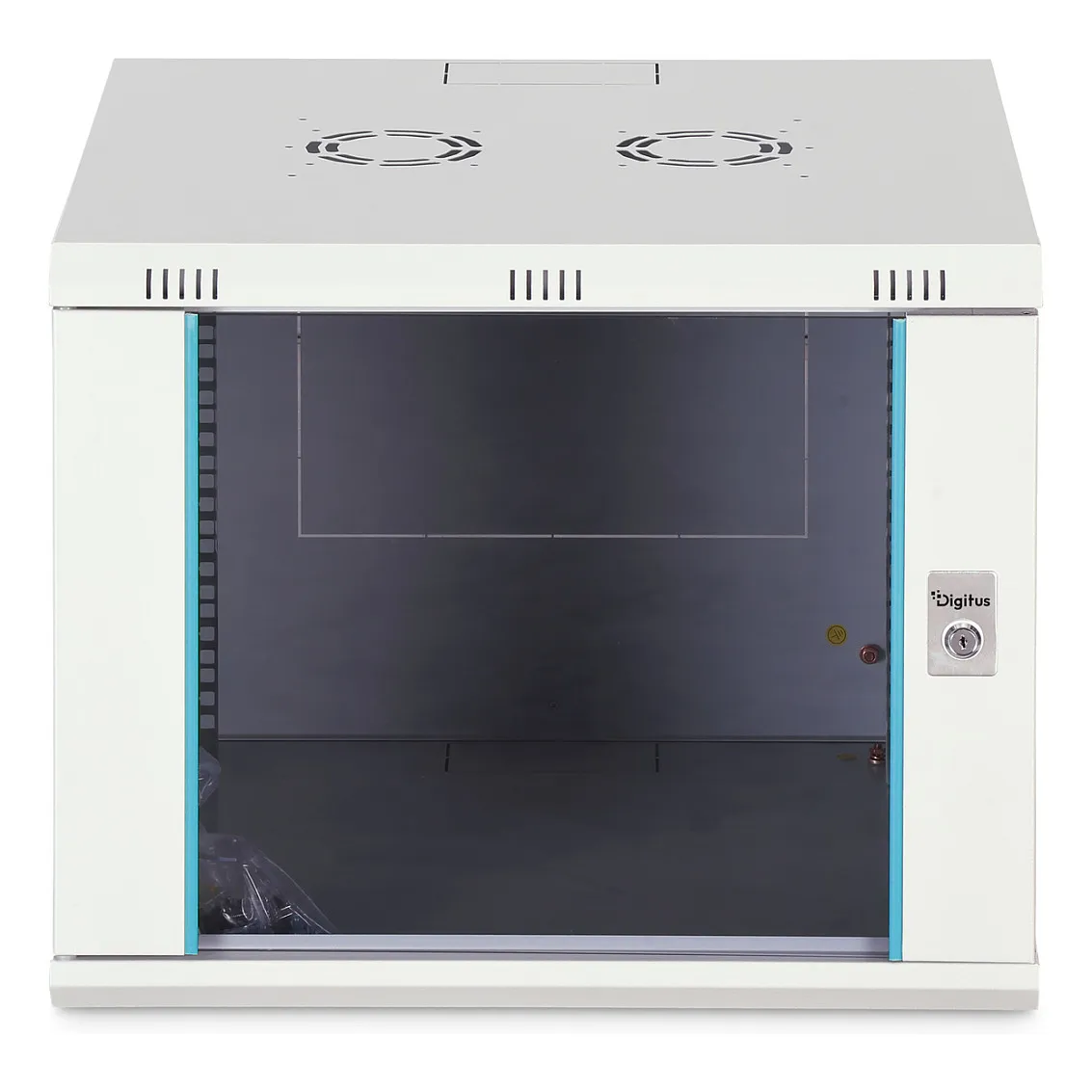

– Lockable safety glass door with steel frame

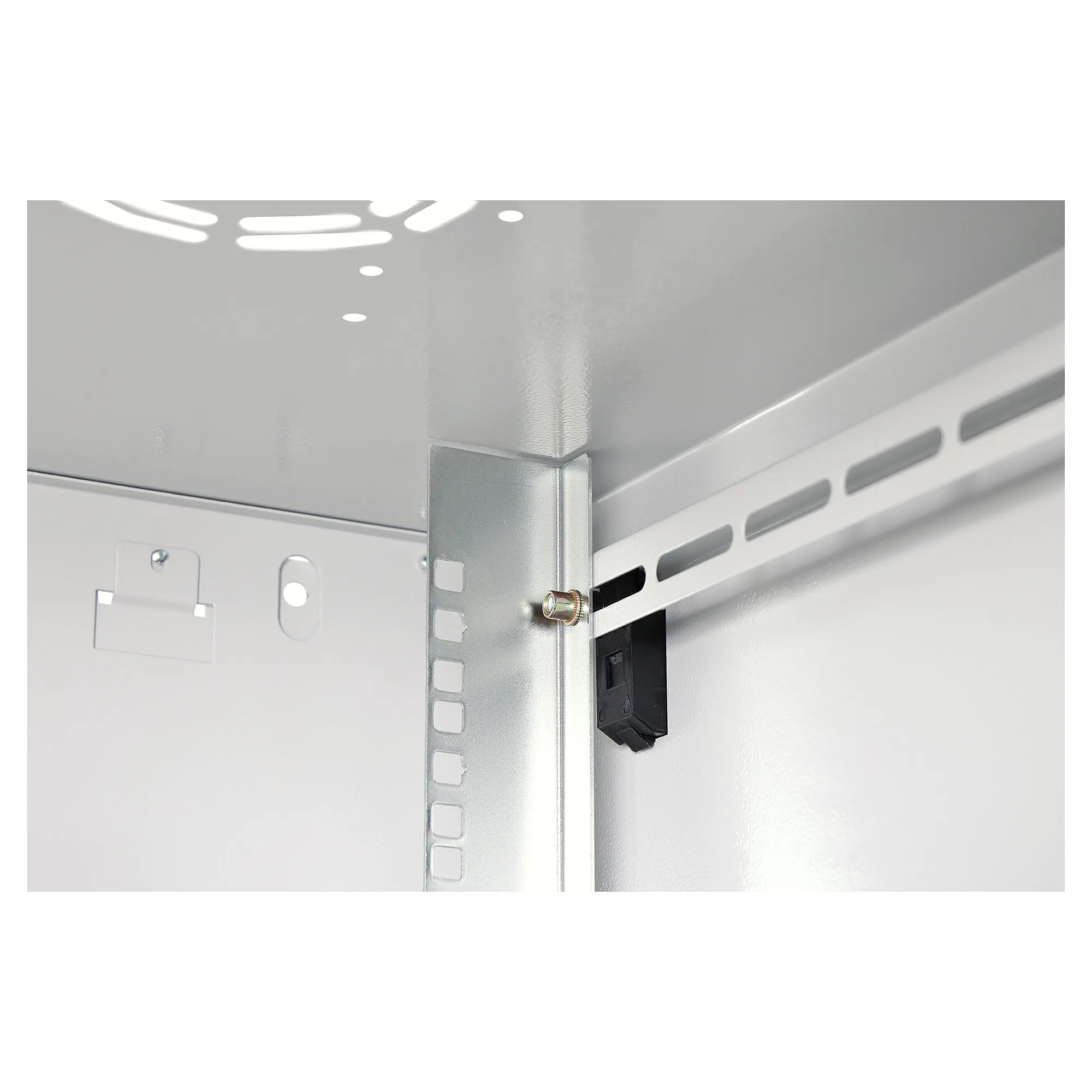

– 483 mm (19″) profile rails at the front and rear inside the enclosure, galvanized
– Supplied unassembled
– Easy wall mounting thanks to enclosed mounting plate
The Dynamic-N series network cabinets for wall mounting have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19″) profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.
Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Light grey
Material: Steel, Glass
Frame type: Closed
Back door construction: Steel
Front door construction: Glass/Steel
Side panel construction: Steel
Feature: Removable back door
Feature: Removable front door

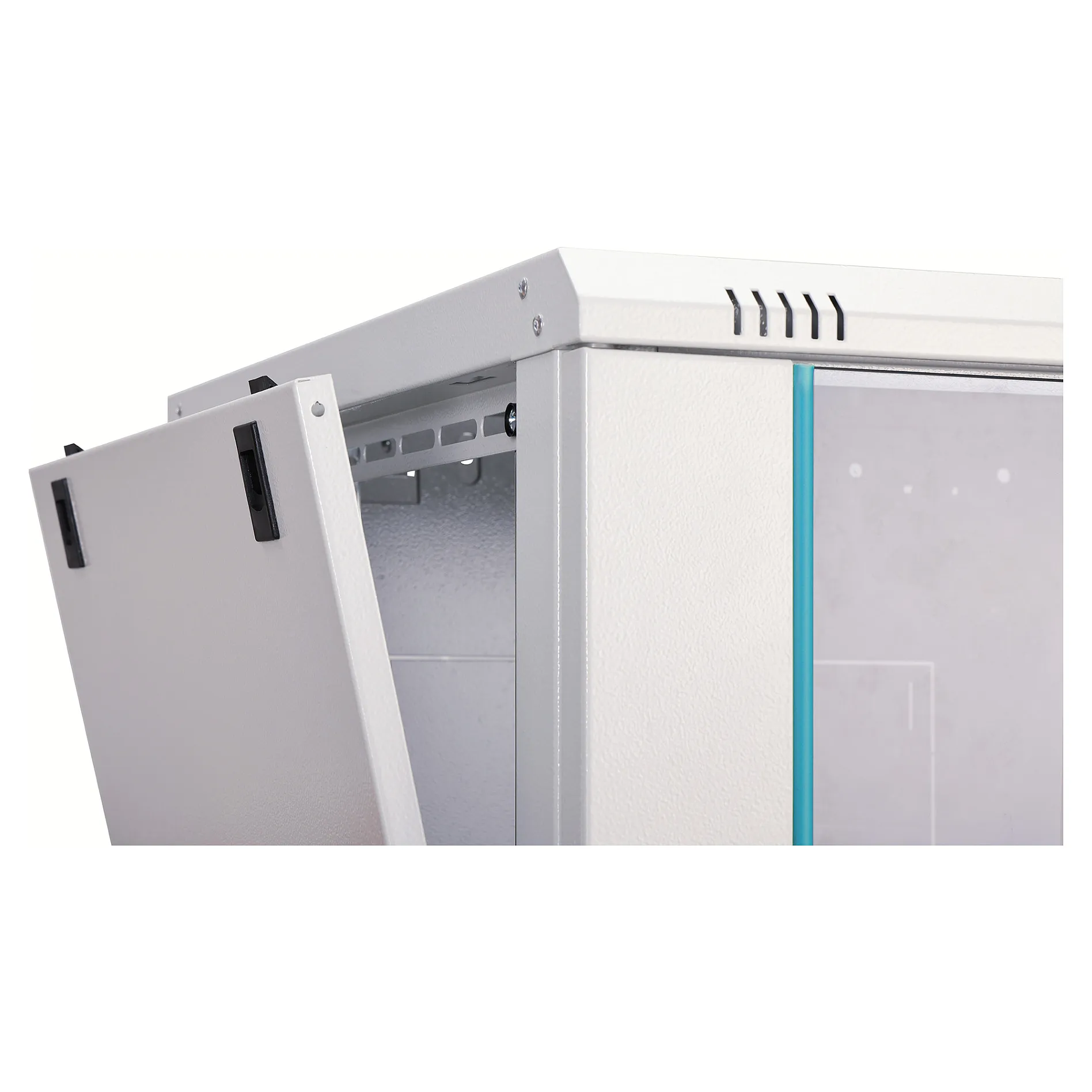

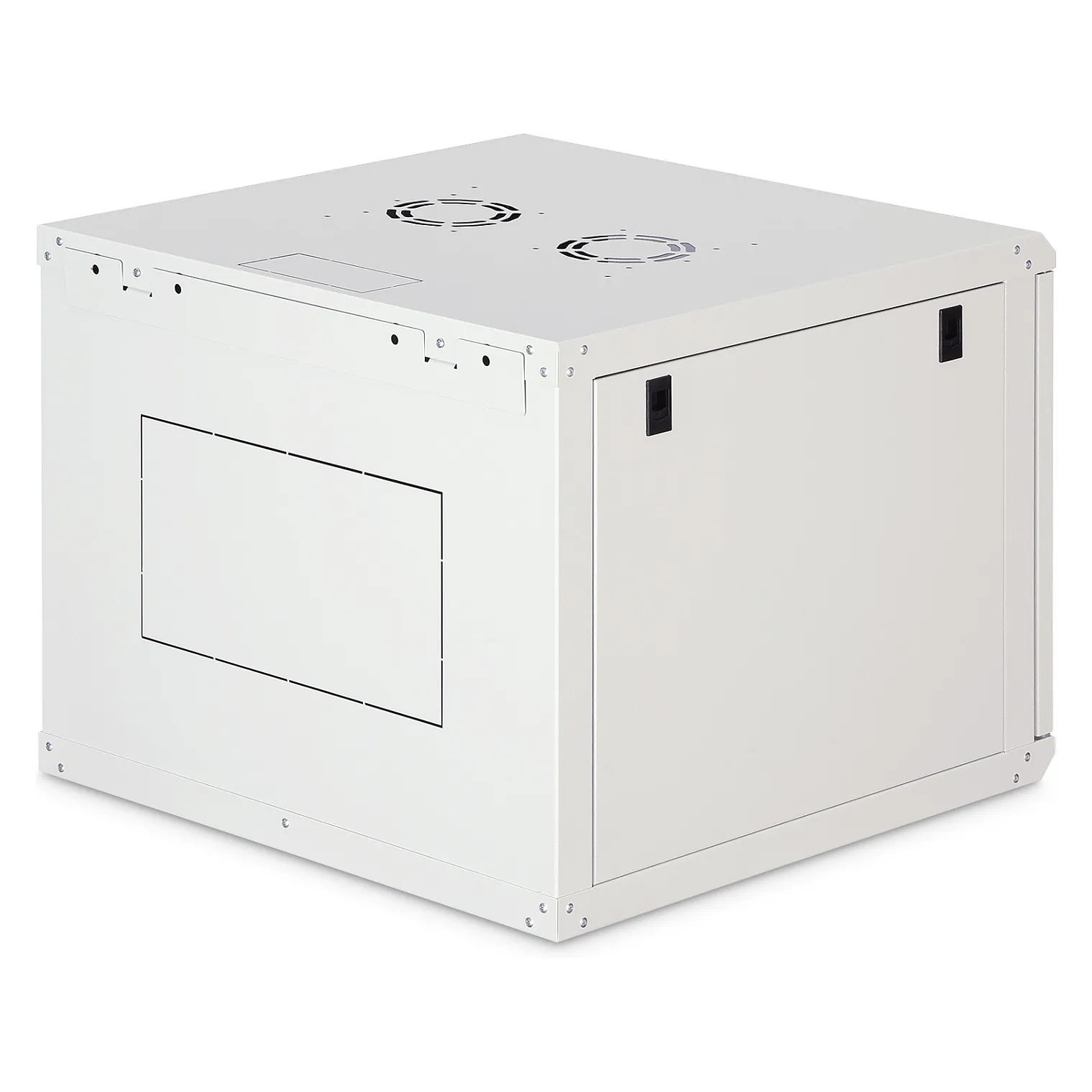

Feature: Removable side panels
Feature: Side panels included
Side panel style: Blind
Back door style: Blind
Front door style: Glass door

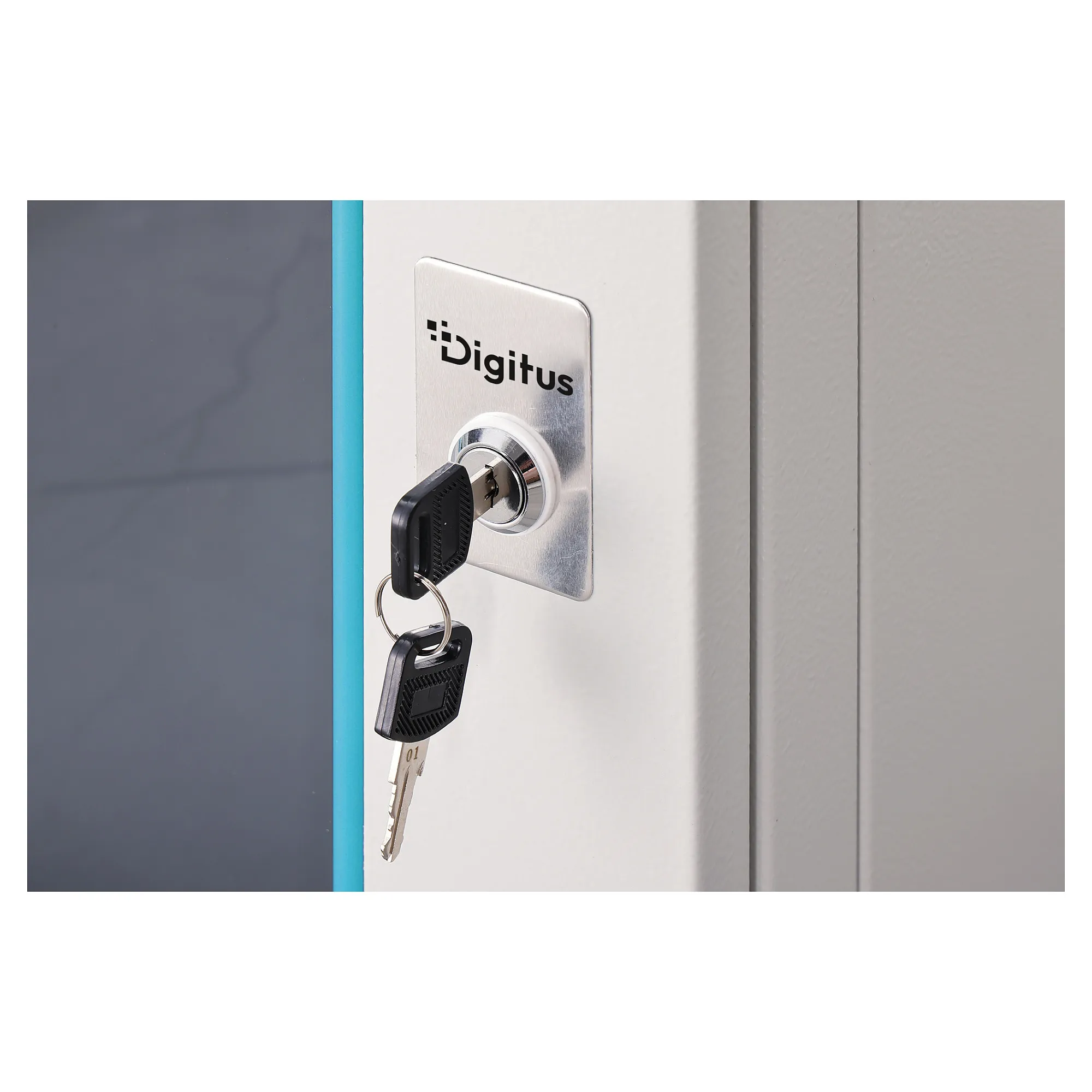

Feature: Key lock
Feature: Front door key lock
Feature: Rack rails
Cooling type: Active
Feature: Cable management
Door opening angle: 230°
Locking points: 1
Feature: Assembly required
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 48.3 cm (19″)
Width: 600 mm
Depth: 600 mm
Height: 196 mm
Weight: 47.4 kg
Packaging data
Feature: Mounting kit
Feature: Grounding kit
Feature: Manual
Package width: 650 mm
Package depth: 650 mm
Package height: 220 mm
Package weight: 22 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Shipping (inner) case length: 65 cm
Shipping (inner) case width: 65 cm
Shipping (inner) case height: 22 cm
Master (outer) case width: 650 mm
Master (outer) case length: 650 mm
Master (outer) case height: 220 mm
Master (outer) case gross weight: 22 kg
Products per master (outer) case: 1 pc(s)
