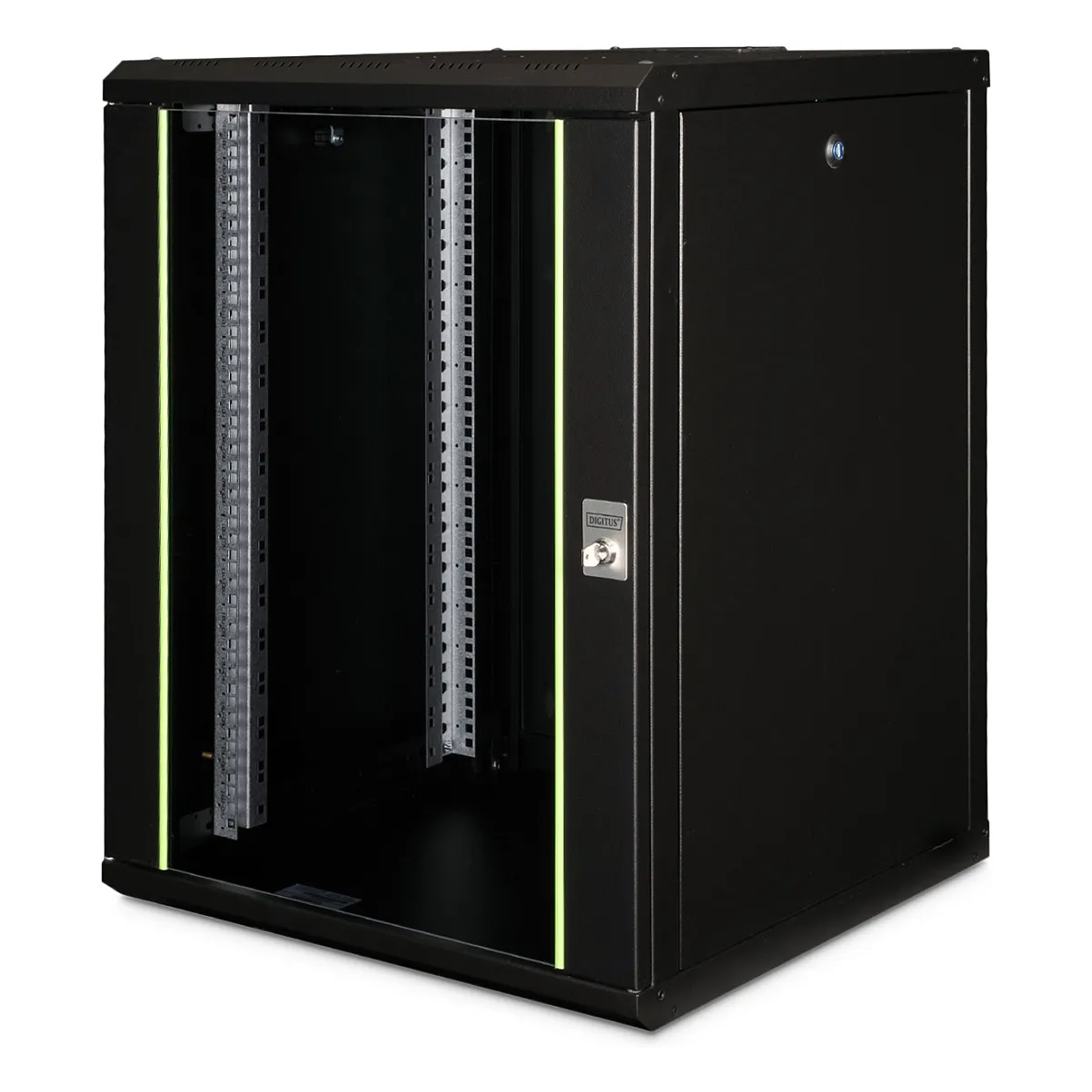

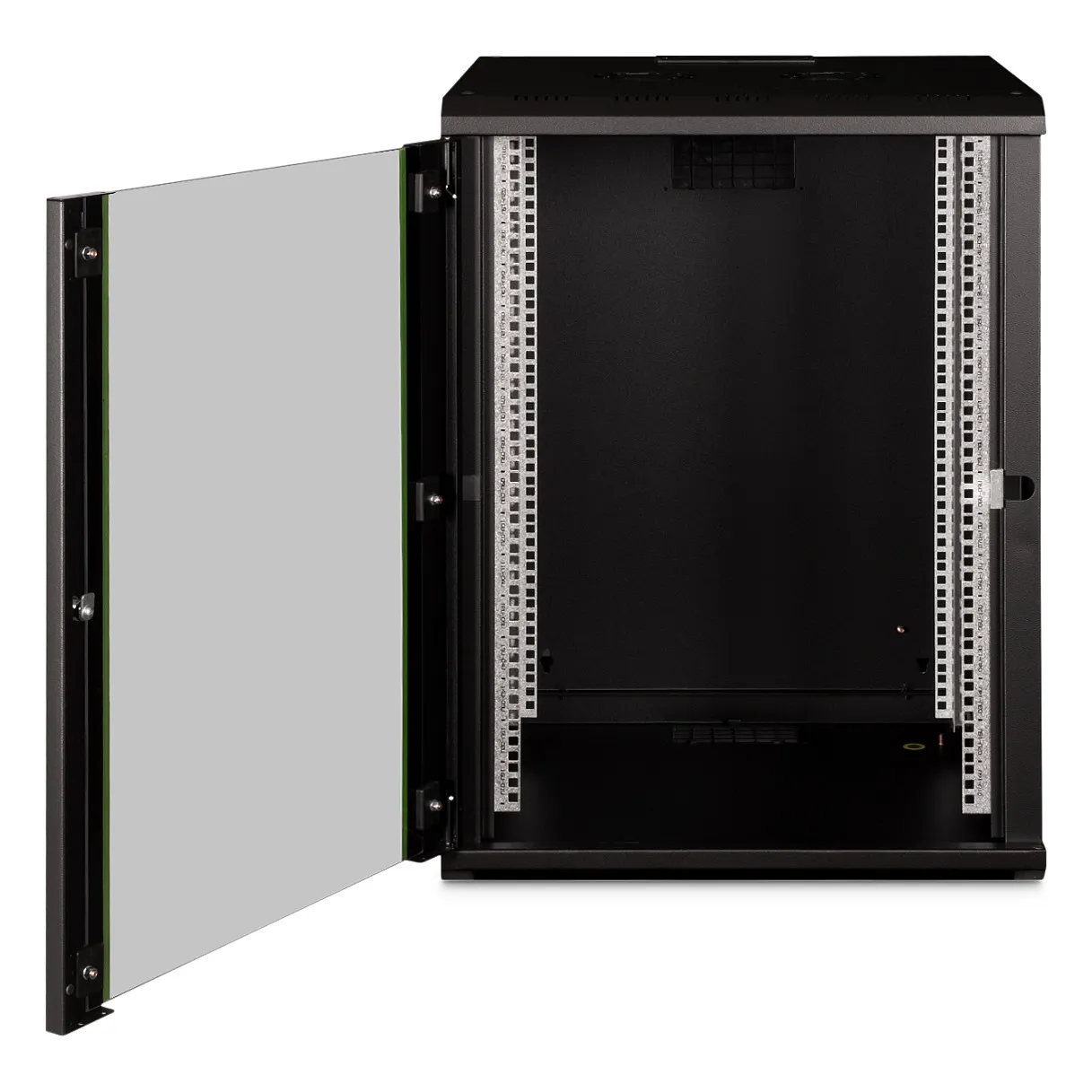

Digitus Wall Mounting Cabinet Unique Series – 600×600 mm (WxD). Type: Wall mounted rack, Rack capacity: 16U, Maximum weight capacity: 100 kg, Key lock, International Protection (IP) code: IP20, Product colour: Black
– Robust steel construction for sturdy wall mounting

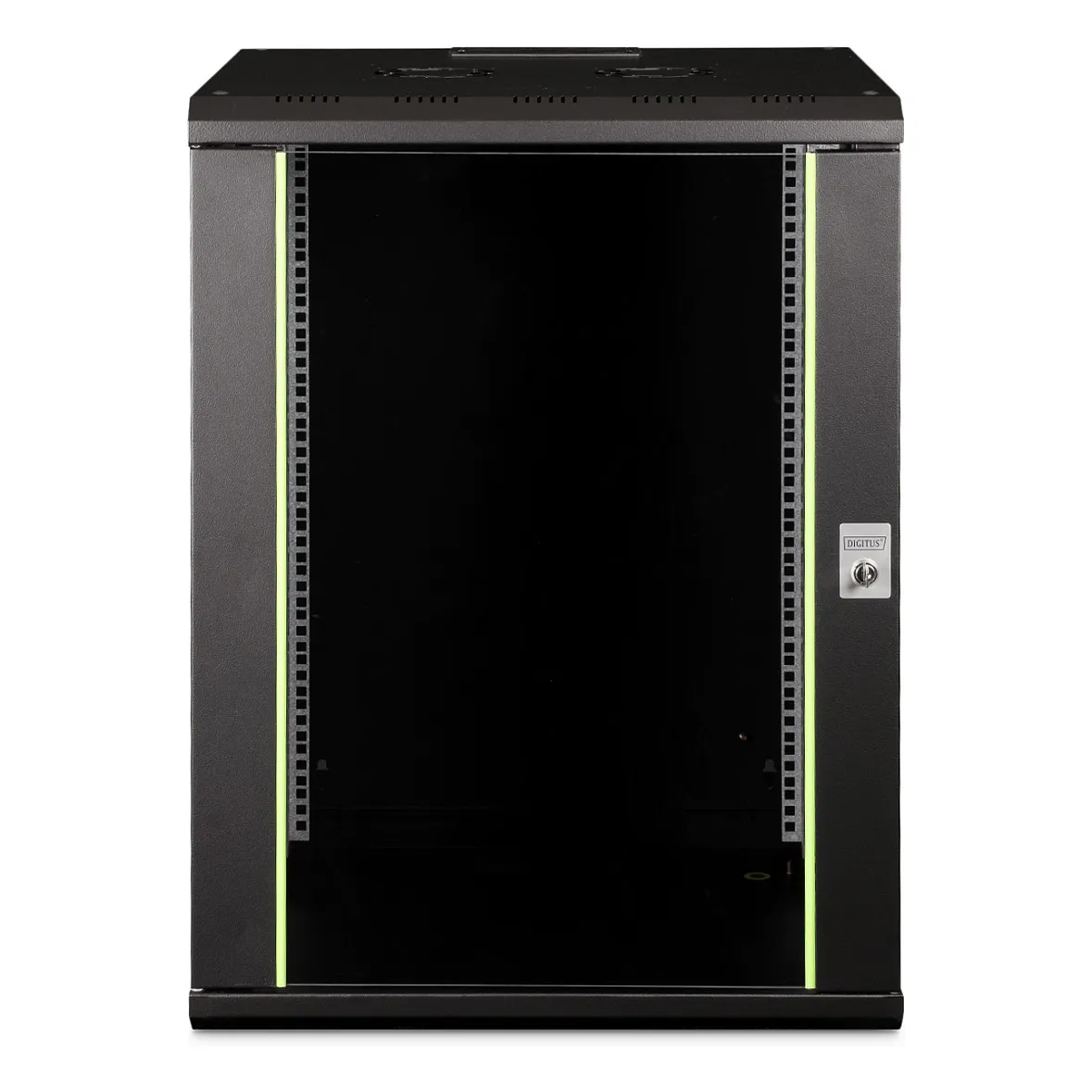

– Lockable safety-glass door with steel frame
– Side panels are lockable and removable

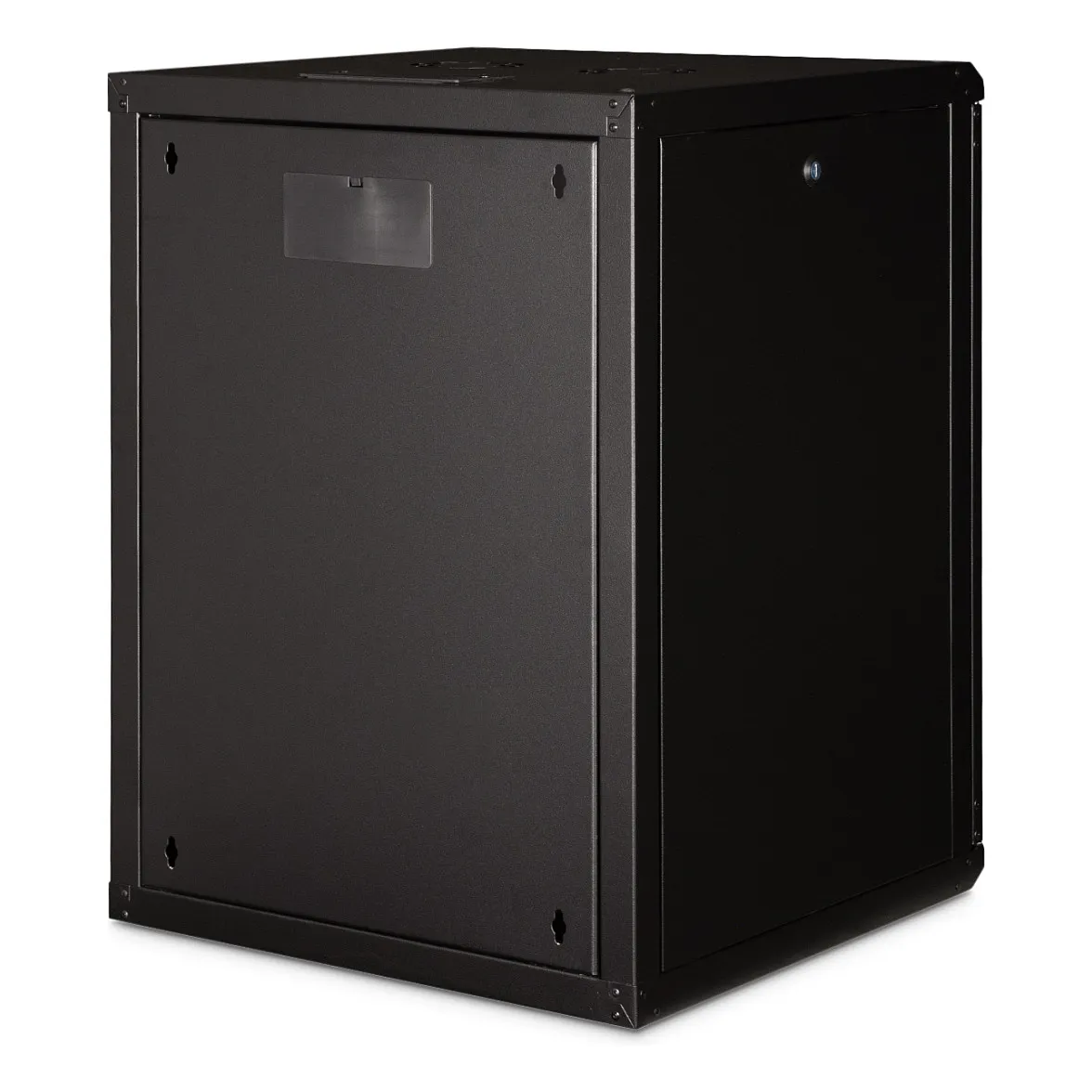

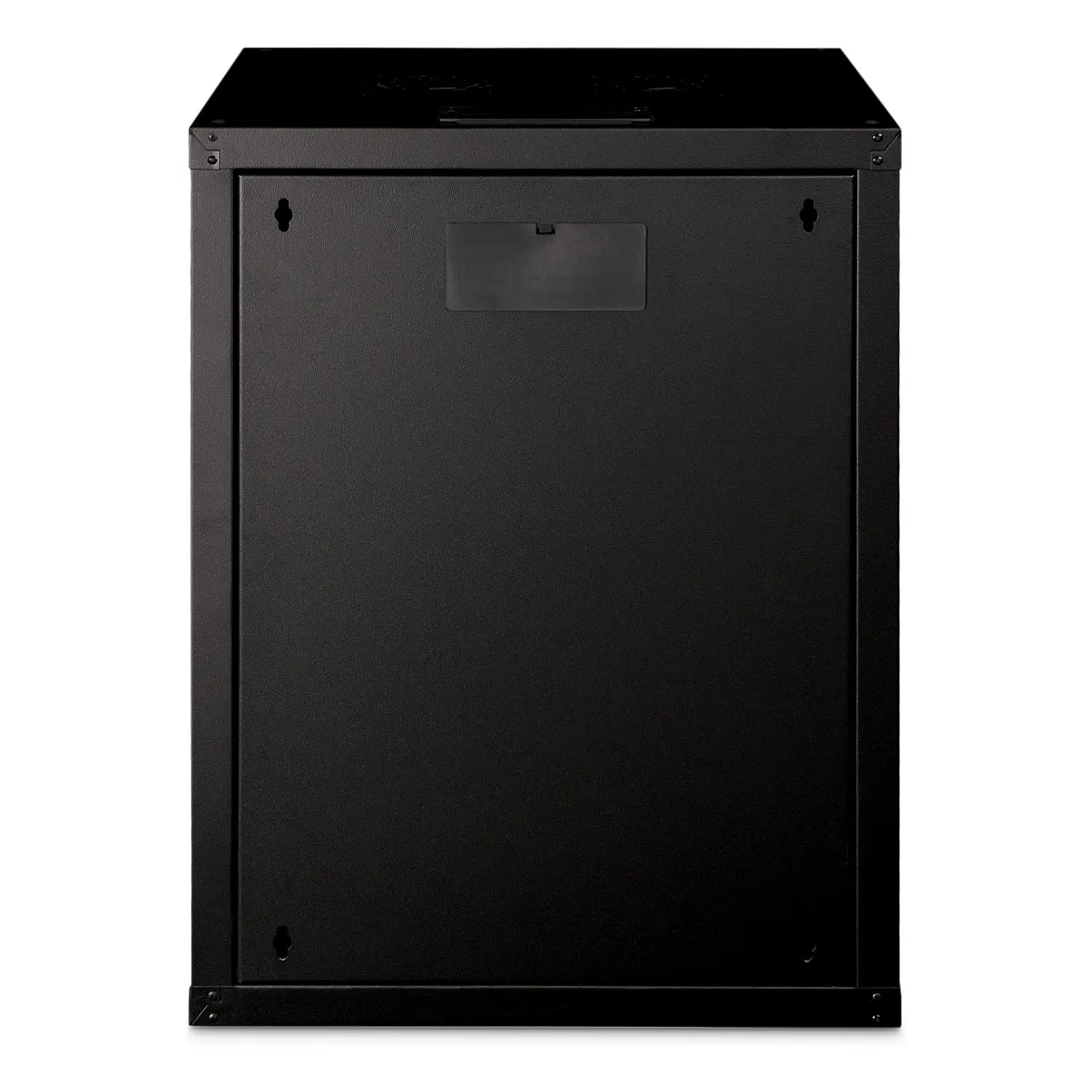

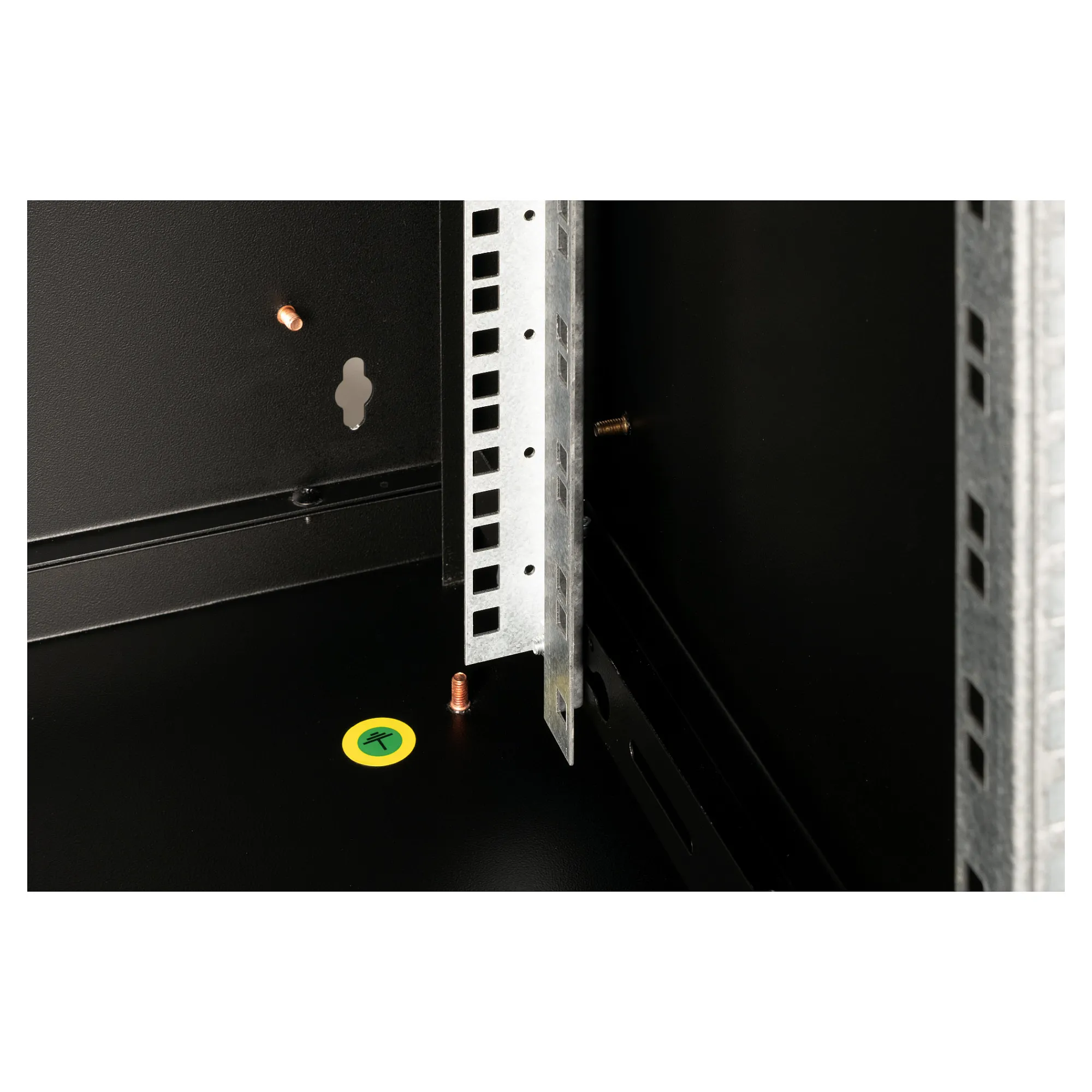

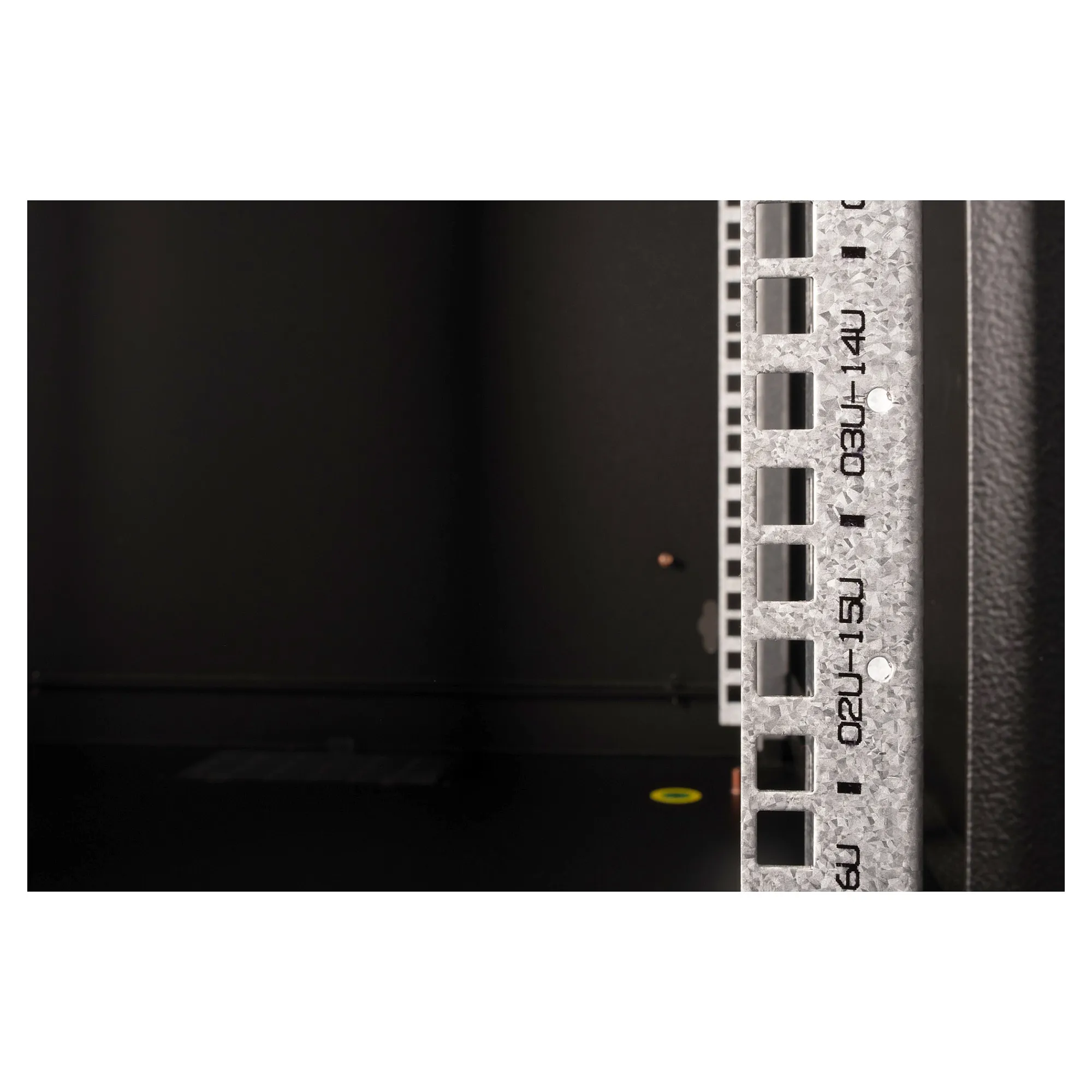

The network cabinets for wall installation from the Unique series were developed for especially convenient and flexible network cabling. There is a sliding cable inlet with foam rubber seal in the roof of each cabinet. The back wall and floor plate are equipped with pre-cut cable inlets with a plastic cover. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable and lockable side walls in a modular design as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The housing frame plate is bolted on the wall and then connected with the housing. With optionally available levelling feet or casters, the wall housings from the Unique series can also be used as a free-standing unit.
Rack capacity: 16U
Type: Wall mounted rack
Maximum weight capacity: 100 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Feature: Removable side panels
Feature: Side panels included
Feature: Key lock

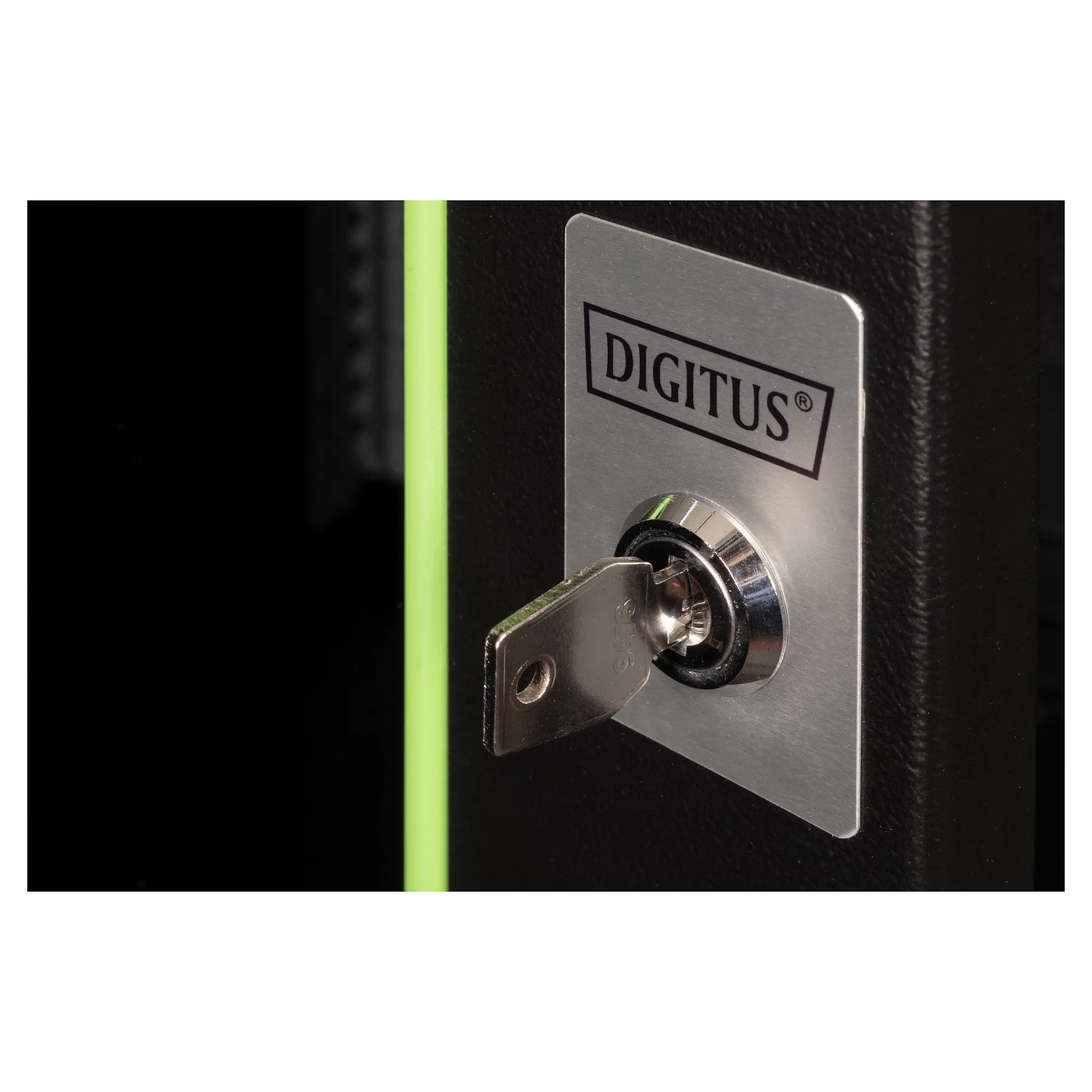

Feature: Front door key lock
Feature: Side panel key lock
International Protection (IP) code: IP20
Weight & dimensions
Width: 600 mm
Depth: 600 mm
Height: 820 mm
Mounting depth (max): 45 cm
Packaging data

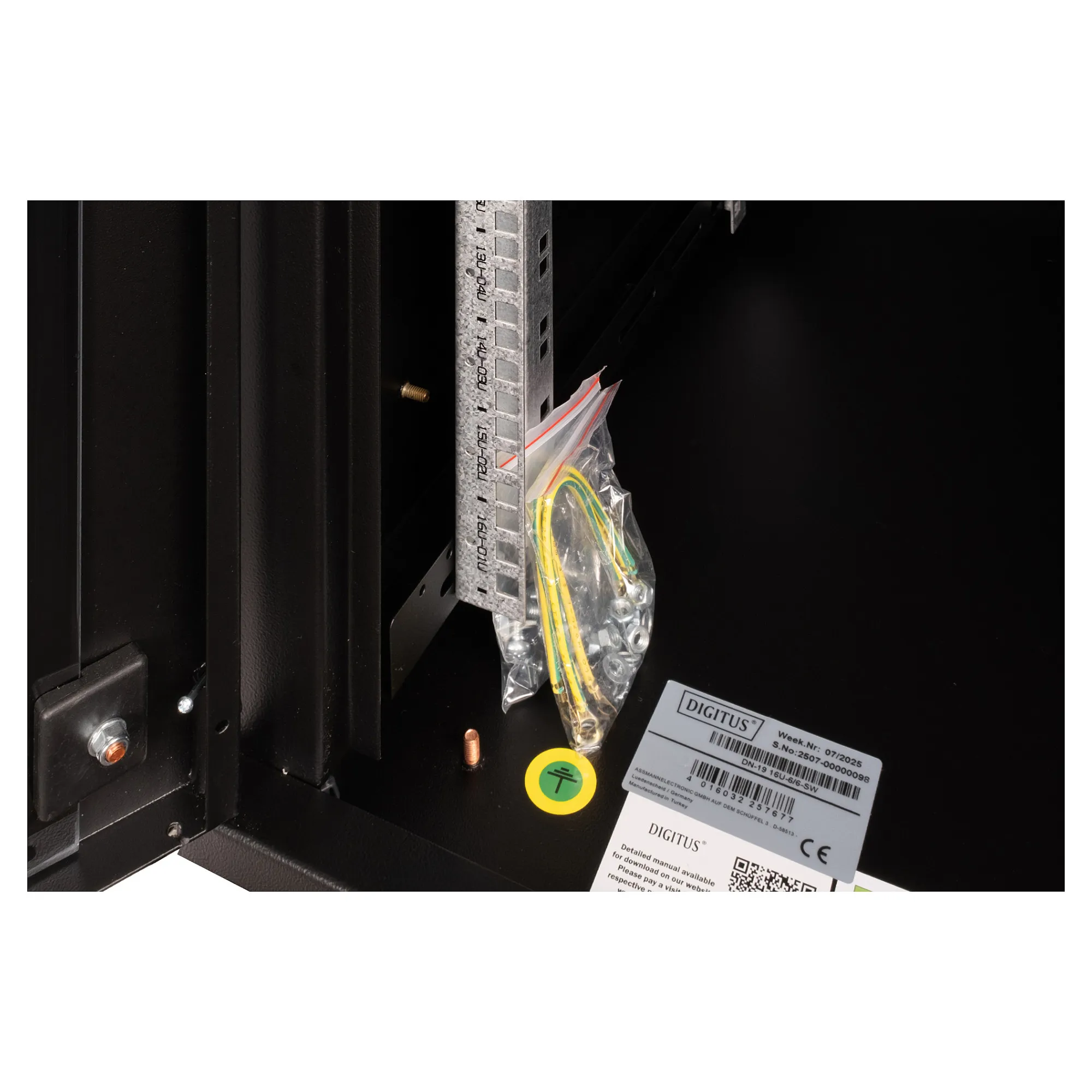

Feature: Nuts included
Feature: Screws included
Package width: 670 mm
Package depth: 640 mm
Package height: 830 mm
Package volume: 367575 cm³
Package weight: 32.8 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: Turkey
Harmonized System (HS) code: 85381000
