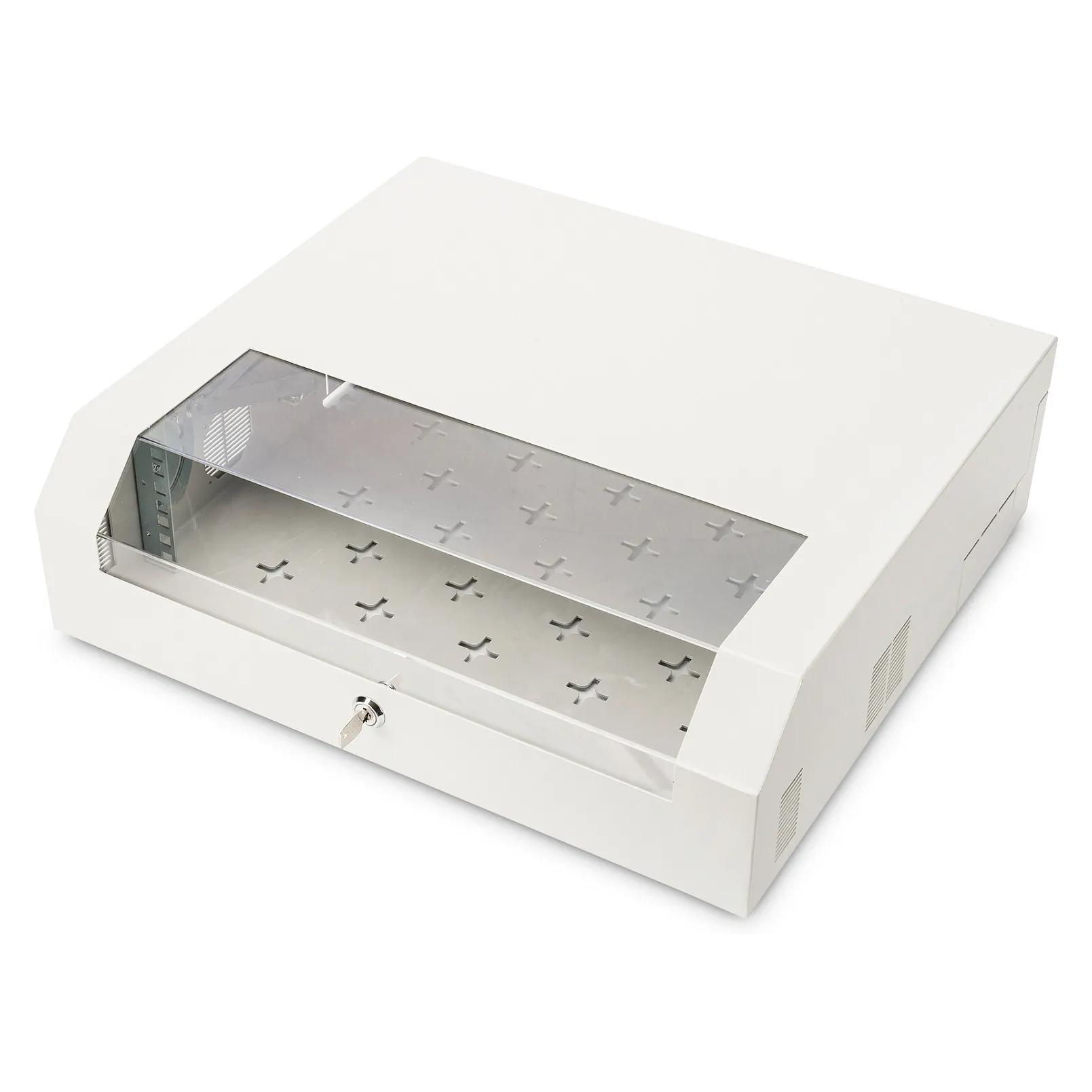

Digitus Wall-mounted enclosure – SOHO, Slim. Type: Wall mounted rack, Rack capacity: 5U, Maximum weight capacity: 30 kg, International Protection (IP) code: IP20, Product colour: Light grey
– Slim housing for installations where space is limited

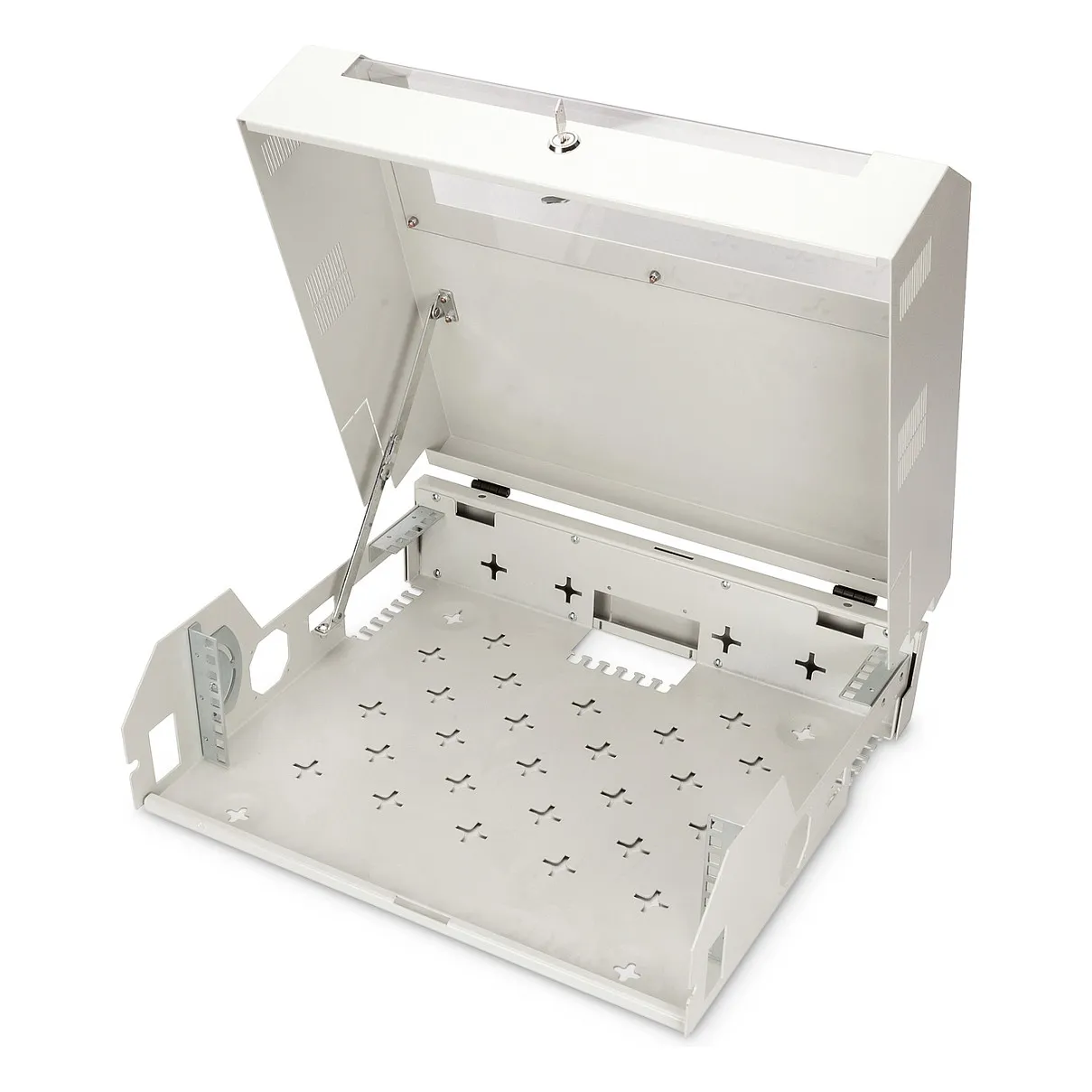

– Door stopper mechanism allows installation in any direction on the wall, ceiling or raised floor

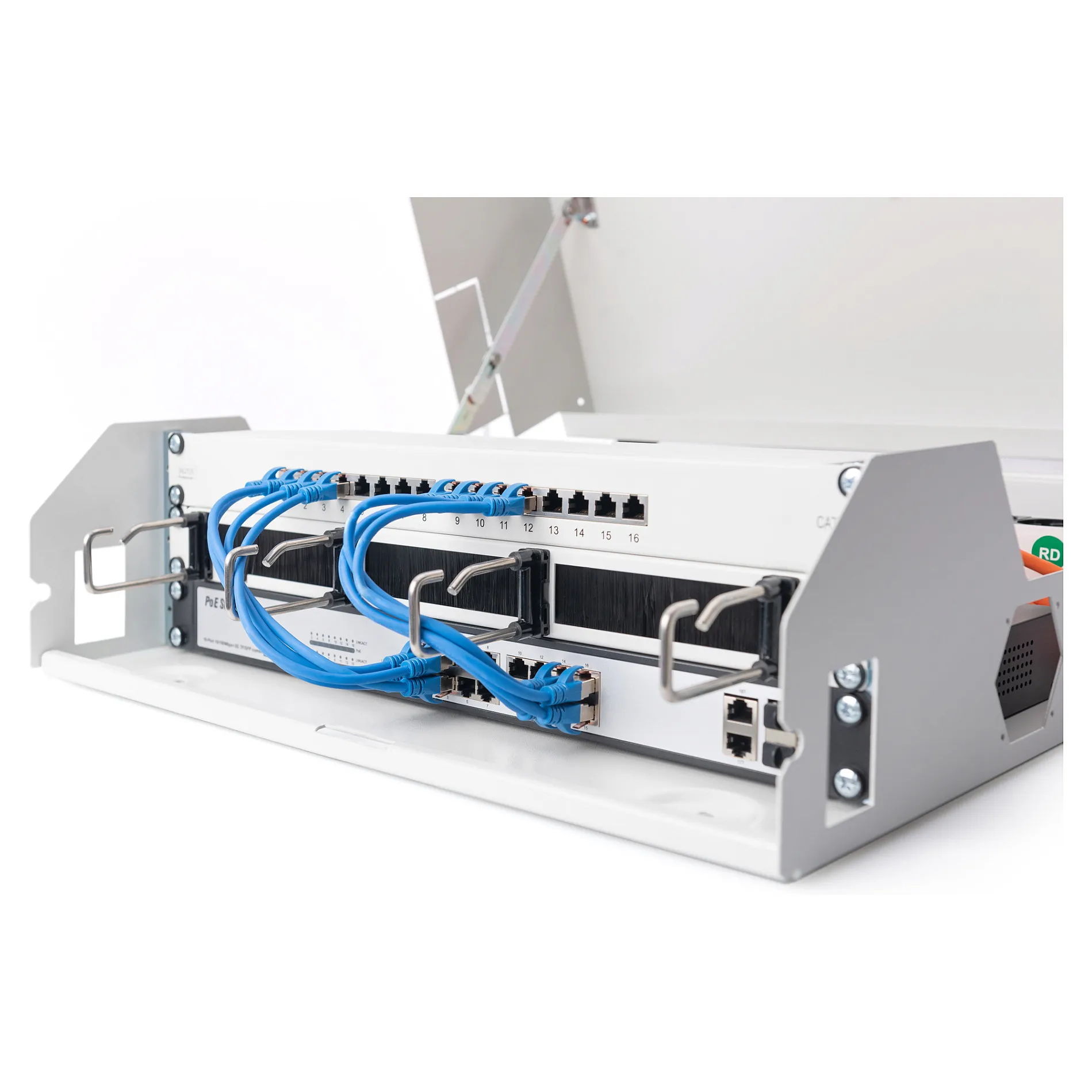

– 3U rotatable profile rail at the front, 2U fixed profile rail at the rear

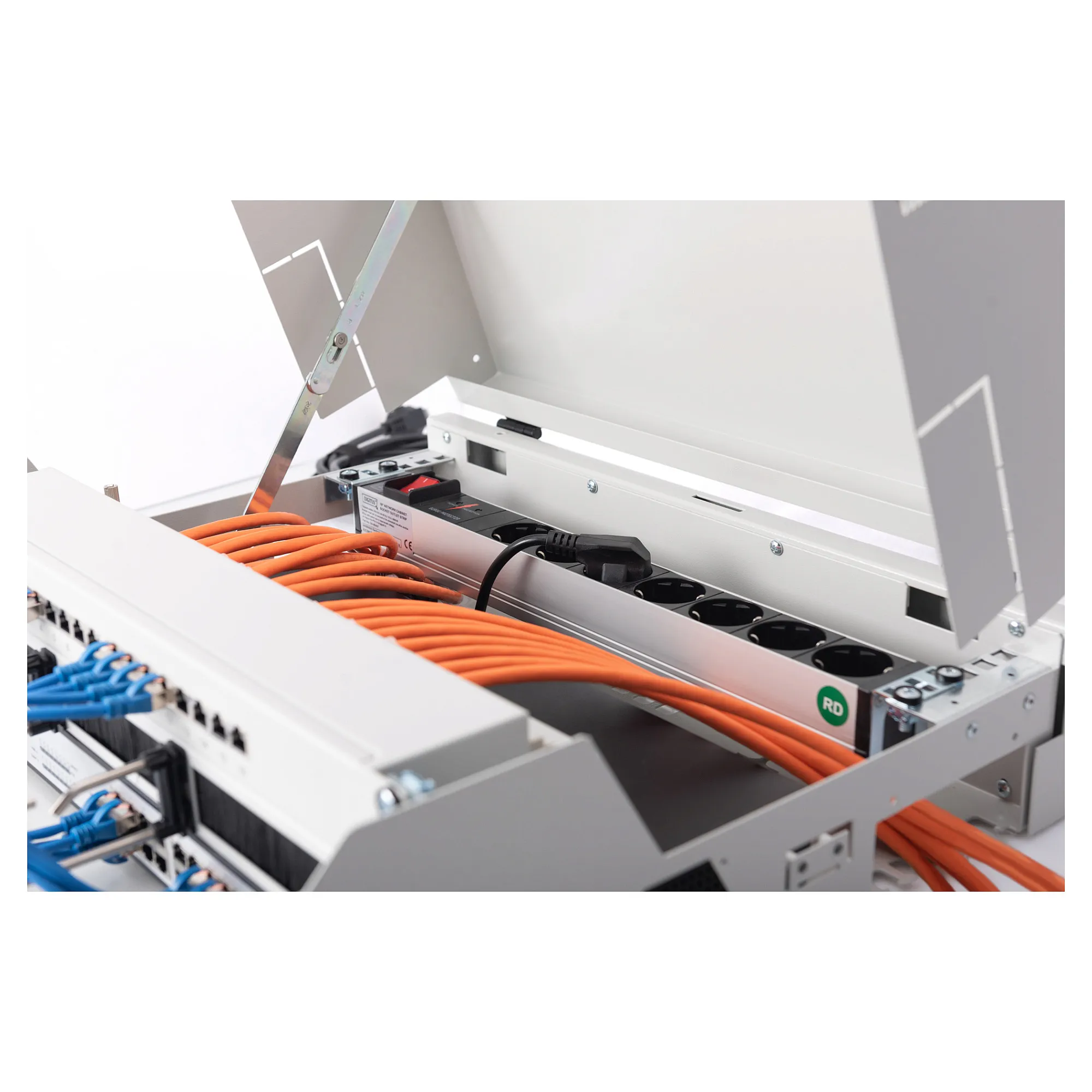

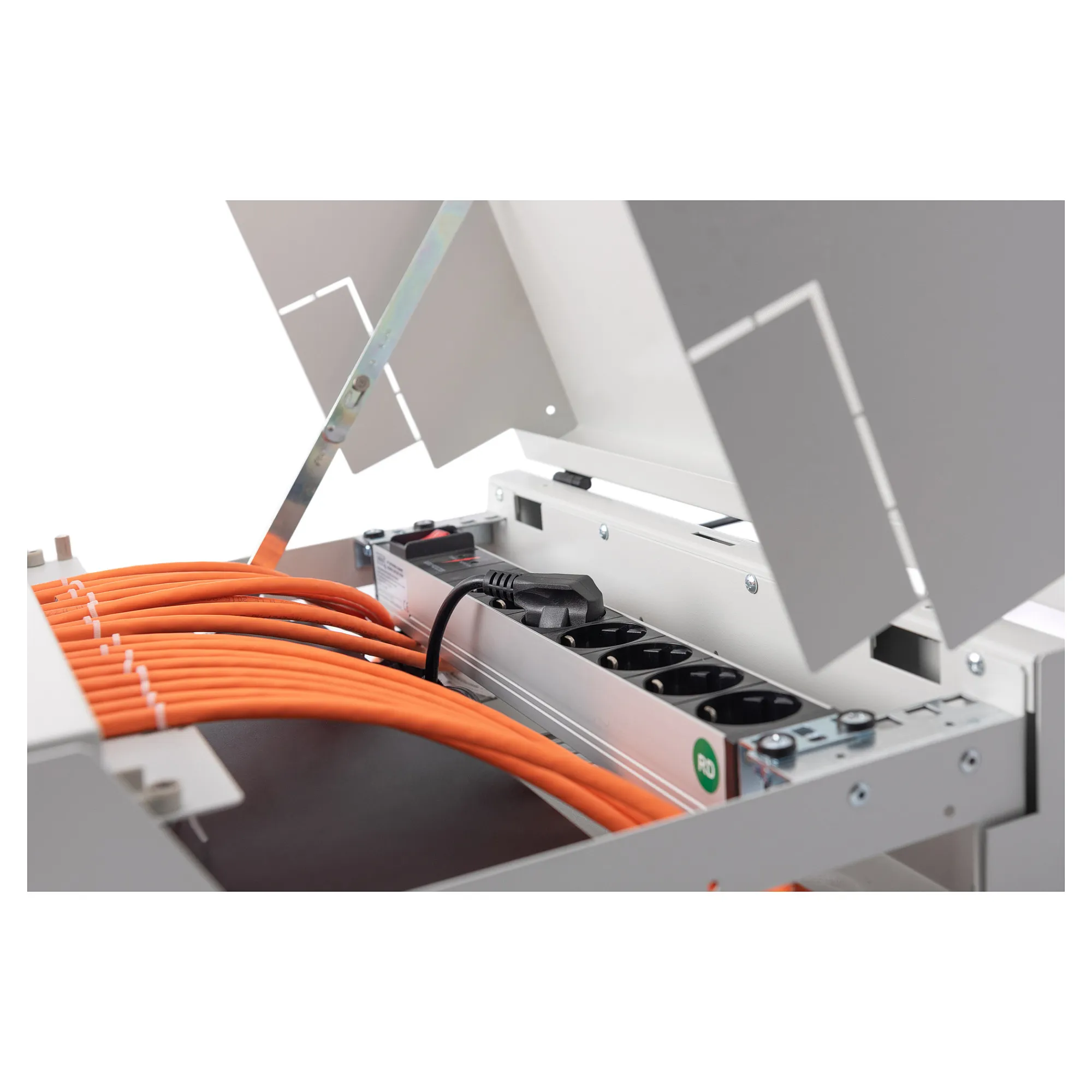

– Pre-punched cut-outs for cable routing and fastening cable ties

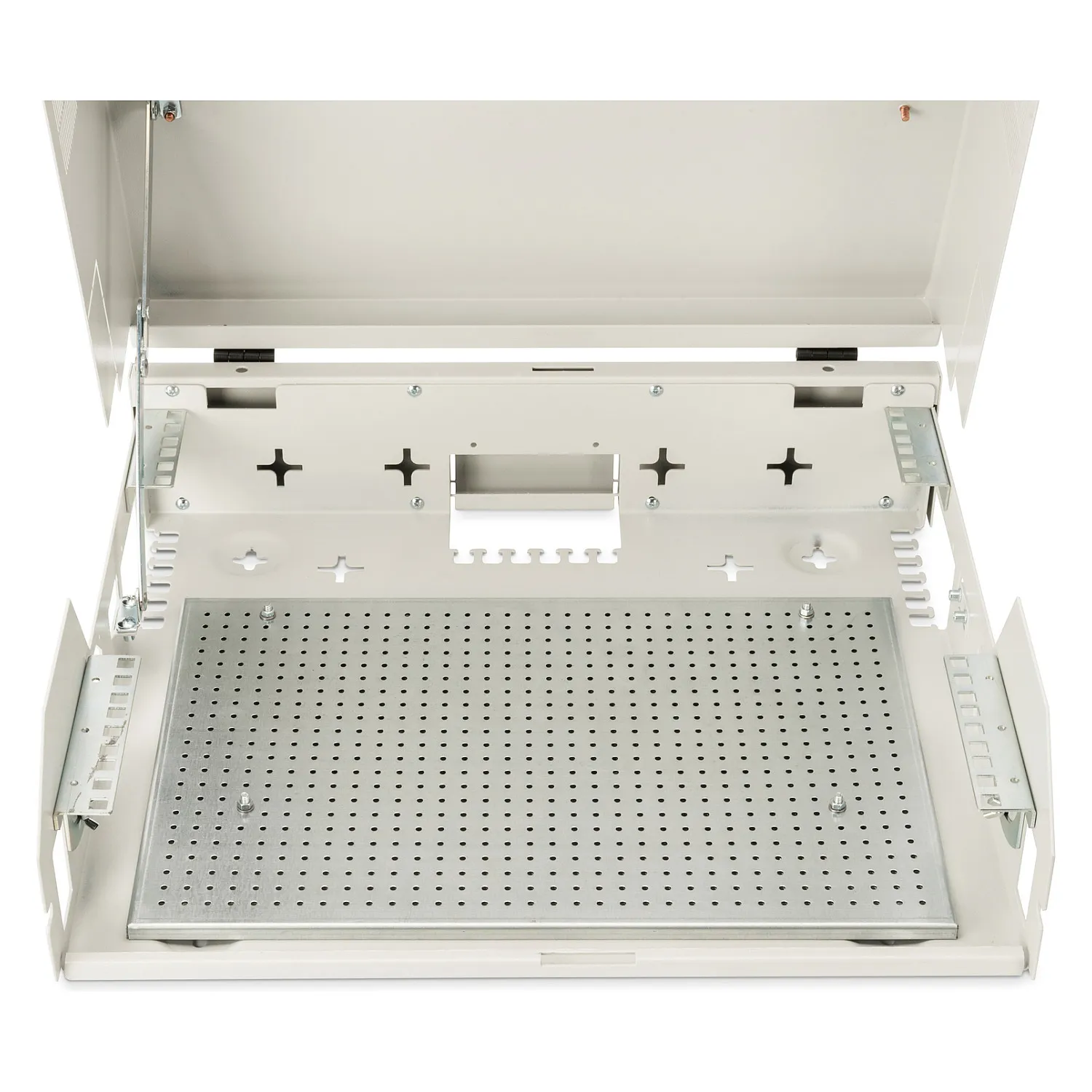

– Punched-out mounting holes throughout the lower housing area for fixing a wide variety of components
– Load capacity for the installation of components: 30 kg
The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19″) compatible to be installed (e.g. DSL routers, etc.).
Rack capacity: 5U
Type: Wall mounted rack
Maximum weight capacity: 30 kg
Product colour: Light grey

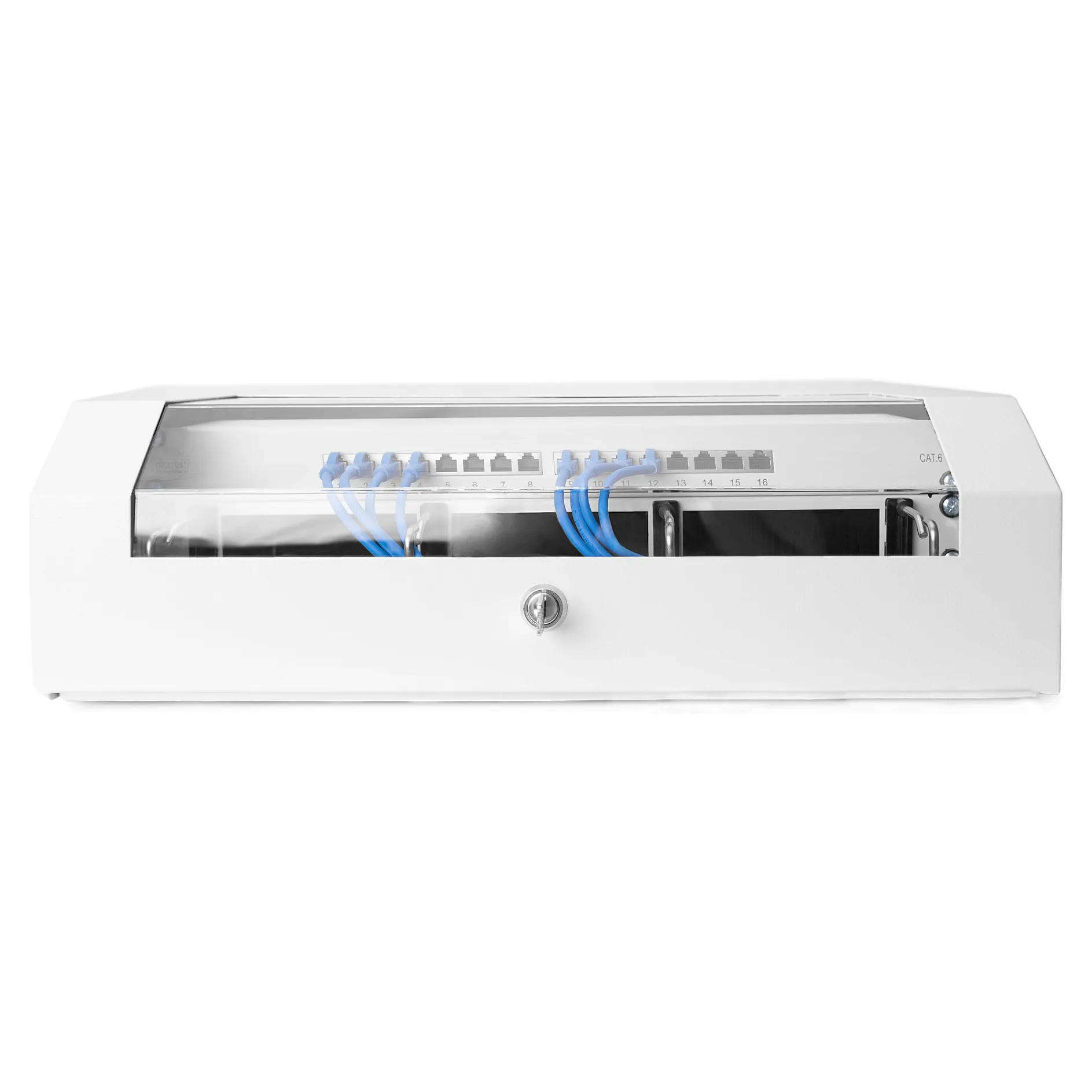

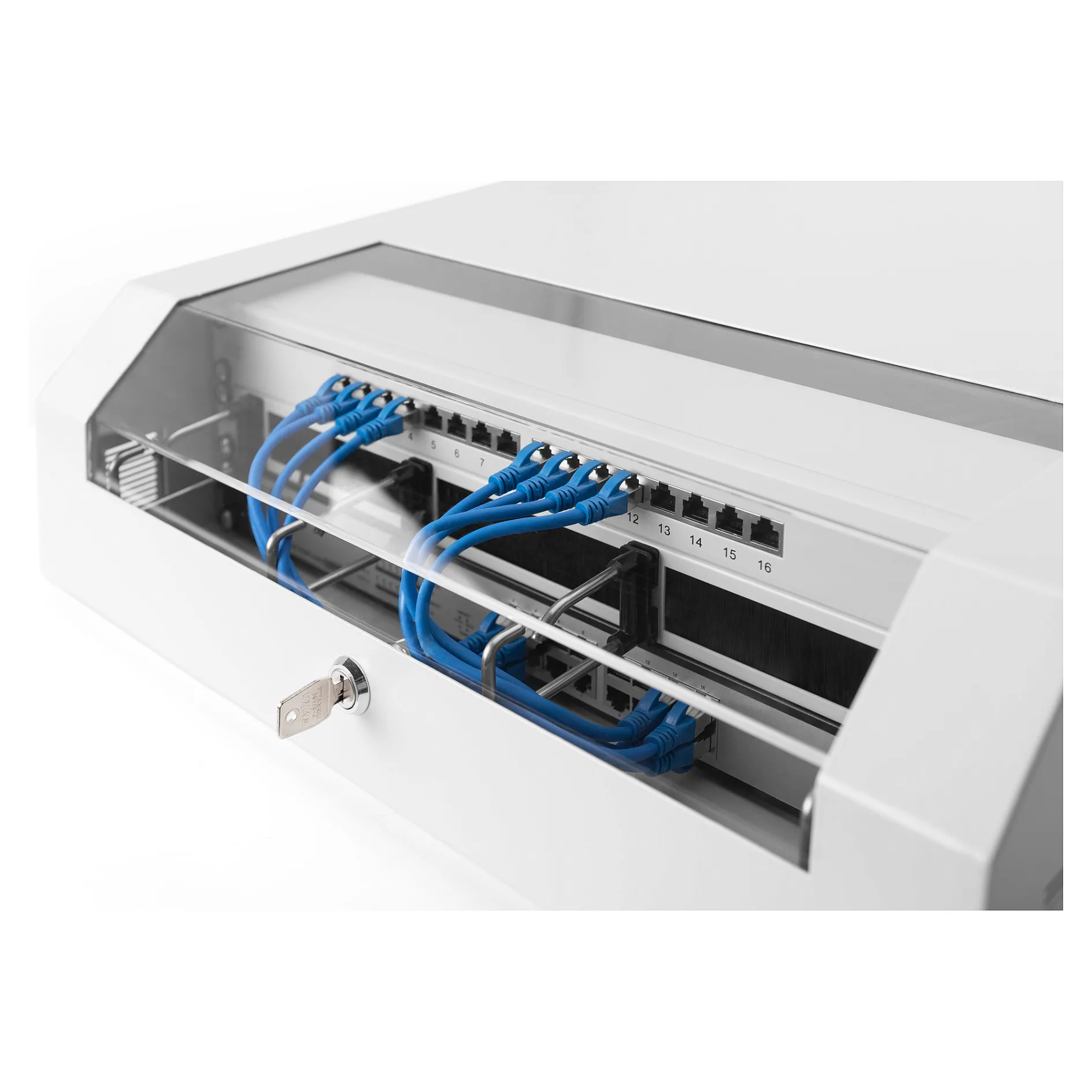

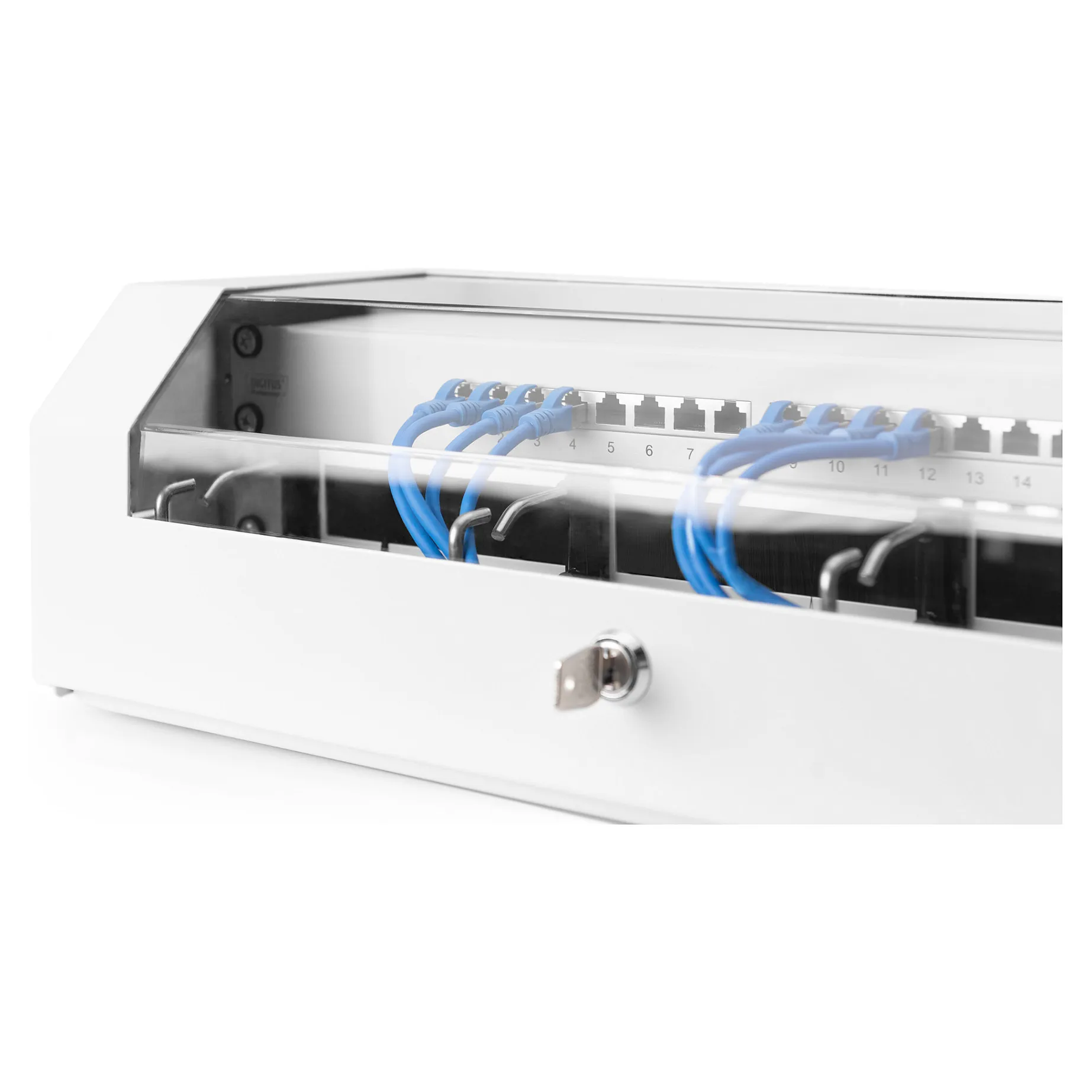

Front door construction: Glass
Feature: Side panels included
International Protection (IP) code: IP20
Weight & dimensions
Size (imperial): 48.3 cm (19″)
Width: 525 mm
Depth: 475 mm
Height: 145 mm
Packaging data
Package width: 530 mm
Package depth: 500 mm
Package height: 160 mm
Package volume: 42400 cm³
Package weight: 9.5 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: Turkey
Harmonized System (HS) code: 85381000
