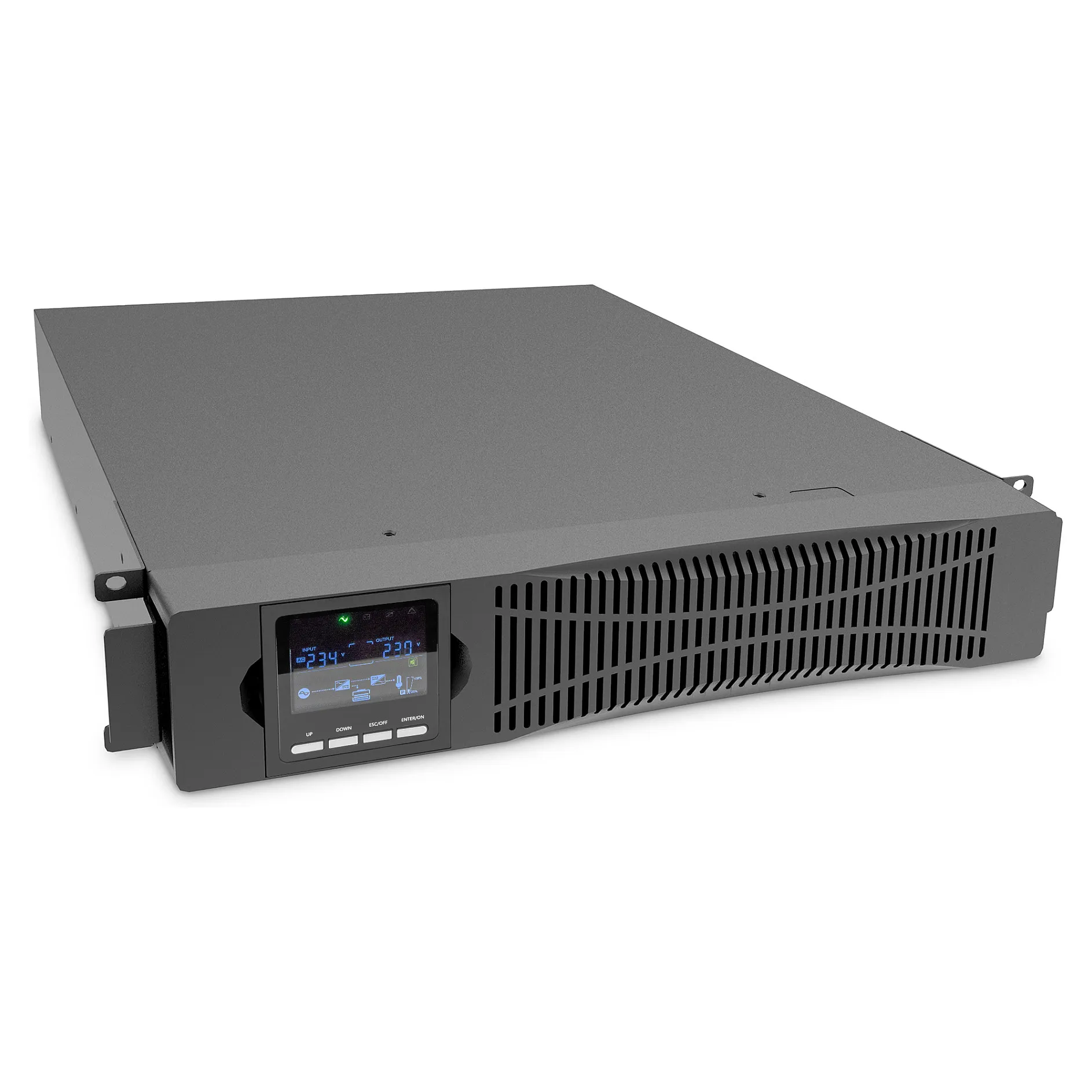

Digitus OnLine UPS system, 3000 VA / 3000 W. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3 min. Form factor: Rackmount, Product colour: Black, Display type: LCD. Certification: CE
– High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
– High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
– User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.

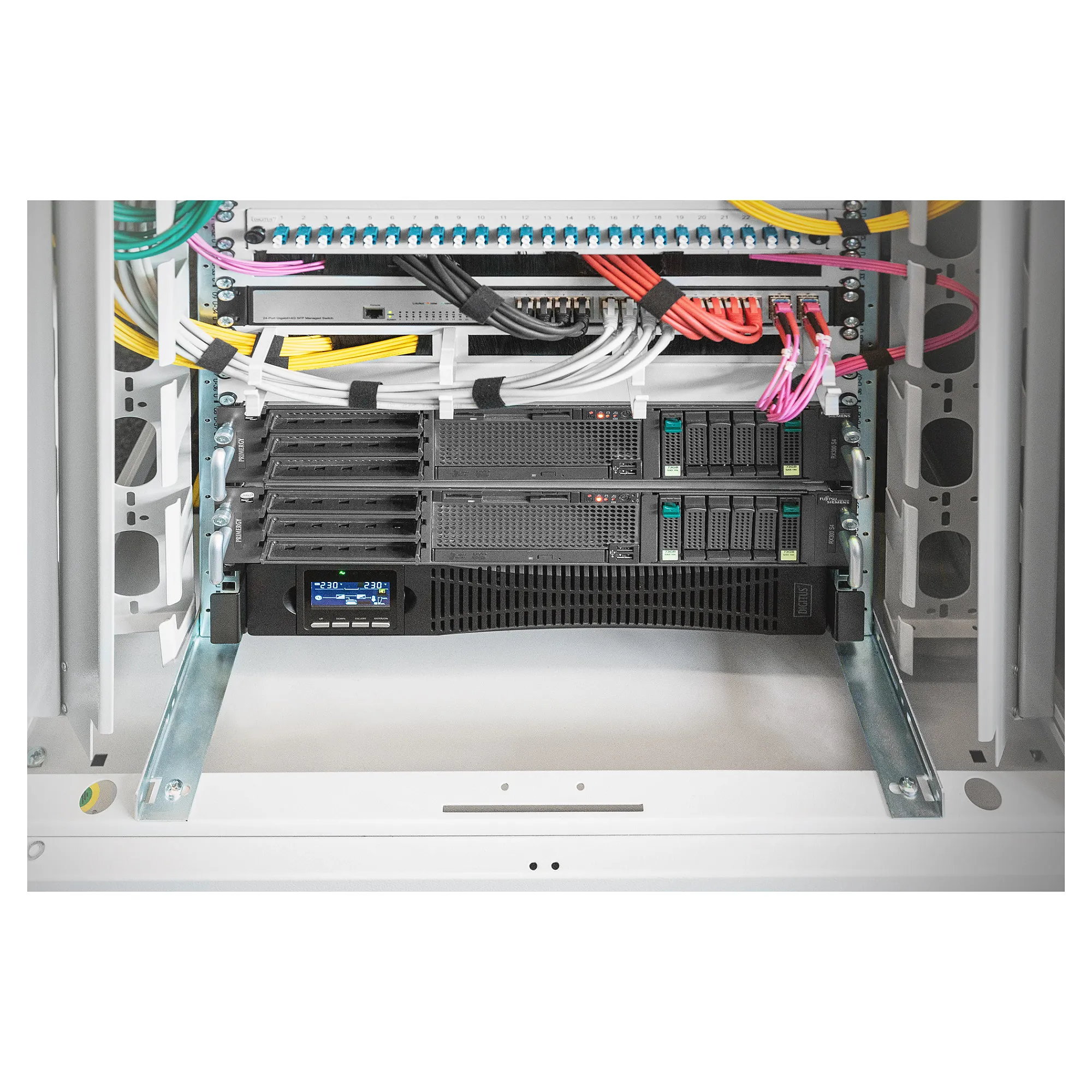

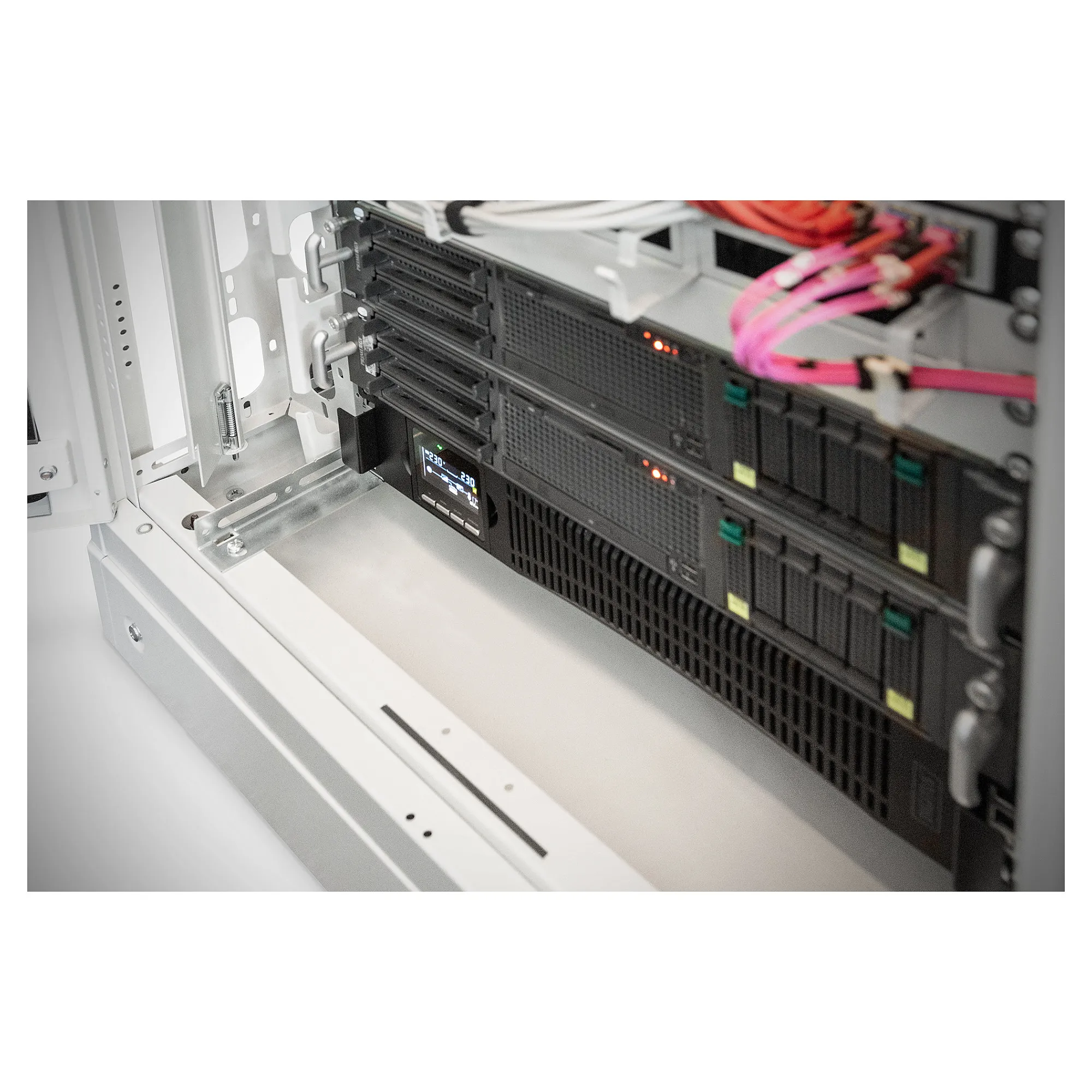

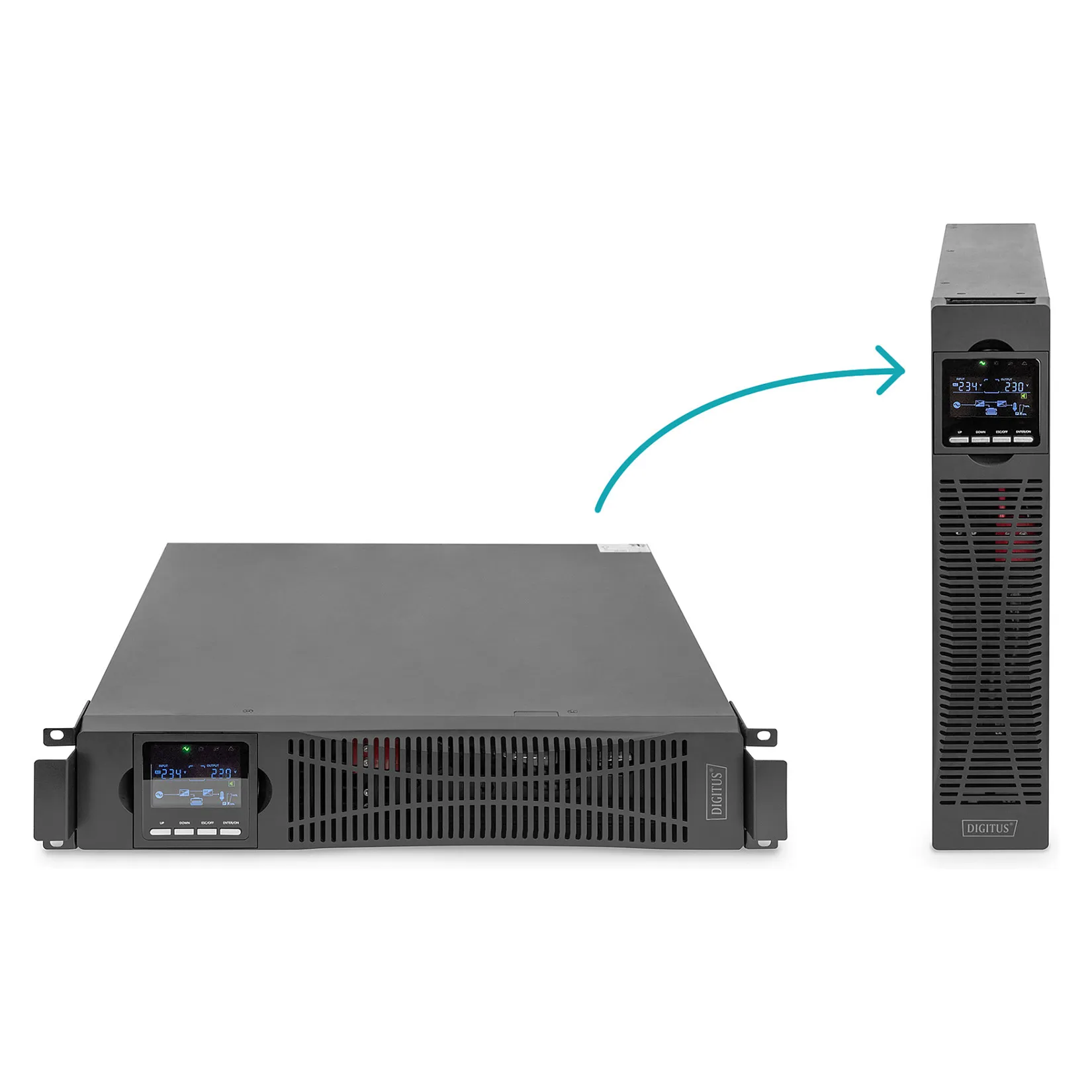

– Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
– Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
– External battery modules allow the runtime to be extended.

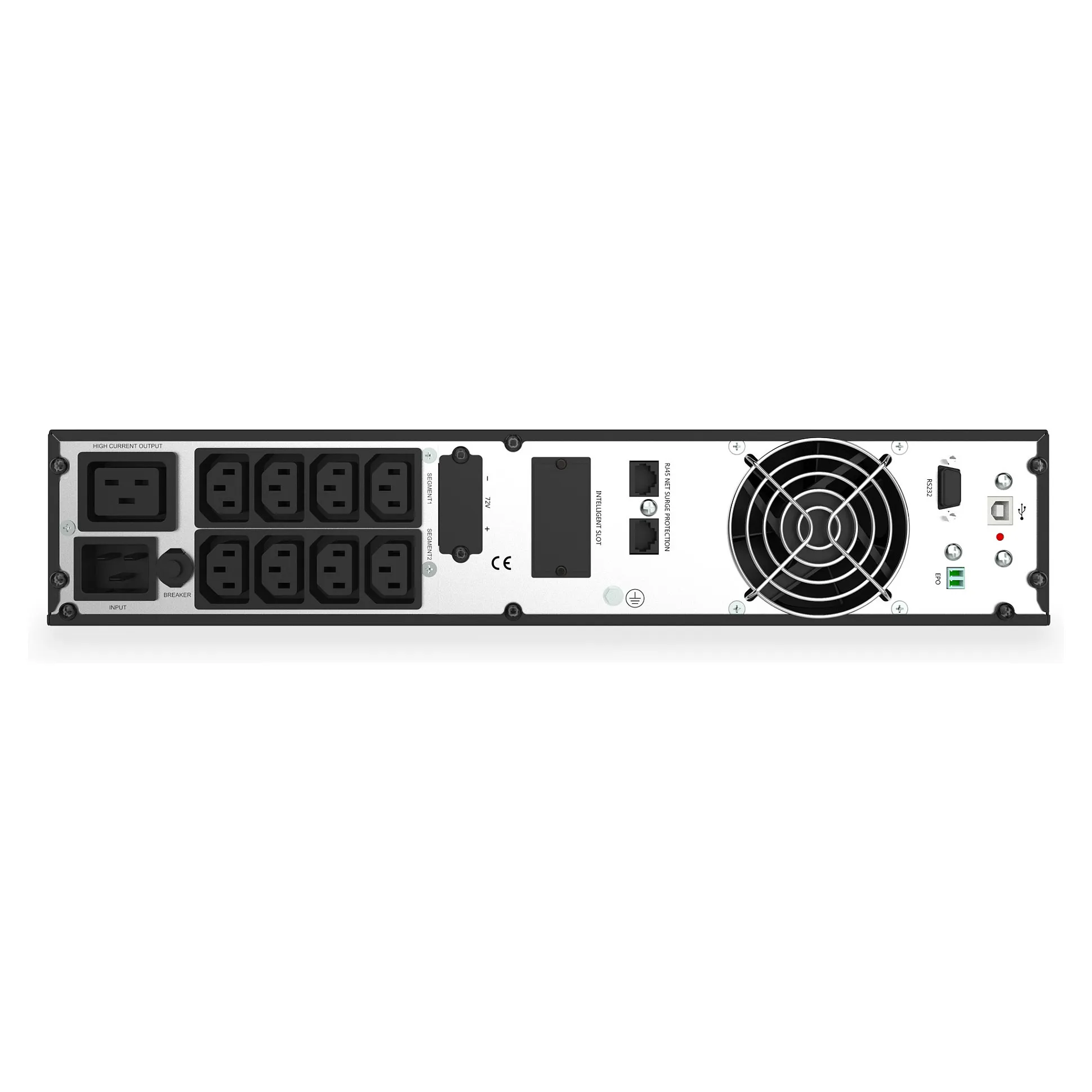

– High number of outlets (8 x C13 & 1 x C19) for optimum power distribution to the consumers.
– Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
– Automatic battery self-test and fan speed control increase the service life of the components.
– The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging and discharging the battery.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Input operation voltage (min): 208 V
Input operation voltage (max): 240 V
Feature: Automatic Voltage Regulation (AVR)
Maximum current: 16 A
Efficiency (On-line mode): 93%
Efficiency (ECO mode): 98%
Power factor: 1
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
Feature: Serial interface
Serial interface type: RS-232
Feature: Emergency Power Off (EPO) connector
Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 6
Typical backup time at full load: 3 min
Typical backup time at half load: 9 min
Battery recharge time: 4 h
Design
Form factor: Rackmount
Product colour: Black
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -25 – 55 °C
Operating relative humidity (H-H): 20 – 90%
Operating altitude: 0 – 1500 m
Certificates
Certification: CE
Safety regulation & standards
Safety: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Weight & dimensions
Width: 440 mm
Depth: 600 mm
Height: 86.5 mm
Weight: 26 kg
Packaging data
Package width: 555 mm
Package depth: 732 mm
Package height: 202 mm
Package weight: 30.1 kg
Package volume: 82064.5 cm³
Logistics data
UK Trade Tariff code: 85044095
Country of origin: China
Other features
Size (imperial): 48.3 cm (19″)
