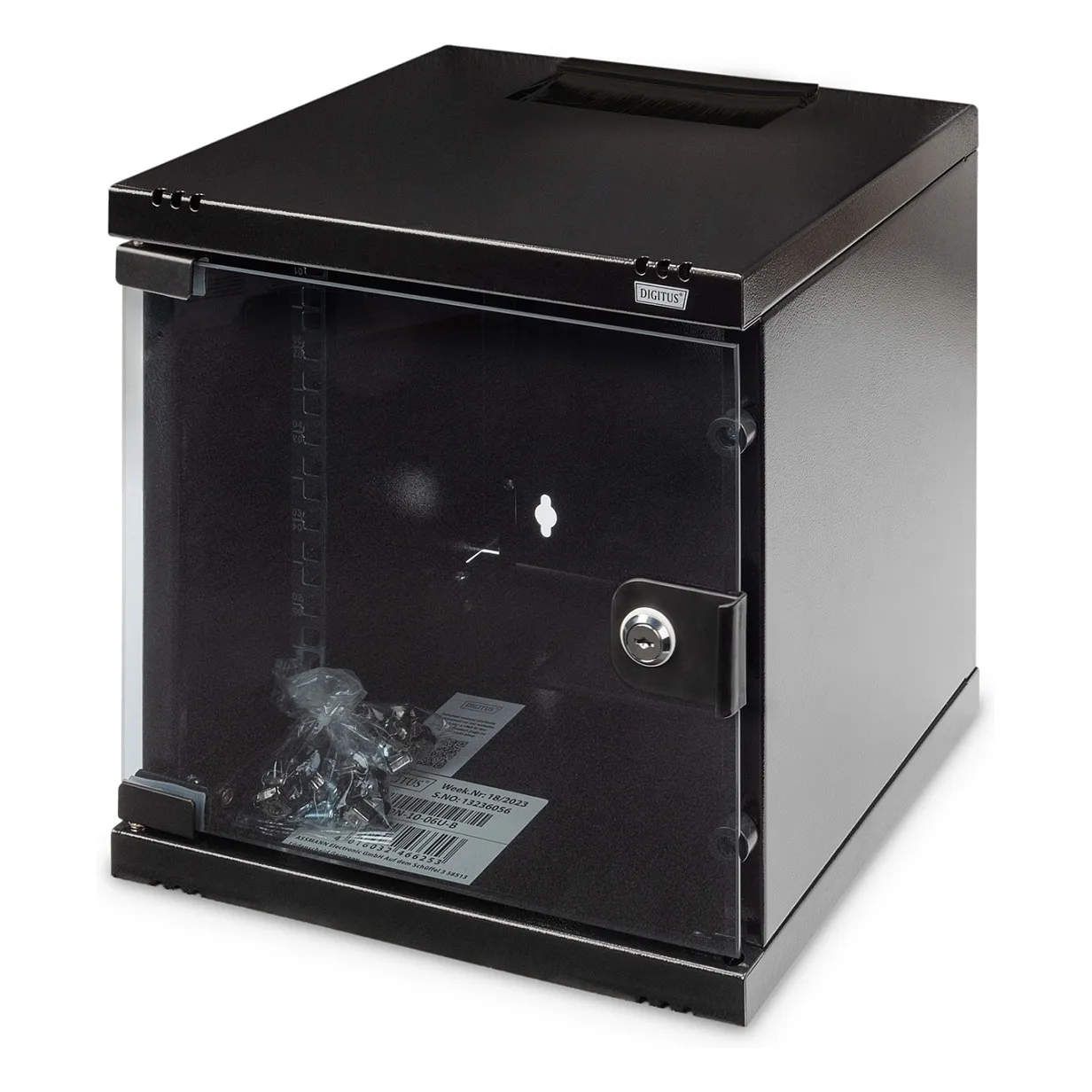

Digitus Wall-mounted housing 254 mm (10") – 312×300 mm (WxD). Type: Wall mounted rack, Rack capacity: 6U, Maximum weight capacity: 30 kg, Key lock, International Protection (IP) code: IP20. Weight: 5.33 kg. Product colour: Black
– Compact housing for installations where space is limited
– Ready for immediate use: Delivery is assembled
– Flexible cable routing options thanks to protected openings in the roof and floor

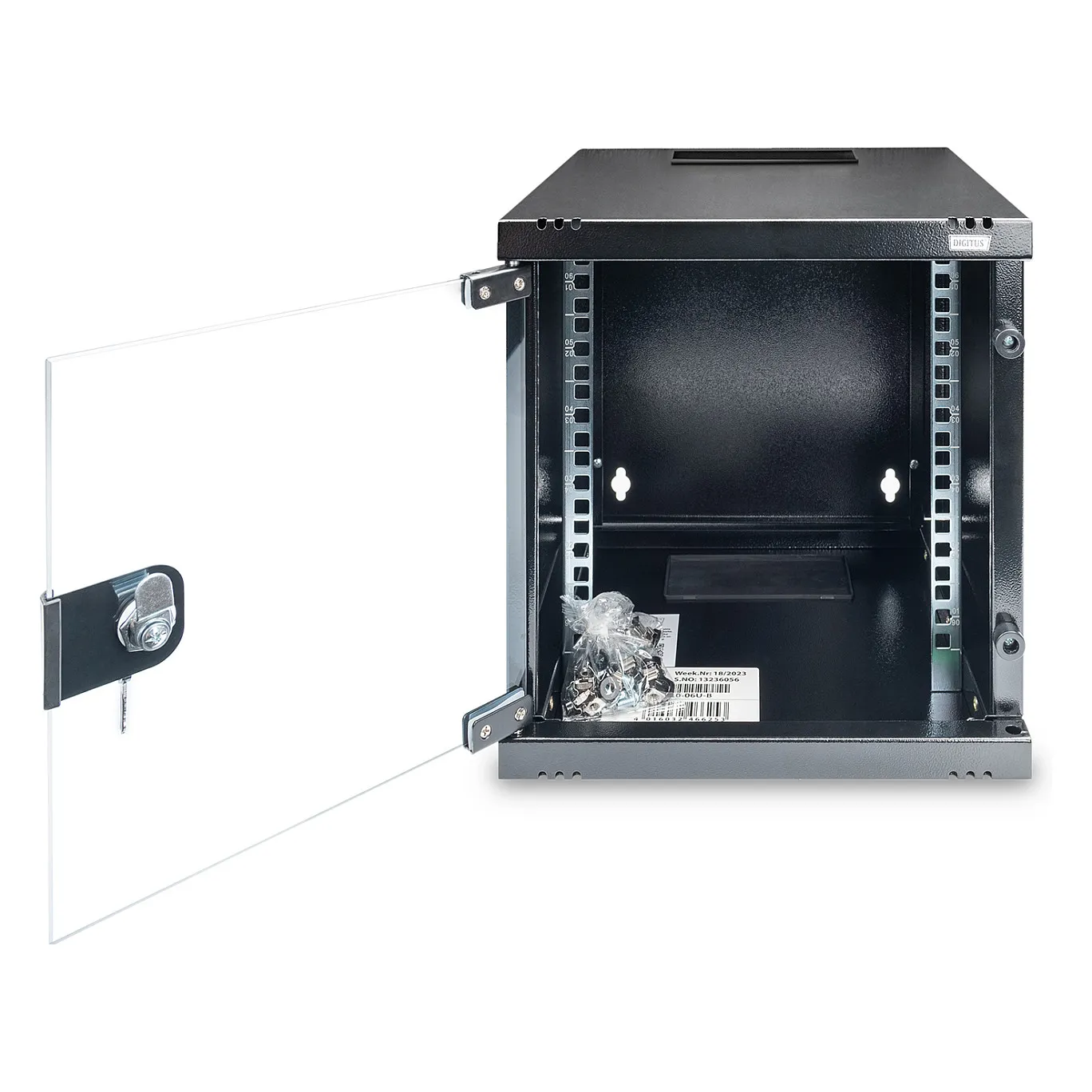

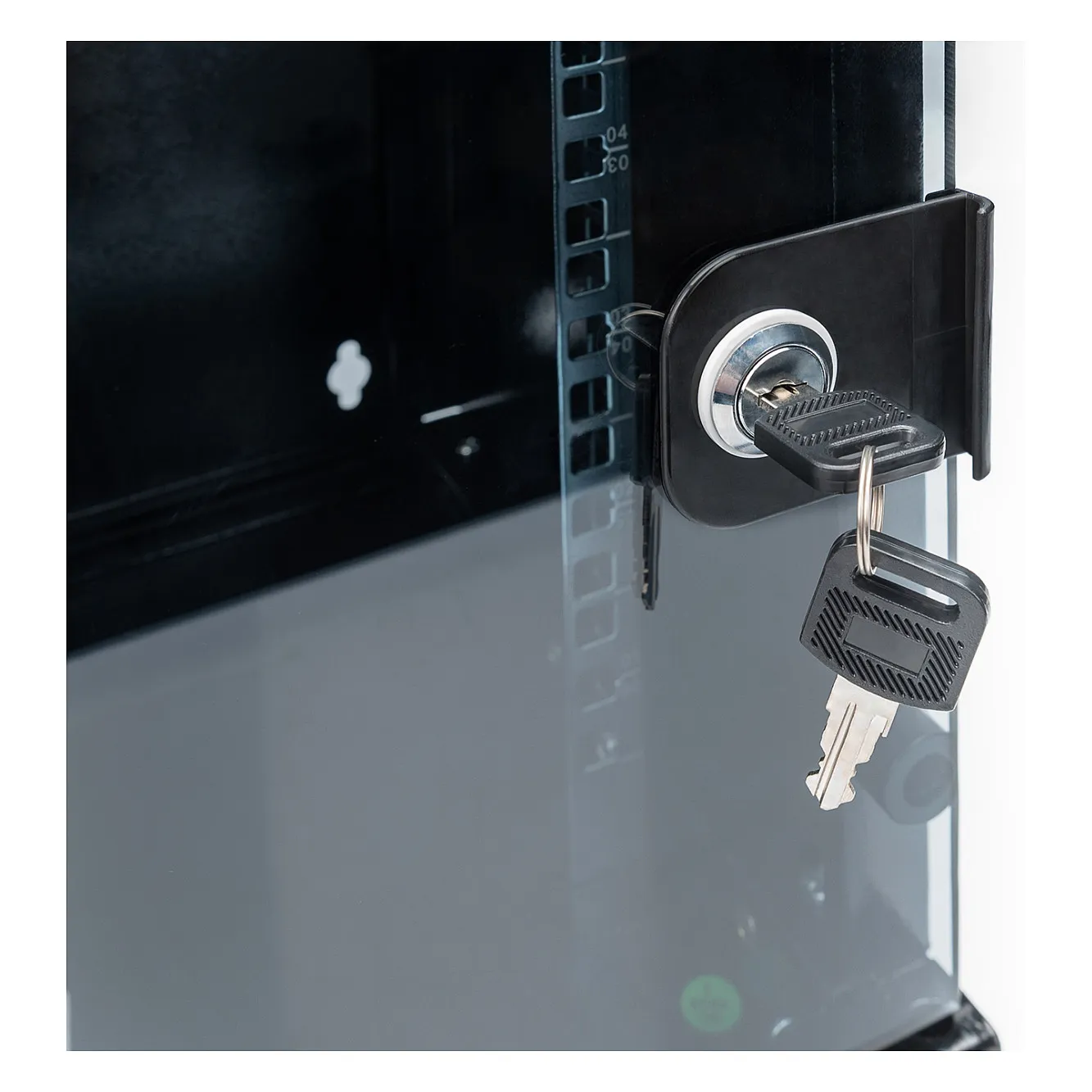

– Lockable safety glass door with 200° door opening angle

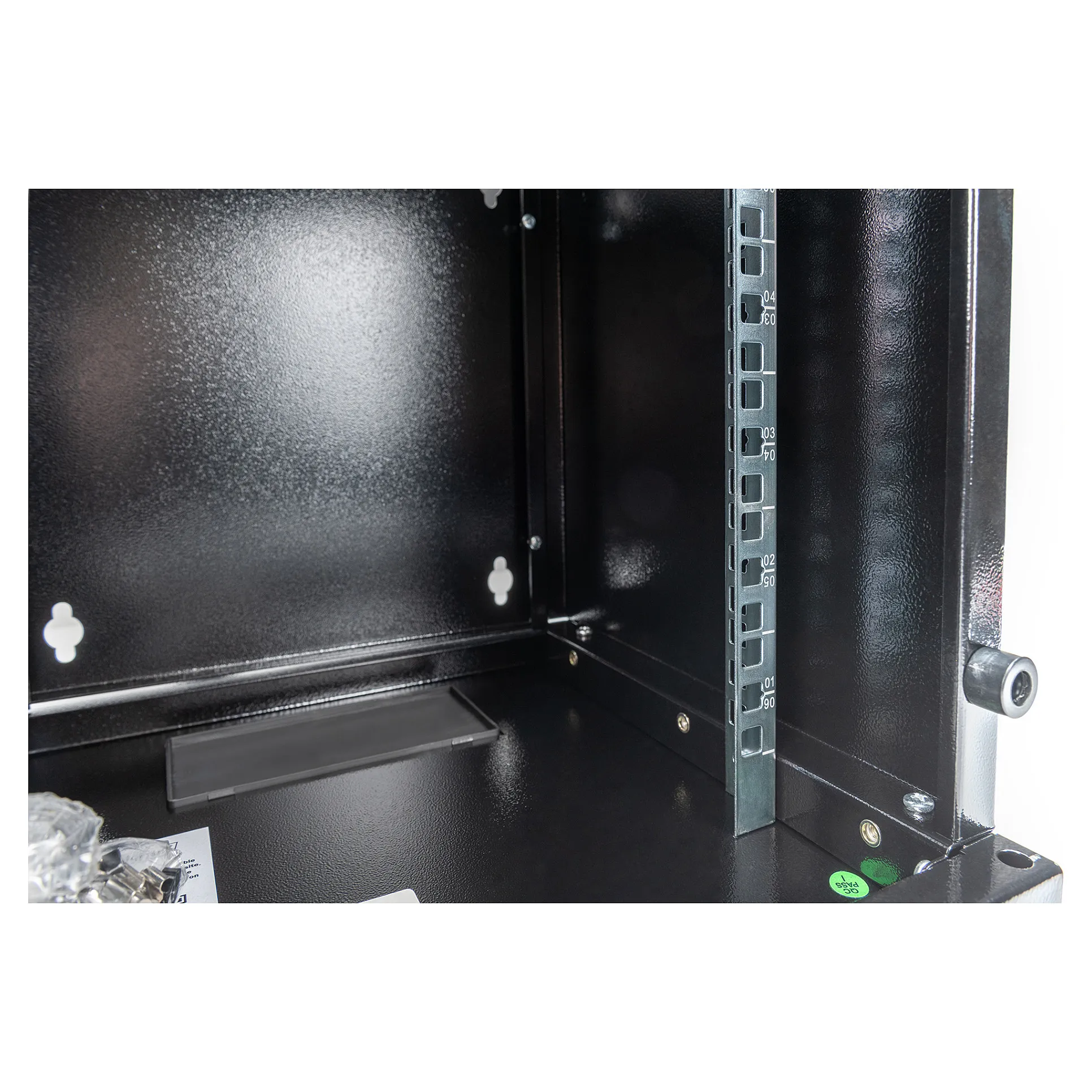

– Depth-adjustable 254 mm (10″) profile rails
– Load capacity for the installation of components: 30 kg
Whether at home, in the office or in sub-distribution boards where space is limited: With the compact 254 mm (10″) solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10″) profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Rack capacity: 6U
Type: Wall mounted rack
Maximum weight capacity: 30 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Feature: Side panels included
Feature: Key lock
Feature: Front door key lock
International Protection (IP) code: IP20
Weight & dimensions
Width: 312 mm
Depth: 300 mm
Height: 330 mm
Weight: 5.33 kg
Packaging data
Package width: 370 mm
Package depth: 360 mm
Package height: 390 mm
Package volume: 51948 cm³
Package weight: 8 kg
Logistics data
UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000
