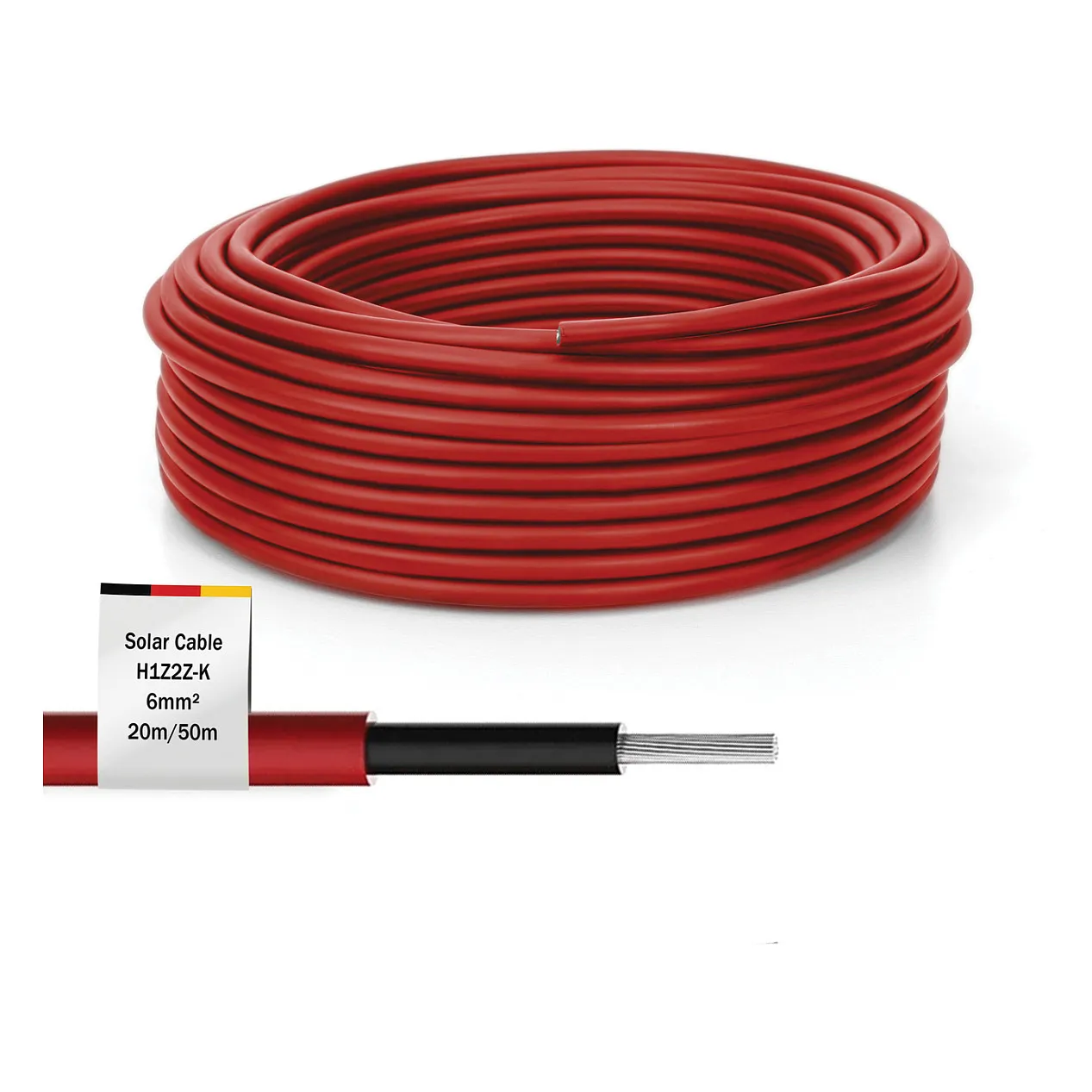

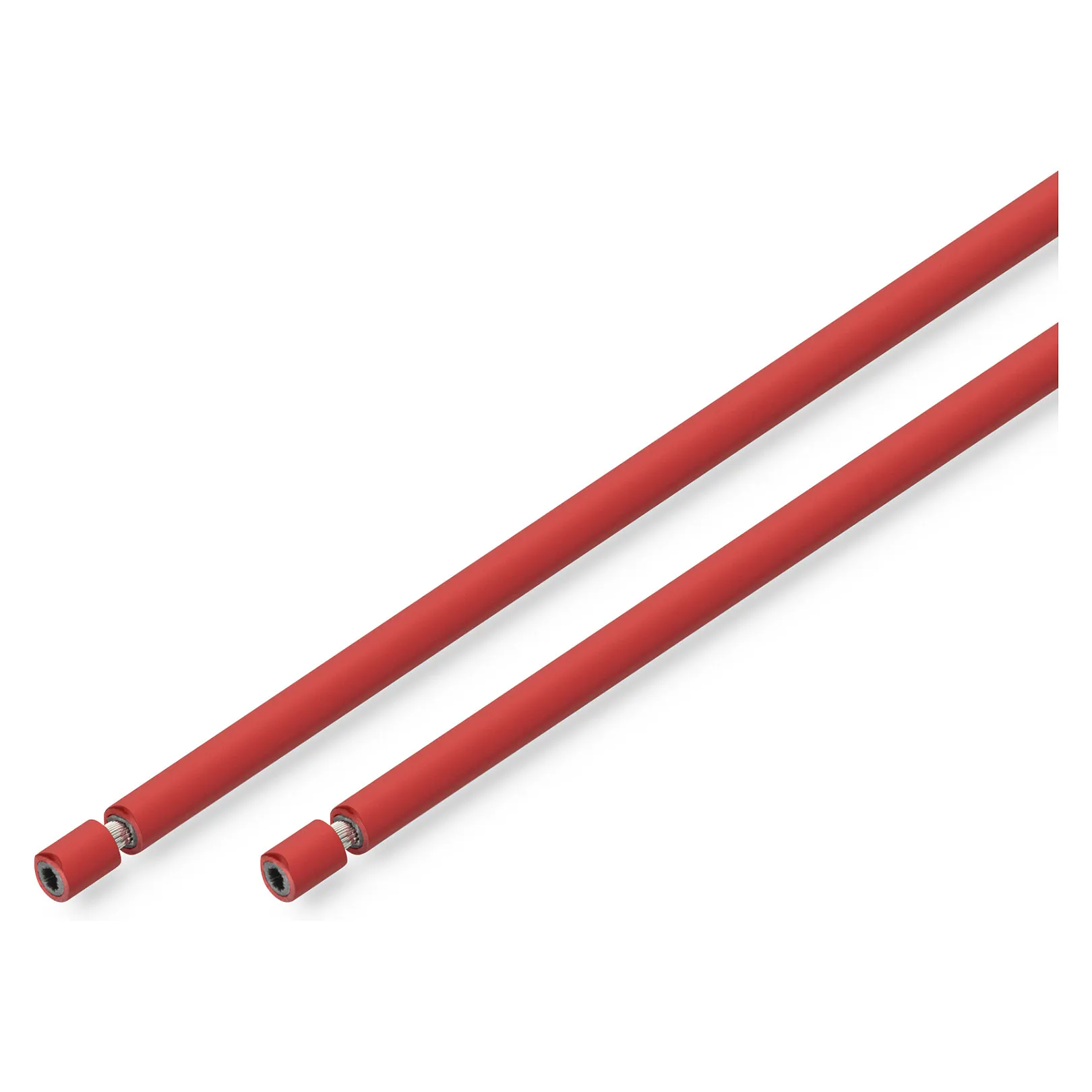

Digitus Solar cable installation 20m, 6mm2, red, PV cable 1500V DC, UV-resistant & weatherproof. Product type: Cable, Product colour: Red, Core size: 6 mm². Power source type: DC, DC input voltage: 1500 V. Cable length: 20 m. Package width: 195 mm, Package depth: 195 mm, Package height: 55 mm. Number of products included: 1 pc(s)
– High-quality solar cable 20m 6mm2 – Ideal for photovoltaic systems and solar systems
– DC 1500V / AC 1kV voltage – perfect for high power requirements in PV systems
– Increased safety – the cable for PV systems is flame-retardant in accordance with EN 50618:2014
– High temperature resistance – Suitable for temperature ranges from -40°C to +90°C
– Weatherproof & UV-resistant – ideal for long-term outdoor use
– Extremely durable – resistant to weathering and UV radiation thanks to XLPO insulation & jacket
– Flexible & easy to install – perfect for professional and DIY solar installations
– Up to 25 years service life – Designed for maximum durability and efficiency
The high-quality solar cable with 6mm2 cross-section and 20m length is the ideal connection solution for photovoltaic systems and solar systems. It is ideal for use between solar modules, inverters and other components thanks to its high dielectric strength of DC 1500V / AC 1kV. The tinned copper conductor offers optimum conductivity and excellent corrosion protection. The robust XLPO insulation provides reliable protection against UV radiation, heat, ozone and moisture. The cable is flexible, abrasion-resistant and temperature-resistant from -40°C to +90°C. It meets the requirements of the EN 50618:2014 standard and is flame-retardant, which ensures additional safety. With a conductor resistance of ≤3.39Ω/k and an insulation resistance of ≥500 MΩ-km, it enables low power losses and high operational safety. The solar cable is weatherproof, durable and environmentally friendly – ideal for long-term outdoor use in professional and private PV projects.
Product colour: Red
Core size: 6 mm²
Feature: Plug and Play
Product type: Cable
Feature: Weatherproof
Feature: Ultraviolet (UV) resistant
Feature: Easy to install
Ports & interfaces
Connector 1 gender: No
Connector 2 gender: No
Power
Power source type: DC
DC input voltage: 1500 V
Weight & dimensions
Cable length: 20 m
Packaging data
Package width: 195 mm
Package depth: 195 mm
Package height: 55 mm
Package weight: 1.59 kg
Packaging content
Number of products included: 1 pc(s)
Operational conditions
Operating temperature (T-T): -40 – 90 °C
Logistics data
UK Trade Tariff code: 85446010
Country of origin: China
