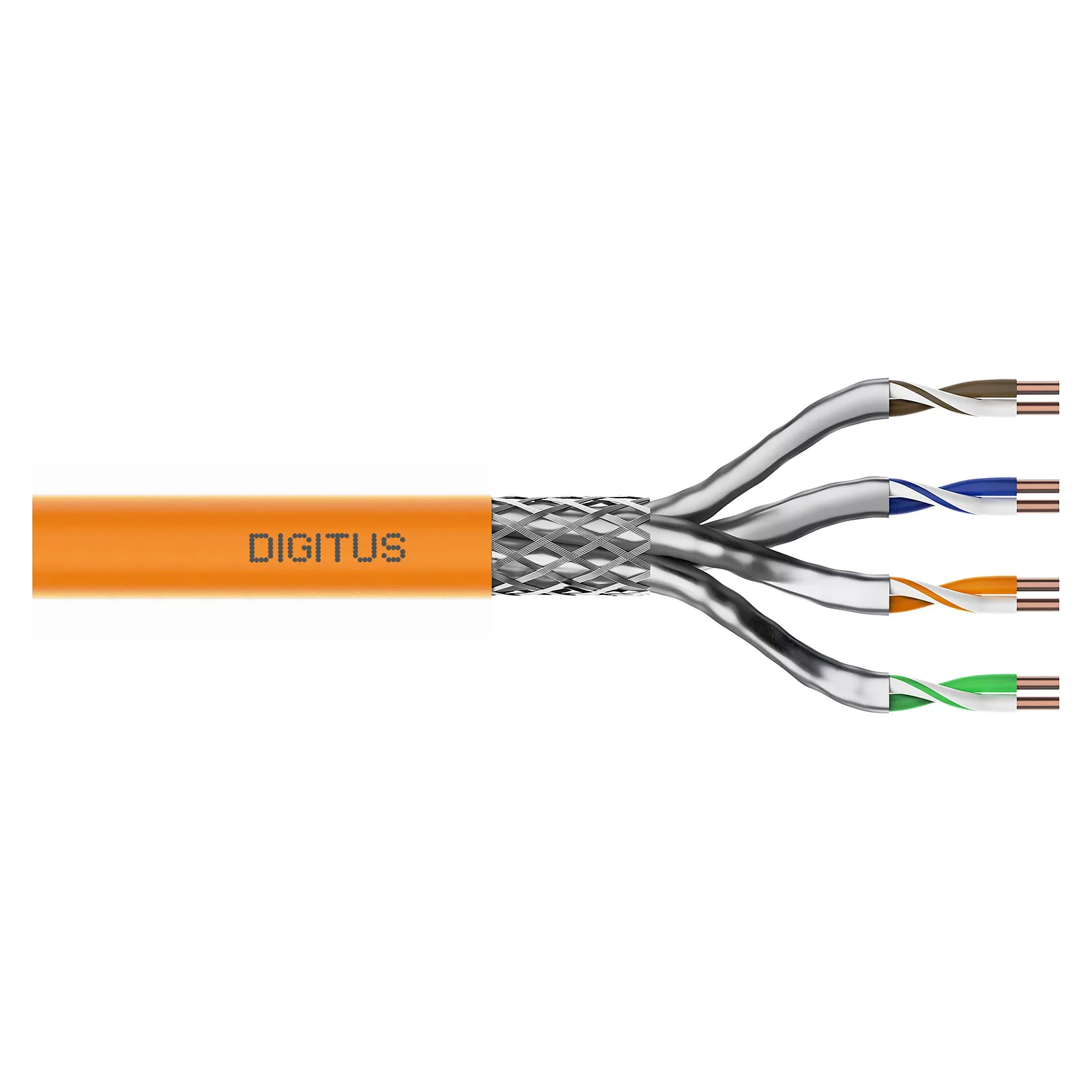

Digitus CAT 7 S/FTP data cable – installation cable, 500 m, simplex, Dca-s2, d1, a1. Cable length: 500 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Product colour: Orange
– 10GBit Ethernet
– 1200 MHz transmission frequency
– Permanent Link certified
– PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
– BauPVO class Dca-s2 d1 a1
The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
Product colour: Orange
Cable length: 500 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Twisted pair coupling type: 4×2
Cable class: C
Cable fire class: Dca
AWG wire size: 23/1
Frequency: 1200 MHz
Country of origin: China
Certificates
Compliance certificates: RoHS
Certification: CPR class Dca
Packaging data
Package width: 500 mm
Package depth: 500 mm
Package height: 210 mm
Package weight: 28.3 kg
Package volume: 105875 cm³
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
Technical details
Shielding type: Foil + braiding
