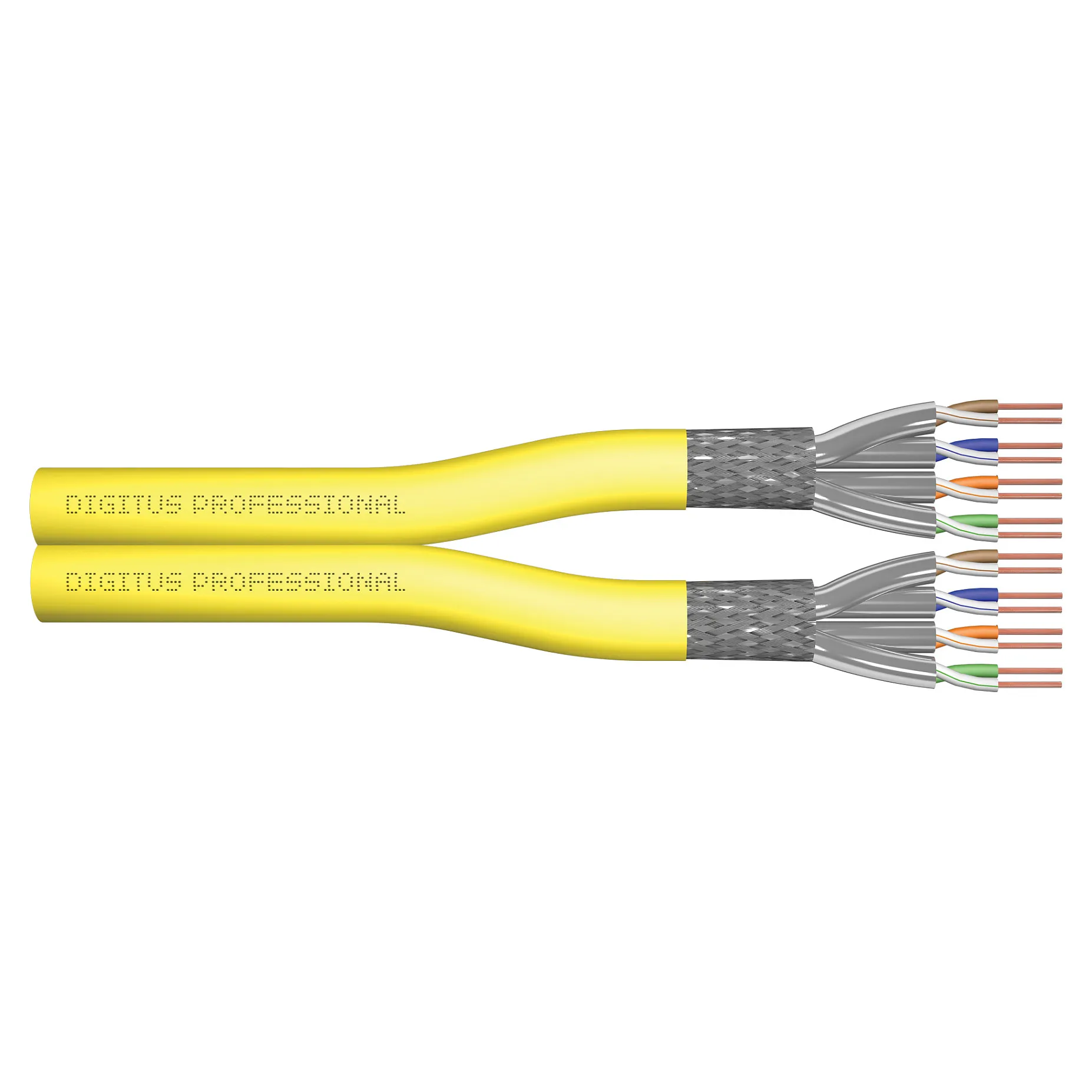

Digitus DK-1743-A-VH-D-5. Cable length: 500 m, Cable standard: Cat7a, Cable shielding: S/FTP (S-STP), Product colour: Yellow
Future-oriented standards and high-end quality for your network.
– 10GBit Ethernet
– 1500 MHz transmission frequency
– GHMT PVP certified
– PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
– BauPVO class Dca-s1a d1 a1
The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.
Features
Product colour: Yellow
Cable length: 500 m
Cable standard: Cat7a
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Twisted pair coupling type: 4×2
Cable fire class: Dca
AWG wire size: 22/1
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -20 – 75 °C
Certificates
Certification: CPR class Dca
Packaging data
Package width: 550 mm
Package depth: 550 mm
Package height: 450 mm
Package weight: 65 kg
Package volume: 140450 cm³
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
Technical details
Shielding type: Foil + braiding
Product colour: Yellow
Cable length: 500 m
Cable standard: Cat7a
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Twisted pair coupling type: 4×2
Cable fire class: Dca
AWG wire size: 22/1
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -20 – 75 °C
Certificates
Certification: CPR class Dca
Packaging data
Package width: 550 mm
Package depth: 550 mm
Package height: 450 mm
Package weight: 65 kg
Package volume: 140450 cm³
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
Technical details
Shielding type: Foil + braiding
