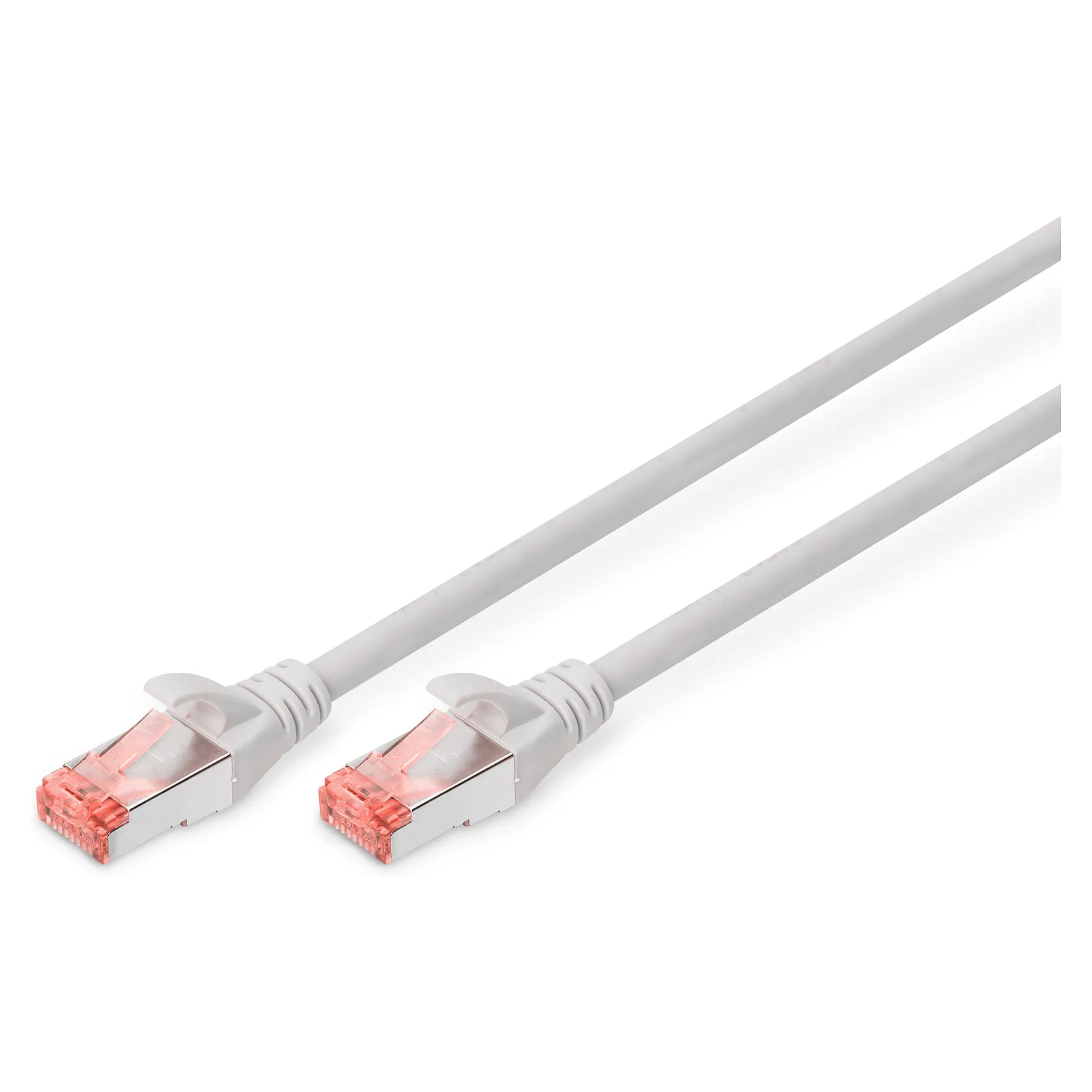

Digitus CAT 6 S/FTP Patch Cable, 25 m, Gray. Cable length: 25 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Product colour: Grey
– With an LSZH (Low Smoke Zero Halogen) outer jacket for optimal fire resistance and low smoke emission.

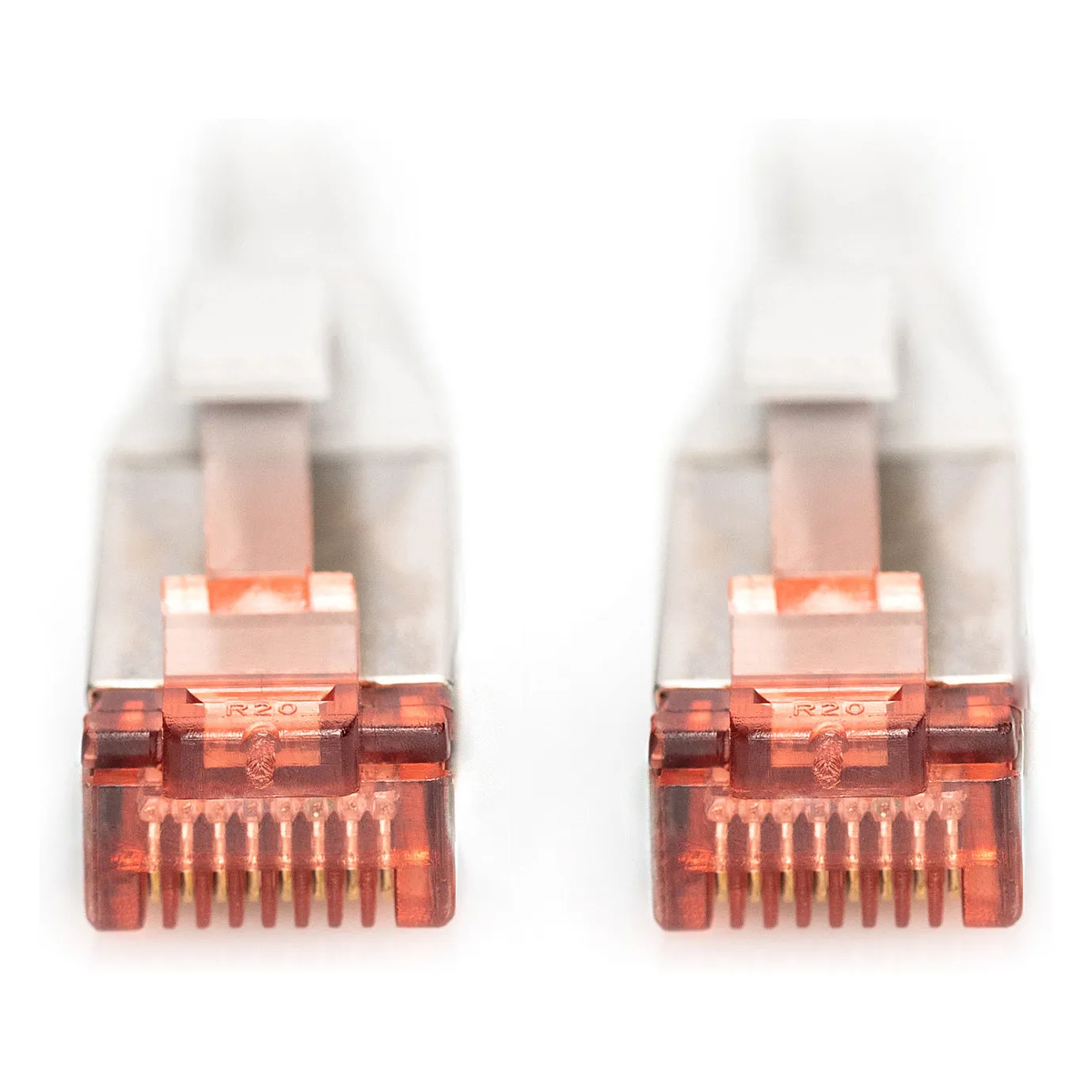

– Transparent red connector with metal shielding for easy identification of Category 6 (250 MHz)
– Inner conductor: Copper (Cu)
– Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)
DIGITUS® Category 6 Class E patch cables are manufactured and tested in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They ensure that the cable installation complies with the ISO & EN channel specifications and deliver outstanding performance in DIGITUS® CAT 6 cabling. Performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk (NEXT). DIGITUS® patch cables have been specially developed to fully meet all requirements across various application areas. Each cable is equipped with an injection-molded kink-protection sleeve with strain relief. In addition, the sleeve features a latch protection mechanism that prevents the cables from getting snagged and the latch from breaking off the connector. The red color of the connectors makes it easy to identify Category 6 cables.
Product colour: Grey
Cable length: 25 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Twisted pair coupling type: 4×2
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 27/7
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 80 °C
Operating relative humidity (H-H): 10 – 80%
Storage relative humidity (H-H): 10 – 85%
Certificates
Certification: ISO/IEC 11801, TIA/EIA 568-BIEC 60332-1, IEC 60332-3, IEC 61034
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 280 mm
Package depth: 45 mm
Package height: 390 mm
Package weight: 750 g
Package volume: 4914 cm³
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210
Technical details
Shielding type: Foil + braiding
