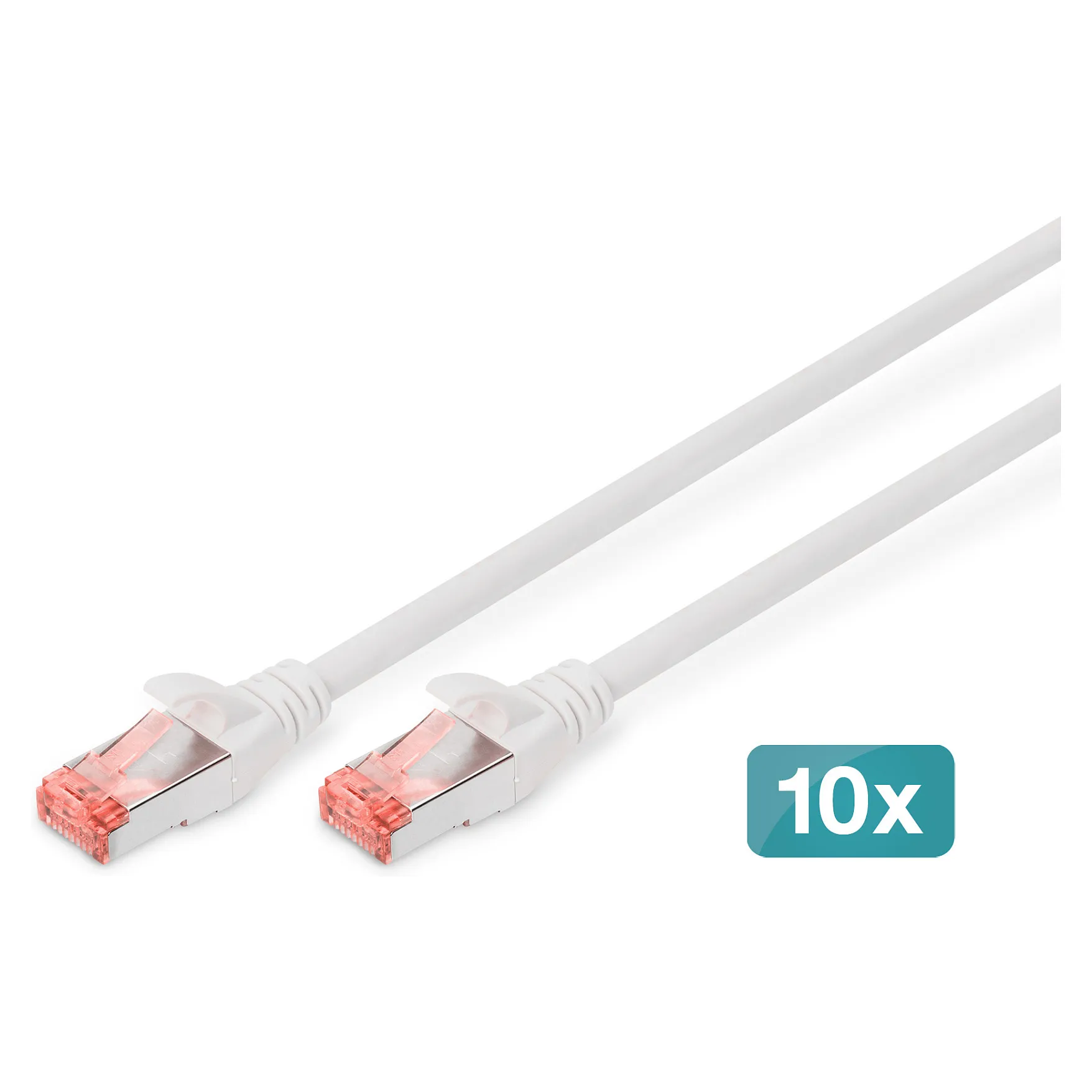

Digitus CAT 6 S/FTP patch cable, 10 pieces. Cable length: 5 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Product colour: White
– With LSZH outer casing (Low Smoke Zero Halogen) for the best fire behavior and low smoke emission.
– Transparent red colored plug with metal shielding for easy identification of category 6 (250 Mhz)
– Inner conductor: Copper (Cu)
– Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)
The DIGITUS® Category 6 Class E patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 6 cabling. The performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk („NEXT”). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug. The red coloring of the plugs makes it easy to identify category 6.
Product colour: White
Cable length: 5 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
Twisted pair coupling type: 4×2
AWG wire size: 27/7
Country of origin: China
Certificates
Certification: ISO/IEC 11801, DIN EN 50173
Weight & dimensions
Width: 11.7 mm
Height: 12.7 mm
Weight: 150 g
Packaging content
Quantity per pack: 10 pc(s)
Packaging data
Package width: 170 mm
Package depth: 22 mm
Package height: 250 mm
Package weight: 1.7 kg
Package volume: 935 cm³
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210
Technical details
Shielding type: Foil + braiding
