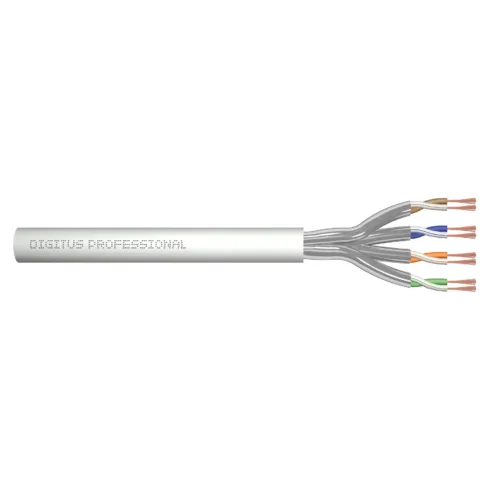

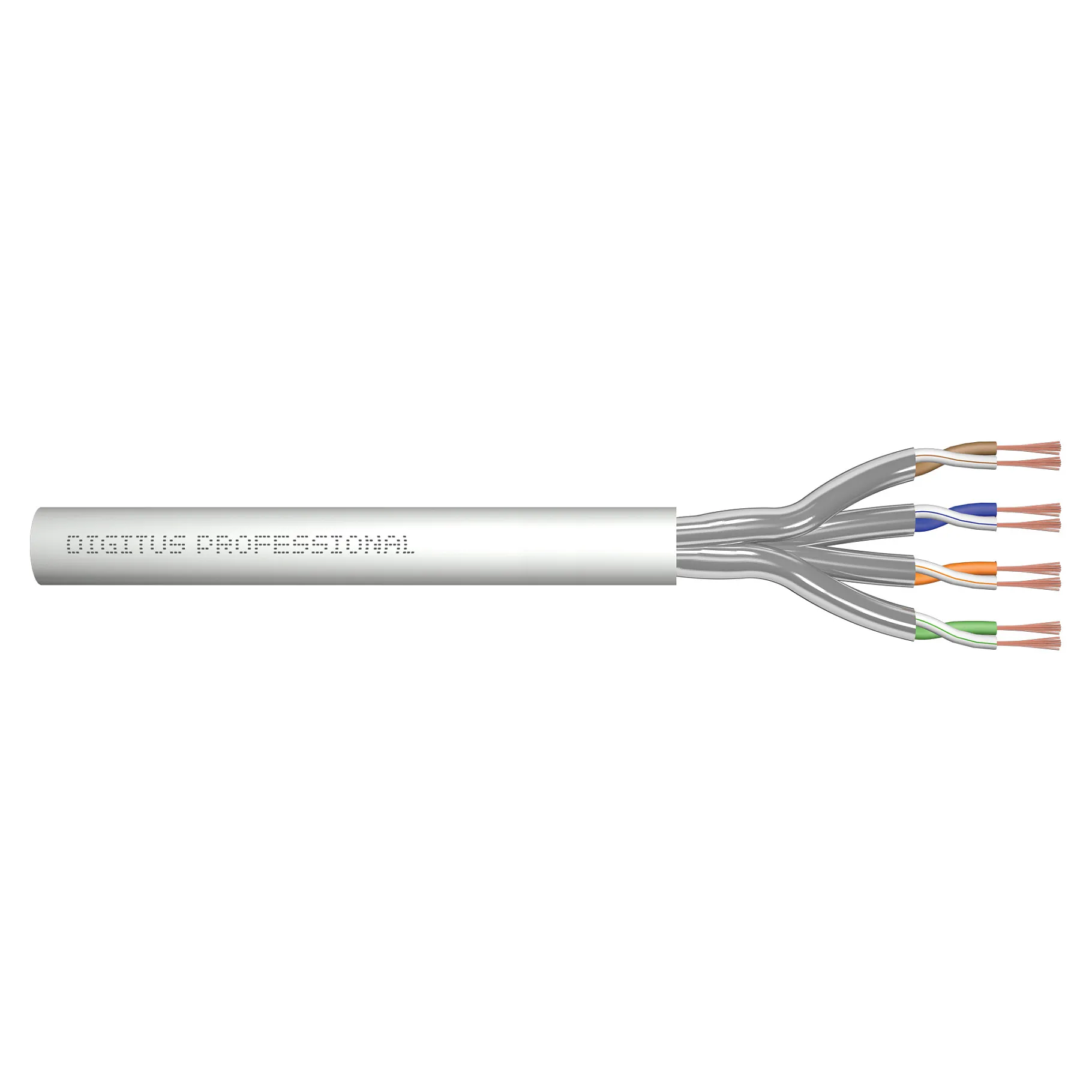

Digitus CAT 6A U/FTP twisted pair patch cord, raw. Cable length: 100 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Data transfer rate: 10000 Mbit/s, Product colour: Grey
– Suitable for direct assembly of RJ45 connectors in order to produce patch cords
– Suitable for installations of class EA cable lines, 500 MHz
– According to the norms ANSI/TIA-568-C; ISO/IEC 11801 2nd Ed.; EN 50173-1: EN 50288-10-1
– Conductor: Copper (Cu)
– PoE+ ready
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
Product colour: Grey
Cable length: 100 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
Twisted pair coupling type: 4×2
Cabling technology: 10GBase-T
Networking standards: IEEE 802.3, IEEE 802.5
AWG wire size: 27/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Country of origin: China
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Storage temperature (T-T): -10 – 75 °C
Weight & dimensions
Outer diameter: 5.8 mm
Packaging data
Package width: 290 mm
Package depth: 290 mm
Package height: 100 mm
Package weight: 2.88 kg
Package volume: 8410 cm³
Package type: Box
Other features
Input impedance: 100 Ω
Category: 6
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
