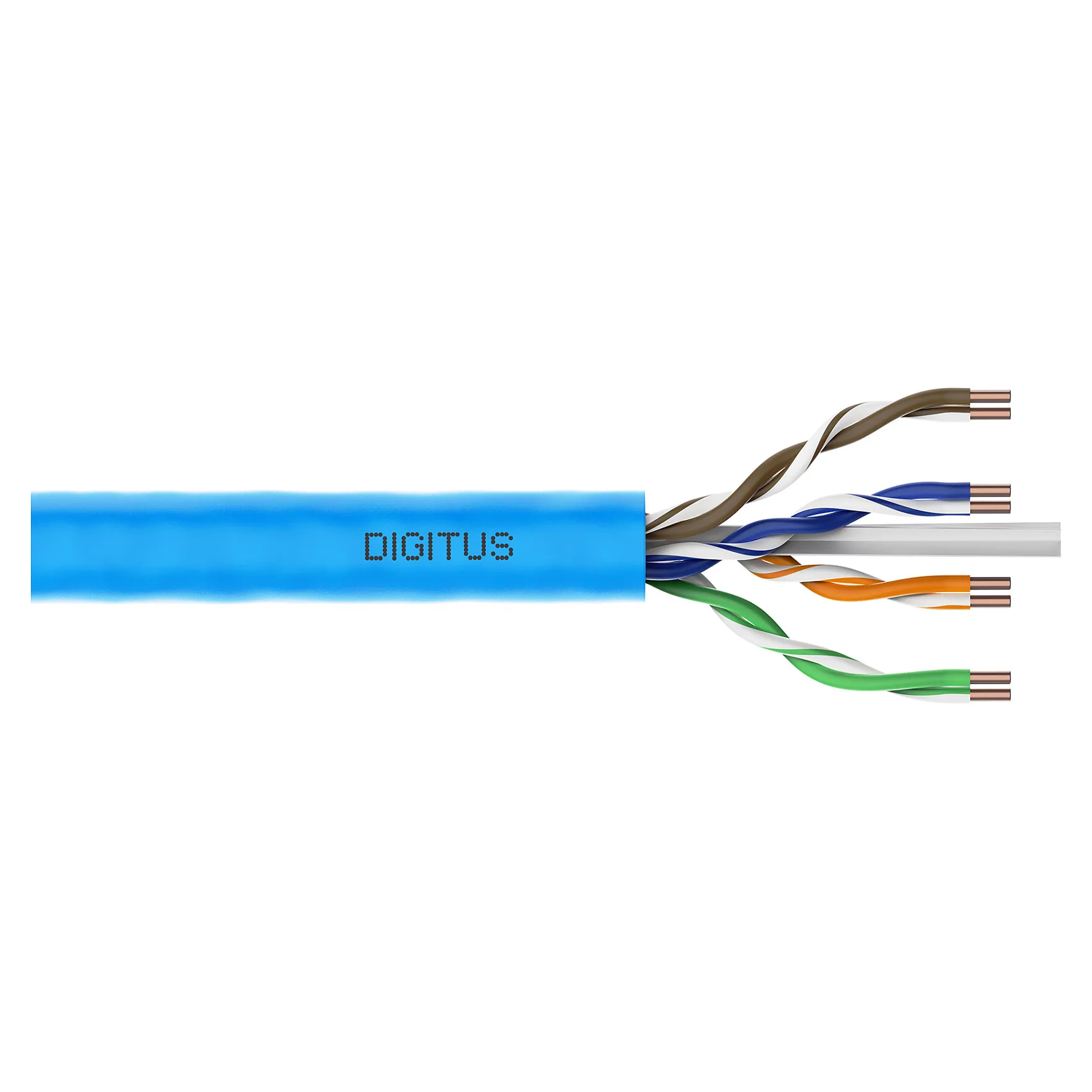

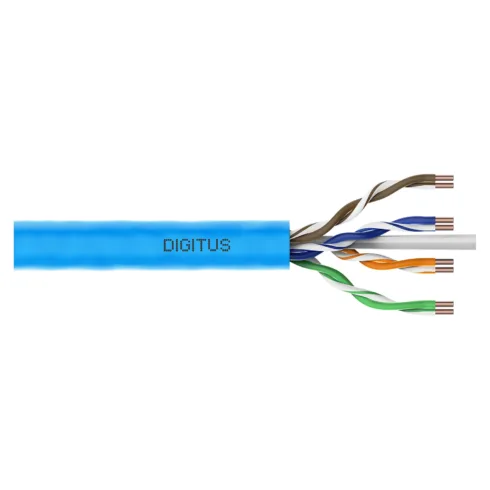

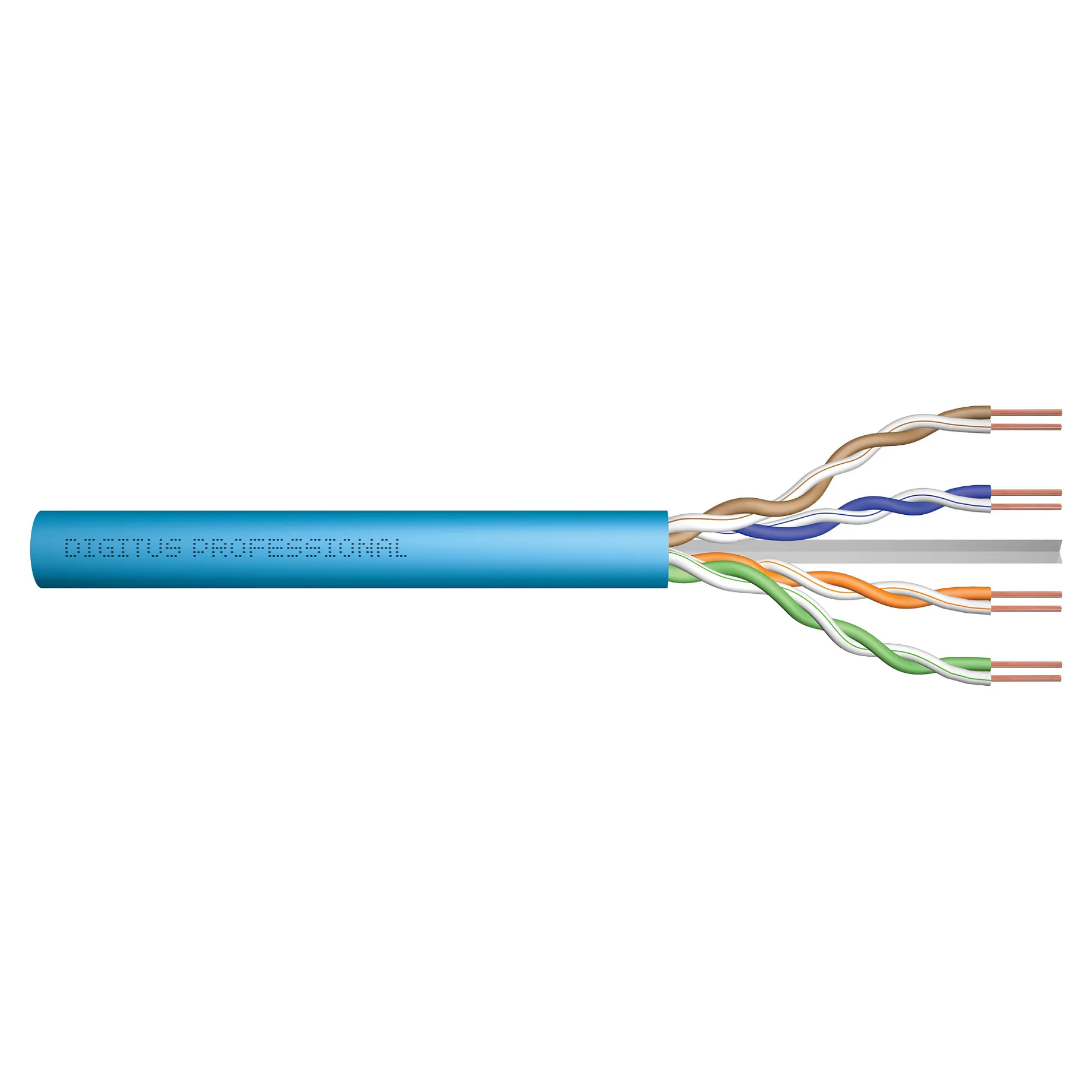

Digitus CAT 6A U/UTP installation cable, 305 m, simplex, Eca. Cable length: 305 m, Cable standard: Cat6a, Cable shielding: U/UTP (UTP), Product colour: Light Blue
Future-oriented standards and high-end quality for your network.
– 10GBit Ethernet
– 500 MHz transmission frequency
– PoE Power over Ethernet support
– CPR class Eca

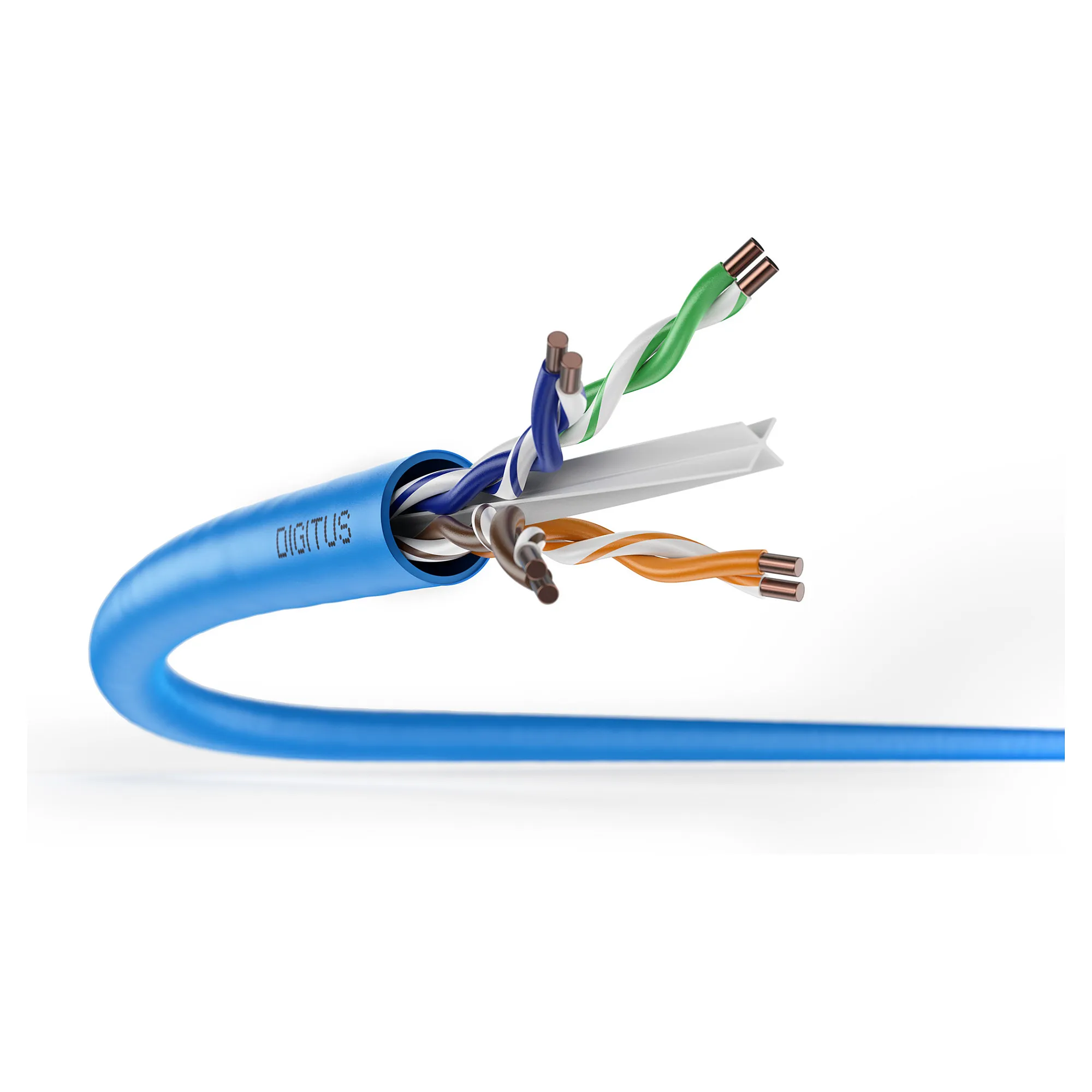

The Digitus® Cat.6A U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-11-1.
Features
Product colour: Light Blue

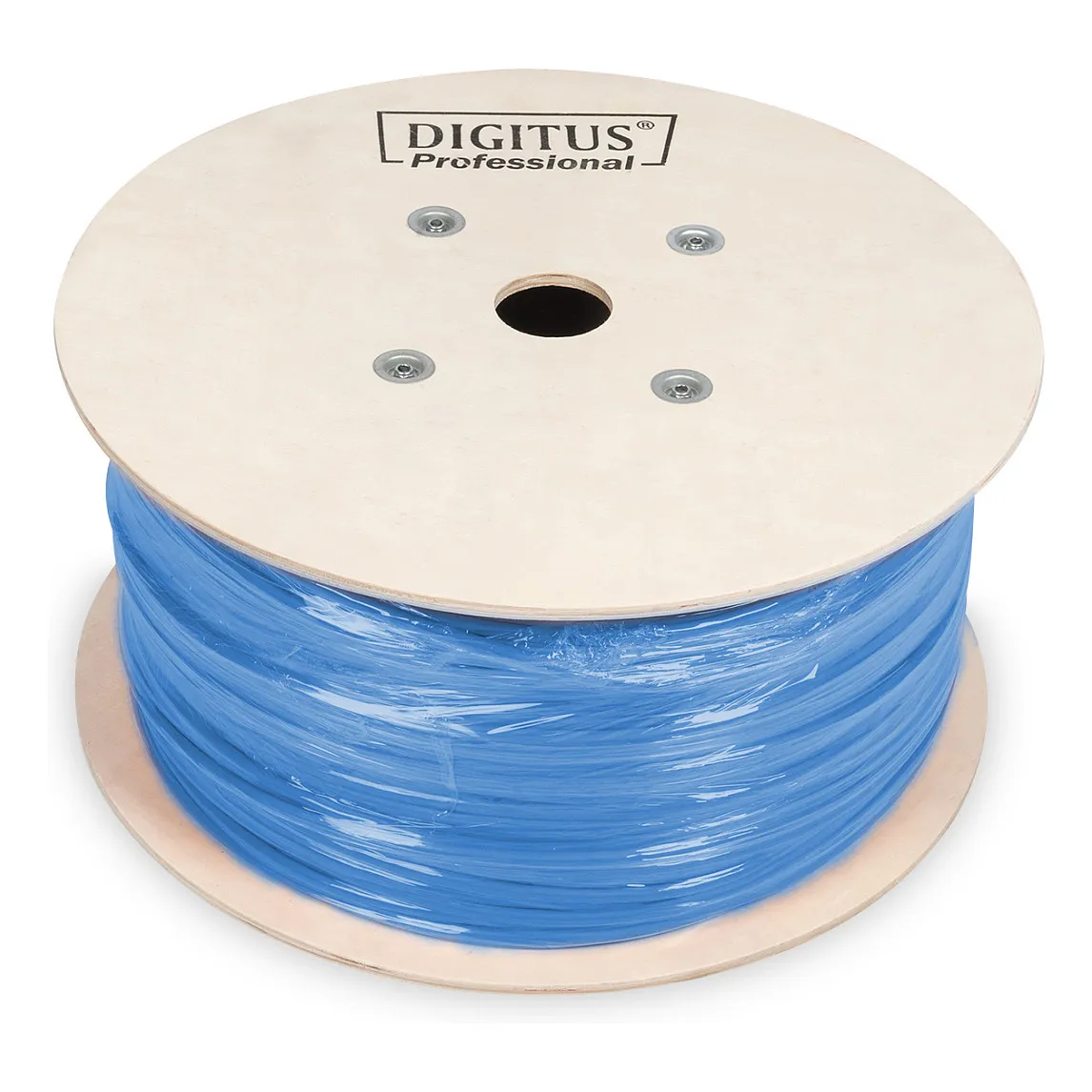

Cable length: 305 m
Cable standard: Cat6a
Cable shielding: U/UTP (UTP)
Connector 1: No
Connector 2: No
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Twisted pair coupling type: 4×2
Cable fire class: Eca
AWG wire size: 23/1
Frequency: 500 MHz
Country of origin: China
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CPR class Eca
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 390 mm
Package depth: 390 mm
Package height: 270 mm
Package weight: 17 kg
Package volume: 41067 cm³
Logistics data
Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
