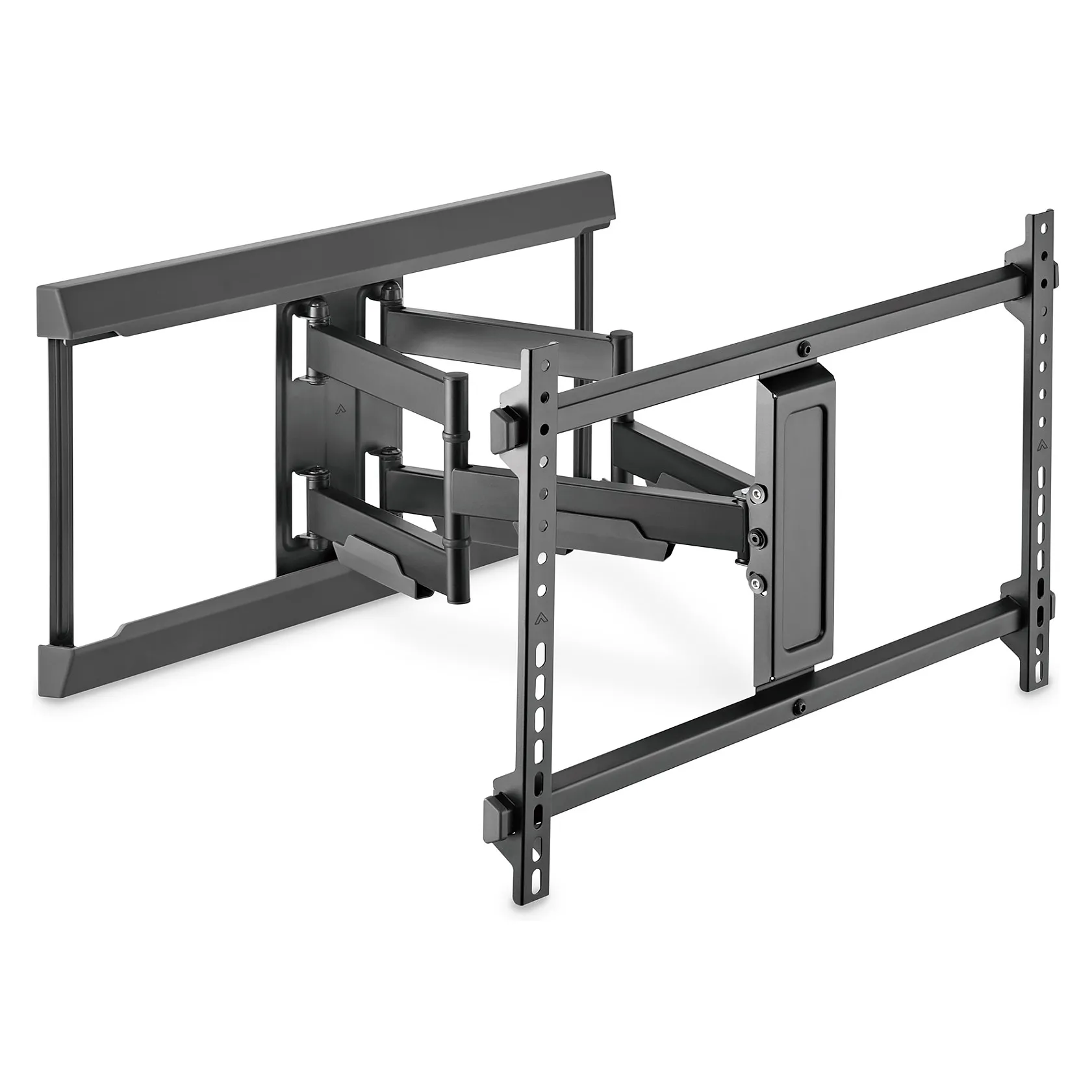

Digitus Full Motion TV Wall Bracket (37-80"). Maximum weight capacity: 60 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 – 5°, Swivel angle range: -60 – 60°, Distance to the wall (min): 6.3 cm, Distance to the wall (max): 53.6 cm. Product colour: Black
– Suitable for displays with VESA bracket from 37-80″
– Maximum load capacity: 60 kg
– Extendible (Depth: 6.3 to 53.6 cm)
– Display swivel +60° to -60°
– Display tilt: +5° to -10°
– Horizontal adjustment (rotation): +3 to -3°
– The arms can be moved individually to the side on the permanently mounted wall carrier plate and locked in the desired position.
– Integrated cable management
– VESA compatibility: 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
The DIGITUS® Wall Bracket for displays with VESA bracket from 37-80″ offers a convenient and flexible option for mounting a TV/monitor on the wall. With a maximum load capacity of 60 kg, this bracket is able to securely hold larger displays without losing stability. Thanks to its extendible design from 6.3 – 53.6 cm, you can bring your display into the perfect position at all times and thus choose the ideal viewing angle. Whether you want to tilt your display to prevent glare, or swivel it sideways to achieve the best possible viewing experience: this wall bracket offers a hassle-free solution. The display can be swiveled from +60 to -60° and tilted from +5 to -10°. The horizontal adjustment (rotation) from +3 to -3° allows you to align the display precisely and make sure that it is positioned perfectly. You can also move the arms of the bracket individually to the side on the permanently mounted wall carrier plate and lock them in the desired position to achieve an optimal viewing experience. With integrated cable management, the wall bracket is also aesthetically appealing and prevents an untidy mess of cables.
Maximum weight capacity: 60 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum screen size: 2.03 m (80″)
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 100,200 x 200,300 x 200,300 x 300,400 x 400,400 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -10 – 5°
Feature: Swivelling
Swivel angle range: -60 – 60°
Feature: Cable management
Distance to the wall (max): 53.6 cm
Distance to the wall (min): 6.3 cm
Feature: Suitable for curved screen
Design
Product colour: Black
Housing material: Steel
Technical details
Country of origin: China
Weight & dimensions
Width: 665 mm
Depth (min): 6.3 cm
Height: 350 mm
Weight: 7.75 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 720 mm
Package depth: 460 mm
Package height: 72 mm
Package volume: 23846.4 cm³
Package weight: 9.45 kg
Package type: Box
Logistics data
UK Trade Tariff code: 73269098
Other features
Mounting: Screws
