DeLOCK Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Operating frequency: 2.4 MHz. Product colour: Black, Internal memory: 16 MB. Power source type: Battery, Battery capacity: 380 mAh, Input voltage: 3.3 V. Weight: 39 g, Width: 5 mm, Depth: 35 mm
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 100 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

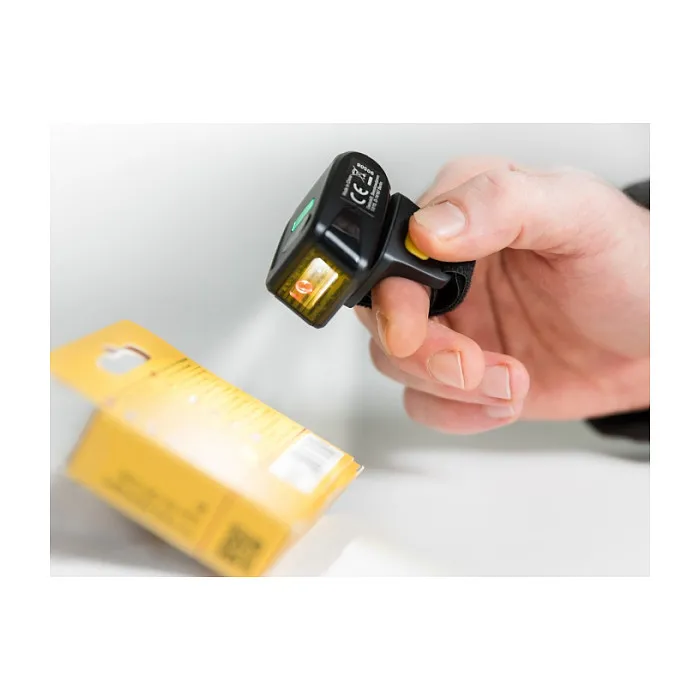

Small and practical
This small ring scanner can be practically attached to the finger with the hook-and-loop fastener, so that the wearer has his hands free, for example in order to hold a cardboard box. Thanks to the rotation possibility, the scanner can be rotated and is thus suitable for both right- and left-handed people.

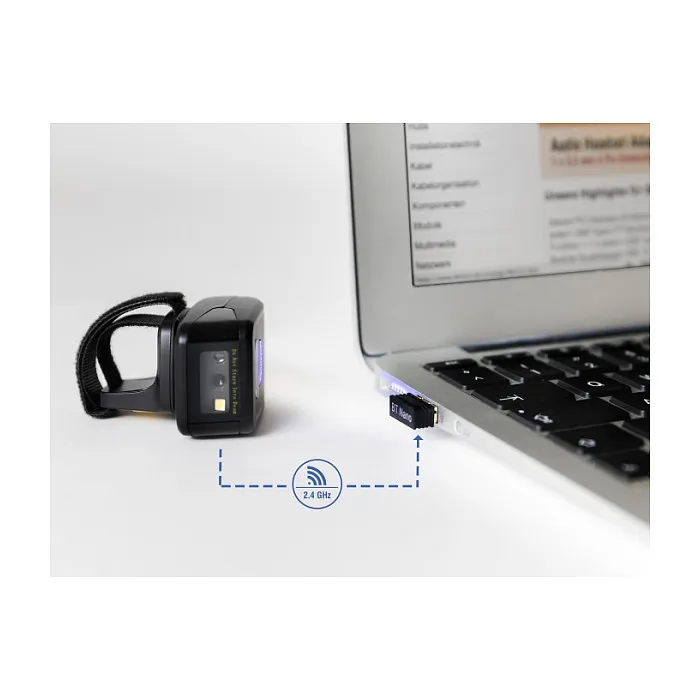

Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
Type: Wearable bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417
2D (matrix & stacked) barcodes supported: Data Matrix, Micro QR Code, MicroPDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 30 cm
Read rate (max): 100 reads/s
Light levels (direct sunlight): 0 – 10000 lx
Pitch reading angle: 0 – 360°
Ports & interfaces
Connectivity technology: Wireless
Standard interfaces: Bluetooth
USB 2.0 ports quantity: 1
Bluetooth version: 4.1
Operating frequency: 2.4 MHz
Cable length: 1 m
Performance
LED indicators: Yes
Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black
Power
Power source type: Battery
Battery capacity: 380 mAh
Input voltage: 3.3 V
Power consumption: 200 mA
Weight & dimensions
Width: 5 mm
Depth: 35 mm
Height: 5 mm
Weight: 39 g
Packaging data
Cables included: Micro-USB
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Logistics data
Harmonized System (HS) code: 84716070
