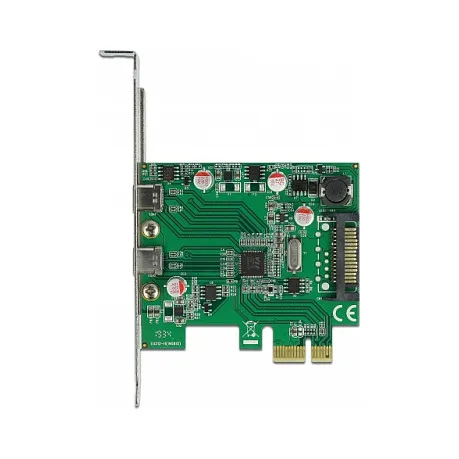

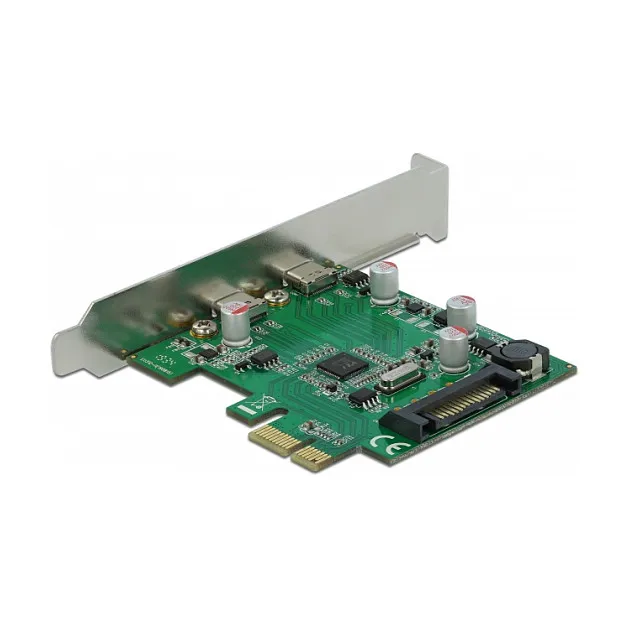

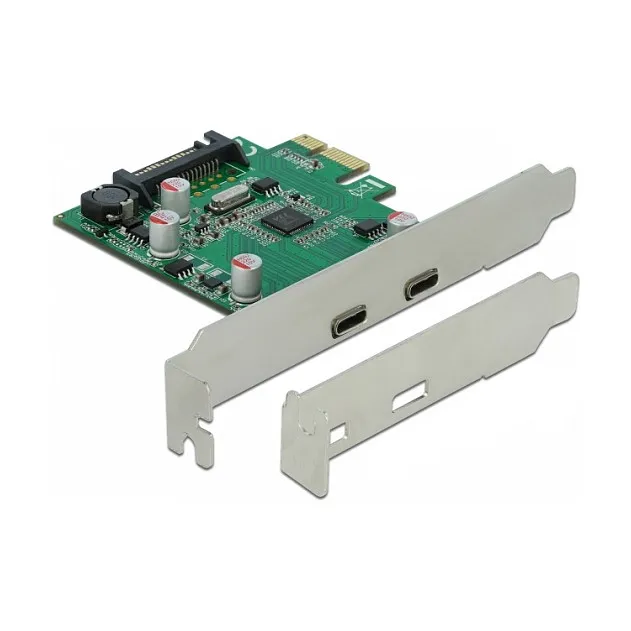

DeLOCK PCI Express x1 Card to 2 x external SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Processor manufacturer: VIA Technologies, Processor model: VL805, Data transfer rate (max): 5 Gbit/s. Power consumption (typical): 7 W, Output voltage: 5 V, Output current: 1.4 A. Windows operating systems supported: Windows 10, Windows 8.1
This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Ports & interfaces
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Design
Feature: Internal
Features
Processor manufacturer: VIA Technologies
Processor model: VL805
Data transfer rate (max): 5 Gbit/s
Power
Power consumption (typical): 7 W
Output voltage: 5 V
Output current: 1.4 A
System requirements
Windows operating systems supported: Windows 10, Windows 8.1
Packaging data
Feature: Mounting brackets included
Feature: Manual
Logistics data
Harmonized System (HS) code: 84733020
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Design
Feature: Internal
Features
Processor manufacturer: VIA Technologies
Processor model: VL805
Data transfer rate (max): 5 Gbit/s
Power
Power consumption (typical): 7 W
Output voltage: 5 V
Output current: 1.4 A
System requirements
Windows operating systems supported: Windows 10, Windows 8.1
Packaging data
Feature: Mounting brackets included
Feature: Manual
Logistics data
Harmonized System (HS) code: 84733020
