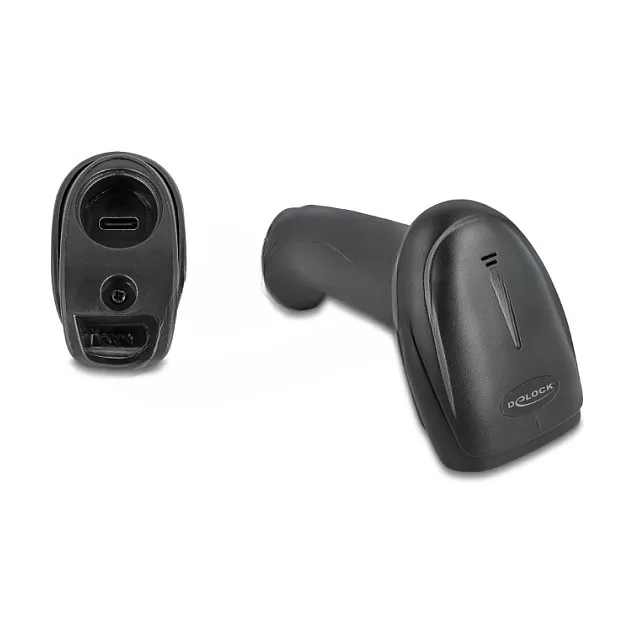

DeLOCK 90943. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, RF Wireless, USB, Wireless range: 10 m. Product colour: Black, Internal memory: 16 MB, Processor architecture: ARM Cortex-A7. Power source type: Battery, USB, Charging port type: USB Type-C, Input voltage: 5 V. Weight: 190 g, Width: 90 mm, Depth: 170 mm
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.

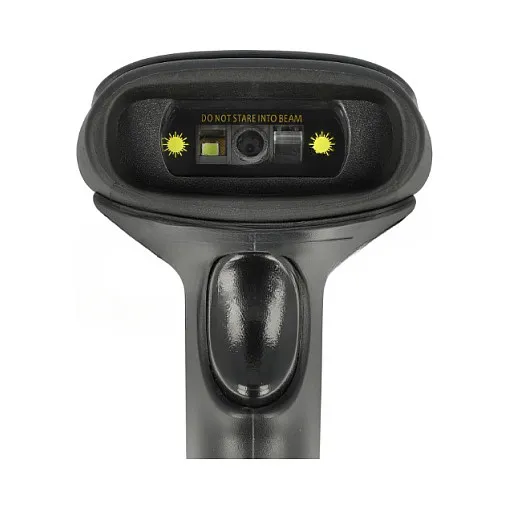

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
Please Note
Not suitable for Swiss QR Codes.
Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-8, EAN-13, Interleaved 2 of 5
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code
Trigger mode: Manual
Optical sensor resolution (W x H): 752 x 480 pixels
Scanner resolution: 0.127 mm
Working distance range: 60 – 300 mm
Read rate (max): 30 reads/s
Ports & interfaces
Connectivity technology: Wired & Wireless
Standard interfaces: Bluetooth, RF Wireless, USB
Wireless range: 10 m
Bluetooth version: 4.0
Operating frequency: 2400 MHz
Cable length: 1.5 m
Performance
Internal memory: 16 MB
Feature: Built-in processor
Processor architecture: ARM Cortex-A7
Product colour: Black
Power
Power source type: Battery, USB
Charging port type: USB Type-C
Input voltage: 5 V
Power consumption: 100 mA
Weight & dimensions
Width: 90 mm
Depth: 170 mm
Height: 70 mm
Weight: 190 g
Packaging data

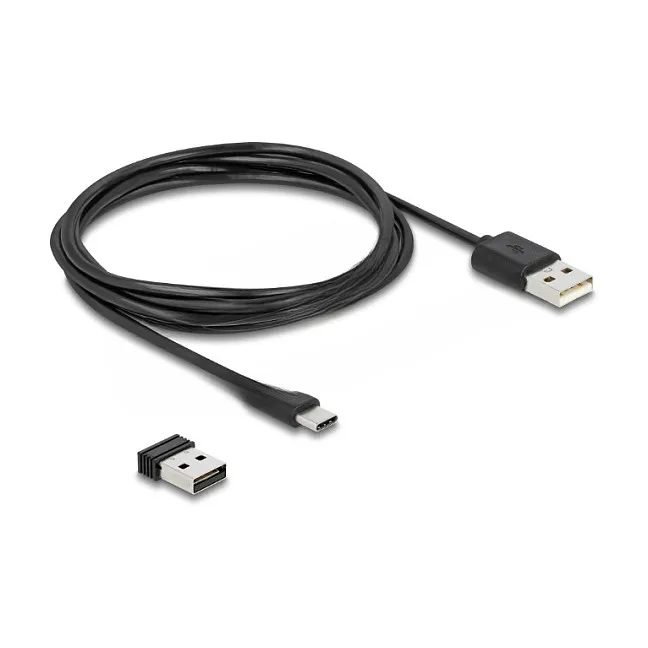

Cables included: USB
Feature: Receiver included
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -10 – 50 °C
Operating relative humidity (H-H): 20 – 85%
Battery
Battery technology: Lithium Polymer (LiPo)
Battery capacity: 1800 mAh
Technical details
Feature: Battery included
