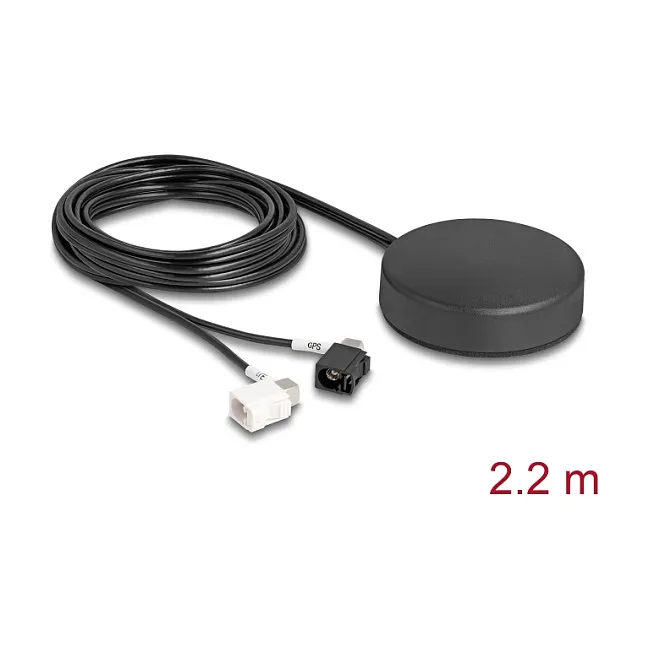

DeLOCK 4G GNSS Antenna 1 x FAKRA A + 1 x FAKRA B jack 2 dBi / 28 dB 2.2 m RG-174 omnidirectional roof mount black outdoor. Antenna gain level (max): 5 dBi, Frequency band: 0.698 – 0.96, 1.71 – 2.7, 1.598 – 1.602 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: FAKRA A/FAKRA B, Polarization: Linear/RHCP polarization. Height: 21 mm, Diameter: 7.5 cm. Package type: Box. Quantity per pack: 1 pc(s)
This multiband antenna by Delock has two physically separated transmitting and receiving units. Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof and can be used in the extended temperature range.
Performance
Frequency band: 0.698 – 0.96, 1.71 – 2.7, 1.598 – 1.602 GHz
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: FAKRA A/FAKRA B
Polarization: Linear/RHCP polarization
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Feature: Waterproof
Cable length: 2.2 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -20 – 75 °C
Weight & dimensions
Height: 21 mm
Diameter: 7.5 cm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Country of origin: China
Frequency band: 0.698 – 0.96, 1.71 – 2.7, 1.598 – 1.602 GHz
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: FAKRA A/FAKRA B
Polarization: Linear/RHCP polarization
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Feature: Waterproof
Cable length: 2.2 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -20 – 75 °C
Weight & dimensions
Height: 21 mm
Diameter: 7.5 cm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Country of origin: China
