DeLOCK Ring Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Operating frequency: 2402 – 2480 MHz. Product colour: Black, LED indicators: Bluetooth, Charging, Power, Internal memory: 16 MB. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Weight: 40 g, Width: 37 mm, Depth: 53 mm
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 100 scans per second under optimal lighting conditions. In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Small and practical

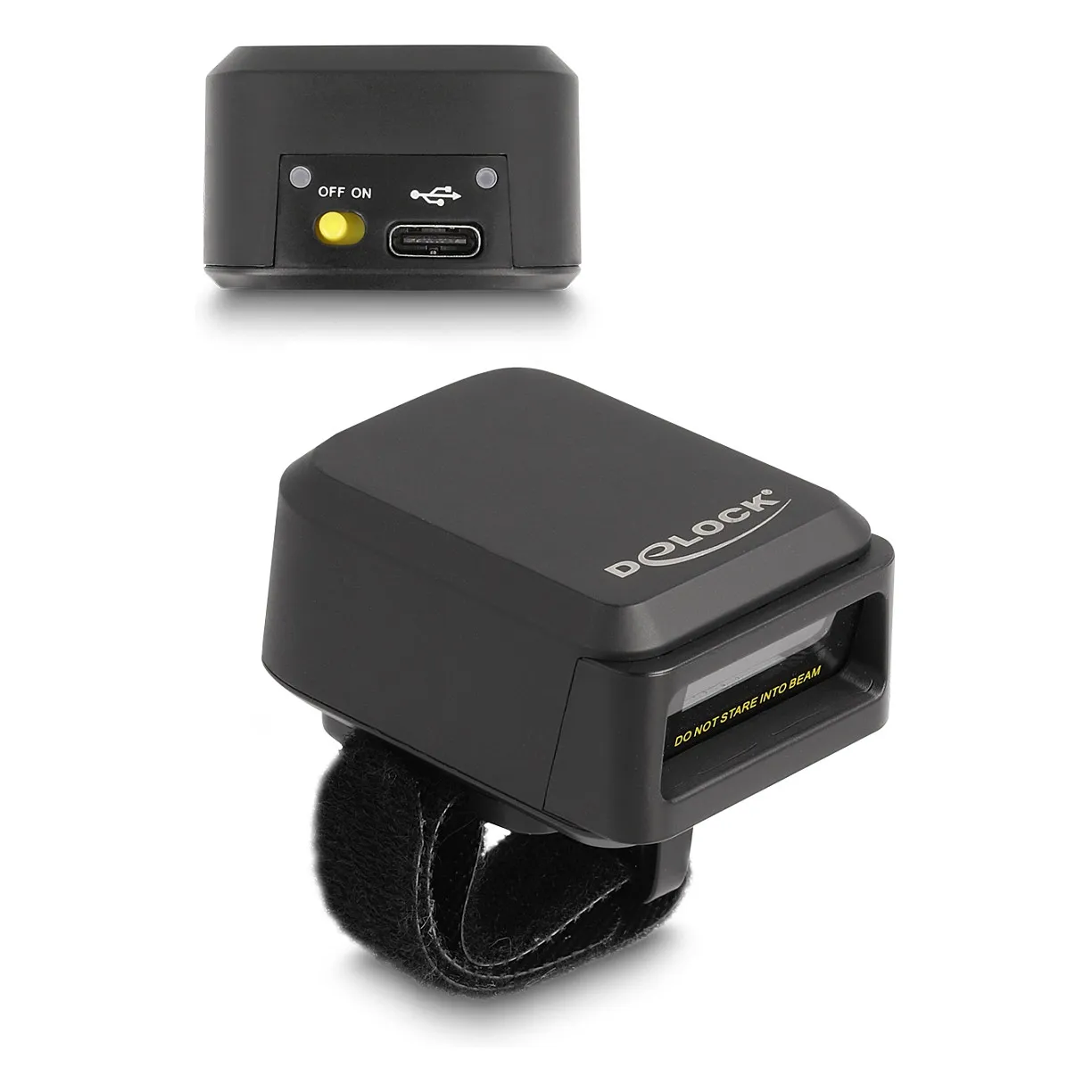

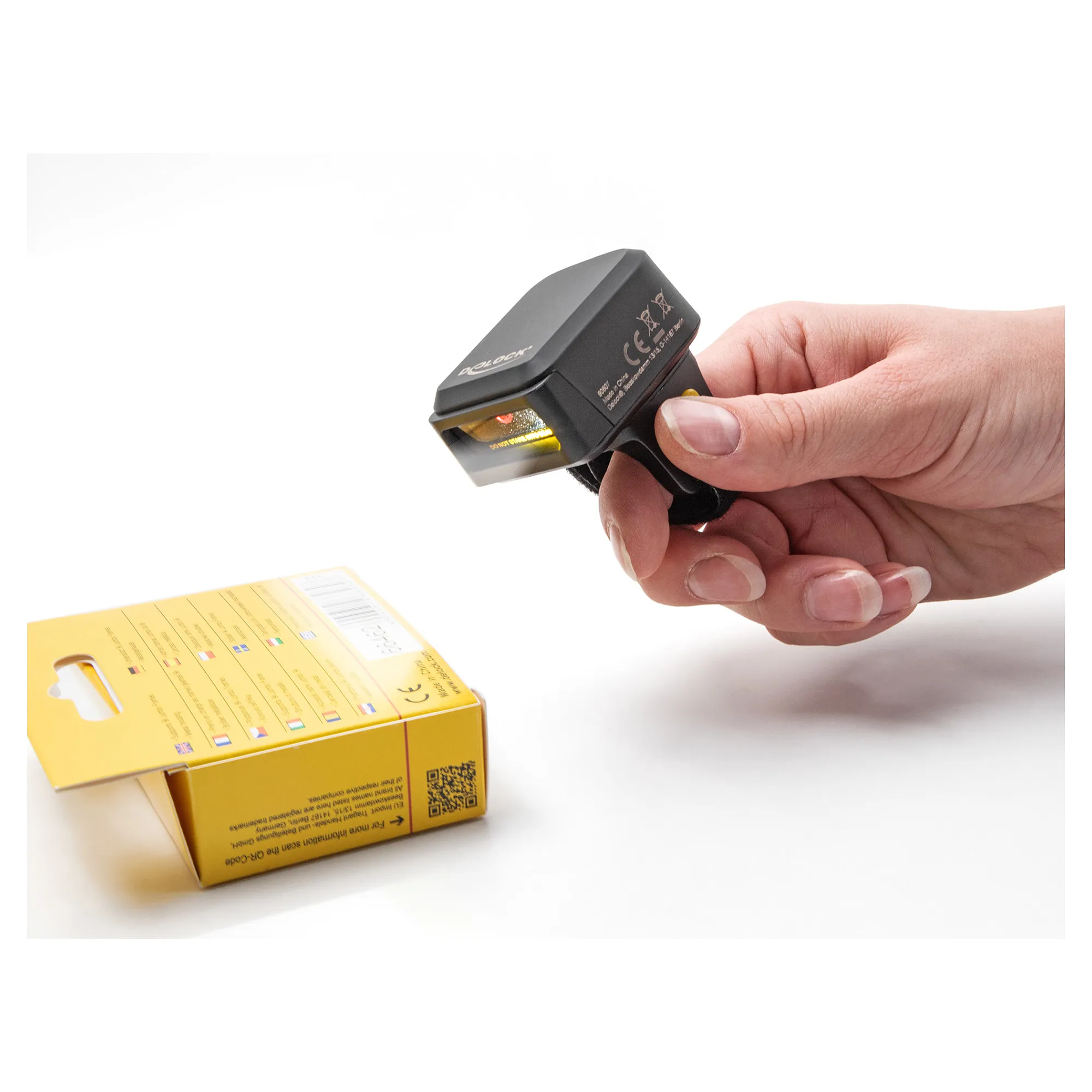

This small ring scanner can be practically attached to the finger with the hook-and-loop fastener, so that the wearer has his hands free, for example in order to hold a cardboard box. Thanks to the rotation possibility, the scanner can be rotated and is thus suitable for both right- and left-handed people.
Transmission via Bluetooth, USB or 2.4 GHz

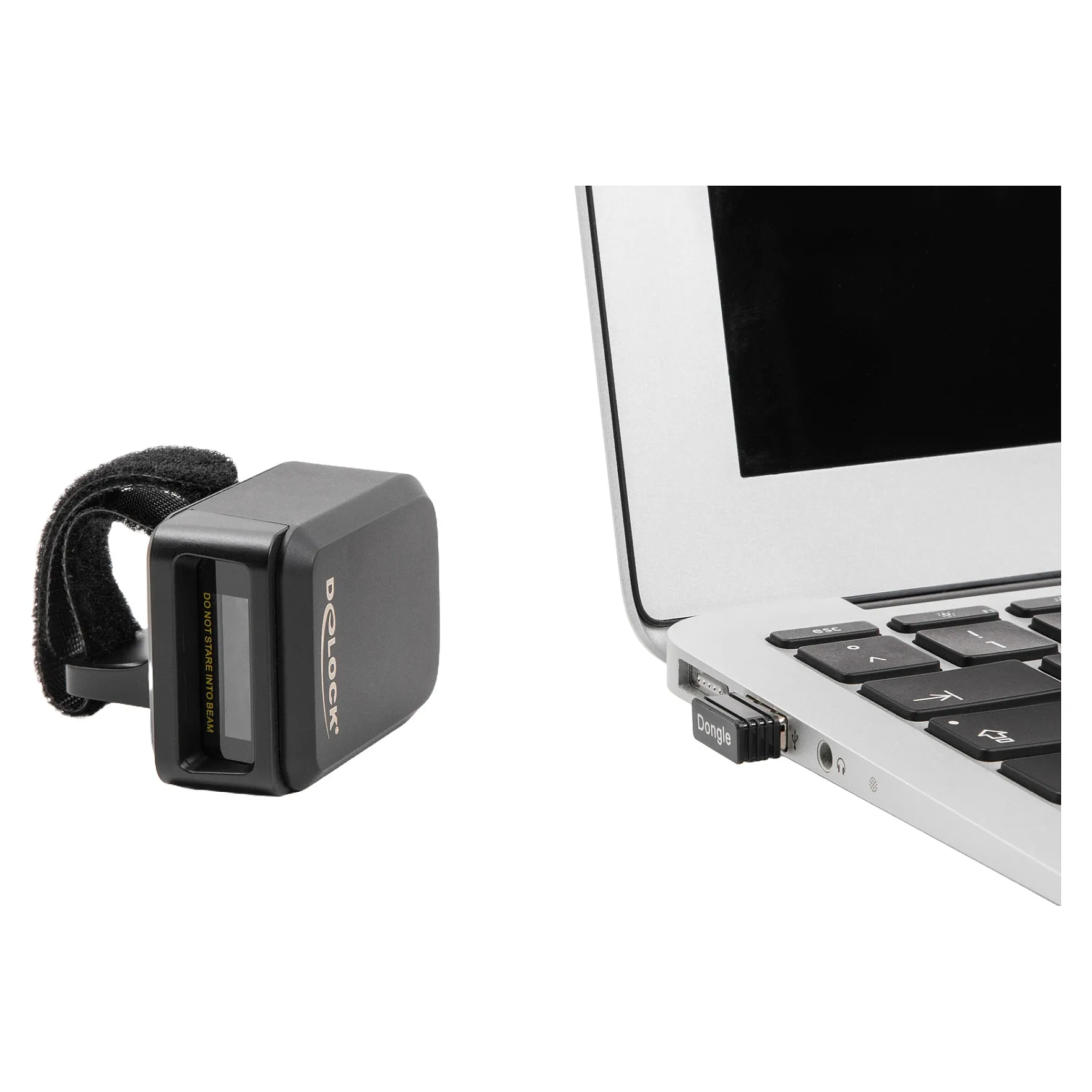

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
Wireless Charging

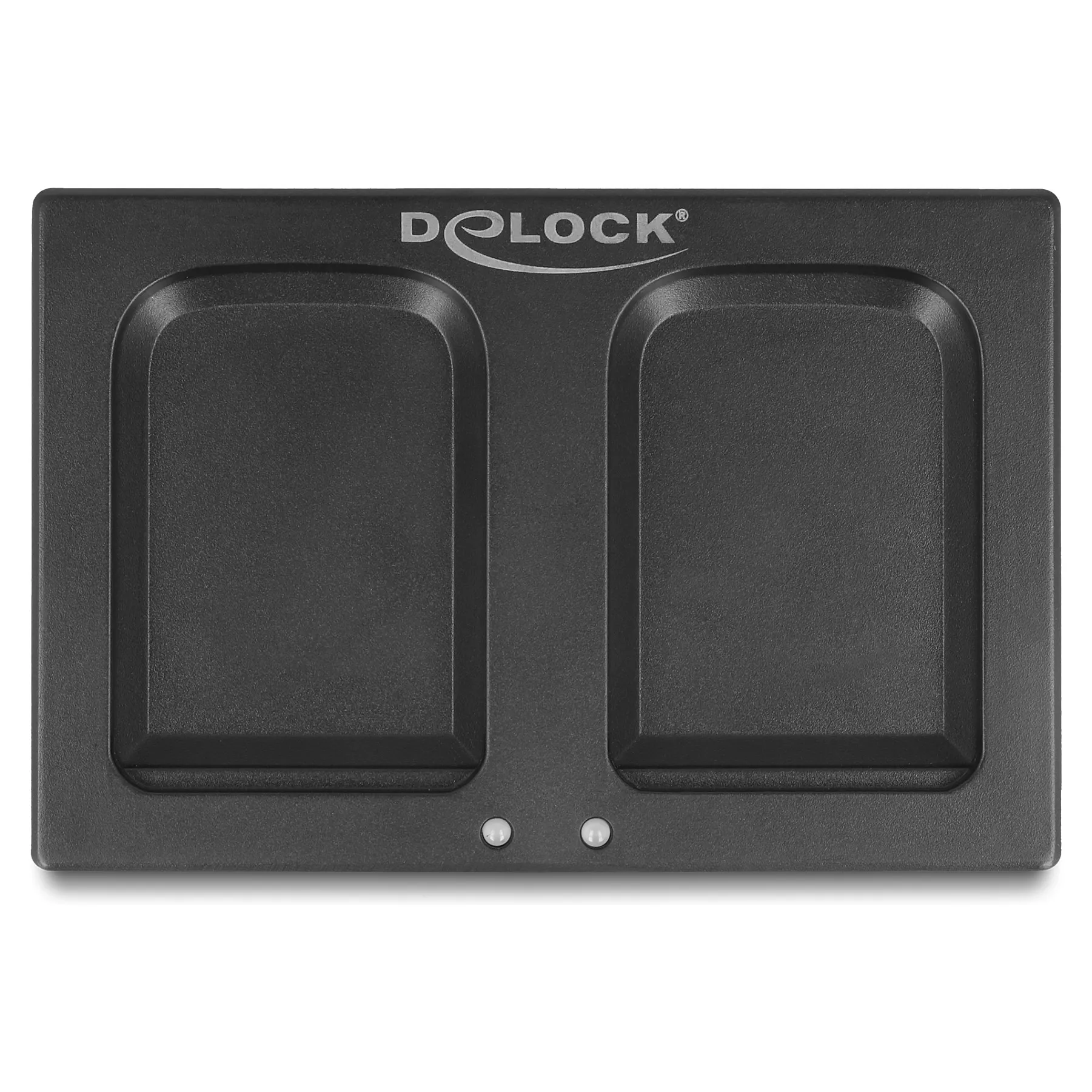

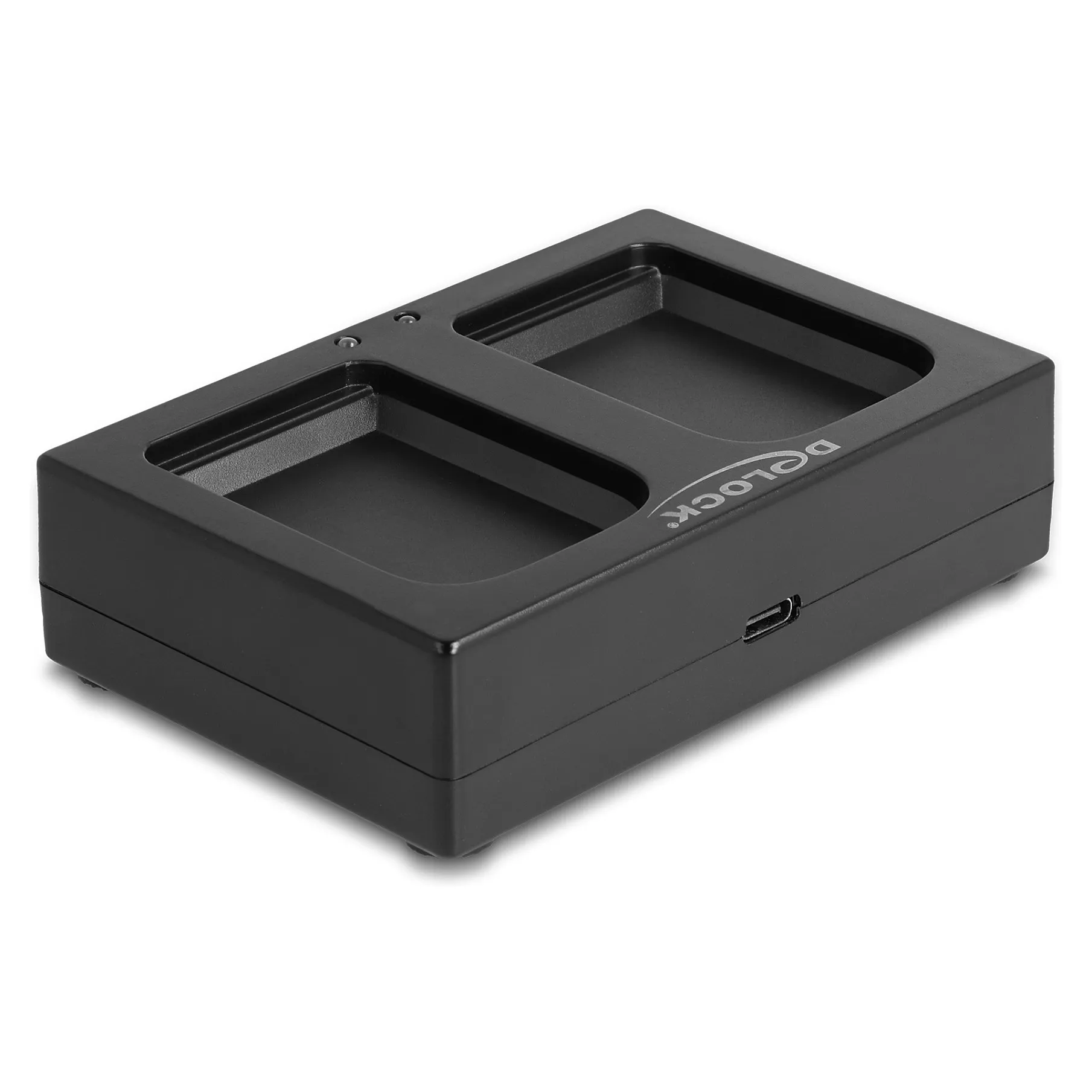

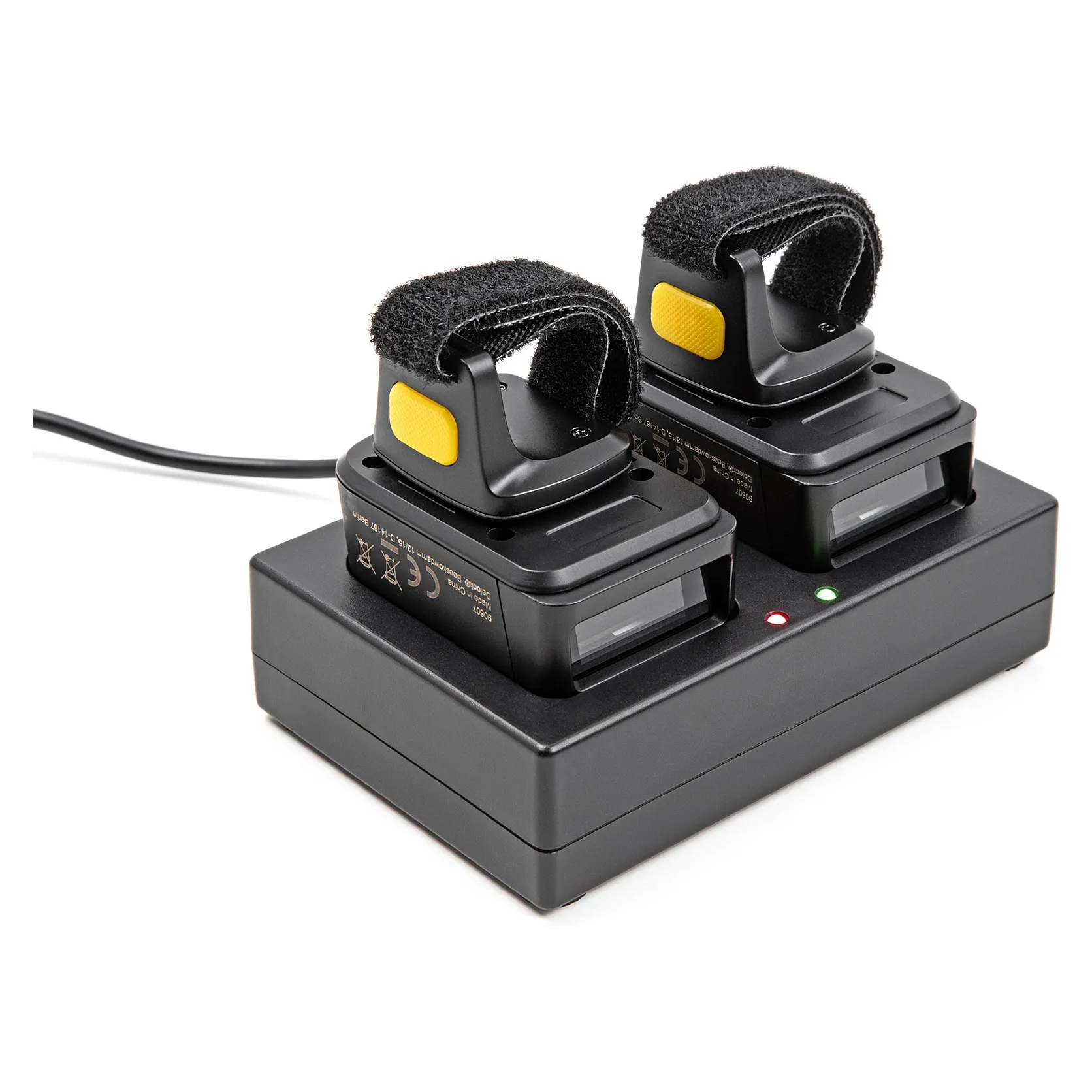

The ring scanner can be charged either via the USB Type-C™ port or using the inductive charging function in the scanner itself. For example, with the Delock charging station 90608.
Type: Wearable bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417
2D (matrix & stacked) barcodes supported: Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Trigger mode: Manual
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 30 cm
Read rate (max): 100 reads/s
Light levels (direct sunlight): 0 – 10000 lx
Pitch reading angle: 0 – 360°
Ports & interfaces
Connectivity technology: Wireless
Standard interfaces: Bluetooth
USB 2.0 ports quantity: 1
Bluetooth version: 4.1
Operating frequency: 2402 – 2480 MHz
Cable length: 1 m
Performance
LED indicators: Bluetooth, Charging, Power
Feature: Ambient lighting
Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black
Country of origin: China
Power
Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery type: Built-in battery
Battery capacity: 380 mAh
Charging time: 2 h
Input voltage: 3.3 V
Power consumption: 100 mA
Weight & dimensions
Width: 37 mm
Depth: 53 mm
Height: 24 mm
Weight: 40 g
Packaging data

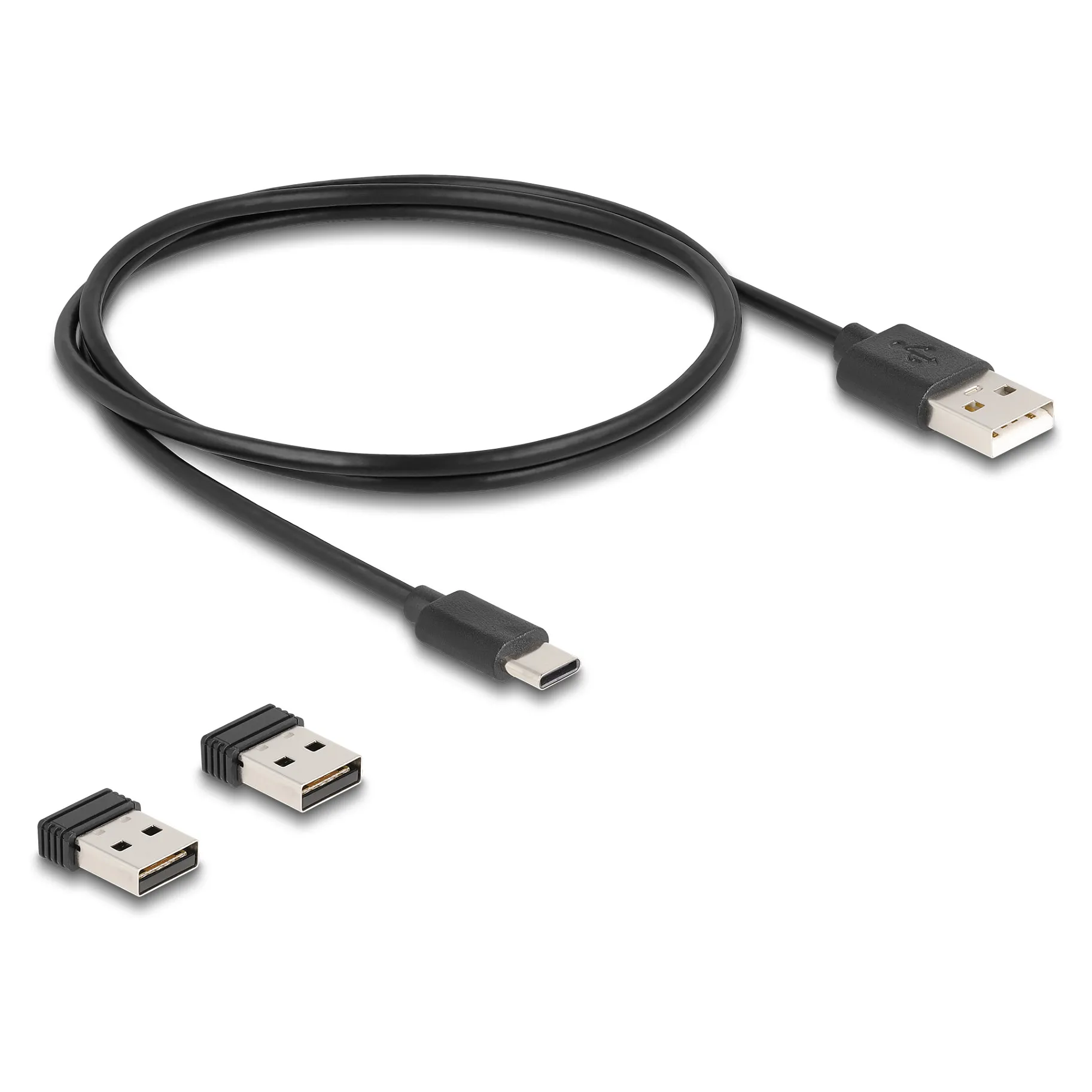

Cables included: USB Type-C
Feature: Charging base
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Technical details
Feature: Sustainability compliance
Compliance certificates: CE
Other features
Windows operating systems supported: Windows 10, Windows 11
Mobile operating systems supported: Android 11.0, Android 12.0, Android 13.0
