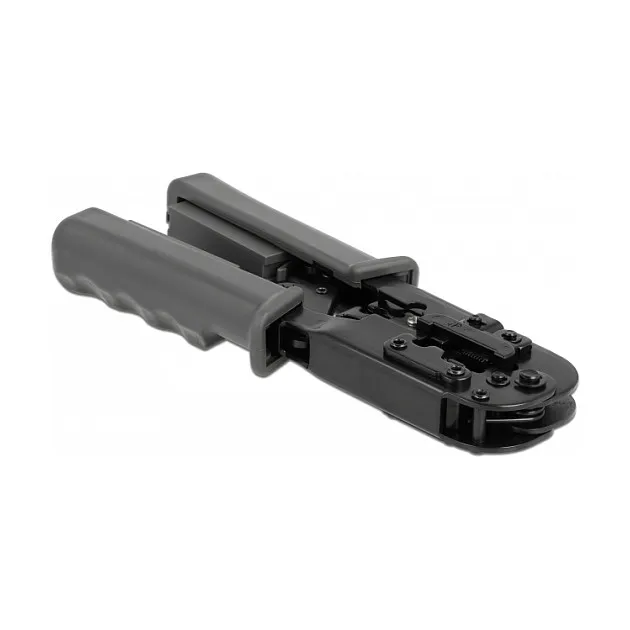

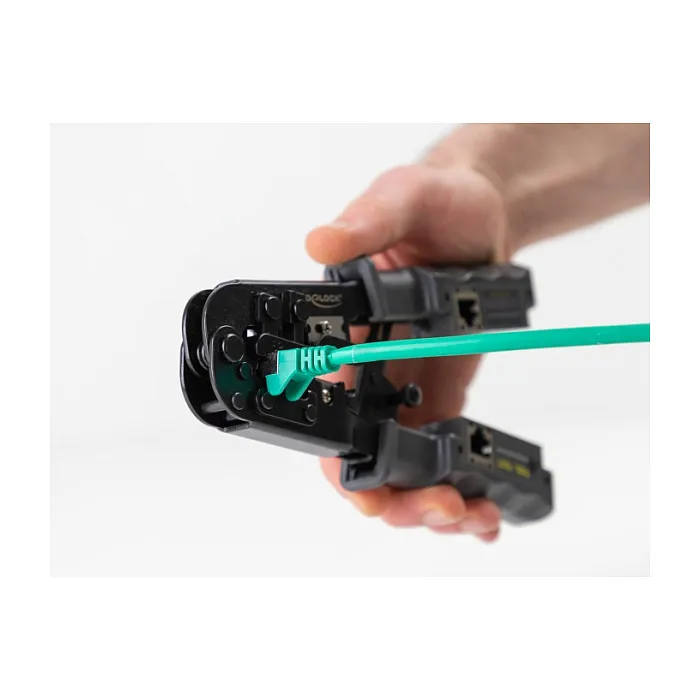

DeLOCK Crimp tool with stripper and network tester for 8P (RJ45), 6P (RJ12/11) or 4P (RJ10) plugs. Width: 69 mm, Depth: 190 mm, Height: 22 mm. Country of origin: China

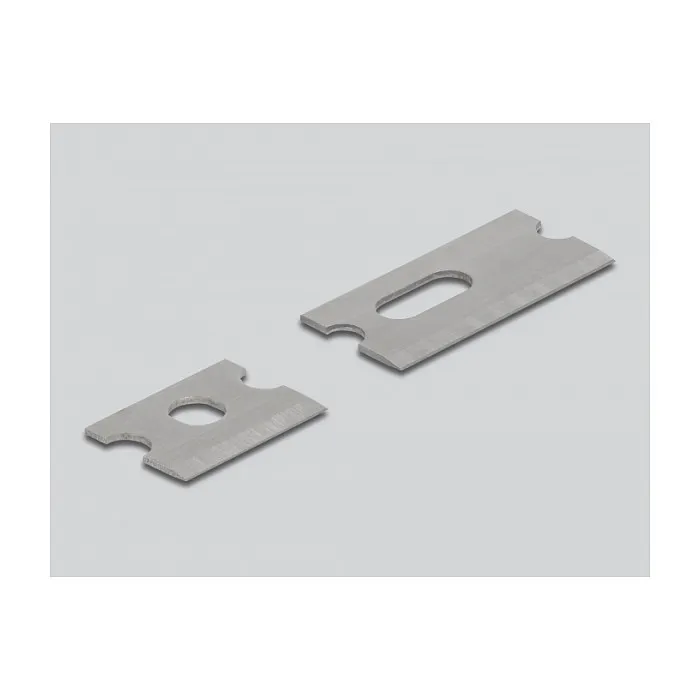

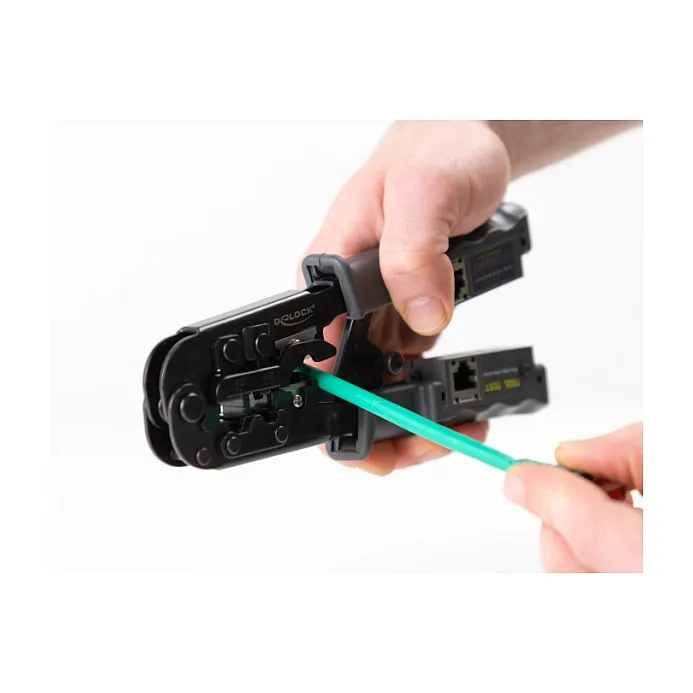

Three integrated blades ensure trouble-free stripping of the cables and cutting of the strands.

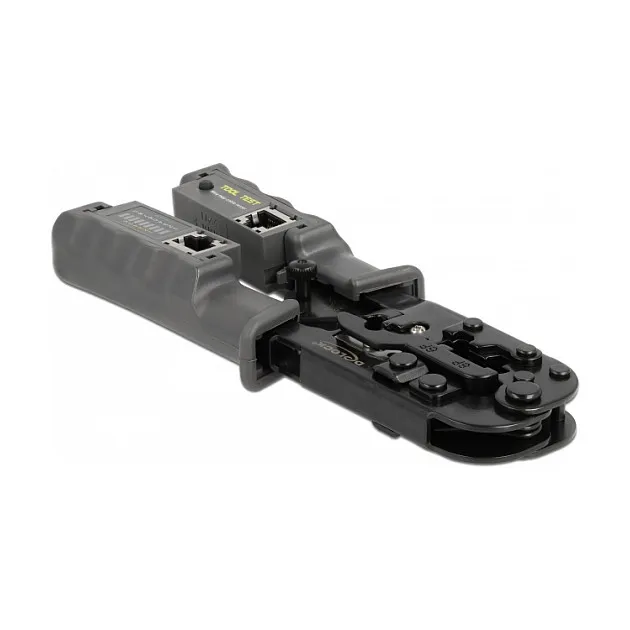

Integrated cable tester

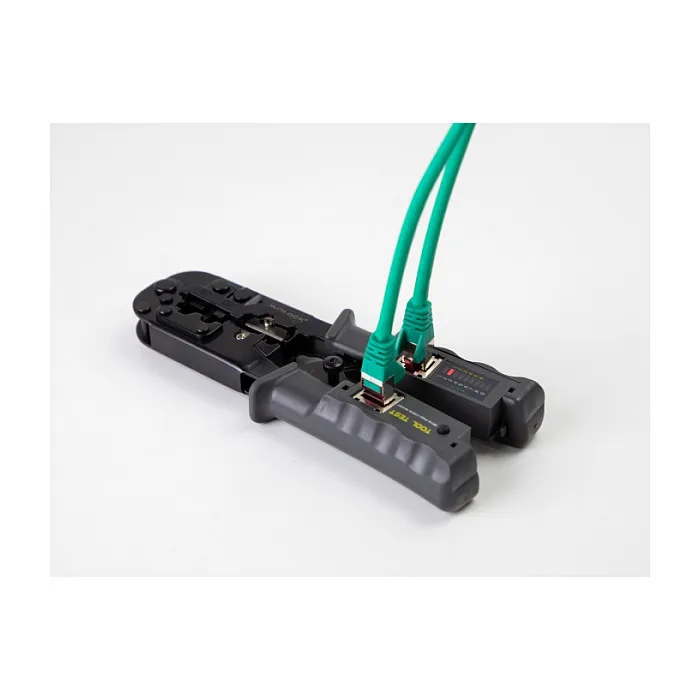

Thanks to the integrated cable tester, the correct wiring can be tested directly after the crimping process. All three types of plugs fit into the female sockets.

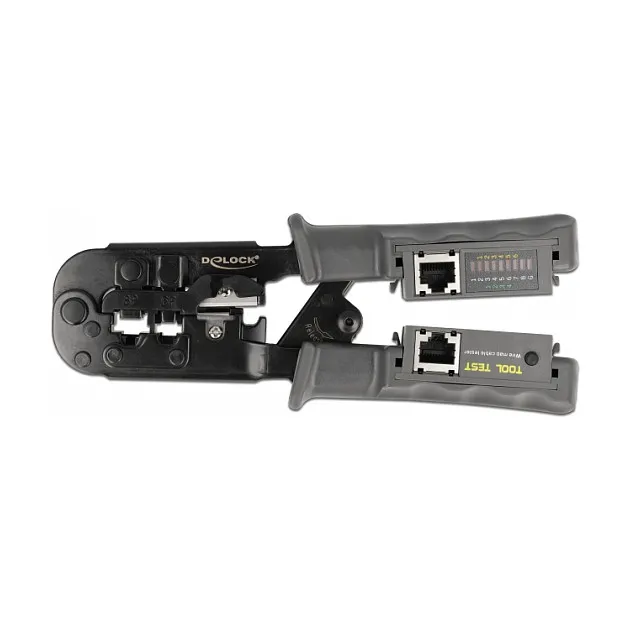

LED test run
Each connector type has its own pin arrangement. The white number arrangement (1 – 8 +G) is used to test the RJ45 pin assignment. The yellow number row (1 – 6) stands for RJ11 and the green (1 – 4) for the RJ10 plug.
During the test, the red LEDs run through the respective pinout. For example, if the RJ10 plug is tested, the red LED starts with green 1.
Network tester
The battery compartment is built into the handles of the pliers. 3 x LR44 batteries are needed, which are not included in the package content.
Width: 69 mm
Depth: 190 mm
Height: 22 mm
Weight: 358 g
Technical details
Type: Combination tool
Network connector type: RJ-10, RJ-11, RJ-12, RJ-45
Product colour: Black, Green
Handle material: Plastic
Logistics data
Country of origin: China
