DeLOCK PCI Express x4 Card to 1 x external USB Type-C female + 2 x external USB Type-A female SuperSpeed USB 10 Gbps + 1 x internal USB 5 Gbps Pin Header. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64. Package type: Box

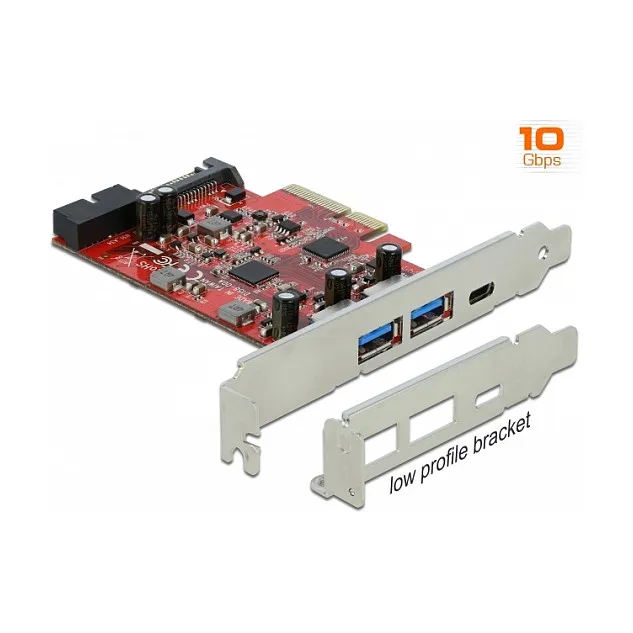

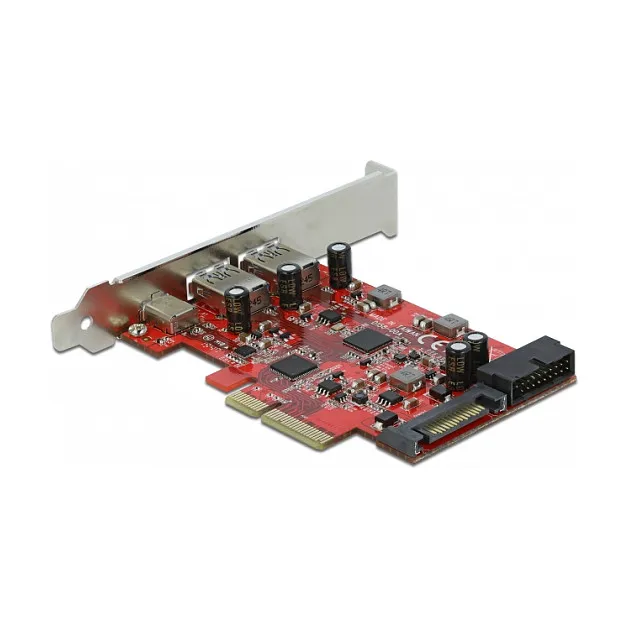

This PCI Express card by Delock expands the PC by three external USB 3.2 ports as well as one internal pin header. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Data transfer rate 5 Gbps internal and 10 Gbps external
The card allows a data transfer rate of 10 Gbps on the external ports, as well as 5 Gbps on the internal pin header.
Ports & interfaces
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1), USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Design
Feature: Internal
Features
Data transfer rate (max): 10 Gbit/s
Feature: UASP support
System requirements
Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes
Packaging data
Feature: Mounting brackets included
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
