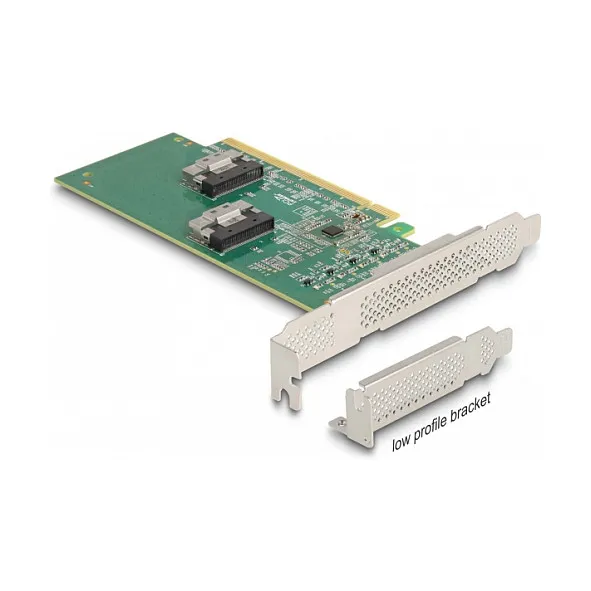

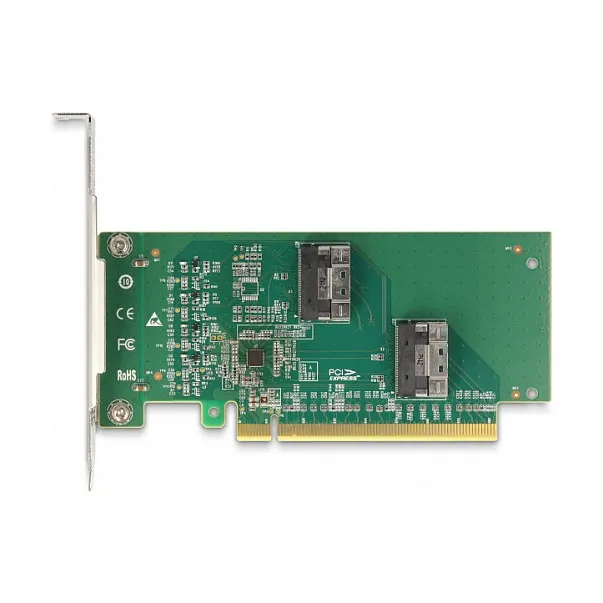

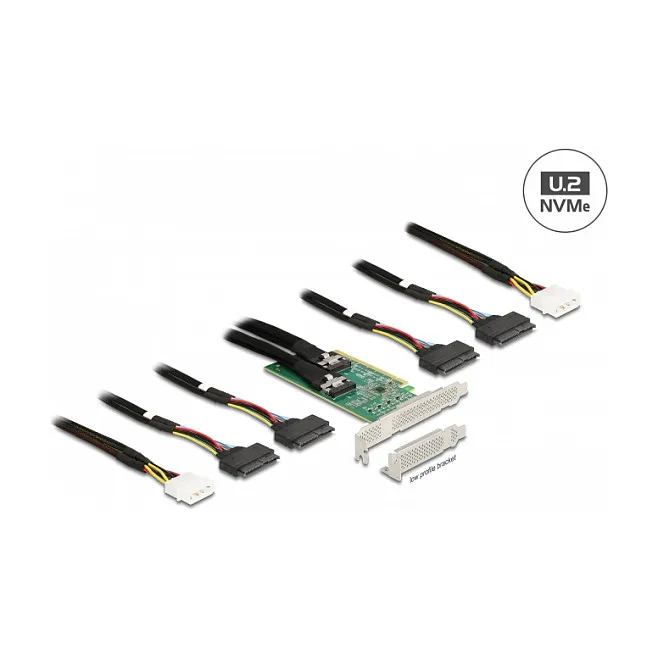

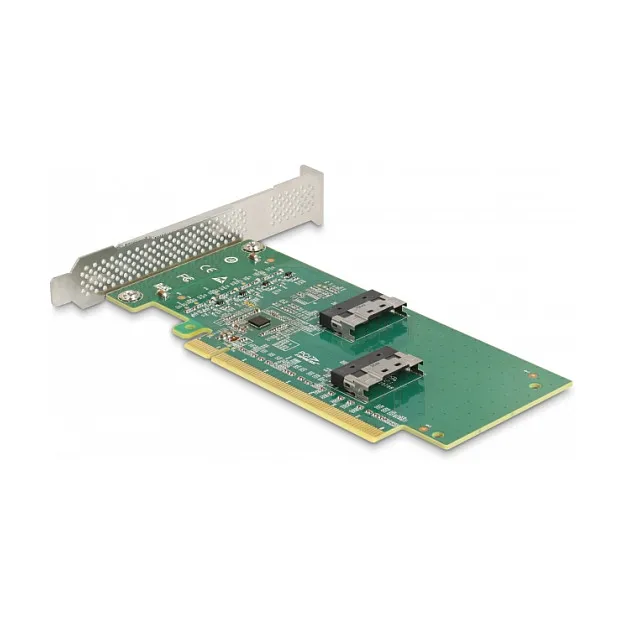

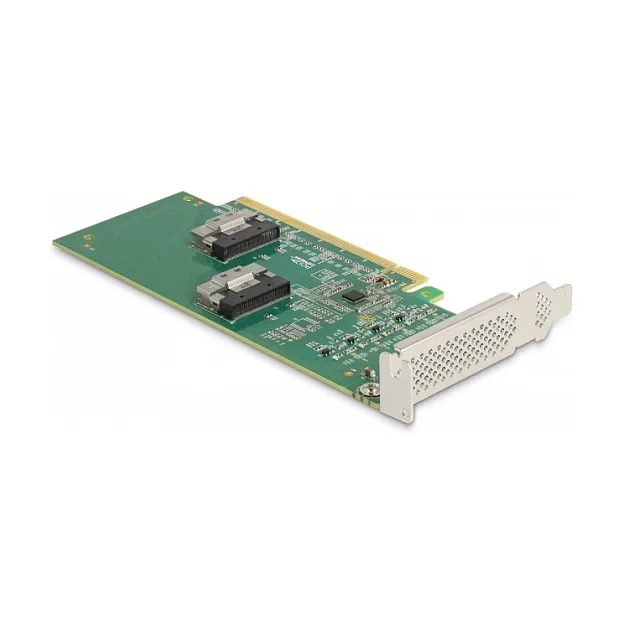

DeLOCK PCI Express 4.0 x16 Card to 4 x SFF-8639 NVMe – Bifurcation – Low Profile Form Factor. Host interface: PCIe, Output interface: U.2. Data transfer rate (max): 64 Gbit/s. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1, Server operating systems supported: Windows Server 2016. Package type: Box
This PCI Express card by Delock expands the PC by four SFF-8639 interfaces. SSDs with e.g. U.2 interface can be connected to these ports.
PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.
Note
Without PCIe bifurcation only the first SFF-8639 port of the card can be used.
Ports & interfaces
Host interface: PCIe
Output interface: U.2
Feature: NVMe
Design
Feature: Internal
LED indicators: Yes
Features
Data transfer rate (max): 64 Gbit/s
Feature: S.M.A.R.T. support
Feature: TRIM support
Operational conditions
Operating temperature (T-T): 5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 15 – 90%
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016
Packaging data
Feature: Manual
Package type: Box
Host interface: PCIe
Output interface: U.2
Feature: NVMe
Design
Feature: Internal
LED indicators: Yes
Features
Data transfer rate (max): 64 Gbit/s
Feature: S.M.A.R.T. support
Feature: TRIM support
Operational conditions
Operating temperature (T-T): 5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 15 – 90%
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016
Packaging data
Feature: Manual
Package type: Box
