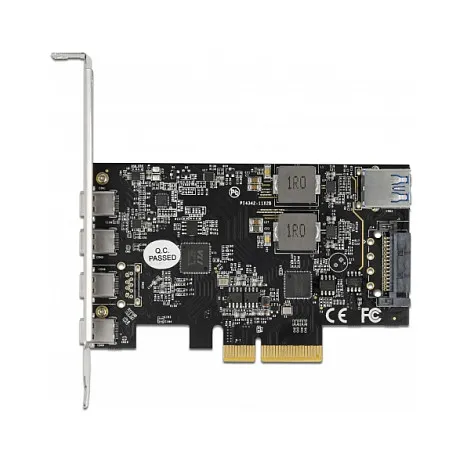

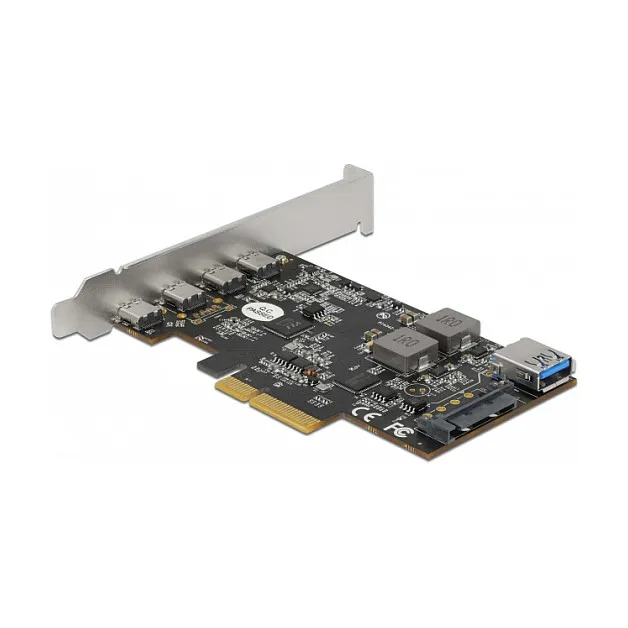

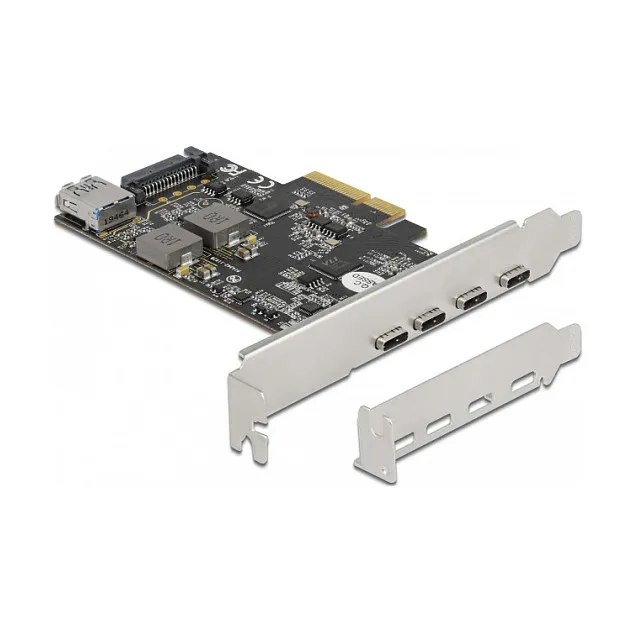

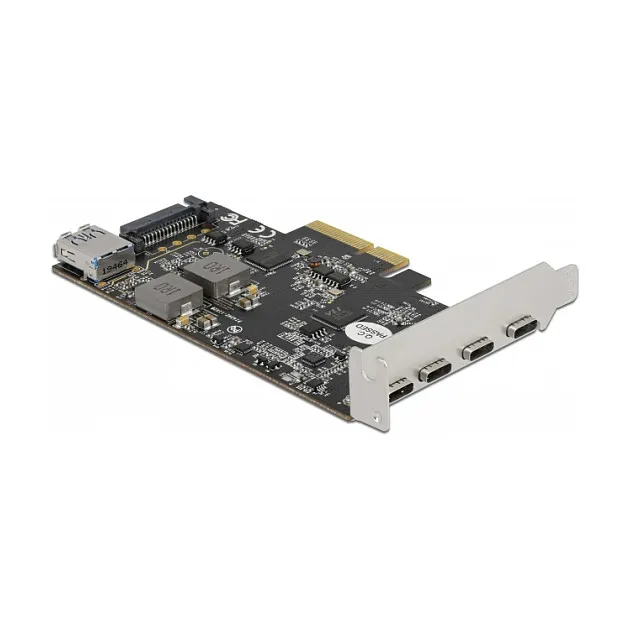

DeLOCK PCI Express x4 Card to 4 x USB Type-C + 1 x USB Type-A – SuperSpeed USB 10 Gbps – Low Profile Form Factor. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Low-profile. Data transfer rate (max): 10 Gbit/s
This PCI Express card by Delock expands the PC by five USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Sufficient ports – 4 x USB Type-C™ and 1 x USB Type-A
The PCIe card offers four external USB-C™ ports as well as one internal USB Type-A port. Thus devices can be connected with 10 Gbps at each port.
Ports & interfaces
Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
SATA power connector type: SATA 15-pin
Design
Feature: Internal
Features
Data transfer rate (max): 10 Gbit/s
Feature: UASP support
Operational conditions
Operating temperature (T-T): 5 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Logistics data
Harmonized System (HS) code: 84733020
Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
SATA power connector type: SATA 15-pin
Design
Feature: Internal
Features
Data transfer rate (max): 10 Gbit/s
Feature: UASP support
Operational conditions
Operating temperature (T-T): 5 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Logistics data
Harmonized System (HS) code: 84733020
