DeLOCK PCI Express x1 Card to 1 x Serial RS-232. Host interface: PCIe, Output interface: RS-232, Expansion card standard: PCIe 2.0. FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, Stop bits: 1, 1.5, 2. Windows operating systems supported: Windows 10, Windows 8.1. Width: 45 mm, Depth: 64 mm. Package type: Box

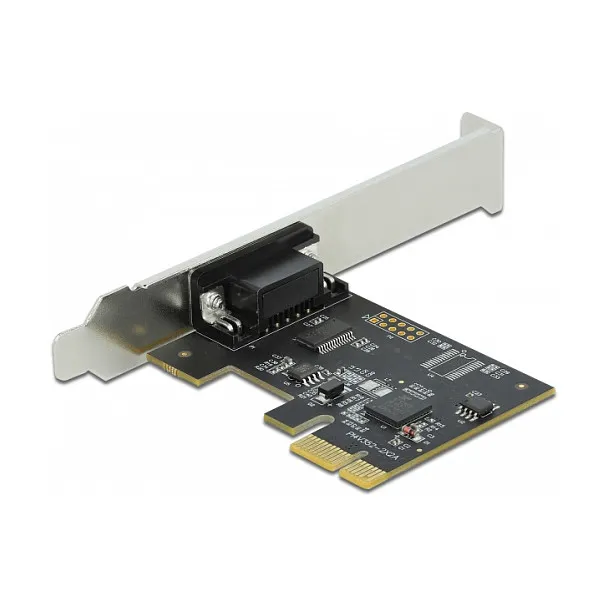

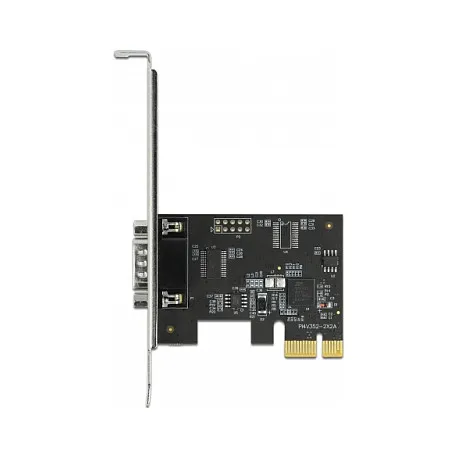

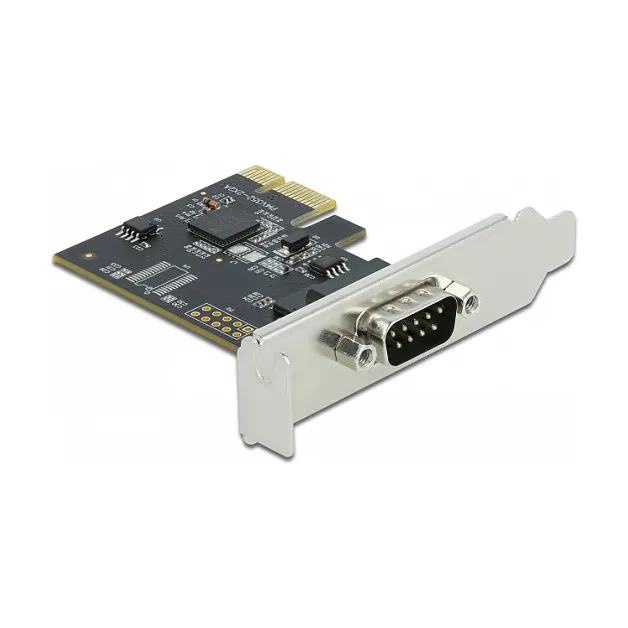

The Delock PCI Express card expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Ports & interfaces
Host interface: PCIe
Output interface: RS-232
Expansion card standard: PCIe 2.0
Serial ports quantity: 1
Serial interface type: RS-232
Design
Feature: Internal
Features
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Full duplex
Feature: Flow control support
Parity bit: Even, Mark, Odd, Space
Flow Control type: RTS/CTS, XON/XOFF
Feature: Bidirectional
System requirements
Windows operating systems supported: Windows 10, Windows 8.1
Weight & dimensions
Width: 45 mm
Depth: 64 mm
Packaging data
Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: User guide
Package type: Box
Host interface: PCIe
Output interface: RS-232
Expansion card standard: PCIe 2.0
Serial ports quantity: 1
Serial interface type: RS-232
Design
Feature: Internal
Features
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Full duplex
Feature: Flow control support
Parity bit: Even, Mark, Odd, Space
Flow Control type: RTS/CTS, XON/XOFF
Feature: Bidirectional
System requirements
Windows operating systems supported: Windows 10, Windows 8.1
Weight & dimensions
Width: 45 mm
Depth: 64 mm
Packaging data
Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: User guide
Package type: Box
