DeLOCK 89948. Host interface: PCIe, Output interface: RS-232. Product colour: Green, Country of origin: China. Chipset: ASIX AX99100, FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, 9. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 60 mm, Depth: 64 mm, Height: 16 mm

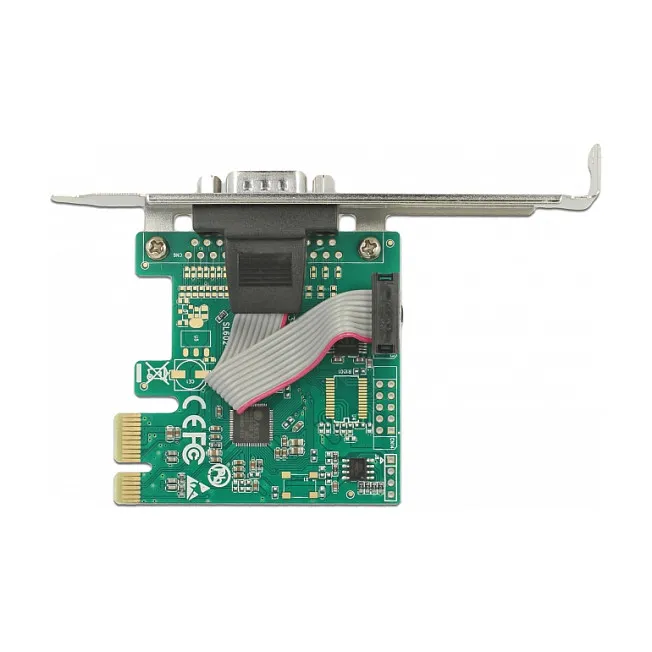

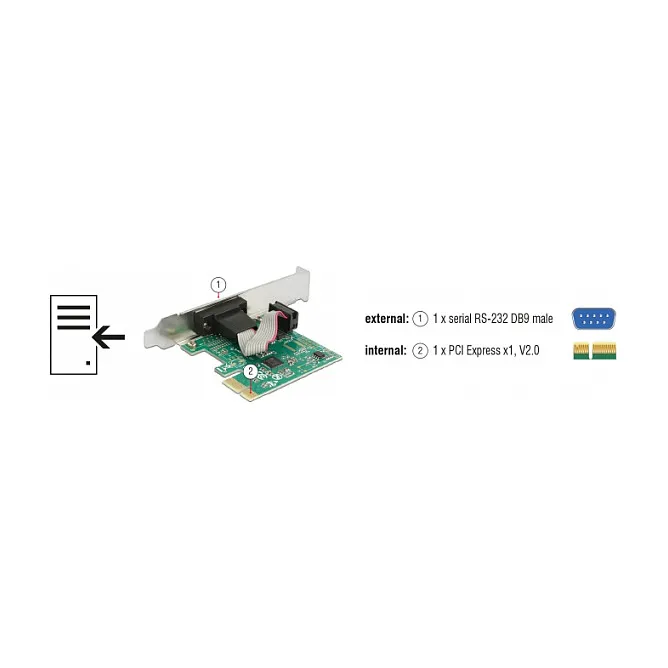

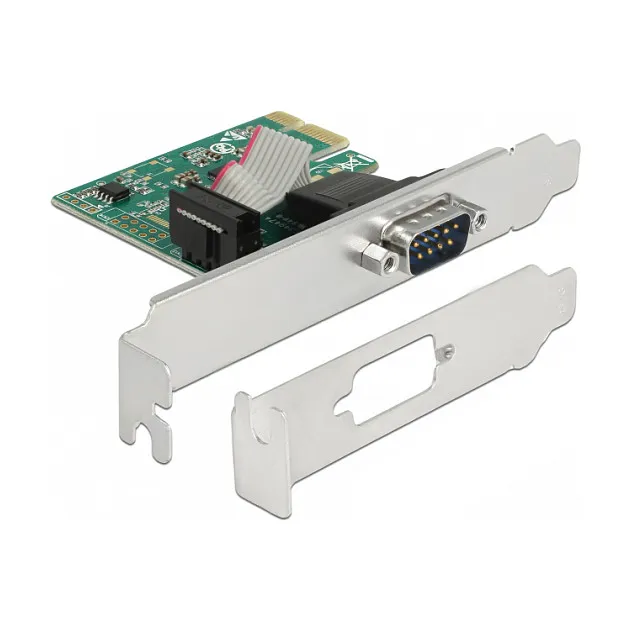

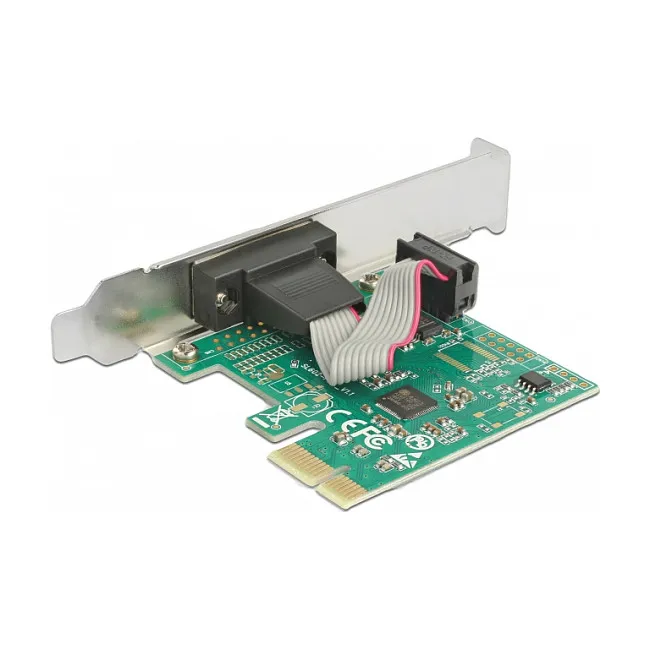

The PCI Express card by Delock expands a PC by one external serial RS-232 port. Devices such as scanners, protocol converters, POS systems, infrared -, IoT – devices etc. and different modes can be used. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Ports & interfaces
Host interface: PCIe
Output interface: RS-232
Design
Feature: Internal
Product colour: Green
Country of origin: China
Features
Chipset: ASIX AX99100
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Operating relative humidity (H-H): 10 – 90%
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Weight & dimensions
Width: 60 mm
Depth: 64 mm
Height: 16 mm
Packaging data
Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Host interface: PCIe
Output interface: RS-232
Design
Feature: Internal
Product colour: Green
Country of origin: China
Features
Chipset: ASIX AX99100
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Operating relative humidity (H-H): 10 – 90%
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Weight & dimensions
Width: 60 mm
Depth: 64 mm
Height: 16 mm
Packaging data
Quantity: 1
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
