DeLOCK PCI Express x1 Card to 4 x Serial RS-232 with voltage supply 5 V / 12 V. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, Stop bits: 1, 1.5, 2

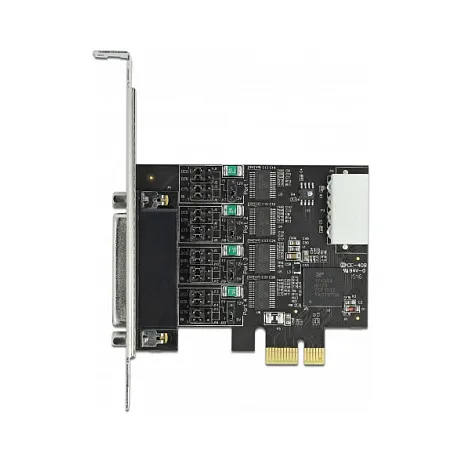

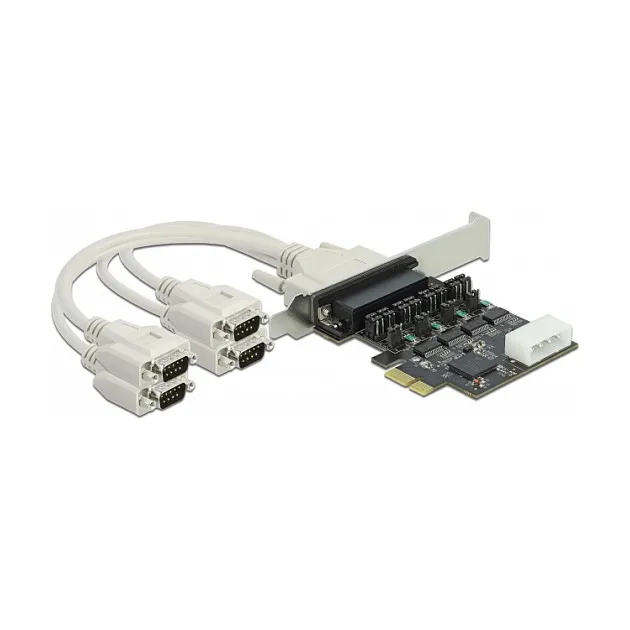

The PCI Express card by Delock expands a PC by four external serial ports.
Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).
Low Profile Form Factor

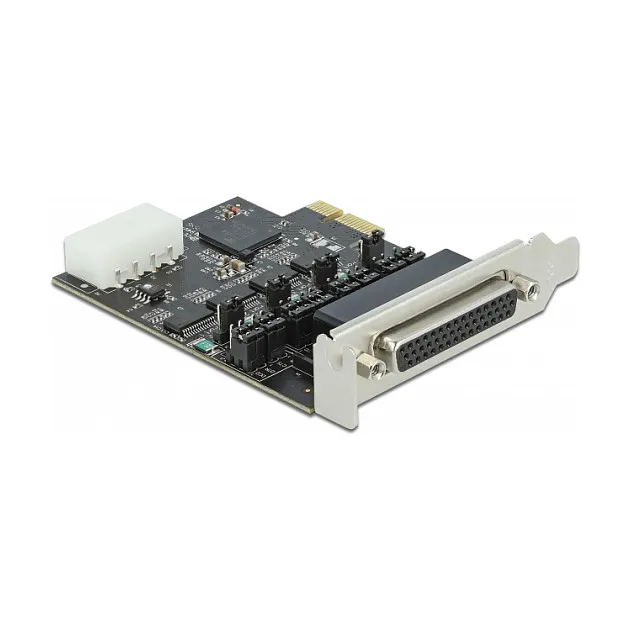

By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Ports & interfaces
Host interface: PCIe
Output interface: Serial
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
Serial interface type: RS-232
Features
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Packaging data
Feature: Drivers included
Feature: Manual
Logistics data
Harmonized System (HS) code: 84733020
Host interface: PCIe
Output interface: Serial
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
Serial interface type: RS-232
Features
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Packaging data
Feature: Drivers included
Feature: Manual
Logistics data
Harmonized System (HS) code: 84733020
