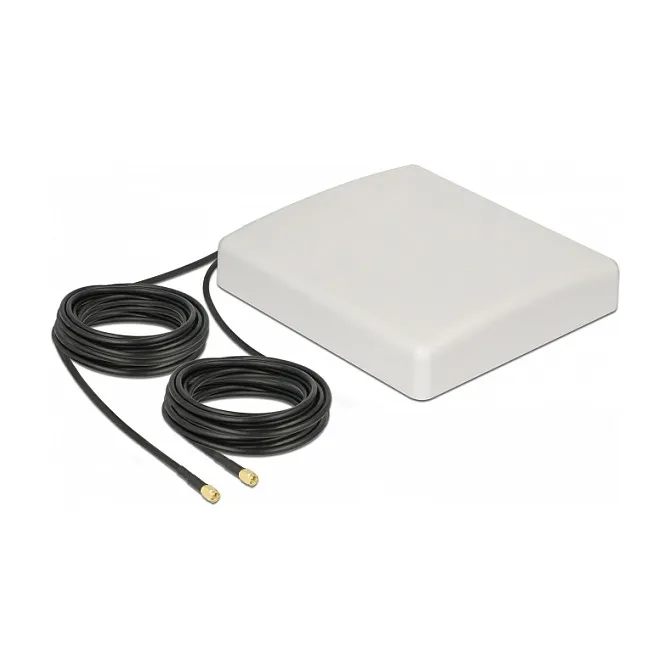

DeLOCK 89891. Antenna gain level (max): 8 dBi, Frequency band: 0.698 -0.96/1.71 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: SMA, Product colour: White. Width: 229 mm, Depth: 237 mm, Height: 50 mm
This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth and LoRa 868 MHz / 915 MHz.
Performance
Frequency band: 0.698 -0.96/1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 8 dBi
Features
Antenna type: Directional antenna
Antenna connector type: SMA
Voltage Standing Wave Ratio (VSWR): 2
Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 10 m
Cable type: RG-58
Mounting: Wall/Pole
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 65 °C
Weight & dimensions
Width: 229 mm
Depth: 237 mm
Height: 50 mm
Weight: 700 g
Logistics data
Harmonized System (HS) code: 85177100
