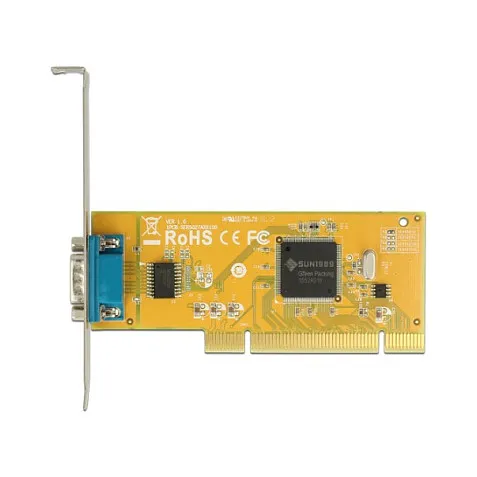

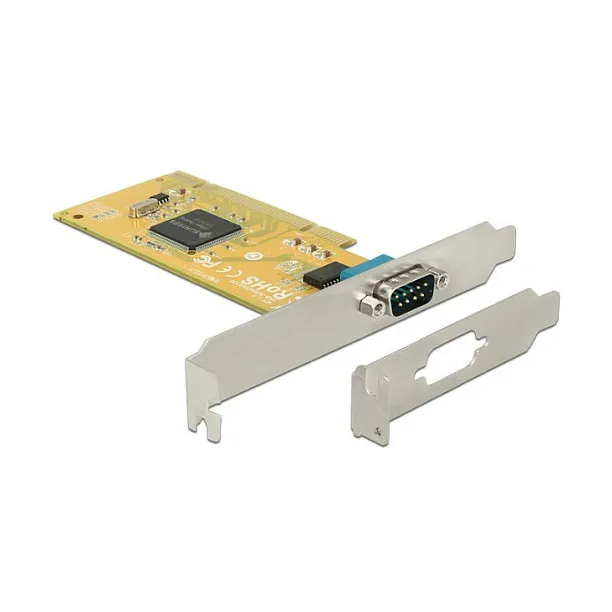

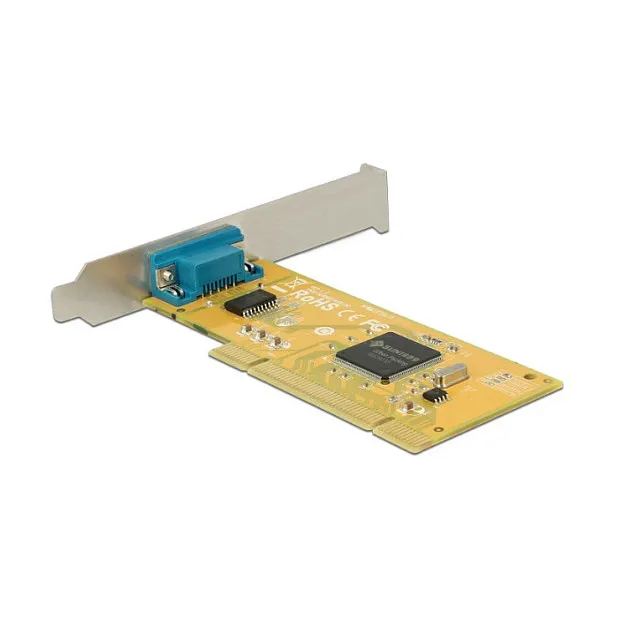

DeLOCK 89592. Host interface: PCI, Output interface: RS-232, Expansion card standard: PCI 3.0. Product colour: Silver, Purpose: PC. Chipset: Sunix1989, Data transfer rate (max): 0.001152 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 51 mm, Depth: 120 mm, Height: 6.6 mm
– Connectors: external: 1 x serial RS-232 DB9 male, internal: 1 x 32-Bit PCI standard 3.0.
– Chipset: SUN1989.
– Compliance with PCI 33 MHz Ver. 3.0/2.3/2.2./2.1 specification.
– Supports both 64-bit & 32-bit PCI bus slots and 3.3 V & 5 V power.
– Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI.
– ±2 kV ESD protection for all serial signals.
– Data transfer rate up to 115.2 Kb/s.
– FIFO: 128 byte.
– Compatible with 16C950 UART.
– Operating temperature: 0 °C ~ 60 °C.
– Humidity: 5 ~ 95 %.
Host interface: PCI
Output interface: RS-232
Expansion card standard: PCI 3.0
Serial ports quantity: 1
Serial interface type: RS-232
Design
Feature: Internal
Product colour: Silver
Purpose: PC
Features
Chipset: Sunix1989
Data transfer rate (max): 0.001152 Gbit/s
FIFO (First In, First Out): 128 B
Power
Feature: Low power mode
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Operating relative humidity (H-H): 5 – 95%
System requirements
Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Weight & dimensions
Width: 51 mm
Depth: 120 mm
Height: 6.6 mm
Packaging data
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Other features
Feature: RS-232 interface
