DeLOCK 89569. Antenna gain level (max): 5 dBi, Frequency band: 2.4 – 2.5 / 5.15 – 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11h, IEEE 802.11n. Antenna type: Sector antenna, Antenna connector type: MHF, Cable length: 0.15 m. Width: 13.5 mm, Depth: 38.2 mm, Height: 1.6 mm. Package type: Polybag

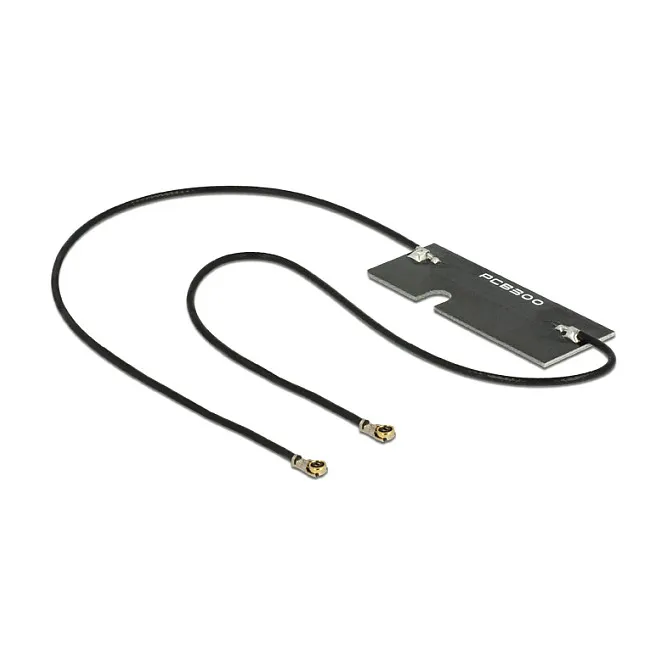

This WLAN twin antenna by Delock is designed to integrate into devices with two MHF IV /HSC MXHP32 compatible connectors. These are two separate antennas with common ground. One is responsible for 2 GHz and the other is responsible for 5 GHz.
Performance
Frequency band: 2.4 – 2.5 / 5.15 – 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Sector antenna
Antenna connector type: MHF
Voltage Standing Wave Ratio (VSWR): 2
Cable length: 0.15 m
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Weight & dimensions
Width: 13.5 mm
Depth: 38.2 mm
Height: 1.6 mm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 2.4 – 2.5 / 5.15 – 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Sector antenna
Antenna connector type: MHF
Voltage Standing Wave Ratio (VSWR): 2
Cable length: 0.15 m
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Weight & dimensions
Width: 13.5 mm
Depth: 38.2 mm
Height: 1.6 mm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 85177100
