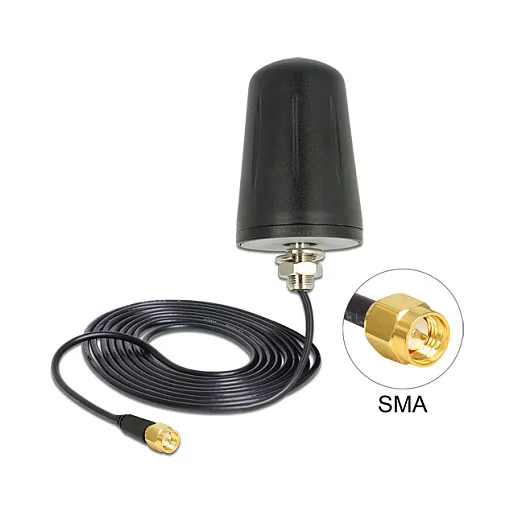

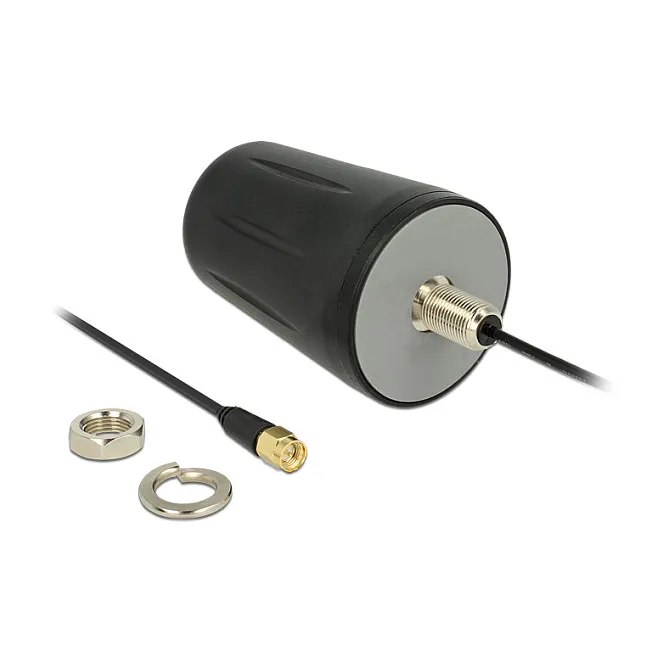

DeLOCK 89533. Frequency band: 0.868 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 53.5 mm, Depth: 53.5 mm, Height: 75 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This antenna by Delock allows the usage of the 868 MHz frequency range indoors and outdoors. It is compatible to ZigBee 868 MHz and Z-Wave 868 MHz.
Performance
Frequency band: 0.868 GHz
Impedance: 50 Ω
Antenna gain level (max): 0 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Power handling: 10 W
Cable length: 3 m
Cable type: RG-174
Purpose: Outdoor
Maximum cable loss with connectors: 1 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 53.5 mm
Depth: 53.5 mm
Height: 75 mm
Diameter: 5.35 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Frequency band: 0.868 GHz
Impedance: 50 Ω
Antenna gain level (max): 0 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Power handling: 10 W
Cable length: 3 m
Cable type: RG-174
Purpose: Outdoor
Maximum cable loss with connectors: 1 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 53.5 mm
Depth: 53.5 mm
Height: 75 mm
Diameter: 5.35 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
