DeLOCK 89525. Antenna gain level (max): 3 dBi, Frequency band: 0.69 – 0.96 / 1.71 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: MMCX, Polarization: Vertical polarization. Width: 22 mm, Depth: 115 mm, Height: 5 mm. Package type: Polybag. Quantity per pack: 1 pc(s)

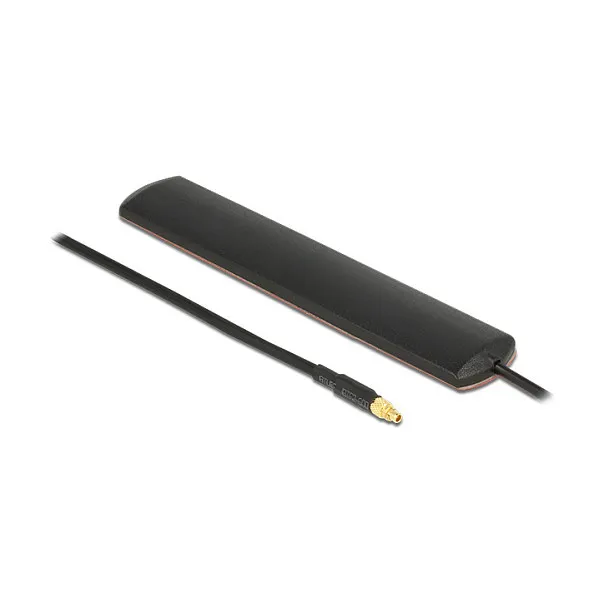

This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS , Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible .
Performance
Frequency band: 0.69 – 0.96 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna

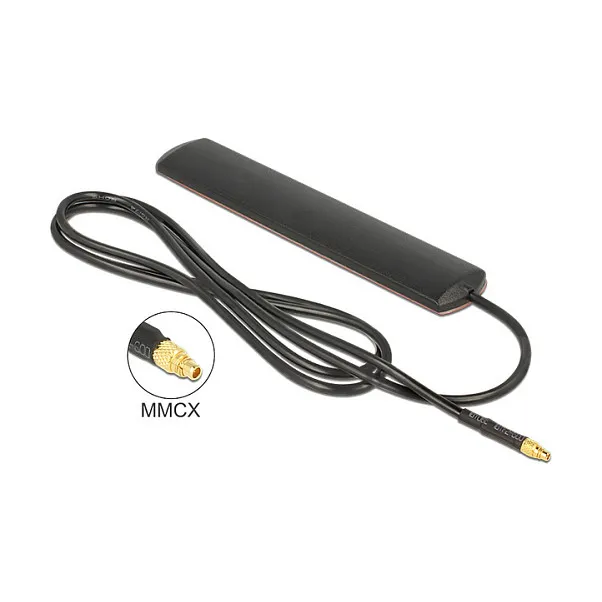

Antenna connector type: MMCX
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 3 m
Cable type: RG-174
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 22 mm
Depth: 115 mm
Height: 5 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Frequency band: 0.69 – 0.96 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: MMCX
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 3 m
Cable type: RG-174
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 22 mm
Depth: 115 mm
Height: 5 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
