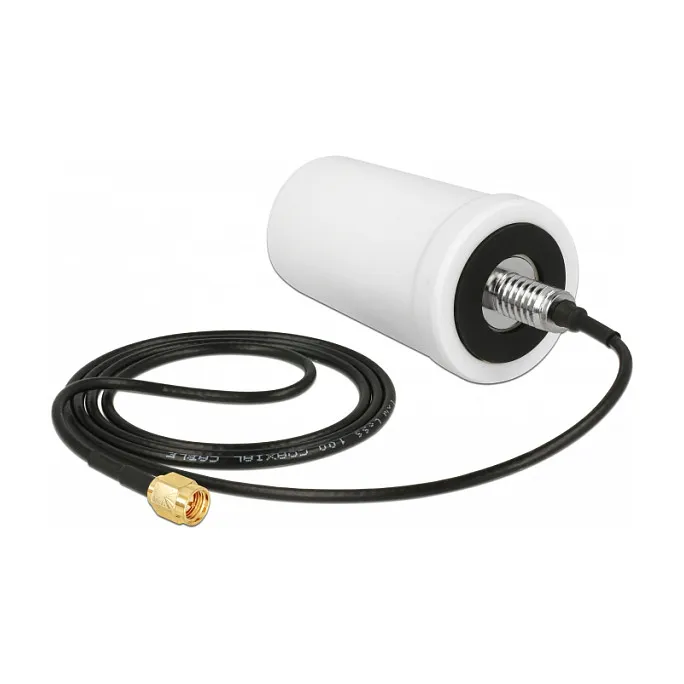

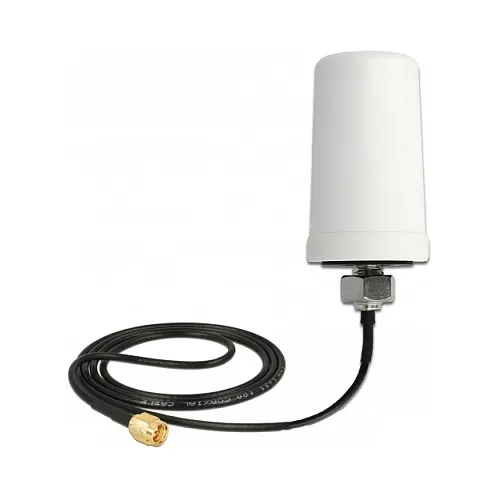

DeLOCK WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 – 3.0 dBi omnidirectional with connection cable ULA100 1 m white outdoor. Antenna gain level (max): 3 dBi, Frequency band: 2.4 – 2.5, 4.9 – 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h. Antenna connector type: SMA, Polarization: Linear polarization, Voltage Standing Wave Ratio (VSWR): 2 – 2.5
This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.
Performance
Frequency band: 2.4 – 2.5, 4.9 – 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna connector type: SMA
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2 – 2.5
International Protection (IP) code: IP67
Cable length: 1 m
Cable type: ULA 100
Purpose: Indoor & outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Frequency band: 2.4 – 2.5, 4.9 – 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna connector type: SMA
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2 – 2.5
International Protection (IP) code: IP67
Cable length: 1 m
Cable type: ULA 100
Purpose: Indoor & outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
