DeLOCK PCI Express x4 Card to 4 x external USB 3.0 Quad Channel – Low Profile Form Factor. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Low-profile. Data transfer rate (max): 5 Gbit/s. Server operating systems supported: Windows Server 2016. Package type: Box

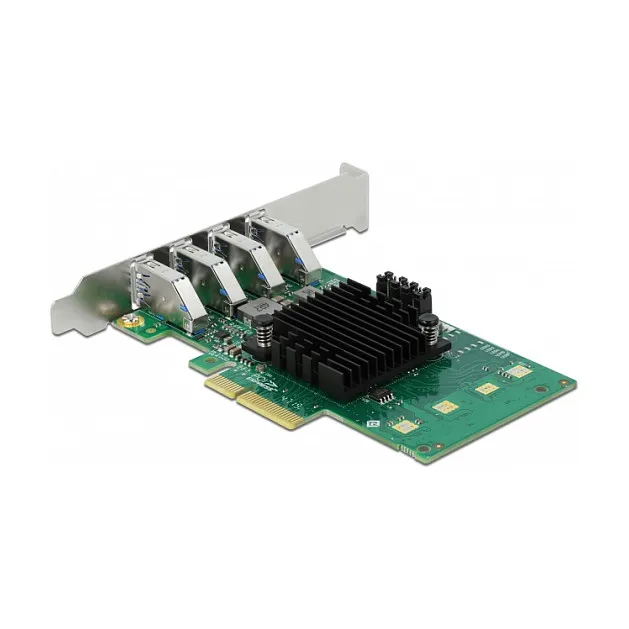

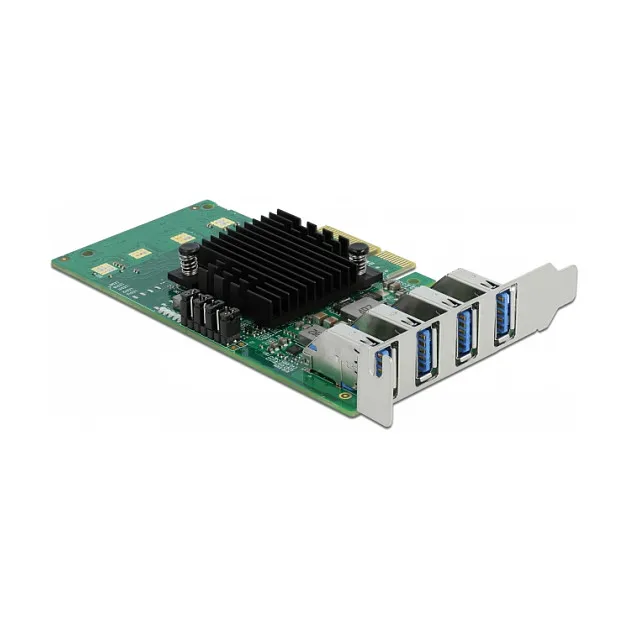

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.
No additional power supply
Due to the on-board 5 V DC power supply control, the PCIe card does not require any additional power supply.

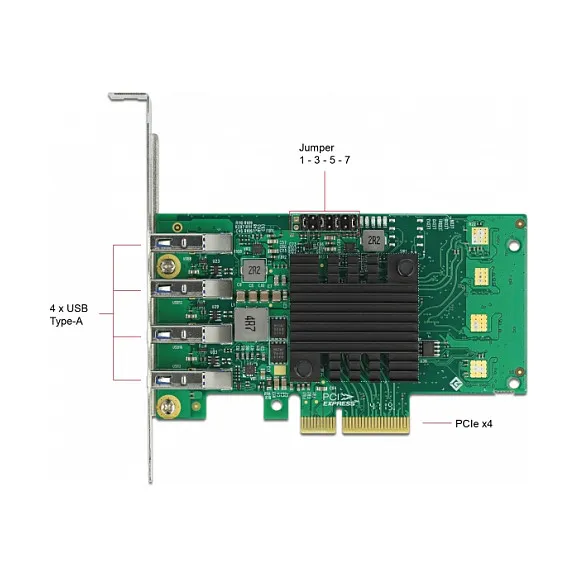

With the help of the four jumpers, the current can be limited to 900 mA or 1.5 A on each USB port.
Ports & interfaces
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)

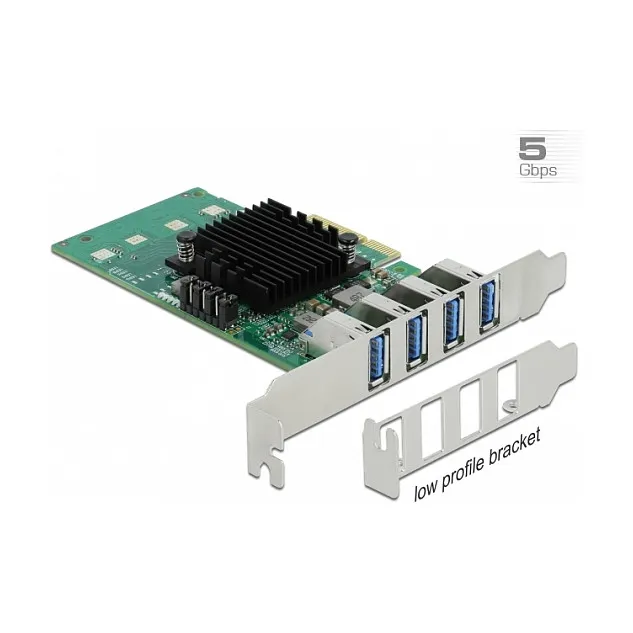

Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Design
Feature: Internal
LED indicators: Yes
Features
Data transfer rate (max): 5 Gbit/s
Operational conditions
Operating temperature (T-T): 0 – 60 °C
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016
Packaging data
Quantity: 1
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Design
Feature: Internal
LED indicators: Yes
Features
Data transfer rate (max): 5 Gbit/s
Operational conditions
Operating temperature (T-T): 0 – 60 °C
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016
Packaging data
Quantity: 1
Feature: Manual
Package type: Box
Logistics data
Harmonized System (HS) code: 84733020
