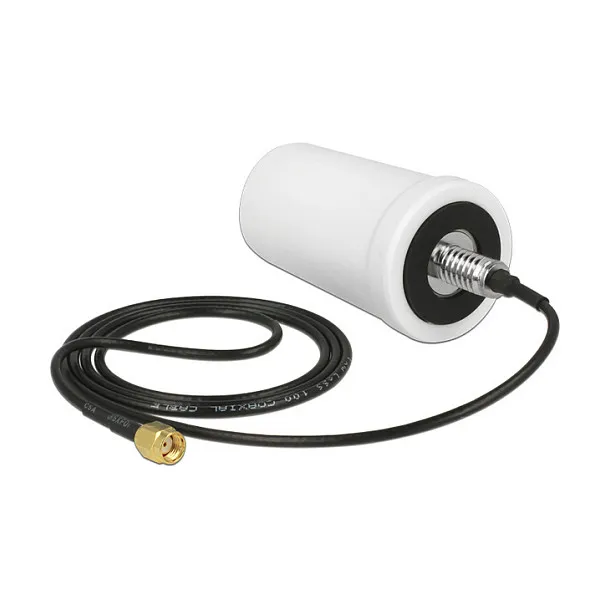

DeLOCK 88985. Antenna gain level (max): 3 dBi, Frequency band: 2.4 – 2.5 / 4.9 – 5.875 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Voltage Standing Wave Ratio (VSWR): 2.5:1. Height: 77 mm, Diameter: 4.5 cm
This wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.
Performance
Frequency band: 2.4 – 2.5 / 4.9 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Voltage Standing Wave Ratio (VSWR): 2.5:1
Product colour: Black, White
Cable length: 1 m
Cable type: ULA100
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Weight & dimensions
Height: 77 mm
Diameter: 4.5 cm
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 2.4 – 2.5 / 4.9 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Voltage Standing Wave Ratio (VSWR): 2.5:1
Product colour: Black, White
Cable length: 1 m
Cable type: ULA100
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Weight & dimensions
Height: 77 mm
Diameter: 4.5 cm
Logistics data
Harmonized System (HS) code: 85177100
