DeLOCK 88931. Antenna gain level (max): 7 dBi, Impedance: 50 Ω, Horizontal beam width: 75°. Antenna type: Directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 237.5 mm, Depth: 229.5 mm, Height: 50 mm. Quantity per pack: 1 pc(s)

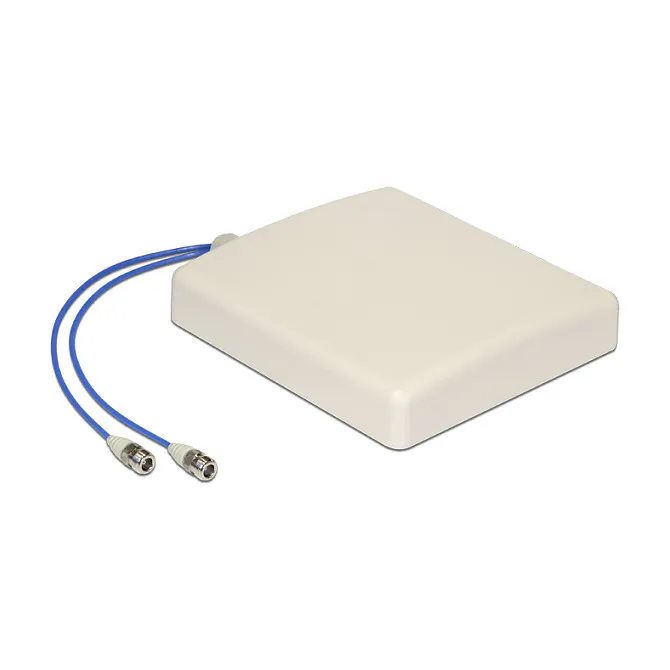

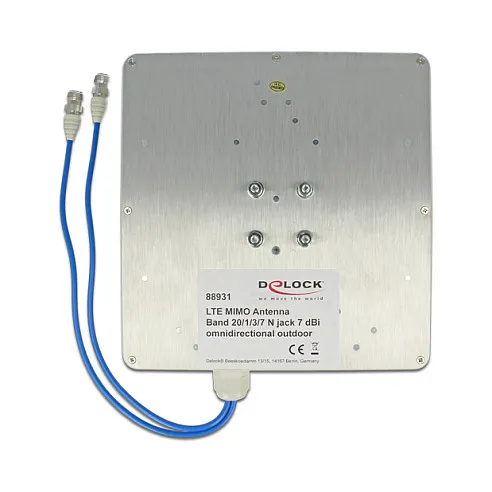

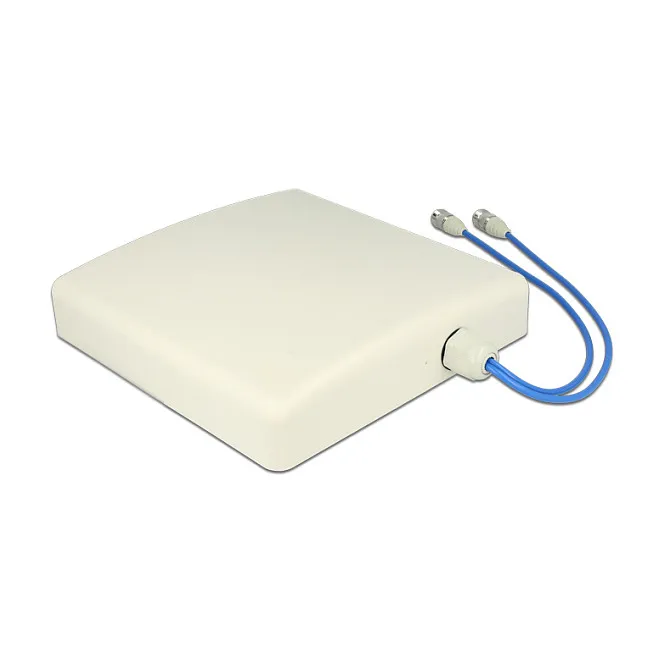

This LTE MIMO antenna can be installed indoors or outdoors and take advantage accordingly bands for LTE. She is completely compatible to UMTS, GSM, Bluetooth and WLAN 2.4 GHz.
Performance
Impedance: 50 Ω
Horizontal beam width: 75°
Vertical beam width: 65°
Antenna gain level (max): 7 dBi
Features
Antenna type: Directional antenna
Antenna connector type: N-type
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: White
Cable length: 0.3 m

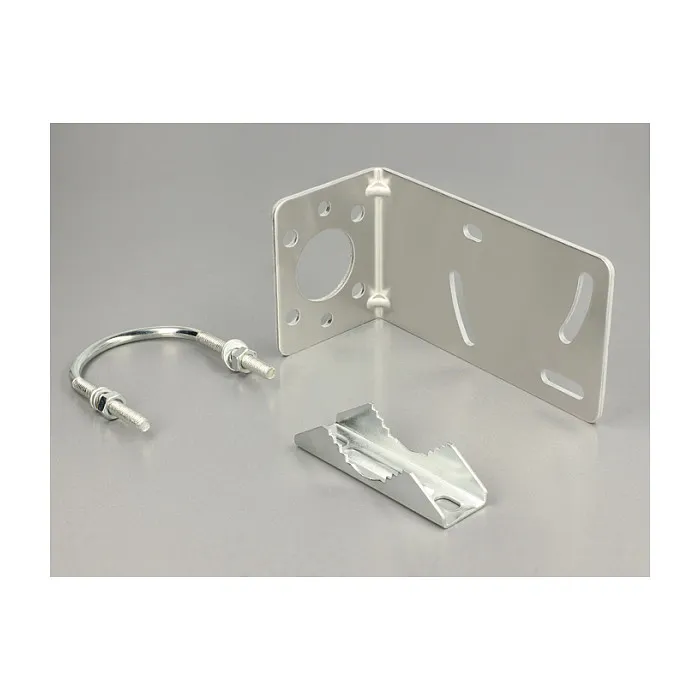

Mounting: Wall
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 237.5 mm
Depth: 229.5 mm
Height: 50 mm
Weight: 900 g
Packaging content
Quantity per pack: 1 pc(s)
Impedance: 50 Ω
Horizontal beam width: 75°
Vertical beam width: 65°
Antenna gain level (max): 7 dBi
Features
Antenna type: Directional antenna
Antenna connector type: N-type
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: White
Cable length: 0.3 m
Mounting: Wall
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 237.5 mm
Depth: 229.5 mm
Height: 50 mm
Weight: 900 g
Packaging content
Quantity per pack: 1 pc(s)
