DeLOCK 88899. Antenna gain level (max): 7 dBi, Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Product colour: Black. Width: 18.4 mm, Depth: 18.4 mm, Height: 231 mm. Quantity per pack: 1 pc(s)
This Wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.
Performance
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Antenna gain level (max): 7 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA

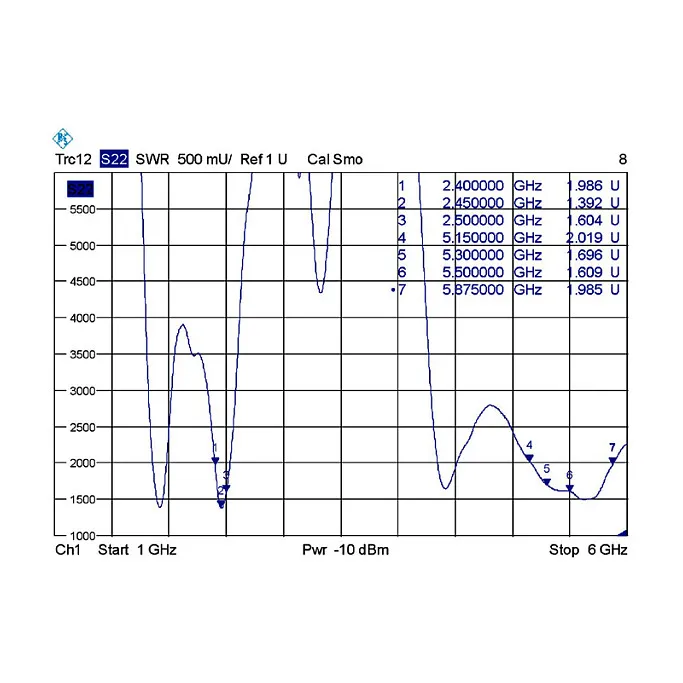

Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Weight & dimensions
Width: 18.4 mm
Depth: 18.4 mm
Height: 231 mm
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Antenna gain level (max): 7 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Weight & dimensions
Width: 18.4 mm
Depth: 18.4 mm
Height: 231 mm
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
