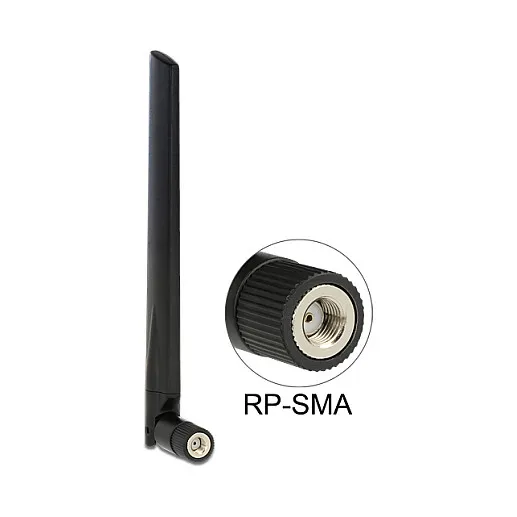

DeLOCK 88898. Antenna gain level (max): 5 dBi, Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Product colour: Black. Width: 21.6 mm, Depth: 21.6 mm, Height: 182 mm
This Wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.
Performance
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA

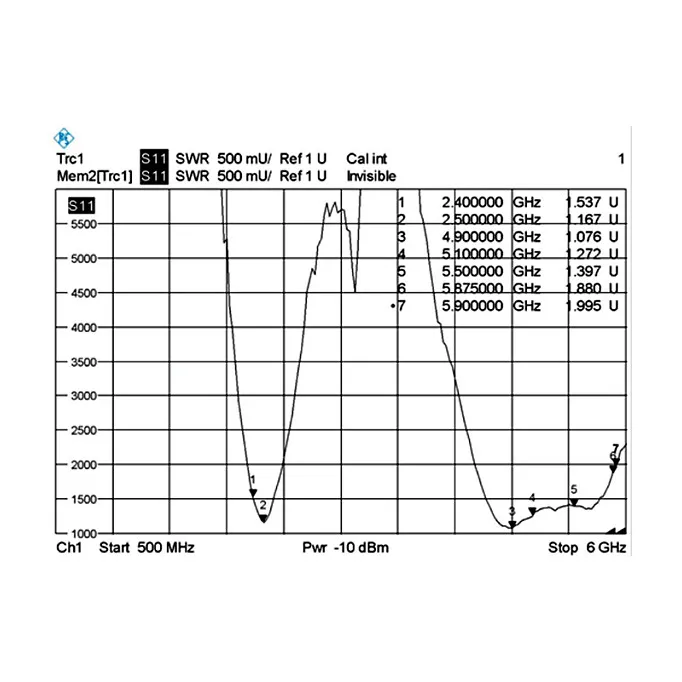

Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Operational conditions
Operating temperature (T-T): -10 – 55 °C

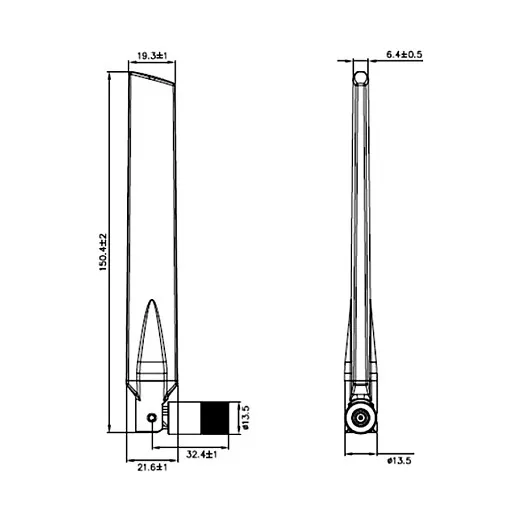

Weight & dimensions
Width: 21.6 mm
Depth: 21.6 mm
Height: 182 mm
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 21.6 mm
Depth: 21.6 mm
Height: 182 mm
Logistics data
Harmonized System (HS) code: 85177100
