DeLOCK 88821. Antenna gain level (max): 8 dBi, Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 22.5 mm, Depth: 22.5 mm, Height: 280 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This WiFi / WLAN antenna is used for transmitting and receiving WiFi signals in accordance with IEEE 802.11 ac/a/h/b/g/n.
Performance
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω

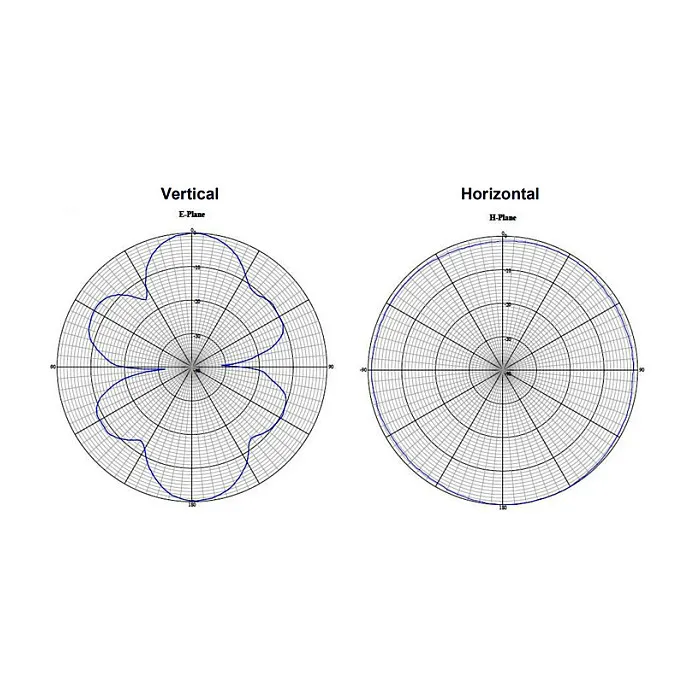

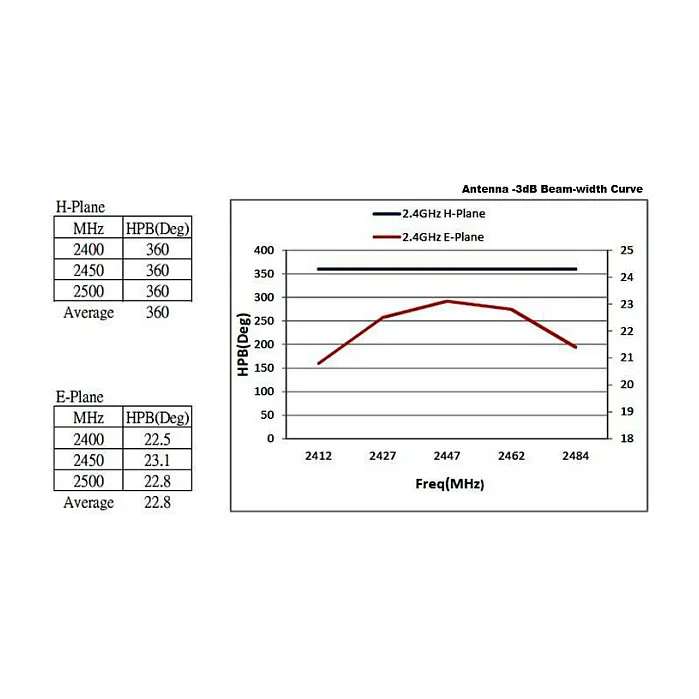

Horizontal beam width: 360°

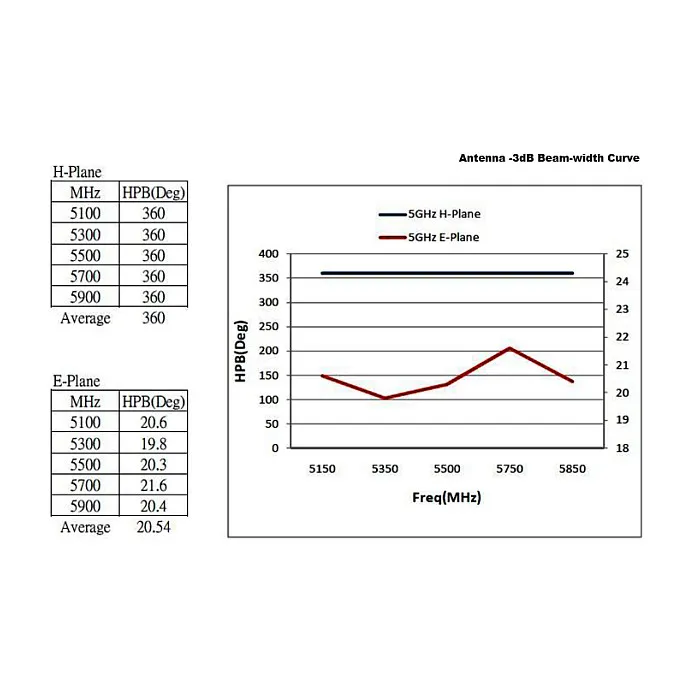

Vertical beam width: 23°

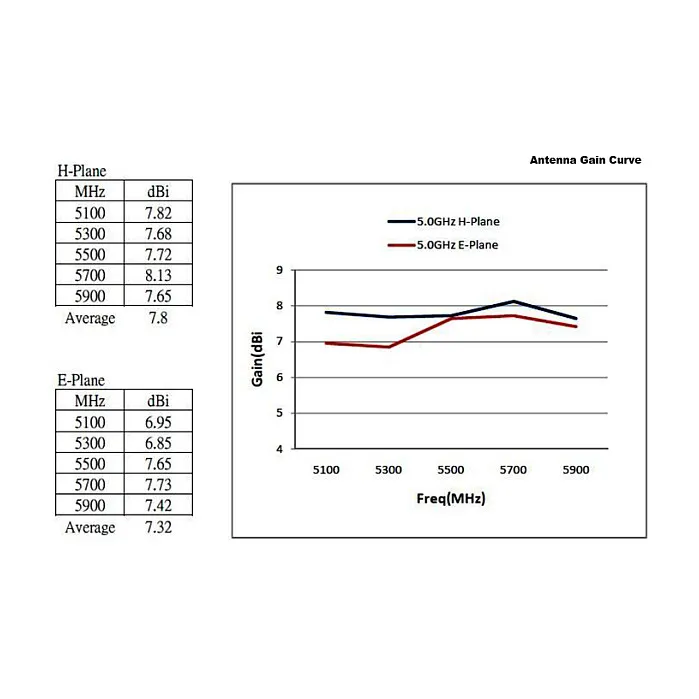

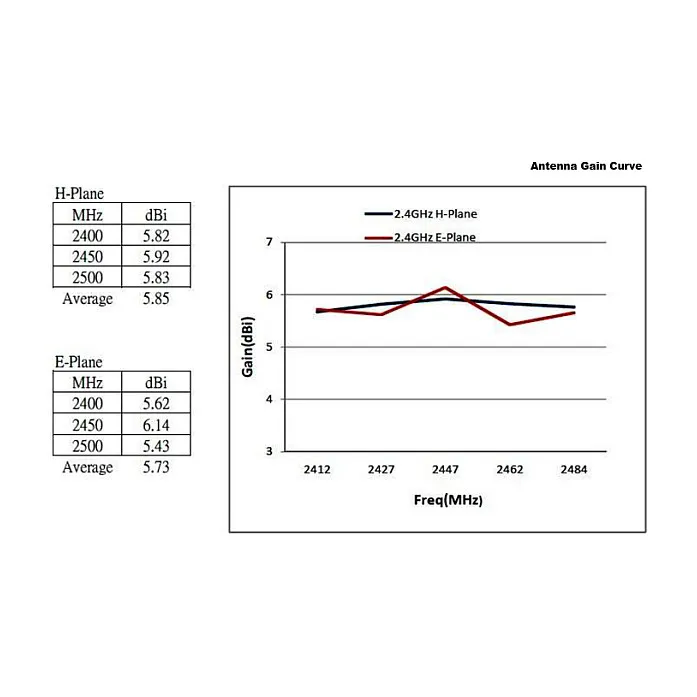

Antenna gain level (max): 8 dBi
Features
Antenna type: Omni-directional antenna

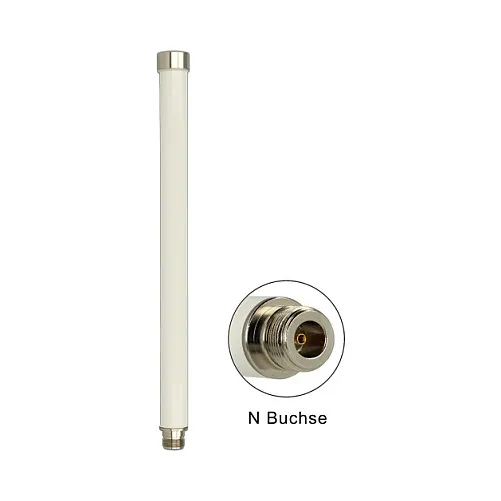

Antenna connector type: N-type
Polarization: Vertical polarization

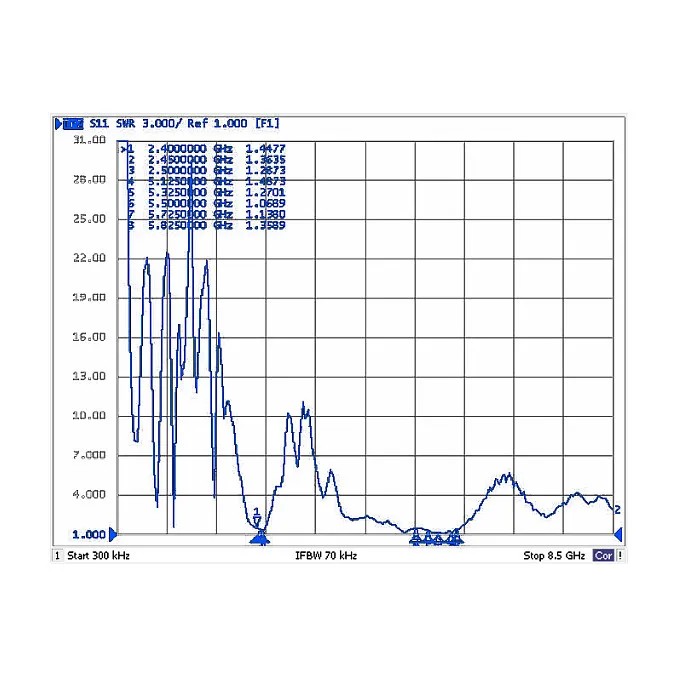

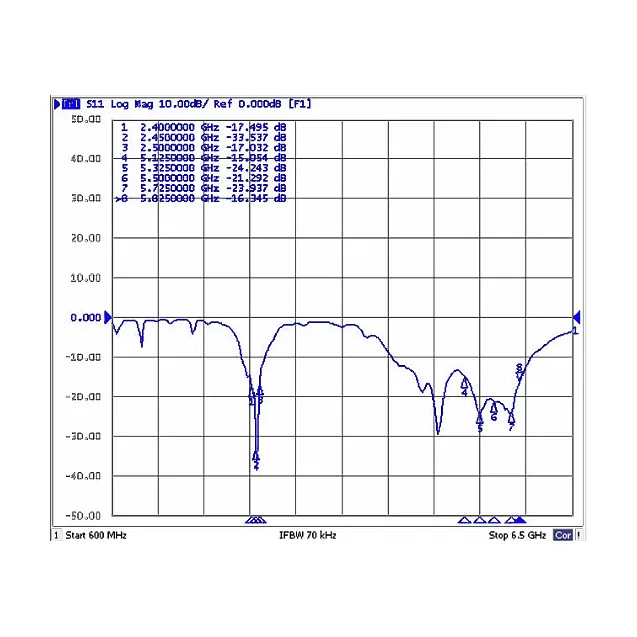

Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Metallic, White
Housing material: Glass fibre
Power handling: 100 W
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions

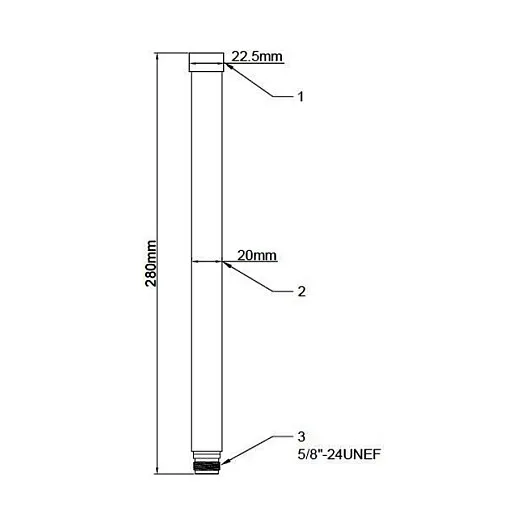

Width: 22.5 mm
Depth: 22.5 mm
Height: 280 mm
Weight: 120 g
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Frequency band: 2.4 – 2.4835 / 5.15 – 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 23°
Antenna gain level (max): 8 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: N-type
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Metallic, White
Housing material: Glass fibre
Power handling: 100 W
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions
Width: 22.5 mm
Depth: 22.5 mm
Height: 280 mm
Weight: 120 g
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
