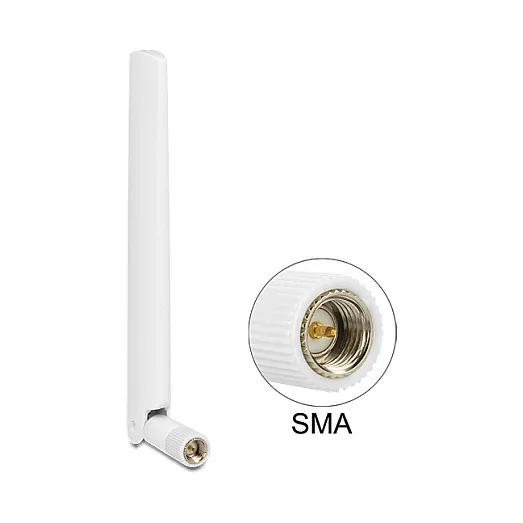

DeLOCK 88790. Antenna gain level (max): 2.5 dBi, Frequency band: 0.79 – 0.87 / 1.71 – 1.88 / 2.50 – 2.69 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Vertical polarization. Width: 10 mm, Depth: 10 mm, Height: 137.1 mm
This GSM/UMTS/LTE antenna can be connected to a GSM/UMTS/LTE device with SMA interface, in order to receive and send signals.
Performance
Frequency band: 0.79 – 0.87 / 1.71 – 1.88 / 2.50 – 2.69 GHz
Impedance: 50 Ω
Antenna gain level (max): 2.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3.0
Product colour: White
Compatible products: 790 ~ 870MHz, 1710 ~ 1880 MHz, 2500 ~ 2690 MHz
Weight & dimensions
Width: 10 mm
Depth: 10 mm
Height: 137.1 mm
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.79 – 0.87 / 1.71 – 1.88 / 2.50 – 2.69 GHz
Impedance: 50 Ω
Antenna gain level (max): 2.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3.0
Product colour: White
Compatible products: 790 ~ 870MHz, 1710 ~ 1880 MHz, 2500 ~ 2690 MHz
Weight & dimensions
Width: 10 mm
Depth: 10 mm
Height: 137.1 mm
Logistics data
Harmonized System (HS) code: 85177100
